Replacing the feed module
and feed module tires
A-61550 February 2010
1. Push up on the scanner cover release latch and open the scanner
cover.

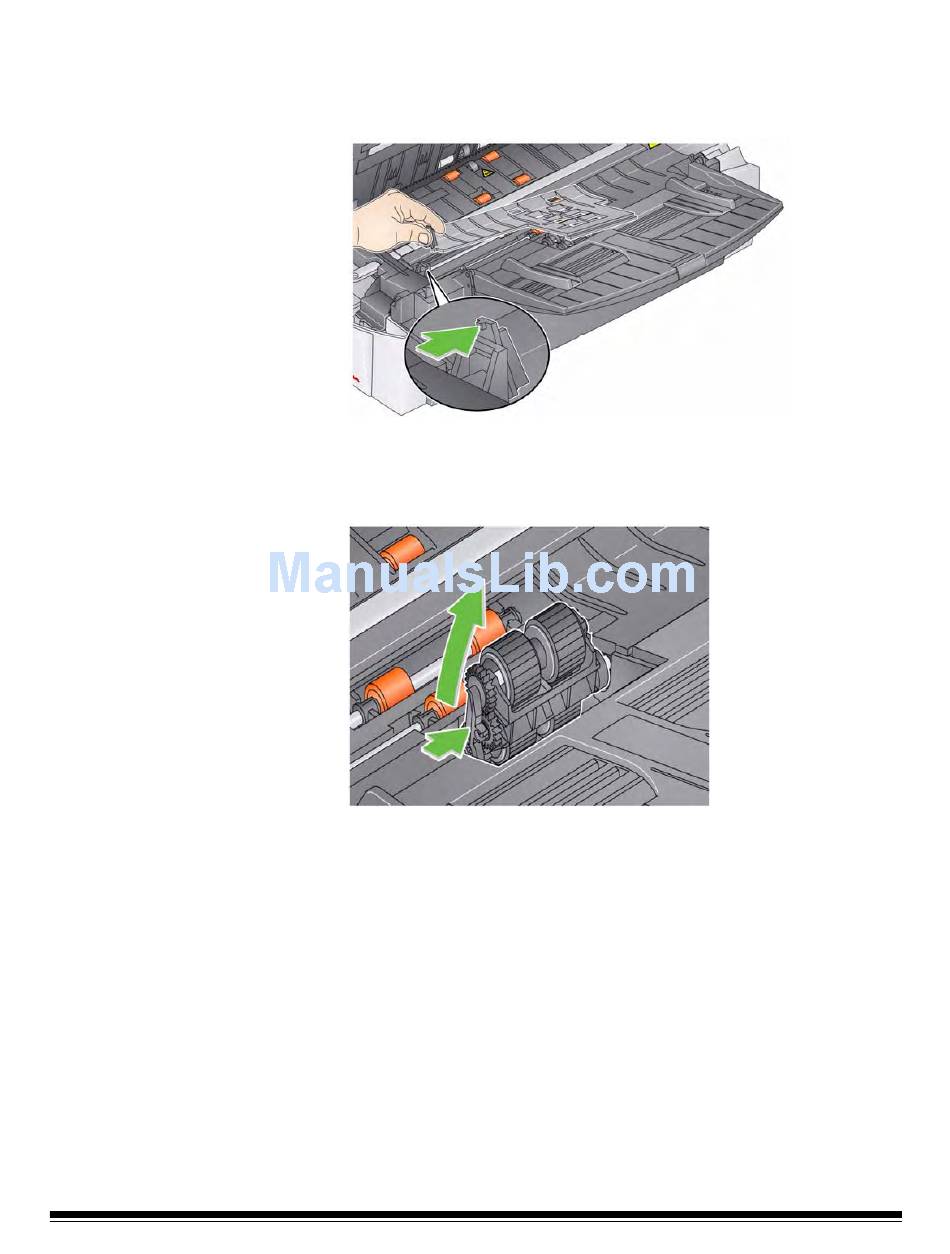

2. Push against the raised edge on the left side of the front drive roller
cover to the side and pull the cover up and out to remove it.
NOTE: You may need to lift the input tray slightly to remove the
front roller cover.
3. Remove the feed module by pushing it to the right and lifting it out.
4. If you are just replacing the feed module, insert the new feed
module by aligning the pins and snapping it into position.
If you are replacing the feed module tires, continue with the next
step.
5-9
