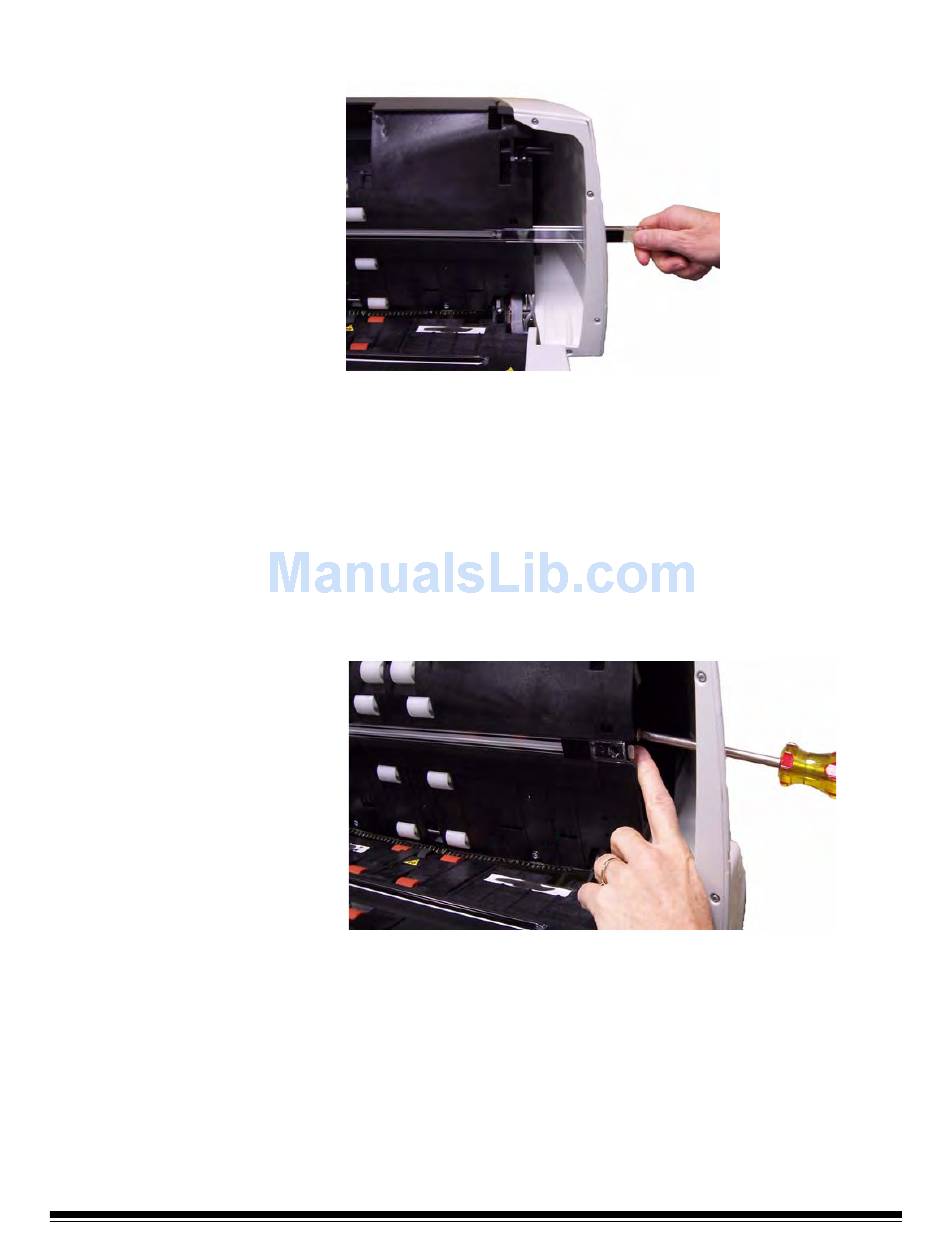

4. Pull gently on the end of the imaging guide and slowly remove it
from the scanner.
5. Discard the used imaging guide.
6. Remove any dust or debris from the guide track. Do not allow debris
to fall into the scanner.
7. Wipe both sides of the new upper imaging guide with a fresh
Staticide Wipe.
8. Dry both sides of the new upper imaging guide with an almost dry
Staticide Wipe.
9. Align the new upper imaging guide in the guide track and slowly
push it in.
10. Realign the upper imaging guide bracket and tighten the screw.
11. Reinstall the side door.
