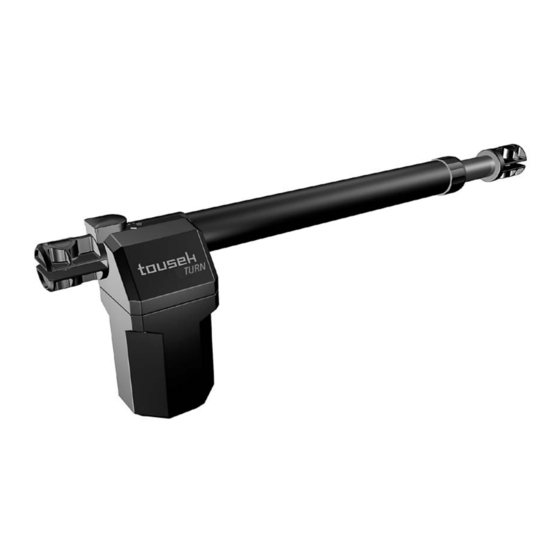

- Page 1 Installation- and Operating Instructions Swing gate operator TURN 10, TURN 20...
-
Page 2: Maintenance
This manual is the sole property of the TOUSEK Ges.m.b.H. and may not be made available to competitors. All rights reserved. No part of it may be reproduced without our prior written permission. We will not accept liability for any claims resulting from misprints or errors. This edition of the manual replaces all earlier publications of the same. - Page 3 General Swing gate operator TURN 10, TURN 20 Characteristics • electromechanical swing gate operator for 230Va.c. • max. weight of gate wings 350 kg • suitable for installation at already existing gates • incl. mounting parts • self-locking steel spindle • for private use, approx. 20 cycles/day • General features The swing gate operator TOUSEK TURN, can be easily installed at new and also already existing swing gate facilities. The drive unit works electromechanically and consists of a connecting rod made of stainless steel with an integrated, self-locking spindle and a high-performance single-phase motor. These components are situated in an aluminium housing.
-
Page 4: General Installation Notes
Installation Swing gate operator TURN 10, TURN 20 General installation notes • Before beginning the installation of the operators, please make sure that the gate wings are already limited in their tra- vel by some sort of stopping devices (3) both in the open and closed gate positions. If this is not the case, such stopping devices have to be installed or the Tousek piston rod stroke limiting device has to be used. The spindle may not be fully extended (approx. 5 mm residual way)! • With lean or wooden gates the front mounting part (1) should not be installed directly on the gate. - Page 5 • the niche on the motor side has to be big enough so that the connection cable is not bent! - 5 - tousek / E_TURN-10-20_42000705 / 16. 05. 2017...
- Page 6 Attention • The spindle may not be fully extended (approx. 5 mm residual way)! Therefore please always set floor stops. WD40 GREASE GREASE - 6 - tousek / E_TURN-10-20_42000705 / 16. 05. 2017...
- Page 7 2d. Dismounting the dismounting of the motor is effected in the opposite order of installation. Please note that before dismounting the operator the power supply has to be turned off ! - 7 - tousek / E_TURN-10-20_42000705 / 16. 05. 2017...
- Page 8 Emergency release of the operator at power failure Swing gate operator TURN 10, TURN 20 ATTENTION: RISK OF INJURY / DANGER OF DRIVE AND PROPERTY DAMAGE: • with rising / descending gates it is absolutely necessary to install a damper (e.g. a gas pressure damper) in order to avoid uncontrolled movements of the gate leaves when the motor is released! • should it be necessary to release the operator (e.g. in...
- Page 9 - 9 - tousek / E_TURN-10-20_42000705 / 16. 05. 2017...
-
Page 10: Dimensioned Sketch
Dimensioned sketch Swing gate operator TURN 10, TURN 20 • Dimensions in mm (Dimensions for Tousek TURN 20 in brackets) 520 (617) 303 (402) 940 (1141) 981 (1182) Ø10 Ø10 Ø12 Ø12 assembly part assembly part motor-sided spindle-sided measures and technical modifications subject to change ! - 10 - tousek / E_TURN-10-20_42000705 / 16. 05. 2017... -
Page 11: Ec Declaration Of Conformity
Low Voltage directive 2006/95/EG We hereby declare that the following product, in the version The product: put by us into circulation, complies with the essential requi- rements of the Directives mentioned above. The validity Swing gate operator of this declaration will cease in case of any unauthorized TURN 10, -20, TURN UP 1, -2 modifications to the products. is developed, designed and manufactured in accordance Product: with: Machinery Directive 2006/42/EG Low Voltage directive 2006/95/EG Electromagnetic compatibility 2004/108/EG Gate description Applied and used standards and specifications: EN ISO 13849-1, PL-„c“... - Page 12 Tel. +43/ 1/ 667 36 01 Fax +43/ 1/ 667 89 23 info@tousek.at Tousek GmbH Germany D-83395 Freilassing Traunsteiner Straße 12 Tel. +49/ 8654/ 77 66-0 Fax +49/ 8654/ 57 196 info@tousek.de Tousek Benelux NV BE-3930 Hamont - Achel Buitenheide 2A/ 1 Tel. +32/ 11/ 91 61 60 Fax +32/ 11/ 96 87 05 your service partner: info@tousek.nl Tousek Sp. z o.o. Poland PL 43-190 Mikołów (k/Katowic) Gliwicka 67 Tel. +48/ 32/ 738 53 65 Fax +48/ 32/ 738 53 66 info@tousek.pl Tousek s.r.o. Czech Republic CZ-130 00 Praha 3 Jagellonská 9 Tel. +420/ 2/ 2209 0980 Fax +420/ 2/ 2209 0989 info@tousek.cz tousek We reserve the right to change dimensions and/or technical specifications with- E_TURN-10-20_42000705 out prior notice. Claims resulting from misprints or errors cannot be accepted.
