Projector Alignment
5

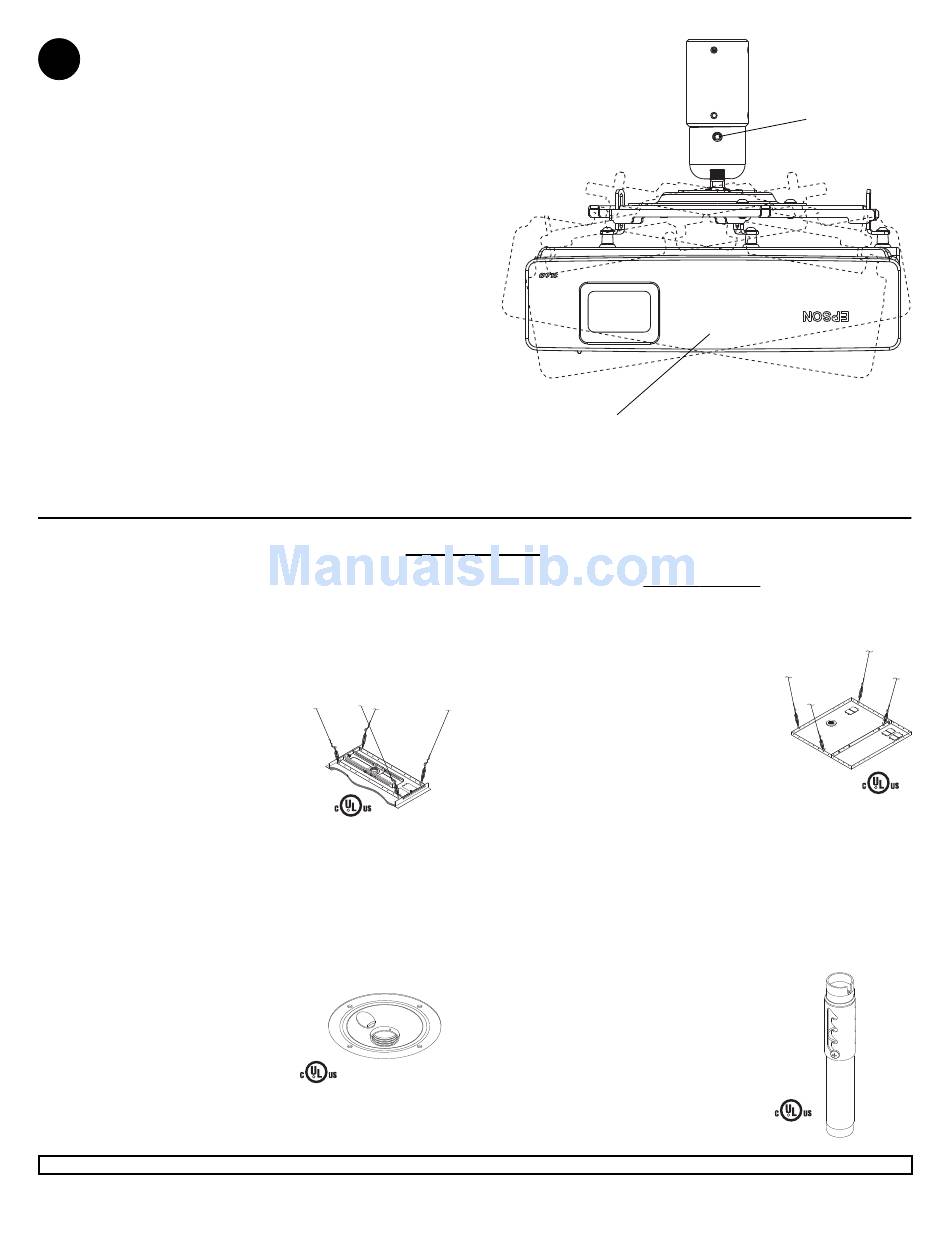

To adjust roll, pitch and yaw loosen the set screw (shown
below) using allen wrench (B). You should be able to just
slightly loosen the screw so that your adjustments can
be set without having to hold the projector. Move projector
to desired position and slowly tighten set screw.
IMPORTANT: Allen wrench is your key for projector
removal. Store it in a safe place.
NOTE: All accessories are available for purchase through Epson (www.epson.com)
ELPMBP01
Adjustable Suspended Ceiling Channel Kit
• Mounts above 2' x 2' or 2' x 4' ceiling tile to structural
ceiling with tie wires
• Includes tie wire supports and flush
mount tube
• 1 ½" - 11.5" NPT fitting for attachment of
adjustable extension column
• Two knockout panels for electrical outlet
boxes
• 13.9" continuous, uninterrupted projector
adjustment
• Escutcheon ring included for a clean finish
• Max weight load: 60 lb (27 kg.)
• Color: White
ELPMBP03
Structural Round Ceiling Plate
• Mounts to wood joist or structural concrete ceiling
• Features cable management access hole
• 1 ½" - 11.5" NPT fitting for attachment of
adjustable extension column
• Max weight load: 150 lb (68 kg.)
• Color: White
Visit the Peerless Web Site at www.peerlessmounts.com
Accessories
R
R
9 of 10
For Technical Support Contact Peerless Mounts at 1-800-729-0307 or 708-865-8870.
PROJECTOR
ELPMBP02
False Ceiling Plate Kit
• Replaces a 2' x 2' ceiling tile and mounts to
structural ceiling with tie wires
• Two-piece design offers five different
points for mount attachment
• Includes tie wire supports and flush mount
tube
• 1 ½" - 11.5" NPT fitting for attachment of
adjustable extension column
• Two knockout panels for electrical outlet boxes
• Max weight load: 50 lb (23 kg.)
• Color: White
ELPMBC01
Adjustable Extension Column (Pipe) 8" - 11"
• 8" - 11" adjustable extension in 1" increments
• Specially designed to allow internal cable
management
• 1 ½" - 11.5" NPT pipe threaded on both ends
• Notched ends for use with set screw to provide
safety and security
• Color: White
ISSUED: 01-23-07 SHEET #:055-9498-2 05-29-08
SET
SCREW
