Installation and Assembly:

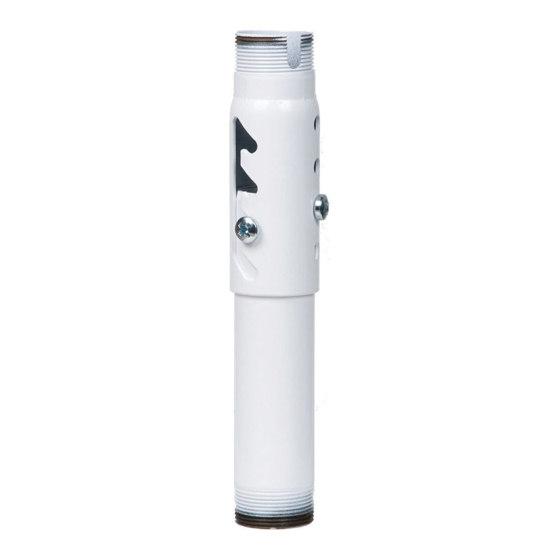

Adjustable Extension Column (Pipe) 8" - 11"
Model: ELPMBC01
Manufactured by Peerless Industries, Inc.
3215 W. North Ave. • Melrose Park, IL 60160 • (800) 865-2112 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com
This product is UL Listed. It must be
installed by a qualified professional
R
installer.
Maximum UL Load Capacity: 500 lb (227 kg)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Epson ELPMBC01
Summary of Contents for Epson ELPMBC01
-
Page 1: Installation And Assembly

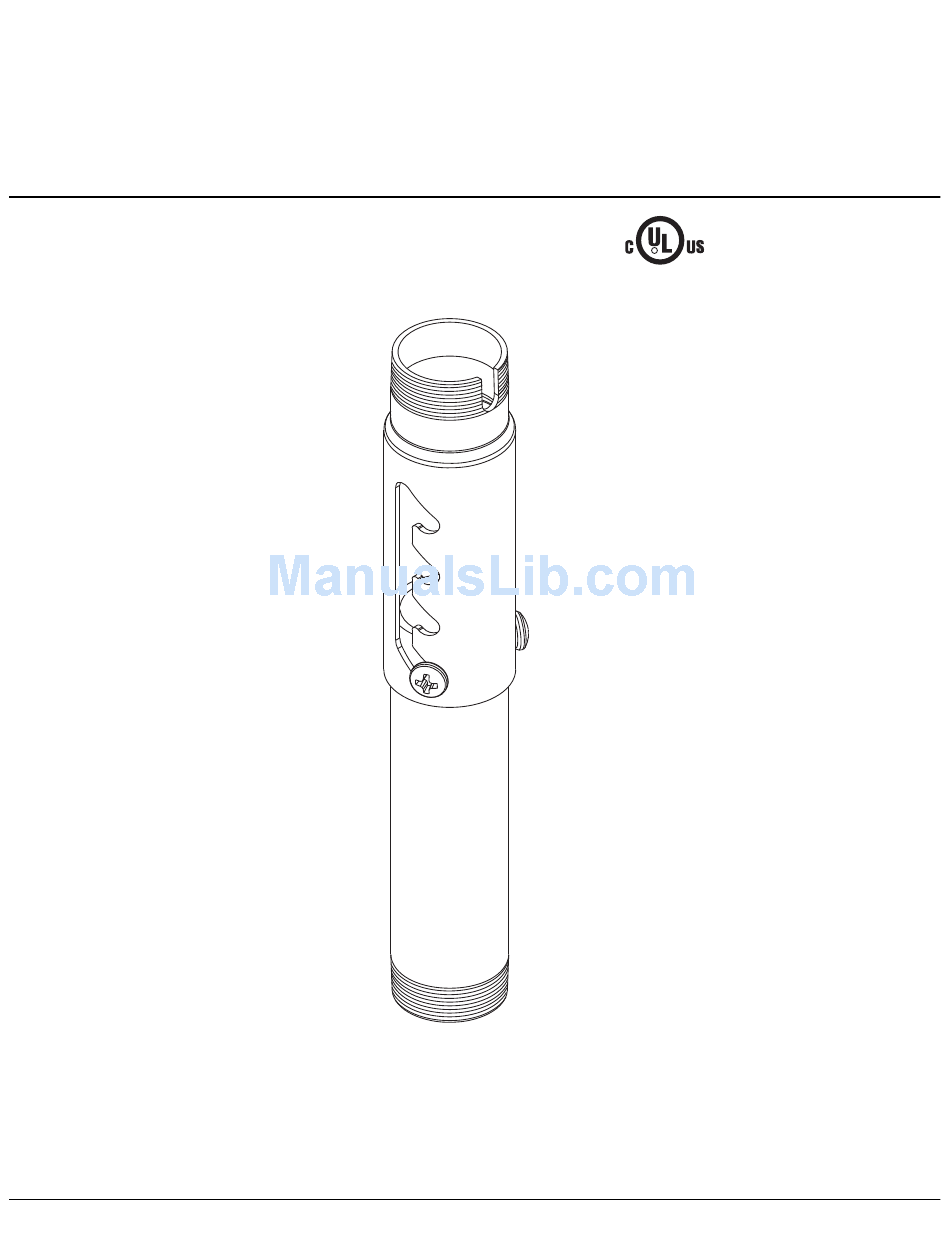

Installation and Assembly: Adjustable Extension Column (Pipe) 8" - 11" Model: ELPMBC01 Manufactured by Peerless Industries, Inc. 3215 W. North Ave. • Melrose Park, IL 60160 • (800) 865-2112 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com This product is UL Listed. It must be installed by a qualified professional installer. -
Page 2: Tools Needed For Assembly
• When installing or adjusting the ceiling mount, do not use adhesives, lubricants, or oils to prevent the screws from loosening. If you use adhesives, lubricants, or oils to prevent the screws from loosening, the casing may crack and the projector may fall, causing serious injury and damage to the projector. Tools Needed for Assembly •... -
Page 3: Parts List
Before you start check the parts list to ensure all of the parts shown are included. Parts List Description Qty. A extension column NOTE: Actual parts may appear slightly different than illustrated. Visit the Peerless Web Site at www.peerlessmounts.com Part Number 154-2093 3 of 6 For Technical Support Contact Peerless Mounts at 1-800-729-0307 or 708-865-8870. -
Page 4: Installation To Ceiling Plate
Do not overtighten screws; overtightening screws will damage threads making it difficult to separate the products. SLOT fig. 1.1 PROJECTOR MOUNT (NOT SHOWN) UL LISTED ELPMBPRG, ELPMBPJF AND PRG OR PJF SERIES (SOLD SEPARATELY) Visit the Peerless Web Site at www.peerlessmounts.com... -
Page 5: Adjustment Of Extension Column
Adjustment of Extension Column • Extension column (A) must be fully threaded (six or seven full turns) onto threaded fitting in ceiling plate and then locked with M5 x 10 mm screw. Skip to step 3 if adjustment is not required. Remove M8 x 10 mm phillips screw from set hole in extension column (A) as shown in fig. -
Page 6: Warranty
LIMITED FIVE-YEAR WARRANTY www.peerlessmounts.com © 2007 Peerless Industries, Inc. ISSUED 03/17/06 LIT-0190E 6 of 6 ISSUED: 03-06-08 SHEET #: 154-9009-2 07-10-08 Visit the Peerless Web Site at www.peerlessmounts.com For Technical Support Contact Peerless Mounts at 1-800-729-0307 or 708-865-8870. © 2008, Peerless Industries, Inc. All rights reserved. All other brand and product names are trademarks or registered trademarks of their respective owners.
