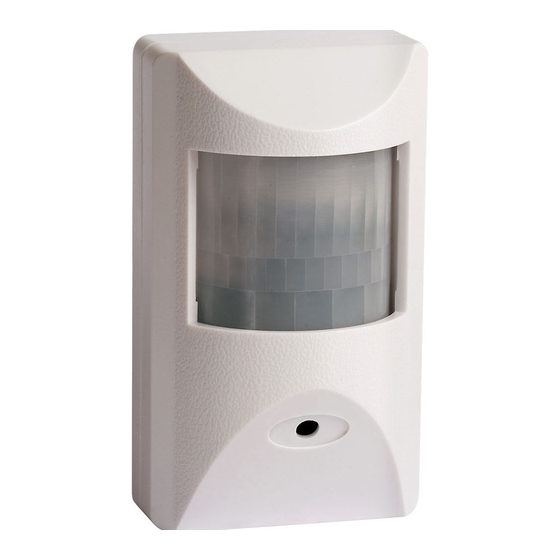

Color CCD Image Sensor with 420 TV Lines (VT-PIRC2) /
550 TV Lines (VT-PIRC2/H)
•
Minimum Illumination of 0.2 Lux / 0.5 Lux (VT-PIRC2/H)
•
Pinhole 3.8mm / f2.0 Lens Included
•
NC/C/NO Alarm Output
•
Working 100' Motion Detection Using 58 Beams Within 3
layers (35' x 35' Coverage Area)
VT-PIRC2
VT-PIRC2/H
Color PIR Cameras
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vitek VT-PIRC2
Summary of Contents for Vitek VT-PIRC2

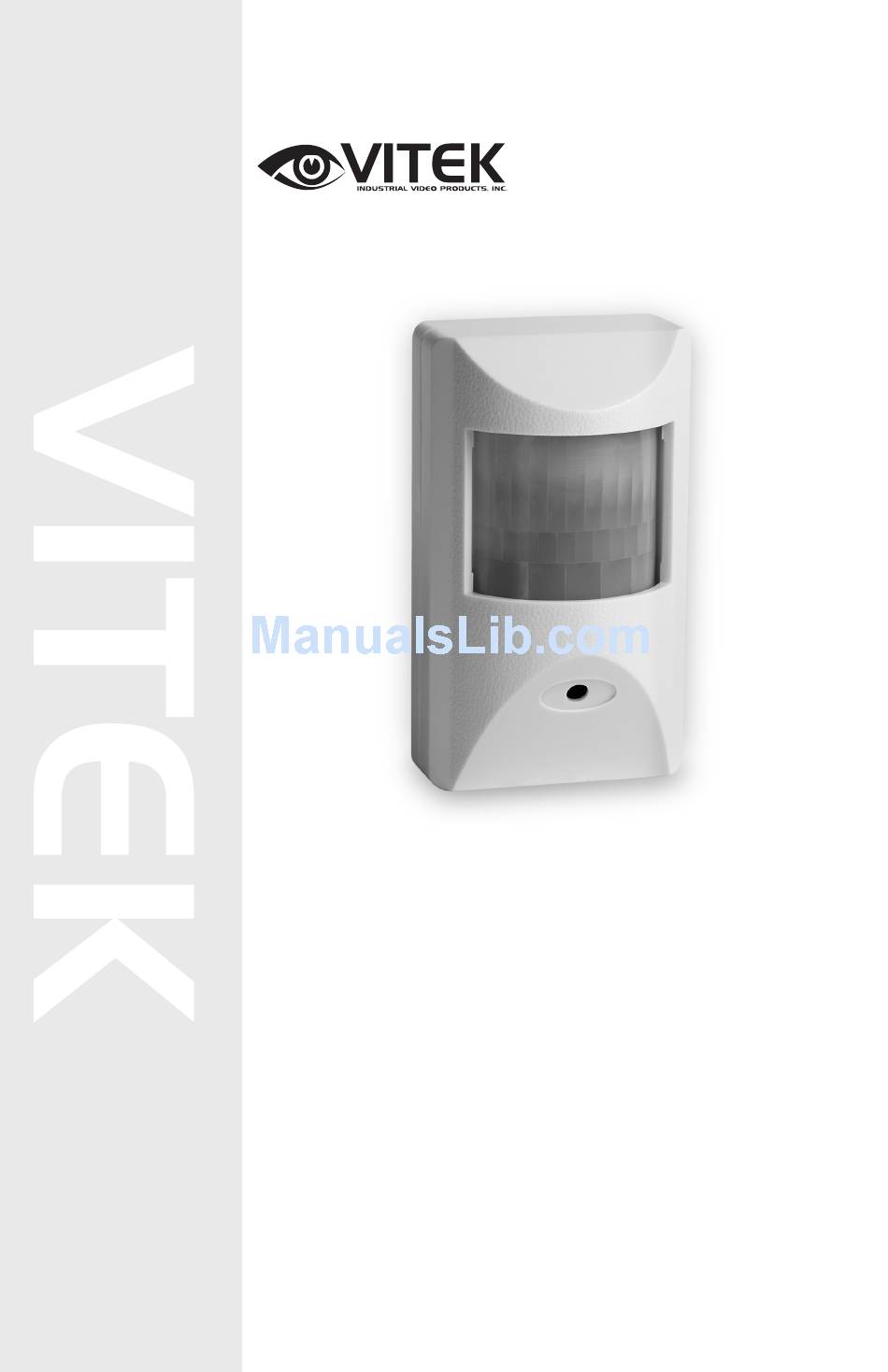

- Page 1 VT-PIRC2 VT-PIRC2/H Color PIR Cameras • Color CCD Image Sensor with 420 TV Lines (VT-PIRC2) / 550 TV Lines (VT-PIRC2/H) • Minimum Illumination of 0.2 Lux / 0.5 Lux (VT-PIRC2/H) • Pinhole 3.8mm / f2.0 Lens Included • NC/C/NO Alarm Output •...
- Page 2 PIR BOARD LAYOUT 1. LED: When an intrusion is detected, the LED will activate. 2. J2: Pulse count setting. 1-2 short (default): Relay will activate when an intrusion is detected once. (For stable environments or high risk operating environments) 2-3 short: Relay will activate when an intrusion is detected twice within 15 seconds. (For harsh environments) 3.
- Page 3 PIR SPECIFICATIONS SPECIFICATIONS VT-PIRC2 VT-PIRC2/H Image Device 1/4” Color CCD 1/3” Color CCD Effective Pixels 510 x 492 811 x 508 Resolution 420 TV Lines 550 TV Lines Minimum Illumination 0.2 Lux 0.5 Lux PIR Detection Range 100° / 35’ x 35’ Coverage Area...
- Page 4 PIR DETECTION RANGE 1. Matching field of view for both the PIR and CCTV cameras. 2. The PIR camera is a double duty surveillance tool that combines the detection capability of a professional PIR with the viewing capability of a security camera.
- Page 5 PIR FEATURES • Hidden • Stable sensitivity • Motion activated alarm output to control panel • Lamp • VCR • Ability to change from a static to a dynamic state • High quality and highly sensitive sensor • Exceptional at detecting unexpected movements •...
- Page 6 VT-H Series 4, 8, and 16 Channel Digital Video Recorders with H.264 Compression The Alpha Series VT-H Series Digital Recorders combine the latest H.264 Compression technology with stability and simple operation. H.264 Compression is the next generation of MPEG4 allowing up to 50% smaller file sizes for increased storage capability and/or resolution as well as a more fluid internet transmission speed.
- Page 7 VTM-LCDP Series • 15”, 17“, and 19” Professional LCD Display Panels • Designed for continuous 24/7 operation • VGA, Looping BNC Composite, and S-Video Video Inputs. DVI & HDMI Inputs on 17“ & 19” Versions • Resolution up to 1280 X 1024 (17” & 19”) •...
- Page 8 LIMITED LIABILITY WARRANTY VITEK products carry a three (3) year limited warranty. VITEK warrants to the purchaser that products manufactured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended, will be free of defects in materials and workmanship for a period of three (3) years, or as otherwise stated above, from the date of purchase by the end user.
