FEATURES
• 1/3" Panasonic CMOS Sensor
• 2.1 MegaPixel HD-TVI / 700TVL CVBS Output
• Built-In 5.1 to 51mm Lens with 10x Optical / 32x Digital Zoom
• True Day/Night function with ICR
• 128 Presets programmed with view direction, zoom, and BLC
• 8 Patterns record and play back user preference of surveillance path up to 120º sec.
• 8 Scans: 8 speed steps from slow to medium panning with smooth Diagonal Scan
• 4 Tours: Each tour consists up to 32 Presets, Patterns, and/or Scans
• 4 Alarm inputs with 1~4 priority / 1 Auxiliary output with programmable NC & NO
• 8 Privacy Zones: Video off or up to 8 masked blocks
• 64 steps of variable speed from 0.4º/sec to 90º/ sec. Max manual speed 190º/sec
with Turbo key pressed, Preset speed is 380º/sec.
• Built-in RS-485 receiver driver, power-line surge lightning protection, Heater/Blower
for use in Extreme Temperatures
• Wide Dynamic Range (WDR) accurately captures clear images even in scenes that
contain both very bright and very dark areas
• IP 67 with optional Mounting bracket

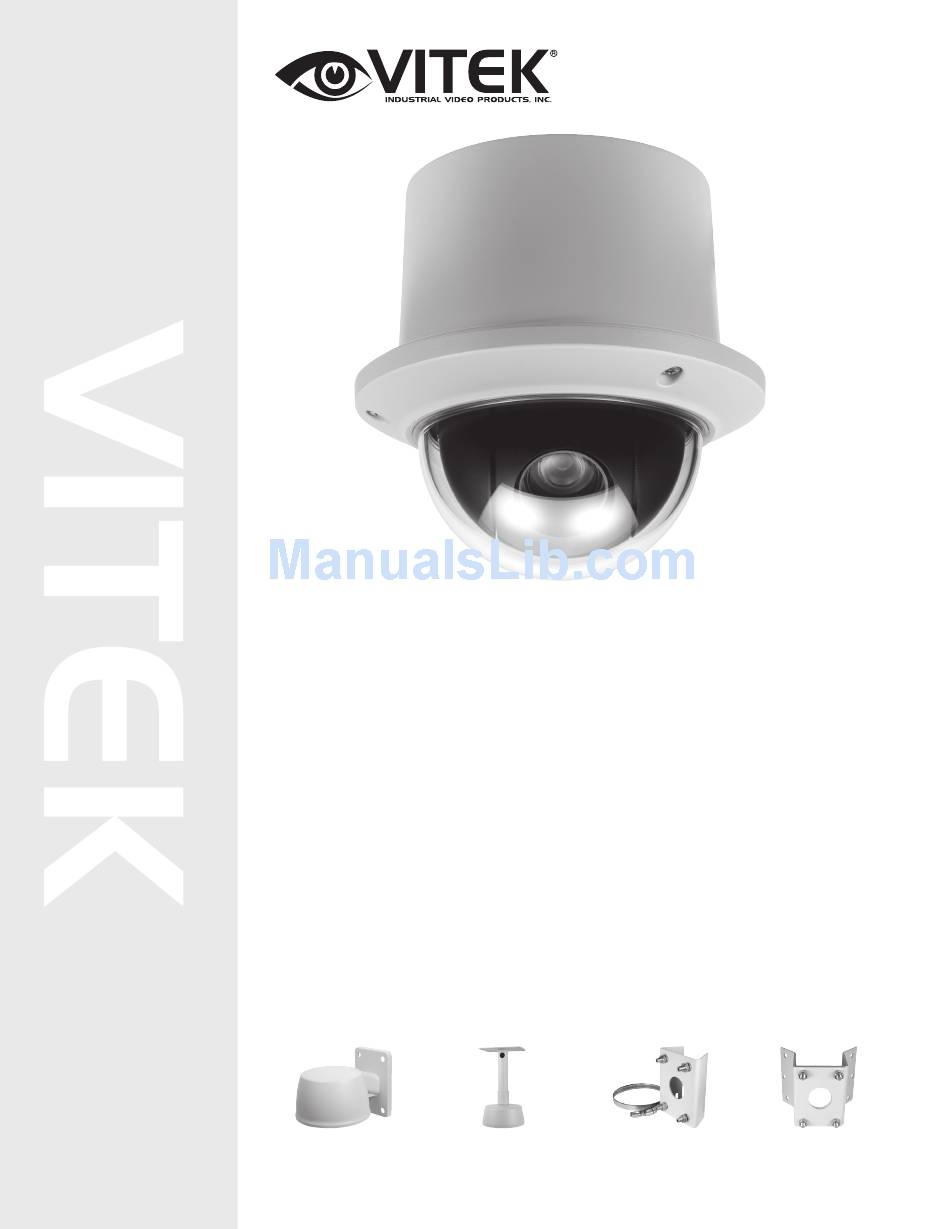

OPTIONAL ACCESSORIES:
VT-MD/WMT
VT-PT12/CMT
Mighty Dome /
VT-PTZ10T Pedestal
VT-PTZ10T Wall Mount
Ceiling Mount
VT-PTZ10T
Compact HD-TVI/CVBS PTZ Camera
with WDR & 10x Optical Zoom
VT-MD/PLMT
VT-MD/CNMT
Mighty Dome /
Mighty Dome /
VT-PTZ12 Pole Mount
VT-PTZ12 Corner Mount
Adapter
Adapter
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vitek VT-PTZ10T
Summary of Contents for Vitek VT-PTZ10T
-
Page 1: Optional Accessories
• IP 67 with optional Mounting bracket OPTIONAL ACCESSORIES: VT-MD/WMT VT-PT12/CMT VT-MD/PLMT VT-MD/CNMT Mighty Dome / VT-PTZ10T Pedestal Mighty Dome / Mighty Dome / VT-PTZ10T Wall Mount Ceiling Mount VT-PTZ12 Pole Mount VT-PTZ12 Corner Mount Adapter Adapter... - Page 2 Before installing the Dome camera, please make sure that the following items are included in the box: 1. Mini Speed Dome Camera 2. Instruction Manual 3. Mounting Hardware If any of these materials are missing, please contact the vendor or VITEK customer help desk immediately.
-
Page 3: Disclaimer
VITEK. • VITEK makes no warranties for damages resulting from corrupted or lost data due to a mistaken operation or malfunction of the Speed Dome Cameras, peripheral... - Page 4 VT-PTZ10T WARNING AND CAUTION...
-
Page 5: Fcc Compliance Statement
VT-PTZ10T FCC COMPLIANCE STATEMENT FCC INFORMATION: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT. -
Page 6: Important Safeguards
VT-PTZ10T IMPORTANT SAFEGUARDS 1. Read these instructions. 2. Heed all warnings. 3. Follow all instructions. 4. Do not use this equipment near water. 5. Clean only with dry cloth. 6. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. -
Page 7: Table Of Contents
VT-PTZ10T TABLE OF CONTENTS ABLE OF CONTENTS DISCLAIMER ........................1 I. INTRODUCTION ......................6 Features ..............................6 II. INSTALLATION AND CONFIGURATION ..............7 2.1 Typical System Configuration ......................7 2.2 Basic Configuration of Speed Dome Camera System ..............8 2.3 Connecting the Speed Dome directly into the DVR ..............9 2.4 Connecting the Speed Dome into the Controller via J-box ............ -
Page 8: Introduction
VT-PTZ10T I. INTRODUCTION Features The Speed Dome Camera features a high resolution 1/3” CMOS imager for enhanced lowlight sensitivity. User friendly, on-screen pull-down menus and short-cuts make it easy to setup and program functions. System information aides trouble shooting by displaying the hardware and software version of the camera’s firmware version, baud rate, and protocol. -
Page 9: Installation And Configuration
VT-PTZ10T II. INSTALLATION AND CONFIGURATION 2.1 Typical System Configuration Additional Speed Dome joystick controllers and a variety of external switching devices such as multiplexers (MUXes) and Digital Video Recorders (DVRs) may be incorporated to accommodate the needs from a small to a large surveillance/security system. -
Page 10: Basic Configuration Of Speed Dome Camera System
VT-PTZ10T 2.2 Basic Configuration of Speed Dome Camera System POWER AC 24V STP AWG # 22 BNC MONITOR 4 ALARM INPUT 1 AUX OUTPUT RS-485 HALF DUPLEX MODE CONTROLLER DOME Figure 2 - Basic Installation Diagram... -
Page 11: Connecting The Speed Dome Directly Into The Dvr
VT-PTZ10T 2.3 CONNECTING THE SPEED DOME DIRECTLY INTO THE DVR Locate the RS485 + & - conductor wire from the Speed Dome Camera. • Connect the + & - into the TRX+ & TRX- ports of the DVR. Tx+ & Tx- ports can be found •... -
Page 12: Connecting Both Speed Dome And Dvr Via J-Box
VT-PTZ10T 2.5 CONNECTING BOTH SPEED DOME AND DVR VIA J-BOX Figure 5 - Connecting Camera & DVR into Controller... - Page 13 VT-PTZ10T The dome camera must be installed by qualified service personnel. Before installing the dome camera system, this instruction manual must be read thoroughly and understood fully. Dome cameras must be set up properly before starting the installation. This involves properly setting configuration switches. Figure 6 shows the location of these switches.
-
Page 14: Setting Video Out
VT-PTZ10T 2.6 SETTING VIDEO OUT TVI OUT CVBS OUT Figure 7 - Setting Video Out 2.7 Principle of Termination The device that is connected at the end of the communication data line must be terminated by either the DIP switch setting or an appropriate device such as a termination jumper to prevent potential control signal errors. - Page 15 VT-PTZ10T S1:Dome1 port Termination ON DVR Termination ON SW1:Termination ON SW1:Termination ON S1:Dome1 port Termination ON DVR Termination ON SW1:Termination ON SW1:Termination ON SW1:Termination ON SW1:Termination ON S1:Dome1 port Termination ON S4:DVR port Termination ON DVR Termination ON DVR Termination ON...
-
Page 16: Dome Camera Address (Id)
VT-PTZ10T 2.8 Dome Camera Address (ID) Each dome camera must have a unique address (ID). Identical IDs on the same line may damage the control circuit caused by an electrical short. When installing multiple dome cameras or a DVR, it is recommended that the dome camera ID’s be identical to the camera port of the DVR. -
Page 17: Connections
VT-PTZ10T Figure 11 - Protocol Selection tables 2.9 Connections • How to Connect RS485 The dome camera has a built-in RS-485 receiver so that it can be controlled remotely by an external control device such as a joystick controller or a DVR. -
Page 18: Mounting The Dome Camera
VT-PTZ10T 2.10 Mounting the Dome Camera Once all DIP switches are set properly and all external connections are made, the dome camera can be mounted. The Mini PTZ Dome camera is designed to mount on a structural body supporting loads up to 6.6Lbs / 3 Kg. See Figure 12. -
Page 19: Power On And Boot-Up Sequence
VT-PTZ10T 2.11 Power on and Boot-up Sequence When the power is applied to the dome camera, it will start the boot-up sequence. When boot-up is done, the following information is displayed on the monitor screen. RAM TEST CHECK NO. : OK! -
Page 20: Program & Operation
VT-PTZ10T III. PROGRAM & OPERATION Dome Camera Selection Prior to programming or operating a dome camera, please make sure that both the camera and the joystick controller are communicating. In order for changes to take effect for a camera, particular camera’s ID must be selected on the controller. -
Page 21: Home Function (Menu =>Functions => Home Function)
VT-PTZ10T Select the FUNCTIONS and then move the joystick to the right to access FUNCTIONS menu. FUNCTIONS HOME FUNCTION PRESET PATTERN SCAN TOUR EXIT 3.1.1 HOME FUNCTION (MENU =>FUNCTIONS => HOME FUNCTION) After HOME FUNCTION item has been selected, follow the directions below to set HOME function. -
Page 22: Preset (Menu => Functions => Preset Short Cut: Prst)
VT-PTZ10T 6. Select Function Number by pulling the Joystick down, and twist the Joystick to the CCW/CW (or turn right/left). The executable function number will be scrolled. If selected function is not programmed, it won’t change. Go to setup function first. - Page 23 VT-PTZ10T PRESET 01/16 NO. F I B TITLE 001 A A F xxxxxxxxxxxxxxxx 002 M M B ---------------- 003 - - - ---------------- 004 - - - ---------------- 005 - - - ---------------- 006 - - - ---------------- 007 - - -...
-
Page 24: Scan (Menu => Functions => Scan Or Shortcut: Scan)
VT-PTZ10T SHORTCUT TO PROGRAMMING PRESETS. Select direction of the camera, zoom and focus to be programmed, and then press no. (1~128 ), and then press SHFT , PRST subsequently. The current view will be stored to the selected preset number if position is empty. If selected preset number is not empty, “PRESET EXISTING”... - Page 25 VT-PTZ10T Follow the steps below to program Scans. 1. Press the SCAN key to enter Auto Scan menu directly. (Or MENU => FUNCTIONS => SCAN). 2. Select an Auto Scan number by moving the Joystick left or right. 3. Twist the Joystick to enter the title by scrolling through the alphanumeric characters and move the handle to the right or left to move to the next space.
- Page 26 VT-PTZ10T 3.1.4 TOUR (or MENU => FUNCTIONS => TOUR, Short Cut: TOUR) There are 4 programmable Tours. Each Tour consists of up to 8 Preset positions, Patterns, Scans or other Tours. Using second-level Tours, it can be expanded up to 56 functions in a single Tour.
- Page 27 VT-PTZ10T Follow the steps below to program the Tours: 1. Press MENU => FUNCTIONS => TOUR, Short Cut: TOUR MENU to display the main menu on the monitor. No. + SHFT +TOUR will open directly Tour No. 2. Choose an empty location of function by moving the Joystick up or down.
- Page 28 VT-PTZ10T 3.2 ALARM (MENU => ALARM) MAIN MENU FUNCTIONS ALARM SCREEN CAMERA SETUP EXIT Highlight ALARM in the main menu and move the joystick to the right to access ALARM setup. ALARM SETUP NO FUNC PRI OUT HLD LATCH 01 S01...
-
Page 29: Screen
VT-PTZ10T 1. Press Menu to display the main menu on the monitor. Select the Alarm option by moving the Joystick up/down and then move to the right to enter the detail menu. 2. Select the alarm input number by moving the Joystick up or down and select the column to setup. -
Page 30: North Direction (Menu => Screen => North Direction)
VT-PTZ10T Preferred language will be scrolled by moving the joystick to the right on LANGUAGE ENGLISH. 3.3.2 NORTH DIRECTION (MENU => SCREEN => NORTH DIRECTION) Move the joystick handle to the right to select NORTH DIRECTION options. 1. Select DISPLAY option to turn on or off the function. - Page 31 VT-PTZ10T direction. (Start < End). (Or twist the zoom handle or press the zoom button to start PTZ control for view selection and press the Focus button to exit from control mode.) 5. PREV NEXT: go to previous page or next page of the menu 6.
-
Page 32: Camera (Menu => Camera)
VT-PTZ10T 3.4 CAMERA (MENU => CAMERA) NOTE: The menu features will vary depending on the camera module. CAMERA MENU FOCUS CONTROL : ONE PUSH WB CONTROL EXPOSURE SETUP BLC/WDR : OFF DEFOG : OFF SHARPNESS DIGITAL ZOOM : OFF(2X/4X/MAX) NIGHT SHOT... -
Page 33: Exposure Setup (Menu => Camera => Exposure Setup)
VT-PTZ10T MODE AUTO / ONE PUSH / OUTDOOR / INDOOR / MANUAL R GAIN 0 ~ 20 B GAIN 0 ~ 20 Use the ATW mode for normal use. R GAIN / B GAIN modes are controllable only in MANUAL Mode Move the Joystick right or left to change. -
Page 34: Sharpenss Control (Menu => Camera =>Shapeness)
VT-PTZ10T 3.4.6 SHARPENSS CONTROL (MENU => CAMERA =>SHAPENESS) The higher the value, the more the outline of the image will be enhanced (0~10) 3.4.7 DIGITAL ZOOM (MENU => CAMERA =>DIGITAL ZOOM) OFF - Optical zoom only 2x, 4x, Max. - Digitally magnifies up to 2x, 4x, 12x respectively. -
Page 35: Setup (Menu => Setup)
VT-PTZ10T CAMERA INITIALIZE ARE YOU SURE : (Y/N) YES : ENTER OR MENU KEY : ESC KEY 3.5 SETUP (MENU => SETUP) CONFIGURATION MENU FLIP FUNTION : ON P/T SPEED : FAST PRESET FREEZE : OFF PANNING RANGE TILT LIMIT... -
Page 36: Panning Range (Menu => Setup => Panning Range)
VT-PTZ10T 3.5.4 PANNING RANGE (MENU => SETUP => PANNING RANGE) PAN RANGE SETUP RIGHT LIMITE : 000.0 LEFT LIMT : 007.2 ENABLE : ON / OFF SWAP RIGHT LEFT SAVE AND EXIT When the dome camera is installed near a wall or on a corner, panning range can be limited by user. -
Page 37: Resolution (Menu => Setup => Resolution)
VT-PTZ10T 3.5.7 RESOLUTION (MENU => SETUP => RESOLUTION) RESOLUTION: NTSC 1080p30, 720p30, 720p60 PAL 1080p25, 720p25, 720p50 3.5.8 FACTORY DEFAULT (MENU => SETUP => FACTORY DEFAULT) FACTORY DEFAULT ARE YOU SURE : (Y/N) YES : ENTER OR MENU KEY : ESC KEY Programmed data will go back to initial state as ex-factory 3.5.9 ERASE DATA (MENU =>... - Page 38 VT-PTZ10T BUADRATE : 9600BPS EXIT MENU This screen shows information of the dome camera for service or trouble shooting...
-
Page 39: Appendix A - Troubleshooting
8 auto scan include vector scan/1 Auto Pan Flip Rotate 180° at bottom of tilt Alarm (Input/Output) Power Requirement 24 VAC 700mA Power Consumption Dimension (W x H) 5.65” x 5.51” (888) VITEK-70 | WWW.VITEKCCTV.COM 28492 Constellation Road Valencia, CA 91355... -
Page 40: Glossary
VT-PTZ10T CONSIDER THESE OTHER GREAT TRANSCENDENT PRODUCTS! VT-TTAR Series Transcendent Series 4, 8, and 16 Channel HD-TVI/AHD/960H/IP Digital Video Recorders FEATURES • 4, 8, or 16 Channel HD-TVI/AHD/960H BNC Inputs + IP Camera Support • 1-Channel IP Camera Support (VT-TTAR410 / VT-TTAR810) / 4-Channel IP Camera Support (VT-TTAR1620) •... - Page 41 VT-PTZ10T...
- Page 42 VT-PTZ10T...
- Page 43 VT-PTZ10T...
- Page 44 VITEK products carry a three (3) year limited warranty. Digital recording and storage products are also warranted for 3 years. * Per a special agreement with Western Digital, as of August 2016, VITEK also warrants factory installed Hard Drives for the full 3 year span of the recorder warranty provided that the recorder was purchased through an authorized VITEK distributor.
