VT-PIRC2H

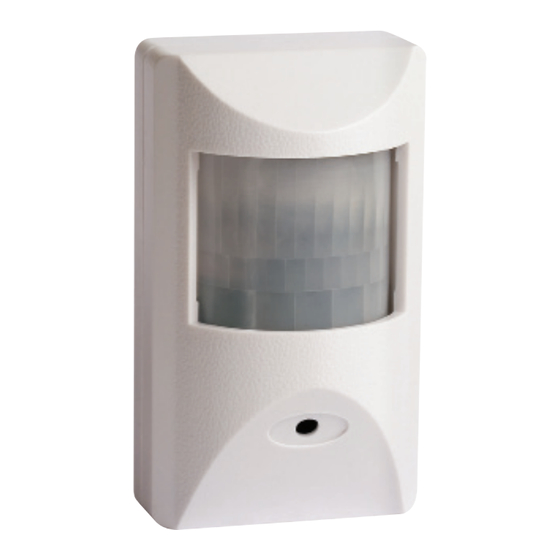

The VT-PIRC2H camera is a motion activated and continuous imaging camera that incorporates a Color CCD camera with
a PIR motion sensor. It can be used as an accessory to an alarm system or as a stand-alone monitoring device. Vitek PIR
cameras are an excellent choice for use in covert or hidden camera applications.
FEATURES
•
1/3" Sony High Density EXVIEW CCD Image
Sensor
•
600 TV Lines
•
Minimum Illumination of 0.5 Lux
•
Pinhole 3.8mm/F2.0 Lens Included
•
NC/C/NO Alarm Output
•
Working 100° Motion Detection Using 58
Beams Within 3 layers (35' x 35' Coverage
Area)
600TVL Color PIR Camera
with Working Motion Detection
600TVL
(888) VITEK-70 | WWW.VITEKCCTV.COM
28492 Constellation Road Valencia, CA 91355
CYAN
MAGENTA
YELLOW
BLACK
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vitek VT-PIRC2H
Summary of Contents for Vitek VT-PIRC2H
- Page 1 The VT-PIRC2H camera is a motion activated and continuous imaging camera that incorporates a Color CCD camera with a PIR motion sensor. It can be used as an accessory to an alarm system or as a stand-alone monitoring device. Vitek PIR cameras are an excellent choice for use in covert or hidden camera applications.
- Page 2 3.8mm / F2.0 12VDC (300mA Regulated) 150mA 14°F ~ 140°F (-10°C ~ 60°C) 0-95% 2.75” x 4.72” x 1.69” / 70mm x 120mm x 43mm 600TVL (888) VITEK-70 | WWW.VITEKCCTV.COM 28492 Constellation Road Valencia, CA 91355 CYAN MAGENTA YELLOW BLACK...
