• 1/2.8 2.38 MegaPixel Sony
• 2.38 MegaPixel With full 1080p 3G-SDI (SMPTE 424M) @ 60fps / 30fps HD-SDI
(SMPTE 292M) @ 30fps Output
• Built-in x30 times Optical Power Zoom Camera with x12 Digital Zoom
• True Night Shot function with Exmor ICR Day/Night Function.
• 248 Programable Presets
• 8 Patterns record and play back xuser preference of surveillance path up to 480°
sec.
• 16 Scans: 8 speed steps with smooth vector scan.
• 8 Tours: Each tour consists up to 42 Presets, Patterns, and Scans
• 8 Alarm inputs with 0~8 Priority / 2 Auxiliary outputs programmable NC & NO.
• 8 Privacy Zones: 4 Polygon / Video off or 4 masked Block / Video off / Mosaic
• 64 steps of variable speed from 0.1°/sec to 105°/sec.
• Max manual speed 420°/sec with Turbo key pressed, Preset speed is 420°/sec.
• Programmable user preferences of speed (Changeable 60°/sec to 105°/sec).
• Addressable up to 999 camera IDs (Extendable up to 3999 in special mode).
• Built-in RS-485 receiver driver.
• On-site software upgrade and upload/download of programmed data into the KBD.
• Built-in power-line surge protection and lighting protection.
• 100% Pure Digital Transmission of video data
• Up to 700' HD Transmission Range (Depending on
cable characteristics and integrity)

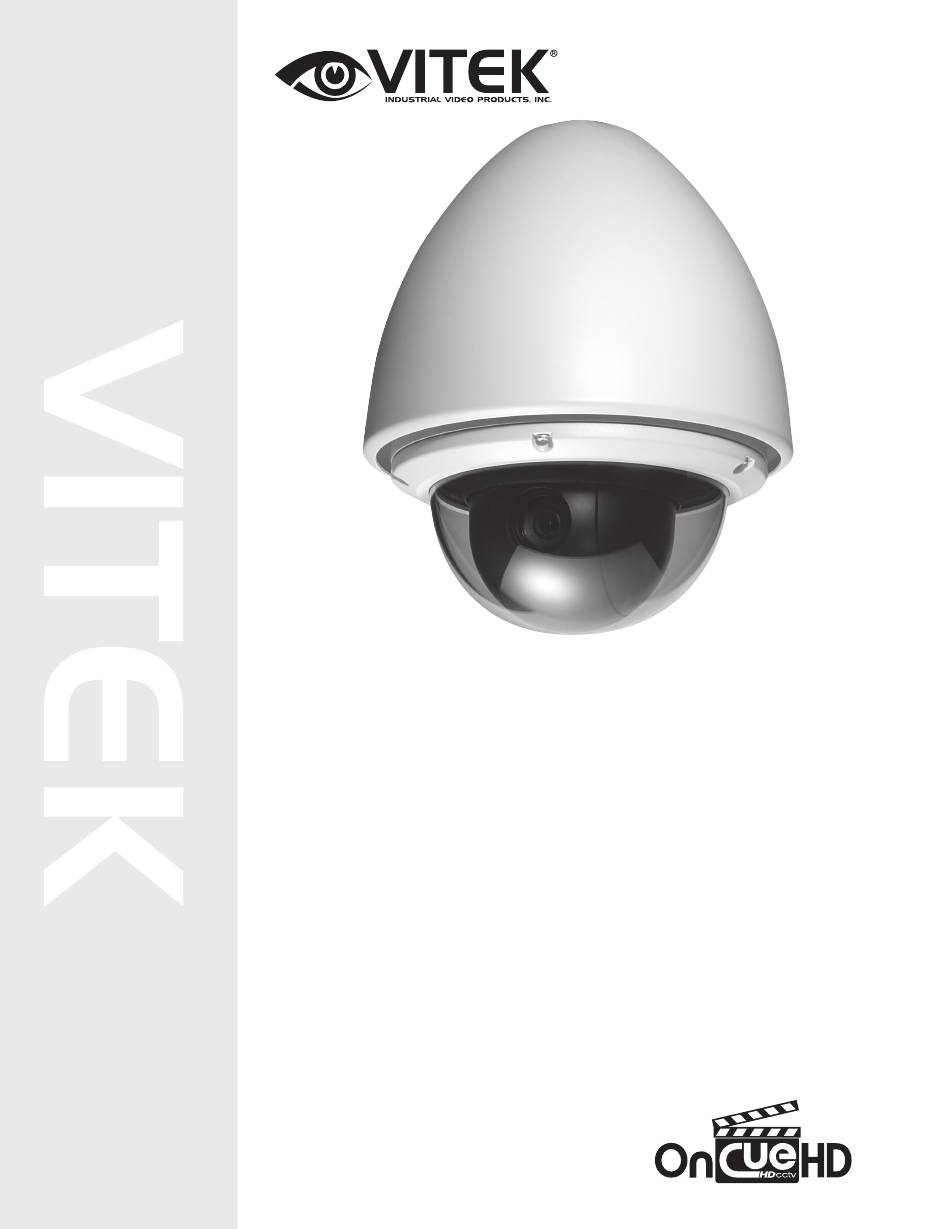

OnCue 2.38 MegaPixel 3G-SDI
®
"Exmor" CMOS Sensor
VT-PTZ230HD
30x PTZ Camera
Advertisement
Table of Contents
Related Manuals for Vitek OnCue VT-PTZ230HD
Summary of Contents for Vitek OnCue VT-PTZ230HD
- Page 1 VT-PTZ230HD OnCue 2.38 MegaPixel 3G-SDI 30x PTZ Camera • 1/2.8 2.38 MegaPixel Sony ® “Exmor” CMOS Sensor • 2.38 MegaPixel With full 1080p 3G-SDI (SMPTE 424M) @ 60fps / 30fps HD-SDI (SMPTE 292M) @ 30fps Output • Built-in x30 times Optical Power Zoom Camera with x12 Digital Zoom •...
-
Page 2: Content Verification
HD-SDI CAMERA 1. CONTENT VERIFICATION Before installing the controller, please make sure that the following items are included in the box: If any of these materials are missing, please contact the vendor help desk immediately. Item Quantity Appearance PTZ Dome Camera User’s Manual Mount Hardware 1set... -
Page 3: Disclaimer
Vitek Industrial Video Products Inc. Vitek makes no warranties for damages resulting from corrupted or lost data due to a mistaken operation or malfunction of the Speed Dome Cameras, peripheral... -
Page 4: Warning And Caution
HD-SDI CAMERA 3. WARNING AND CAUTION WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT. CAUTION EXPLANATION OF GRAPHICAL SYMBOLS The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to... -
Page 5: Fcc Compliance Statement
HD-SDI CAMERA 4. FCC COMPLIANCE STATEMENT FCC INFORMATION: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT. -
Page 6: Important Safeguards
HD-SDI CAMERA 6. IMPORTANT SAFEGUARDS Read these instructions. Heed all warnings. Follow all instructions. Do not use this equipment near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other equipment (including amplifiers) that produce heat. -
Page 7: Table Of Contents
HD-SDI CAMERA TABLE OF CONTENTS 1. CONTENT VERIFICATION ............1 2. DISCLAIMER ................2 3. WARNING AND CAUTION ..............3 4. FCC COMPLIANCE STATEMENT ............4 5. CE COMPLIANCE STATEMENT ............. 4 6. IMPORTANT SAFEGUARDS ............5 7. FEATURES ................8 8. - Page 8 HD-SDI CAMERA 10.2.3 Clear Alarm List ....................35 10.2.4 Schedule Action ....................35 10.2.5 Schedule Action List ..................... 39 10.3 Screen .................... 39 10.3.1 Language ....................... 39 10.3.2 Privacy Zone ......................39 10.3.3 North Direction ...................... 41 10.3.4 Zone Title ......................41 10.3.5 CAMERA TITLE ......................
-
Page 9: Features
HD-SDI CAMERA 7. Features The PTZ Dome Camera features a high resolution Sony Exmor CMOS image ® sensor, That supports FULL HD (high definition) to produce high-quality images. User friendly, on-screen pull-down menus and short-cuts make it easy to setup and program functions. -
Page 10: Installation And Configuration
HD-SDI CAMERA 8. INSTALLATION AND CONFIGURATION 8.1 TYPICAL SYSTEM CONFIGURATION Additional Speed Dome joystick controllers and a variety of external switching devices such as HD-SDI multiplexers (MUXs) and HD-SDI Digital Video Recorders (DVRs) may be incorporated to accommodate the needs from a small to a large surveillance/security system. -
Page 11: Basic Configuration Of Speed Dome Camera System
HD-SDI CAMERA 8.2 BASIC CONFIGURATION OF SPEED DOME CAMERA SYSTEM POWER AC 24V STP AWG # 22 J-BOX BACK J-BOX FRONT SLAVE KBD DC 12V DOME1 ALARM/PC DATA2 DATA1 BNC MONITOR DATA2 DATA1 REAR KEYBOARD CONTROLLER 4 ALARM INPUT 1 AUX OUTPUT RS-485 HALF DUPLEX MODE CONTROLLER... -
Page 12: Layout Of Switches
HD-SDI CAMERA 8.3 LAYOUT OF SWITCHES Figure 3 – HD-SDI Layout of Switches... - Page 13 HD-SDI CAMERA Figure 4 – HD-SDI Sub Connector...
-
Page 14: Principle Of Termination
HD-SDI CAMERA 8.4 PRINCIPLE OF TERMINATION Every device that is connected at the end of the communication data line must be terminated by either the DIP switch setting or an appropriate device such as a termination jumper to prevent potential control signal errors. See Figure 6 for termination switch settings and Figure 7 for examples of devices requiring termination. - Page 15 HD-SDI CAMERA Figure 6 - Termination Diagram...
-
Page 16: Dome Camera Address (Id)
HD-SDI CAMERA 8.5 DOME CAMERA ADDRESS (ID) Each dome camera must have a unique address (ID). Identical IDs on the same line may damage the control circuit caused by an electrical short. When installing multiple dome cameras or a DVR, it is recommended that the dome camera ID’s be identical to the camera port of the DVR. -
Page 17: System Setup
HD-SDI CAMERA 8.6 SYSTEM SETUP The PTZ Dome Camera support several High Definition video standards such as 1080i 60Hz, 1080i 50Hz,1080p 30Hz, 1080p 25Hz, 720p 60 Hz or 720p 50Hz, 720p 30 Hz or 720p 25Hz. (1080p 30Hz = 1080p 30 fps) See Figure 9 (S4) for the appropriate protocol switch settings. -
Page 18: Connections
HD-SDI CAMERA 8.7 CONNECTIONS 8.7.1 How to Connect RS-485 The dome camera has a built-in RS-485 receiver so that it can be controlled remotely by an external control device such as a joystick controller or a DVR. RS-485: Connect the Tx(D)+and Tx(D)- of the RS485 control devices (KBD, DVR…) to RX+, RX- of the dome camera. -
Page 19: Connecting Alarms
HD-SDI CAMERA If the distance between the camera and the monitor exceeds the recommended maximum, please use an auxiliary HD-SDI Repeater. Figure 10 – HD-SDI Video Cable 8.7.5 Connecting Alarms Alarm In (AL1 to 8) Magnetic, PIR or other external sensor devices can be used to signal the dome camera to react to an event. -
Page 20: Power Supply (Ac/Dc)
HD-SDI CAMERA Alarm out (NO,NC,COM) activation J1: Alarm1(part A) J2: Alarm2 (part B) Black Alarm1 Black Alarm5 Brown Alarm3 Brown Alarm6 Alarm3 Alarm7 Orange Alarm4 Orange Alarm8 Yellow A1 GND Yellow A2 GND Green COM A Green COM B Blue NC A Blue NC B... -
Page 21: Mounting The Dome Camera
HD-SDI CAMERA 8.8 MOUNTING THE DOME CAMERA Once all DIP switches are set properly and all external connections are made, the dome camera can be mounted. The Speed Dome camera is designed to mount on a structural body supporting loads up to 5 Kg. (See Figure 12). Figure 12 - Example of a ceiling mounted installation... - Page 22 HD-SDI CAMERA Figure 13 - Example of a Surface mounted installation...
-
Page 23: Power On And Boot - Up Sequence
H/W Ver. :V1.0 S/W Ver. :V1.45C HD-SDI CAMERA FPGA Ver. :V1.1 Ver. :0001 Baud rate :9600 bps Protocol :AUTO 8.9 POWER ON AND BOOT-UP SEQUENCE Tilt :Origin set OK :Origin set OK When the power is applied to the PTZ dome camera, it will start the boot-up Camera :EH6300 sequence. -
Page 24: Normal Display (Osd)
00/00/0000 00:00:AM HD-SDI CAMERA (Function Title) AF AE Message 8.10 NORMAL DISPLAY (OSD) ALARM:123 After a successful boot-up sequence the following information can be displayed 20.0X on the monitor screen. 270.0,090.0 "N DOME ID:0001 On Screen Display in normal control mode 00/00/0000 00:00:00 AM Date and time (Function Title) -
Page 25: Program & Operation
HD-SDI CAMERA 9. PROGRAM & OPERATION 9.1 DOME CAMERA KEY BOARD CONTROLLER Prior to programming or operating a dome camera, please make sure that both the camera and the joystick controller are communicating. In order for changes to take effect for a camera, particular camera’s ID must be selected on the controller. -
Page 26: Functions
HOME FUNCTION FUNCTION MENU Main Menu Function Home Function : PRESET Function HD-SDI CAMERA Number Preset : 001 Action Waiting Time : 060 sec Pattern Screen 10. FUNCTIONS Enable Scan : OFF Camera Tour Save and Exit Date/Time 10.1 MAIN MENU Run Function Data Exit... -
Page 27: Preset
PRESET SETUP HD-SDI CAMERA Number : 001(Defined) Title : ---------- Edit Position # Number : - - - AE Control WB Control # Waiting Time : 10~240 Seconds Focus Control # Operation : Enable/ Disable Night Shot Gamma : Gamma1 Noise Filter : OFF Save and Exit The Home function applies to the predefined functions such as Preset, Tour,... -
Page 28: Edit Title
EDIT TITLE PRESET1 HD-SDI CAMERA 123456790 Space 1. Edit the title of the Position Preset (see section 10.1.2.1.Edit Title). ABCDEFGHIJ 2. Edit the camera position (see section 10.1.2.2. Edit Position). Backspace 3. Edit the camera AE settings (see section 10.4.1. AE Control). KLMNOPQRST Insert 4. -
Page 29: Pattern
PRESET POSITION SETUP PATTERN SETUP CONTROL HD-SDI CAMERA TITLE PATTERN1 PATTERN2 PATTERN3 PATTERN4 PATTERN5 PATTERN6 Press IRIS-OPEN to Save PATTERN7 123.0,100.0 10.0X PATTERN8 TOTAL Save and Exit 123.0,100.0 Angles of PAN,TILT 10.X X Zoom magnification 1. Edit the position (joystick up/down/left/right) and the zoom factor (TELE/WIDE) Press the IRIS-OPEN button to save the settings 10.1.3 Pattern... - Page 30 PATTERN AREA SETUP PATTERN SETUP CONTROL HD-SDI CAMERA TITLE PATTERN1 :000 SEC PATTERN2 number. Total :000 SEC PATTERN3 2. Move the cursor position with Joystick (up/down) Press IRIS-OPEN to save PATTERN4 3. Select the column number(01) 320.0 000.9 1.3X PATTERN5 4.
-
Page 31: Scan
SCAN SETUP HD-SDI CAMERA Number Title :SCAN1 Mode :Normal main DOME MENU. Speed :3 LEVEL Start :None :None 10.1.4 Scan :ccw Swap :OFF The scan function enables the PTZ dome camera to move automatically Dwell :03 Sec between two user-defined positions at different speeds. This is very helpful if Save and Exit monitoring certain areas frequently. -
Page 32: Tour
HD-SDI CAMERA 7. Set the swap option. 8. Set the dwell time. 9. Execute Save and Exit. To run a stored scan directly from the dome menu, go to Run Function in the main DOME MENU. 10.1.5 Tour Tours can be called directly, assigned to actions or applied as “home” position. 8 programmable tours are available Each tour can consist of up to 42 functions (preset, pattern, scan or other tour). -
Page 33: Run Function
TOUR MENU 01/06 HD-SDI CAMERA TOUR No :01 Title:TOUR1 FUNC NO SP DW TITLE ---- -- -- -- ---------------- ---- -- -- -- ---------------- ---- -- -- -- ---------------- ---- -- -- -- ---------------- ---- -- -- -- ---------------- ---- -- -- -- ---------------- ---- -- -- -- ---------------- Previous Next Save and Exit... -
Page 34: Actions
ACTION SETUP RUN FUNCTION HD-SDI CAMERA Alarm Action Alarm List Function : ------------- Clear Alarm List Number : ---- Schedule Action Action : --- Schedule Action List Exit Exit Function : Preset/Pattern/Scan/Tour/Home/ Auto Pan/Alarm out Number : Function Number Action : ON, OFF (ALARM OUT only) Follow the steps below to program the Run Function: 1. -
Page 35: Alarm List
ALARM LIST ALARM ACTION SETUP HD-SDI CAMERA DATE TIME ALARM NO FCT FCT No IN OUT PRI DWL 01 --- --- OFF OFF 1 02 --- --- OFF OFF 1 03 --- --- OFF OFF 1 Previous Next 04 --- --- OFF OFF 1 05 --- --- OFF OFF 1... -
Page 36: Clear Alarm List
Clear Alarm List SCHEDULE ACTION SETUP HD-SDI CAMERA Are you sure ? Action Number Function Type :---- YES > Function Number :--- # TIME : displays in 24 Hour format only. Function Status :--- # The alarm list displays the date and time, and alarm input number up to 80 Action Active alarms. - Page 37 Add Action to List HD-SDI CAMERA Are you sure ? YES > Action Title Up to 12 characters (see section 10.1.2.1 Edit Title) Action Day : H(Holiday) S(Sunday) M(Monday) T(Tuesday) W(Wednesday) T(Thursday) F(Friday) S(Saturday) OMIT : O(Holiday) (see section 10.5 Date/Time) Start Time hh:mm, AM/PM Add Action To List Add the current action to the list.
- Page 38 Delete Action HD-SDI CAMERA Are you sure ? YES > 1. Select YES to delete the action from the list. Note: That a scheduled action has no duration. Therefore, you should set a second action to end the previous action. For example, suppose you want to operate the camera in black and white mode after 10:00pm and in Day/Night auto mode from 06:00am every day: First, program an action with the settings D/N:BW at 10:00 PM every day.
- Page 39 EDIT DAY HD-SDI CAMERA HOLIDAY Sunday Monday Tuesday Edit Day Wednesday :ON Thursday Friday Saturday All on ALL off Save and Exit HOLIDAY: OMIT : The action will not occur on a day of the week for which it is set If that date is in the list of holidays (see section 10.5 Date/Time) : The action will occur on a day of the week for which it is set if that date is in the list of holidays.
-
Page 40: Schedule Action List
SCREEN MENU LIST ACTION :ALL > HD-SDI CAMERA Language 01: ACTION ACTIVE Privacy Zone HSMTWTFS 00:01 AM PRESET 001 North Direction:000.0 Zone Title Camera Title 10.2.5 Schedule Action List OSD Display Exit Previous Next Exit LIST ACTION ALL, PRESET, SCAN, PATTERN, TOUR, AUTOPAN, ALARM OUT, ALARM IN, D/N:BW, D/N:COLOR, D/N:AUTO 1. - Page 41 PRIVACY AREA SETUP PRIVACY ZONE SETUP CONTROL HD-SDI CAMERA TITLE METHOD COLOR ZT None BLU OFF None BLU OFF ZONE SETUP allows you to hide (mask) up to 8 user-definable areas in the None BLU OFF camera. Press IRIS-OPEN to Polygon mode None BLU OFF 320.0 000.9 1.3X...
-
Page 42: North Direction
HD-SDI CAMERA 1. Select the TITLE of the privacy zone. 2. Control the joystick(tele/wide) to edit the privacy zone title (see section 10.1.2.1 Edit Title). 3. Select the METHOD for the privacy zone masking. If the selected METHOD is BLOCK, select the required color for the privacy zone masking. -
Page 43: Camera Title
Zone TITLE SETUP 01/03 HD-SDI CAMERA Title Start ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- Previous Next Save and Exit 1. Select an Area Title item. 2. Select the Start angle field. 3. -
Page 44: Osd Display
EDIT TITLE DISPLAY SETUP HD-SDI CAMERA DOME ID DOME ID DOME Title :ON 123456790 Space Position ABCDEFGHIJ Backspace Area Title :ON KLMNOPQRST Insert Action Title :ON UVWXYZ()-/ Delete Function Title Abcdefghij Delete All Focus,Exposure :ON Klmnopqrst Exit Zoom uvwxyz*,.: Save and Exit Date/Time North Direction:ON Save and Exit... -
Page 45: Camera Setup
CAMERA SETUP AE CONTROL HD-SDI CAMERA AE Control Mode :AUTO WB Control Iris :F2.8 Focus Control Gain :odB 10.4 CAMERA SETUP Night Shot Shutter :1/60 Digital Zoom : OFF Exposure Compensation :0 Gamma Slow Shutter :AUTO STADNDARD Back Light Comp. :Off Noise Filter : OFF Bright... - Page 46 HD-SDI CAMERA used in countries with a 50 Hz power supply frequency. - 1/120s for PAL models used in countries with a 60 Hz power supply frequency. IRIS: Iris priority mode Variable Iris (F1.6 to Close, 18 steps), Auto Gain and Shutter speed. BRIGHT: Variable Iris and Gain (Close to F1.6, 17 steps at 0dB:F1.6, 15 steps from 0 to 28 dB) according to the brightness level.
- Page 47 HD-SDI CAMERA Back Light Compensation Back light compensation: ON / OFF Compensates for the silhouetting effect of backlit objects (e.g. in front of windows, glass doors or other sources of light). When the background of the subject is too bright, or when the subject is too dark due to shooting in the AE mode, back light compensation will make the subject appear clearer.
-
Page 48: Wb Control (White Balance)
WB CONTROL HD-SDI CAMERA Mode :AUTO R Gain :208 B Gain :160 10.4.2 WB Control (White Balance) Execute One Push Save and Exit Mode AUTO: Automatically and permanently computes the white balance value output using color information from the entire screen (based on a range of values from 3000 to 7500K). -
Page 49: Focus Control
FOCUS CONTROL HD-SDI CAMERA Mode :AUTO Focus Limit :30cm AF Sensitivity :Low Adjustable in MANUAL mode only. IR Compensation :OFF Exit 10.4.3 Focus Control Mode AUTO: Automatically adjusts the focus position (passive auto focus). Sufficient illumination and subject contrast for central measurement area are required. -
Page 50: Night Shot
D/N CONTROL Mode :AUTO HD-SDI CAMERA Day/Night Level Exit use as approximate values. The Infinity mode overrides automatic focusing and positions the focus to infinity (∞). This ensures a sharp and clearly reproduction of very distant objects CAUTION: Please avoid continuous, 24-hour use of the auto focus under heavy movement condition. -
Page 51: Noise Filter
Camera Defaults DATE/TIME SETUP HD-SDI CAMERA Time Format Are you sure ? :12HR Time :08:30:00 AM Date Format :DD/MM/YYYY YES > 10.4.7 Noise Filter Date :01/10/2012 The NR (Noise Reduction) function removes noise Daylight Saving :OFF (both random and non-random) to provide clearer images. Edit Daylight Saving This function has Five steps: levels 1 to 4, plus off. - Page 52 DAYLIGHT SAVING DAYLIGHT SAVING Type Type :RELATIVE :FIXED HD-SDI CAMERA START START Month Month :MAR :MAR MM/DD/YYYY Week Week :LAST :LAST LAST LAST YYYY/MM/DD :SUN :SUN Time Time :01:00 AM :01:00 AM Daylight Saving 02:00 AM 02:00 AM ON / OFF Save and Exit Save and Exit Edit Daylight Saving...
- Page 53 Add Holiday EDIT HOLIDAY EDIT HOLIDAY RELATIVE:01/01/20XX Number Number :NEW HD-SDI CAMERA Type Type :FIXED :RELATIVE Are you sure ? Month Month :JAN :NOV The holiday occurs on a different date each year, such as the fourth Thursday in Week Week :---- :4th...
- Page 54 Delete Holiday LIST HOLIDAY: All > FIXED :01/01/2012 HD-SDI CAMERA Are you sure ? RELATIVE :11/20/2011 YES > 5. Select YES and control the joystick (right) To edit / overwrite a holiday, proceed as follows: Previous Next Exit 1. Select the Number of the holiday you want to edit. 2.
-
Page 55: Data
Factory Default DATA SETUP ERASE PROGRAMMED DATA Factory Default HD-SDI CAMERA Are you sure ? Preset :OFF Erase programmed Data Scan :OFF Exit YES > Tour :OFF Pattern :OFF 10.6 Data Alarm :OFF Area Title :OFF Privacy zone :OFF Holidays :OFF Schedule :OFF... -
Page 56: Setup
ERASE PROGRAMMED DATA SETUP MENU HD-SDI CAMERA Are you sure ? Preset Freeze :OFF Speed :FAST YES > Response Dome Angle Calibration Enabled for erasure. Password Setup OFF Data will not be affected. Installation :NORMAL Flip Offset : 000.0,000.0 1. Execute Erase. System Information Save and Exit 2. -
Page 57: Dome Angle
COMMUNICATOIN MODE VIEW ANGLE SETUP Communication Type :RS-485 Flip HD-SDI CAMERA Response. Tilt Limit :-05 Save and Exit Left Pan Limit :000.0 Right Pan Limit :000.0 Enable Pan Limit :OFF Apply Auto Pan Save and Exit 10.7.4 Dome Angle Flip ON : The PTZ dome camera moves up to 180°... -
Page 58: Calibration
PASSWORD SETUP Calibration Enable Password :OFF HD-SDI CAMERA Edit Password Origin Offset : 000.0,000.0 Confirm Password Origin Enable : Disable Save and Exit Auto Calibration :On When you enter the pan limit mode, the PTZ dome camera moves to 90° vertically Exit automatically if the PTZ dome camera is positioned over 90°... -
Page 59: Installation
INPUT PASSWORD :0 DOME INFORMATION H/W Ver. :V1.0 HD-SDI CAMERA S/W Ver. :V1.43 FPGA Ver. :v1.0 UP/DOWN to change Repeat the above-mentioned procedure with the same numbers. Camera :EH6300 TELE/OPEN to Enter If both passwords match, the password editing is completed and the Con. - Page 60 HD-SDI CAMERA H/W Ver. Hardware version S/W Ver. Software version Camera Type of camera module Con. Type Type of connection board ID of PTZ dome camera Baud rate Set baud rate Protocol Set protocol type...
-
Page 61: Appendix
HD-SDI CAMERA 11. APPENDIX 11.1 SPECIFICATION CAMERA Camera(FCB-EH6300) Exmor CMOS sensor(Sony) Image Sensor 1/2.8" Picture elements 3270K Pixels 1080i/60/50, 1080p30/25 Video Standards 720p/60/50 20x optical zoom with auto focus Lens 12x digital zoom(240x with optical zoom) F1.6 to F3.5, f=4.7mm to 94mm View angle Approx. - Page 62 HD-SDI CAMERA Pan Angle 360° continuous rotation Repeatability 0.2° Flip Rotate 180° at bottom of tilt Normal Dome Speed. 0.1~105°/sec , PAN Speed Turbo Dome Speed. 0.1~420°/sec , PAN Speed Preset Dome Speed. 420°/sec recall Preset Speed Auto scan 16 auto scan include vector scan/1 Auto Pan Preset Position 248 positions with camera status (16-character title) Tour...
-
Page 63: Dimension
HD-SDI CAMERA 11.2 DIMENSION Figure 14 – HD-SDI Dimension... -
Page 64: Trouble Shooting
HD-SDI CAMERA 11.3 TROUBLE SHOOTING If problems occur, verify the installation of the camera with the instructions in this manual. Isolate the problem from the equipments in the system and refer to the equipment manual for further information. Problem Solution 1.Check that the power cord and line connection between the camera and monitor are properly connected. -
Page 65: Glossary
HD-SDI CAMERA 3. When a BNC cable adaptor is used to combine two or more BNC cables for distributed HD-SDI video transfer, make sure the impedance of the adaptor is 75Ω. Otherwise, it may cause shorter transfer distance or broken video transfer. RS-485 communication is not Check RS-485 communication settings available. - Page 66 HD-SDI CAMERA light situations. This setting does not effect camera operation in normal lighting situations. See also Automatic Gain Control (AGC). FLIP/ DIGITAL FLIP It allows the dome to turn 180 degrees when the camera tilts to its lower limit. When the dome flips (rotates), the camera starts moving upward as long as the tilt control is kept in the down position.
- Page 67 HD-SDI CAMERA to 8 patterns may be programmed for the dome camera. PRESET Programmed video scene, based on a specific pan, tilt, zoom, and focus settings. Up to 240 presets may be programmed for the dome camera. PRIVACY ZONES Privacy zones are areas that are masked. These masks prevent operators of the surveillance system from viewing these designated zones.
- Page 71 VITEK warrants to the purchaser that products manufactured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended, will be free of defects in materials and workmanship for a period of three (3) years, or as otherwise stated above, from the date of purchase by the end user.
- Page 72 28492 Constellation Road ValenCia, Ca 91355 WWW.ViteKCCtV.CoM | 888-ViteK-70...
