Vitek VT-PTZ12W User Manual

Vitek VT-PTZ12W User Manual

Ultra-compact ptz camera with wdr & 12x optical zoom
Hide thumbs Also See for VT-PTZ12W:
Table of Contents

Advertisement

Quick Links

Download this manual

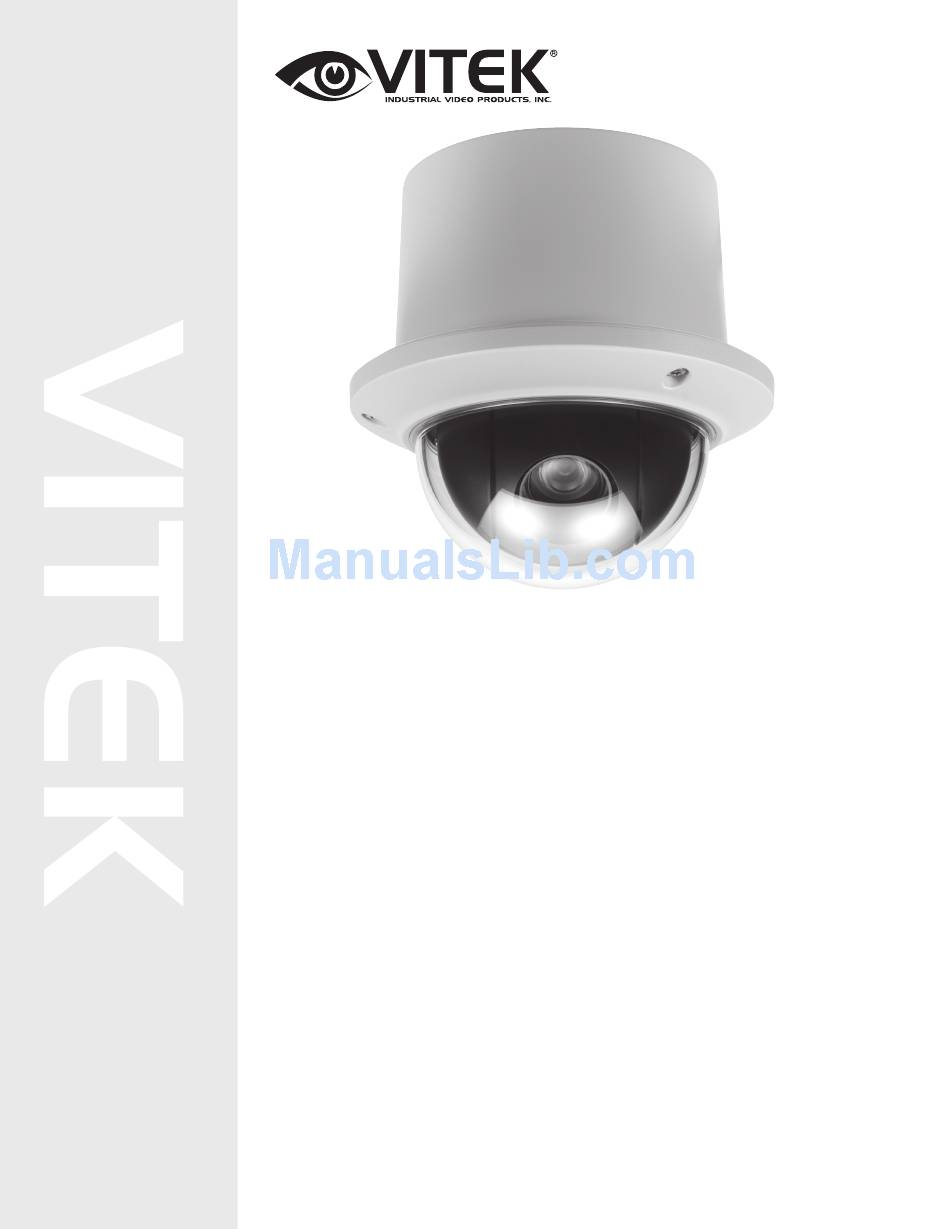

VT-PTZ12W
Ultra-Compact PTZ Camera with
WDR & 12x Optical Zoom
• High Performance 1/4" CCD with 550 TV Lines
• Built-In 3.7-44mm Lens with 12x Optical / 12x Digital Zoom
• True Day/Night function with ICR
• 128 Presets programmed with view direction, zoom, and BLC
• 4 Patterns record and play back user preference of surveillance path up to 120º sec.
• 8 Scans: 8 speed steps from slow to medium panning with smooth Diagonal Scan
• 4 Tours: Each tour consists up to 32 Presets, Patterns, and/or Scans
• Fully Gasket Sealed IP-66 Rated Weatherproof Design
• 4 Alarm inputs with 1~4 priority / 1 Auxiliary output with programmable NC & NO
• 8 Privacy Zones: Video off or up to 8 masked blocks
• 64 steps of variable speed from 0.4º/sec to 90º/sec. Max manual speed 190º/sec
with Turbo key pressed, Preset speed is 380º/sec.
• Built-in RS-485 receiver driver.
• Built-in power-line surge protection and lightning protection
• Built-in Heater/Blower for use in Extreme Temperatures

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VT-PTZ12W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vitek VT-PTZ12W

Summary of Contents for Vitek VT-PTZ12W

  • Page 1 VT-PTZ12W Ultra-Compact PTZ Camera with WDR & 12x Optical Zoom • High Performance 1/4” CCD with 550 TV Lines • Built-In 3.7-44mm Lens with 12x Optical / 12x Digital Zoom • True Day/Night function with ICR • 128 Presets programmed with view direction, zoom, and BLC •...
  • Page 2 Before installing the Dome camera, please make sure that the following items are included in the box: 1. Mini Speed Dome Camera 2. Instruction Manual 3. Mounting Hardware If any of these materials are missing, please contact the vendor or VITEK customer help desk immediately.

  • Page 3: Disclaimer

    VITEK. • VITEK makes no warranties for damages resulting from corrupted or lost data due to a mistaken operation or malfunction of the Speed Dome Cameras, peripheral...

  • Page 4: Warning And Caution

    VT-PTZ12 WARNING AND CAUTION WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT. CAUTION EXPLANATION OF GRAPHICAL SYMBOLS The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"...

  • Page 5: Fcc Compliance Statement

    VT-PTZ12 FCC COMPLIANCE STATEMENT FCC INFORMATION: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT.

  • Page 6: Important Safeguards

    VT-PTZ12 IMPORTANT SAFEGUARDS 1. Read these instructions. 2. Heed all warnings. 3. Follow all instructions. 4. Do not use this equipment near water. 5. Clean only with dry cloth. 6. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

  • Page 7: Table Of Contents

    VT-PTZ12 TABLE OF CONTENTS DISCLAIMER ........................1 I. INTRODUCTION ......................7 Features ..............................7 II. INSTALLATION AND CONFIGURATION ..............8 2.1 Typical System Configuration ......................8 2.2 Basic Configuration of Speed Dome Camera System ..............9 2.6 Principle of Termination ........................ 13 Daisy-Chain Wiring ..................................
  • Page 8 VT-PTZ12...

  • Page 9: Introduction

    VT-PTZ12 I. INTRODUCTION Features The Speed Dome Camera features a high resolution 1/4” Interline Transfer CCD imager for enhanced lowlight sensitivity. User friendly, on-screen pull-down menus and short- cuts make it easy to setup and program functions. System information aides trouble shooting by displaying the hardware and software version of the camera’s firmware version, baud rate, and protocol.

  • Page 10: Installation And Configuration

    VT-PTZ12 II. INSTALLATION AND CONFIGURATION 2.1 Typical System Configuration Additional Speed Dome joystick controllers and a variety of external switching devices such as multiplexers (MUXes) and Digital Video Recorders (DVRs) may be incorporated to accommodate the needs from a small to a large surveillance/security system. Figure 1 illustrates sample installation.

  • Page 11: Basic Configuration Of Speed Dome Camera System

    VT-PTZ12 2.2 Basic Configuration of Speed Dome Camera System POWER AC 24V STP AWG # 22 BNC MONITOR 4 ALARM INPUT 1 AUX OUTPUT RS-485 HALF DUPLEX MODE CONTROLLER DOME Figure 2 - Basic Installation Diagram...

  • Page 12: Connecting The Speed Dome Directly Into The Dvr

    VT-PTZ12 2.3 Connecting the Speed Dome directly into the DVR Locate the RS485 + & - conductor wire from the Speed Dome Camera. • Connect the + & - into the TRX+ & TRX- ports of the DVR. Tx+ & Tx- ports can be •...
  • Page 13 VT-PTZ12 2.5 Connecting Both Speed Dome and DVR via J-box Figure 5 - Connecting Camera & DVR into Controller...
  • Page 14 VT-PTZ12 The dome camera must be installed by qualified service personnel. Before installing the dome camera system, this instruction manual must be read thoroughly and understood fully. Dome cameras must be set up properly before starting the installation. This involves properly setting configuration switches. Figure 6 shows the location of these switches.

  • Page 15: Principle Of Termination

    VT-PTZ12 2.6 Principle of Termination There are two general types of wiring scheme for PTZ cameras: • Daisy-Chain Wiring • Home-Run Wiring Each scheme has a different termination method Daisy-Chain Wiring Every device that is connected at the end of the communication data line (daisy-chain) must be terminated by either the DIP switch setting or an appropriate device such as a termination jumper to prevent potential control signal errors.
  • Page 16 VT-PTZ12...

  • Page 17: Dome Camera Address (Id)

    VT-PTZ12 S1:Dome1 port Termination ON DVR Termination ON SW1:Termination ON SW1:Termination ON S1:Dome1 port Termination ON DVR Termination ON SW1:Termination ON SW1:Termination ON SW1:Termination ON SW1:Termination ON S1:Dome1 port Termination ON S4:DVR port Termination ON DVR Termination ON DVR Termination ON SW1:Termination ON SW1:Termination ON S1:Dome1 port Termination ON...

  • Page 18: Setting Protocols

    VT-PTZ12 Cam Port 1 = Dome ID1, Cam Port 2 = Dome ID 2 … Cam Port 16 = Dome ID 16. If more than 16 dome cameras are installed using two or more DVRs the following formula is useful to determine the Dome ID: ID =16x (n-1) +m (where n= number of DVR, m=Camera Port) Refer to Figures 9 for setting the dome camera address (ID) and protocol selection.

  • Page 19: Mounting The Dome Camera

    VT-PTZ12 The dome camera has a built-in RS-485 receiver so that it can be controlled remotely by an external control device such as a joystick controller or a DVR. RS-485: Connect the TXA (Tx+) and TXB (Tx-) of the RS485 control devices (KBD, DVR…) to TRX+, TRX- of the dome camera.

  • Page 20: Power On And Boot-Up Sequence

    VT-PTZ12 The Mini PTZ Dome camera is designed to mount on a structural body supporting loads up to 3 Kg. See Figure 11. Installation Hint Using Four ST4X30 screws, affix flush mount base to sturdy surface Figure 11 - Example of a flush mounted installation 3.1 Power on and Boot-up Sequence...
  • Page 21 VT-PTZ12 When the power is applied to the dome camera, it will start the boot-up sequence. When boot-up is done, the following information is displayed on the monitor screen. RAM TEST CHECK NO. : OK! CHECK AAAA : OK! CHECK 5555 : OK! XPRESS DOME Vx.xxx ID:0001 9600BPS AUTO CAMERA TYPE xxxx...

  • Page 22: Program & Operation

    VT-PTZ12 III. PROGRAM & OPERATION Dome Camera Selection Prior to start programming or operating a dome camera, please make sure that both the camera and the joystick controller are communicating. In order for changes to take effect for a camera, particular camera’s ID must be selected on the controller. Example: Pressing 1 , 6 and CAM key sequentially will select dome camera 16.

  • Page 23: Home Function (Menu =>Functions => Home Function)

    VT-PTZ12 MAIN MENU FUNCTION ALARM SCREEN CAMERA SETUP EXIT Select the FUNCTIONS and then move the joystick to the right to access FUNCTIONS menu. FUNCTIONS HOME FUNCTION PRESET PATTERN SCAN TOUR EXIT 3.1.1 HOME FUNCTION (MENU =>FUNCTIONS => HOME FUNCTION) After HOME FUNCTION item has been selected, follow the directions below to set HOME function.

  • Page 24: Preset (Menu => Functions => Preset Short Cut:prst )

    VT-PTZ12 Follow the steps below to program the Home function: 1. Select the camera number by pressing No. and CAM 2. Press MENU to display the main menu on the monitor. 3. Moving the Joystick to the right on “FUNCTIONS”. 4.
  • Page 25 VT-PTZ12 PRESET 01/8 NO. F I B TITLE 001 A A F xxxxxxxxxxxxxxxx 002 M M O ---------------- 003 - - - ---------------- 004 - - - ---------------- 005 - - - ---------------- 006 - - - ---------------- 007 - - - ---------------- 008 - - - ----------------...

  • Page 26: Pattern (Menu => Functions => Patterns Or Shortcut: Ptrn)

    VT-PTZ12 SHORTCUT TO PROGRAMMING PRESETS. Select direction of the camera, zoom and focus to be programmed, then press No. (1~64), and then press SHFT, PRST subsequently. The current view will be stored to the selected preset number if position is empty. If selected preset number is not empty, “PRESET EXISTING”...

  • Page 27: Scan ( Menu => Functions => Scan Or Shortcut: Scan)

    VT-PTZ12 5. Scroll down to the Save and Exit option and move the Joystick to the right to save and exit. 6. Naming the Pattern can be done by twisting the Joystick. Rotate the handle clockwise or counterclockwise to scroll through the alphanumeric characters, move the handle to right or left to select next or previous space.
  • Page 28 VT-PTZ12 Follow the steps below to program Scans. 1. Press the SCAN key to enter Auto Scan menu directly. (Or MENU => FUNCTIONS => SCAN). 2. Select an Auto Scan number by moving the Joystick left or right. 3. Twist the Joystick to enter the title by scrolling through the alphanumeric characters and move the handle to the right or left to move to the next space.
  • Page 29 VT-PTZ12 3.1.5 TOUR (or MENU => FUNCTIONS => TOUR, Short Cut: TOUR) There are 4 programmable Tours. Each Tour consists of up to 8 Preset positions, Patterns, Scans or other Tours. Using second-level Tours, it can be expanded up to 56 functions in a single Tour.
  • Page 30 VT-PTZ12 Follow the steps below to program the Tours: 1. Press MENU => FUNCTIONS => TOUR, Short Cut: TOUR MENU to display the main menu on the monitor. No. + SHFT+TOUR will open directly Tour No. 2. Choose an empty location of function by moving the Joystick up or down. 3.
  • Page 31 VT-PTZ12 3.2 ALARM ( MENU => ALARM) MAIN MENU FUNCTIONS ALARM SCREEN CAMERA SETUP EXIT Highlight ALARM in the main menu and move the joystick to the right to access ALARM setup. ALARM SETUP NO FUNC PRI OUT HLD LATCH 01 P01 OFF OFF 001 02 048...

  • Page 32: Screen

    VT-PTZ12 1. Press Menu to display the main menu on the monitor. Select the Alarm option by moving the Joystick up/down and then move to the right to enter the detail menu. 2. Select the alarm input number by moving the Joystick up or down and select the column to setup.

  • Page 33: Language ( Menu => Screen => Language)

    VT-PTZ12 3.3.1 LANGUAGE ( MENU => SCREEN => LANGUAGE) Moving the joystick handle to the right to select LANGUAGE options. Preferred language will be scrolled by moving the joystick to the right on LANGUAGE ENGLISH. 3.3.2 PRIVACY ZONE ( MENU => SCREEN => PRIVACY ZONE) Highlight PRIVACY ZONE and then move the joystick to the right to enter the menu.

  • Page 34: North Direction ( Menu => Screen => North Direction)

    VT-PTZ12 4. To adjust the “marked” (privacy) area, press and hold down the SHFT/PGM key and then use the Joystick (direction and zoom) until getting desired view. Release the key, the right column will be set to ON. (Or twist the zoom handle or hit the zoom button to start PTZ control for view selection and hit the Focus button to exit from control mode.) 5.
  • Page 35 VT-PTZ12 2. Select the zone number by moving the Joystick up or down. Select Start, End or number column to be set by moving the handle to the right or left. The selected column will be highlighted. 3. Twist the joystick handle on the No. column to enter zone title. Select alphanumeric characters by rotating the handle.

  • Page 36: Camera ( Menu => Camera)

    VT-PTZ12 ZONE TITLE : turn on or off the zone title display. NORTH DIRECTION : turn on or off the azimuth direction display. DOME POSITION : turn on or off the coordinates display. DOME ID : turn on or off the dome ID display. ZOOM MAGNIFICATION : turn on or off the current zoom magnification level display.

  • Page 37: Wb (White Balance) ( Menu => Camera => Wb Control)

    VT-PTZ12 3.4.2 WB (white balance) ( MENU => CAMERA => WB CONTROL) WB SETUP MODE OUTDOOR R GAIN : B GAIN : EXIT MODE MANUAL / OUTDOOR / INDOOR / AWC R GAIN 0 ~ 100 B GAIN 0 ~ 100 Use the AWC mode for normal use.

  • Page 38: Back Light Compensation ( Menu ! Camera !Back Light)

    VT-PTZ12 On screen noise reduction : AUTO / OFF This feature ensures clear images at night or under low lighting conditions. 3.4.4 BACK LIGHT COMPENSATION ( MENU ! CAMERA !Back Light) Objects in front of bright backgrounds will be clearer with BLC ON. LOW / MID.

  • Page 39: Camera Initialize ( Menu => Camera =>Camera Initialize)

    VT-PTZ12 3.4.8 CAMERA INITIALIZE ( MENU => CAMERA =>CAMERA INITIALIZE) Returns all changed camera values to factory default. CAMERA INITIALIZE ARE YOU SURE : (Y/N) YES : ENTER OR MENUKEY : ESC KEY 3.5 SETUP ( MENU => SETUP) CONFIGURATION MENU FLIP FUNTION : ON P/T SPEED...

  • Page 40: Preset Freeze (Menu => Setup => Preset Freeze)

    VT-PTZ12 3.5.3 PRESET FREEZE (MENU => SETUP => PRESET FREEZE) This option is used to set the pause previous image until the preset action is complete. 3.5.4 PANNING RANGE (MENU => SETUP => PANNING RANGE) PAN RANGE SETUP RIGHT LIMITE : 000.0 LEFT LIMT : 007.2...

  • Page 41: Line Lock Control (Menu = Setup => Line Lock Control)

    VT-PTZ12 3.5.7 LINE LOCK CONTROL (MENU = SETUP => LINE LOCK CONTROL) LINE LOCK SETUP MODE INTERNAL PHASE (0~359) EXIT MODE INTERNAL / EXTERNAL Adjusts phase of picture with other PHASE 0~359 cameras in EXTERNAL mode. EXIT (ESC TO EXIT) 3.5.8 FACTORY DEFAULT (MENU =>...

  • Page 42: System Information (Menu => Setup => System Information)

    VT-PTZ12 3.5.10 SYSTEM INFORMATION (MENU => SETUP => SYSTEM INFORMATION) SYSTEM INFORMATION CAMERA TYPE : XXXXXXX H/W VERSION : V1.00 ROM VERSION : V1.00 PROTOCOL : EZ BUADRATE : 9600BPS EXIT MENU This screen shows information of the dome camera for service or trouble shooting APPENDIX A —...
  • Page 43 VT-PTZ12 DNR (Digital Noise Reduction) 3DNR DIS (Digital Image Stabilizer) Pan Angle 360º Continuous Manual Pan Speed/sec 0.4~90º/sec Autoscan 380º/sec Tilt Travel -5º ~ 90º/sec 190º/sec Max (w/Turbo) Manual Tilt Speed/sec 0.4° to 90°/sec. / 190°/sec. maximum (Turbo) Preset Tilt Speed/sec 380°/sec Proportional Pan &...
  • Page 44 VT-PTZ12 Figure 10-Dimension Appendix B — Troubleshooting If problems occur, verify the installation of the camera with the instructions in this manual. Isolate the problem from the equipments in the system and refer to the equipment manual for further information. Problem Solution Verify that power is connected to all components in the...
  • Page 45 VT-PTZ12 Reset the cameras using the Dome configuration menus. Dome cameras lose their positions. Check if there is unusual sound. Check the voltage level of the dome camera. Camera number does not match the Check the camera ID and connect the BNC cable into multiplexer number.
  • Page 46 VT-PTZ12 It allows the dome to turn 180 degrees when the camera tilts to its lower limit. When the dome flips (rotates), the camera starts moving upward as long as the tilt control is kept in the down position. Once the control is released, the tilt control returns to its normal operational mode.
  • Page 47 VT-PTZ12 Programmed video scene, based on a specific pan, tilt, zoom, and focus settings. Up to 240 presets may be programmed for the dome camera. PRIVACY ZONES Privacy zones are areas that are masked. These masks prevent operators of the surveillance system from viewing these designated zones.
  • Page 48 Detailed Specifications 1/4” Interline Transfer CCD(Sony) Image Sensor Horizontal Resolution 550 TV Lines Minimum Illumination 0.6 lux / 0.01 lux (ICR ON) Lens 3.7mm to 44mm @ F1.6 to F2.5 View angle Approx. 48° (WIDE end) to 2.8° (TELE end) Optical Zoom Digital Zoom Shutter Speed...
  • Page 49 VITEK warrants to the purchaser that products manufactured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended, will be free of defects in materials and workmanship for a period of three (3) years, or as otherwise stated above, from the date of purchase by the end user.
  • Page 50 28492 Constellation Road ValenCia, Ca 91355 WWW.ViteKCCtV.CoM | 888-ViteK-70...
