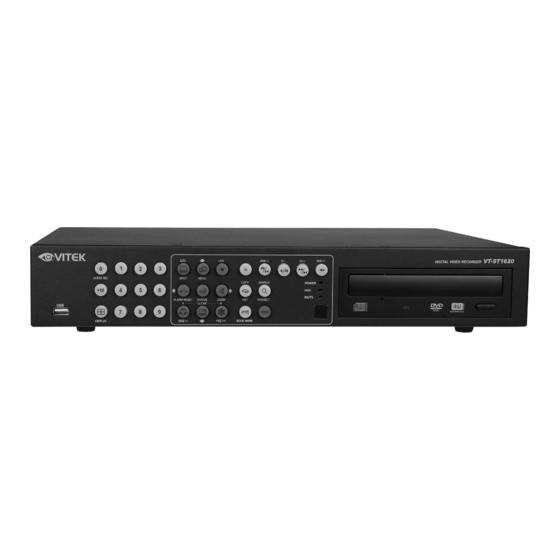

Vitek VT-ST1620 User Manual

Saga “st” series 4, 8, and 16 channel digital video recorders
Hide thumbs Also See for VT-ST1620:
Table of Contents

Advertisement

Quick Links

Download this manual
• The Industry's only MPEG4 Compression with Non-Conditional Refresh
• 120 IPS Recording and Real-Time 480 IPS Display
• MPEG-4 Compression
• Up to 42 HDD support: 1.5 Terabyte Internal Storage (2x - 750GB HDD) and Up to 30
Terabytes External Storage (4x - 10 HDD Expansion bay units)
• 4 Channel audio
• 2-Way communication over the internet via Remote Client Software
• Multi-site remote client
• Built-in DVD/RW drive
• Accepts 4 External (VT-XHD10) HDD Bays for an Additional 40 Hard Drives
• Block Search Function Retrieves Lost Files, Even from Damaged Hard Drives
• Embedded Linux OS
• Dynamic IP support (DDNS)
• Maximum File Size of 6K (CIF), 11K (Half D1), 20K (D1)
• Continuous, Motion, Alarm, V-Loss, Scheduled recording modes
• Numerous search modes: Calendar, Search & Copy, Time, Event, Block, File, Bookmark &
Log
• Multi-site Monitoring for a maximum of 16 Independent DVRs and a maximum of 256
Cameras
• Notification e-mail to up to 10 accounts on Motion, Alarm, V-Loss, HDD Fail
• Pentaplex Plus: Record, Playback, Network Transmission, Mirror, Backup and Live Viewing
• Backup to External HDD, CD-R, CD-RW, DVD-RW, DVD+RW, USB Memory Stick
• Control up to 16 DVRs via Keyboard or IR Remote control
SAGA "ST" Series
4, 8, and 16 Channel Digital
Video Recorders

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VT-ST1620 and is the answer not in the manual?

Questions and answers

Related Manuals for Vitek VT-ST1620

Summary of Contents for Vitek VT-ST1620

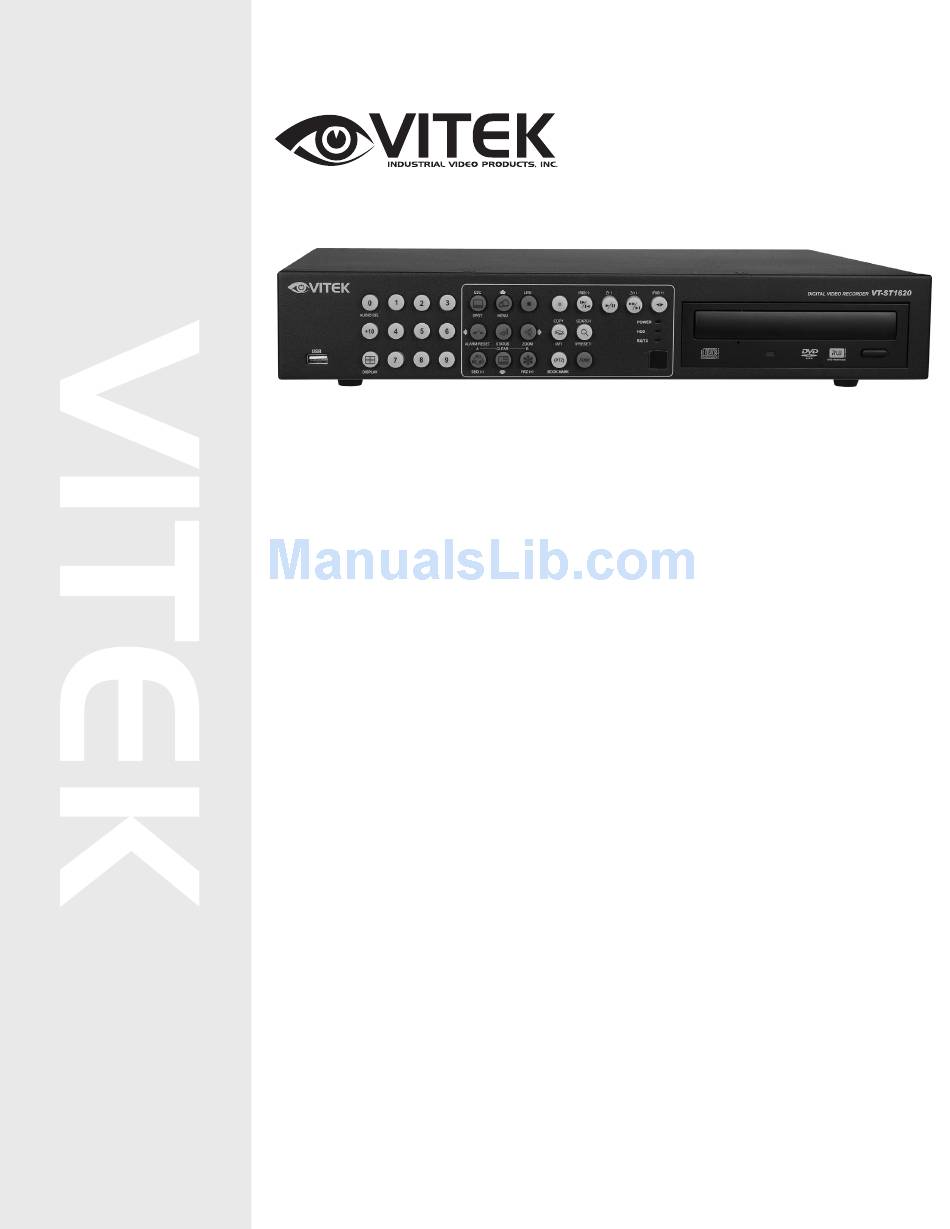

  • Page 1 SAGA “ST” Series 4, 8, and 16 Channel Digital Video Recorders • The Industry’s only MPEG4 Compression with Non-Conditional Refresh • 120 IPS Recording and Real-Time 480 IPS Display • MPEG-4 Compression • Up to 42 HDD support: 1.5 Terabyte Internal Storage (2x - 750GB HDD) and Up to 30 Terabytes External Storage (4x - 10 HDD Expansion bay units) •...

  • Page 2: Package Contents

    3. One Power Cable 4. One Remote Controller 5. DVR Viewer Program CD 6. This Instruction Manual. 7. Two AAA batteries. 8. Rack Mount Ears and screws. If any of the contents are missing, please contact the Vitek Customer Help Desk immediately.

  • Page 3: Risk Of Electrical Shock Warning

    SAGA “ST” Series RISK OF ELECTRICAL SHOCK WARNING WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT. CAUTION EXPLANATION OF GRAPHICAL SYMBOLS The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to...

  • Page 4: Disclaimer

    Vitek Industrial Video Products, Inc. Vitek makes no warranties for damages resulting from corrupted or lost data due to a mistaken operation or malfunction of the Digital Video Recorders, the software, personal computers, peripheral devices, or unapproved/unsupported devices.

  • Page 5: Fcc Notice

    SAGA “ST” Series FCC NOTICE Saga Series Digital Video Recorders, VT-ST420, VT-ST820, VT-ST1620 These devices comply with Part 15 of the FCC Rules. Operation is subject to the following two conditions; 1. These devices may not cause harmful interference, and 2.

  • Page 6: Read This First

    This equipment’s warranty is only effective in the country of sale. If a problem arises while the Digital Video Recorder is in use abroad, please convey it back to the country of sale before proceeding with a warranty claim to Vitek customer help desk.

  • Page 7: Safety Precautions

    Contact a qualified service personnel authorized by the equipment distributor or a Vitek customer help desk. Do not attempt to disassemble or alter any part of the equipment that is not expressly described in this guide.
  • Page 8 Digital Video Recorder’s Power off or unplug the power cord from the power outlet. Continued use of the equipment may result in fire or electrical shock. Please consult the Digital Video Recorder reseller or the Vitek customer help desk. Do not use substances containing alcohol, benzene, thinners or other flammable substances to clean or maintain the equipment.

  • Page 9: Preventing Malfunction

    SAGA “ST” Series PREVENTING MALFUNCTION Avoid Strong Magnetic Fields. Never place the Digital Video Recorder in close proximity electric motors other equipment generating strong electromagnetic fields. Exposure to strong magnetic fields may cause malfunctions or corrupt image data. Avoid Condensation Related Problems. Moving the equipment rapidly between hot and cold temperatures may cause condensation (water droplets) to form on its external and internal surfaces.

  • Page 10: Table Of Contents

    IV. BASIC OPERATION..................31 4.1 MAIN SCREEN ....................31 4.2 STATUS SCREEN.................... 32 4.3 LIVE VIEW ......................34 4.3.1 LIVE VIEW MODE SEQUENCE .............. 34 4.3.1.1 VT-ST1620 ..................34 4.3.1.2 VT-ST820 ..................35 4.3.2 FULL SCREEN DISPLAY................ 35 4.3.3 AUTOMATIC SEQUENCE ..............36...
  • Page 11 SAGA “ST” Series 4.4 FREEZE......................36 4.4.1 SINGLE SCREEN VIEW MODE.............. 37 4.4.2 MULTI SCREEN VIEW MODE ..............37 4.5 ZOOM ....................... 38 4.6 PICTURE-IN-PICTURE..................39 4.7 SPOT MONITOR ....................40 4.8 BASIC RECORDING ..................41 4.9 BASIC PLAYBACK ................... 42 4.9.1 PLAY / REVERSE PLAY / PAUSE / STOP ..........
  • Page 12 SAGA “ST” Series 6.1.5 PRE-RECORD TIME ................77 6.1.6 POST-RECORD TIME................78 6.1.7 IMAGE QUALITY..................78 6.1.8 AUDIO RECORD..................78 6.1.9 REMOTE CONTROL ID ................78 6.2 SCREEN SETUP ....................79 6.2.1 AUTO SEQUENCE.................. 79 6.2.2 DISPLAY ....................81 6.2.3 TITLE....................... 83 6.2.4 MULTI-SCREEN..................
  • Page 13 SAGA “ST” Series 6.5.7.3 User Authority................109 6.5.7.4 DVR Menu Setup ................. 109 6.5.7.4.1 Menu Initialize ................109 6.5.7.4.2 Load menu from file..............110 6.5.7.4.3 Save menu to file............... 110 6.5.9 FIRMWARE UPGRADE ................ 111 6.6 LINK........................ 113 6.6.1 NETWORK .................... 113 6.6.2 RS-232C....................
  • Page 14 10.6.6.4 PTZ .................... 166 10.6.6.5 E-mail ..................166 10.6.7 DOWNLOAD ..................167 XI. SPECIFICATIONS................... 169 11.1 VT-ST420...................... 169 11.2 VT-ST820...................... 171 11.3 VT-ST1620....................173 XII. TECHNICAL SUPPORT ................. 175 APPENDIX I......................176 TIME ZONE LISTING ................... 176 INDEX........................178 NOTES ......................... 181...

  • Page 15: Feature Highlights

    Hide channels in live, playback and network transmission. 1.2 RECORDING A. RECORDING Maximum recording speed of 120 pps in VT-ST1620, VT-ST820 and VT-ST420. B. MULTI-QUALITY / MULTI SPEED RECORDING Recording in different recording qualities and record speed. C. MULTIPLE RECORDING OPTIONS Manual, event and schedule recording.

  • Page 16: Play

    SAGA “ST” Series 1.3 PLAYBACK A. MULTI-SCREEN Single, quad, 6, 7, 9, 10, 13 and 16 channel playback. B. VERSATILE SEARCH OPTIONS Calendar, search & copy, timeline, event, block, file and bookmark search. C. PREVIEW Snapshot of search date and time in search mode. 1.4 NETWORK A.

  • Page 17: Storage

    SAGA “ST” Series 1.6 STORAGE A. GENEROUS STORAGE CAPACITY Two available internal hard drive bays allow up to 1.5 terabyte of storage and optional removable hard drive bay allows an additional 750 gigabytes of storage, for a maximum of 2.25 terabyes of storage. B.

  • Page 18: Saga "St" Series Digital Video Recorder Layout

    SAGA “ST” Series II. SAGA “ST” SERIES DIGITAL VIDEO RECORDER LAYOUT 2.1 FRONT PANEL LAYOUT 1. AUDIO SELECT This button selects the recorded audio channel when in multiple display mode. Press the button repeatedly to toggle between audio channels 1 through 4. 2.
  • Page 19 SAGA “ST” Series 8. PLAY / PAUSE / ZOOM OUT a) Starts the playback of recorded data. By default, the playback starts from the earliest recording. If the recording has been played back, the playback will start from where it was left off. b) Toggles between playback and pause mode.
  • Page 20 SAGA “ST” Series 16. PIP / LOOP PLAYBACK CLEAR / DOWN DIRECTIONAL BUTTON a) Activates the picture-in-picture mode. b) Tilts down in PTZ mode. c) Navigates left in the menu screen. d) Moves the zoom box left in zoom mode. e) Clears the loop playback in playback mode.

  • Page 21: Rear Panel Layout

    SAGA “ST” Series 2.2 REAR PANEL LAYOUT VT-ST420 11 12 13 VT-ST820 11 12 13 VT-ST1620 11 12 13...
  • Page 22 SAGA “ST” Series 1. CAMERA INPUT BNC connectors for composite video signal input. 2. SPOT OUTPUT Spot monitor BNC connector for composite video signal output. 3. RJ-45 ETHERNET PORT 10/100Base-T RJ-45 port for network connection. 4. RS-232C Reserved. The RS-232C port can be used to connect a variety of devices to control the DVR.
  • Page 23 Input and Output terminal blocks for time synchronization between DVRs. 17. ALARM INPUT Alarm input 1 through 4 on VT-ST420, 1 through 8 on VT-ST820 and 1 through 16 on VT-ST1620. 18. POWER IN DC power socket for 12VDC 6.67 Amps.

  • Page 24: Ir Remote Controller

    SAGA “ST” Series 2.3 IR REMOTE CONTROLLER 1. REMOTE CONTROLLER ID Select the remote controller ID. 2. IRIS CONTROL 3. ZOOM CONTROL 4. SPOT MONITOR / ESC 5. ENTER / STATUS / HOME...
  • Page 25 SAGA “ST” Series 6. ALARM RESET / LEFT DIRECTIONAL BUTTON 7. MENU / UP DIRECTIONAL BUTTON 8. PIP / DOWN DIRECTIONAL BUTTON 9. DIGITAL ZOOM / RIGHT DIRECTIONAL BUTTON 10. AUTOMATIC SEQUENCE / FOCUS OUT / DECREASE VALUE 11. FREEZE / FOCUS IN / INCREASE VALUE 12.

  • Page 26: Mouse Control

    SAGA “ST” Series 2.4 MOUSE CONTROL 1. LEFT MOUSE BUTTON a) Double-click in the main window: status display. b) Double-click in the menu screen: select item or icon. 2. SCROLL WHEEL Scroll up or down to change the value of the selected item. 3.

  • Page 27: Installation And Connections

    SAGA “ST” Series III. INSTALLATION AND CONNECTIONS 3.1 CONNECTIONS LAYOUT...

  • Page 28: Vt-Xhd10U

    SAGA “ST” Series 3.2 VT-XHD10U...

  • Page 29: External Terminal Connection

    SAGA “ST” Series 3.3 EXTERNAL TERMINAL CONNECTION 3.3.1 RS-485 DESCRIPTION TA(TX+) RS485:Transmit data TB(TX-) RS485: Receive data 3.3.2 TIME ADJUST DESCRIPTION FALLING EDGE TIME REFERENCE INPUT TIME REFERENCE OUTPUT To Other Time Adjust Terminals...

  • Page 30: Relay Output

    SAGA “ST” Series 3.3.3 RELAY OUTPUT DESCRIPTION DESCRIPTION NO(Normal Open) NO(Normal Open) CM(Common) CM(Common) ALARM NC(Normal Close) NC(Normal Close) POWER NO(Normal Open) NO(Normal Open) USER CM(Common) CM(Common) V-LOSS NOT USED HDD ERROR NC(Normal Close) NC(Normal Close) 3.3.4 ALARM SENSOR INPUT DESCRIPTION EXTERNAL ALARM 1 INPUT EXTERNAL ALARM 2 INPUT...

  • Page 31: Vga Pin Layout

    SAGA “ST” Series 3.3.5 VGA PIN LAYOUT DESCRIPTION RED(Red Video [75ohm, 0.7Vp-p] ) GREEN(Green Video [75ohm, 0.7Vp-p] ) BLUE(Blue Video [75ohm, 0.7Vp-p] ) 4~12 Reserved HSYNC or CSYNC(Horizontal or Composite Sync.) VSYNC(Vertical Sync.) Reserved 3.3.6 RS-232C PIN LAYOUT Description Description Data Carrier Detect Data Set Ready Receive data...

  • Page 32: Basic Operation

    SAGA “ST” Series IV. BASIC OPERATION This section will cover basic features of the DVR, including its main screen and the explanation of some of the alerts. It will also cover the DVR status, the view modes of the DVR, automatic sequence, digital zoom, basic playback modes and audio playback. 4.1 MAIN SCREEN 1.

  • Page 33: Status Screen

    SAGA “ST” Series 3. DATE AND TIME Current date and time is displayed when in live monitoring mode. Recorded date and time is displayed when in playback mode. 4. CHANNEL INFORMATION The channel information is displayed. When the channel is in normal recording mode, it will display the channel title as entered by the user.
  • Page 34 SAGA “ST” Series 5. RECORD PROGRAM Displays current recording program. 6. RECORD TYPE Displays current event recording mode. 7. SOFTWARE VERSION Displays current software version of the DVR. 8. HARDWARE VERSION Displays current hardware version of the DVR. 9. DHCP (DYNAMIC HOST CONFIGURATION PROTOCOL) Displays the status of the DHCP application.

  • Page 35: Live View

    The live view displays each channel at 30 frames per second, for the total of 120 frames per second for VT-ST420, 240 frames per second for VT-ST820 and 480 frames per second for VT-ST1620. 4.3.1 LIVE VIEW MODE SEQUENCE Press the DISPLAY button to toggle between different view modes.

  • Page 36: Vt-St820

    SAGA “ST” Series 4.3.1.2 VT-ST820 8 Channel Mode A 7 Channel Mode 6 Channel Mode 4 Channel Mode A 4 Channel Mode B 4 Channel Mode C 4 Channel Mode D 4 Channel Mode E 4.3.2 FULL SCREEN DISPLAY Press the desired channel button to directly display the channel on the monitor. Press +10 then a secondary number for any channel numbers higher than 9.

  • Page 37: Automatic Sequence

    SAGA “ST” Series Press +10 button and then 2 button to display channel 4.3.3 AUTOMATIC SEQUENCE Press the SEQ button to activate the automatic sequence display. Please change “ADD AUTO SINGLE” option to ON to include single channel display into the automatic sequence.

  • Page 38: Single Screen View Mode

    SAGA “ST” Series 4.4.1 SINGLE SCREEN VIEW MODE In single screen view mode, press the FREEZE button to freeze the live screen. As the screen freezes, “FREEZE” will be displayed in the upper left corner of the screen. Press the FREEZE button once more to unfreeze the screen.

  • Page 39: Zoom

    SAGA “ST” Series 4.5 ZOOM During the live view mode or during the playback mode, it is possible to zoom into a section of the screen to get a digital close-up of up to 8 times the normal size. Press the numeric button to select the channel to zoom into.

  • Page 40: Picture-In-Picture

    SAGA “ST” Series 4.6 PICTURE-IN-PICTURE Select the background channel by pressing the desired numeric button. Press the PIP button to activate the PIP mode. Pressing the numeric buttons will change the PIP window to change the channel to the desired channel. Use the directional buttons to place the PIP window to the desired location on the screen.

  • Page 41: Spot Monitor

    SAGA “ST” Series 4.7 SPOT MONITOR The spot monitor allows viewing of individual cameras in live mode while the main monitor may be busy with different tasks, such as playback. The ST series offers a single channel spot output. During any view modes, press the SPOT button for Spot Monitor Mode.

  • Page 42: Basic Recording

    SAGA “ST” Series 4.8 BASIC RECORDING When the REC button is pressed, the SAGA series DVR uses Program 6, which is the default record setting: There are total of 10 customizable record programs. Please note that QUICK SETUP supersedes any other recording settings when activated. The factory default record programs are as follows: RECORD PROGRAM...

  • Page 43: Basic Playback

    SAGA “ST” Series 4.9 BASIC PLAYBACK 4.9.1 PLAY / REVERSE PLAY / PAUSE / STOP Press the PLAY / PAUSE button and the play icon will be displayed. The DVR starts the playback from the earliest recorded data if the playback mode is entered for the first time.

  • Page 44: Fast Forward / Rewind

    SAGA “ST” Series 4.9.2 FAST FORWARD / REWIND The FAST button accelerates the speed of playback in one direction. Each pressing of the button accelerates the speed twice the previous speed. In other words, from normal speed, the acceleration increment is 2X, 4X, 8X, 16X, 32X, 64X and 128X. Pressing the DIRECTION button will change the direction of fast forward to rewind while maintaining the same speed.

  • Page 45: Slow

    SAGA “ST” Series 4.9.4 SLOW The SLOW button slows down the speed of playback in one direction. Each pressing of the button further slows down the speed twice the previous speed. In other words, from normal speed, the slow down increment is 1/2X, 1/4X, 1/8X, 1/16X, 1/32X, 1/64X and 1/128X.

  • Page 46: Bookmark

    SAGA “ST” Series As soon as the end of the loop is marked, then the playback returns to POSITION A. When the end the loop is reached, the playback returns to POSITION A and the loop playback is repeated. Press the CLEAR button to exit from the loop playback mode.

  • Page 47: Audio Playback

    SAGA “ST” Series 4.9.7 AUDIO PLAYBACK The audio is always recorded in real time regardless of the recording speed. To listen into the desired audio channel, press the AUDIO SEL button and then channel 1 through 4. By default, the audio will playback along with the equivalent video camera (i.e. channel 1 audio will play back along with channel 1 video).

  • Page 48: Advanced Operation

    SAGA “ST” Series V. ADVANCED OPERATION This section will cover advanced features of the DVR such as backup (copy), pan tilt and zoom camera controls, alarm, video loss and motion recording, and various playback search options. 5.1 BACKUP The DVR is capable of backing up to various media, such as DVD-RW, CD-RW, USB Flash drives, and external hard drives.
  • Page 49 SAGA “ST” Series Select INTERNAL CD-RW/DVD by pressing the + or = buttons. Highlight MEDIA FORMAT, and then press the ENTER button to begin formatting. FORMATTING will be displayed during the process. The process may take up to approximately 20 minutes depending on the format of the backup disk.
  • Page 50 SAGA “ST” Series Select the location of the file to be backed up from. If the location is unknown, leave the HDD ID on NORMAL. Select the channels to be backed up. By default, all channels are selected. To exclude a channel, highlight a channel number and then switch them to “--“.

  • Page 51: Cd-R

    SAGA “ST” Series The backup progress is displayed on the right upper corner of the screen, and will disappear automatically when the backup process is finished. The backup disk can be reformatted and reused over and over. Insert the CD into the CD-ROM or DVD-ROM of a computer, and the small player will load automatically showing all available data for playback.
  • Page 52 SAGA “ST” Series The beginning and the end of the available files are listed automatically as shown on the left. Select the beginning time and the end time of the period to be backed up, and then press the ENTER button to start the backup.

  • Page 53: Usb Flash Memory

    – all capacities – all capacities As the compatibility is continuously being tested, please check with the Vitek Help Desk before using non-listed manufacturers’ models. Insert the flash memory into any available USB 2.0 port. The flash memory will light up as it draws power from the DVR.
  • Page 54 SAGA “ST” Series Select the location of the file to be backed up from. If the location is unknown, leave the HDD ID on NORMAL. Select the channels to be backed up. By default, all channels are selected. To exclude a channel, highlight a channel number and then switch them to “--“.

  • Page 55: External Hard Disk Drive

    SAGA “ST” Series The backup progress is displayed on the right upper corner of the screen, and will disappear automatically when the backup process is finished. The copied files are listed as “Dvr-20060503- 202016.dvr”. They can be retrieved and played back using the client software, or the embedded program –...

  • Page 56: Copy Stop

    SAGA “ST” Series Displays the current copy status. 5.1.6 COPY STOP The backup process can be interrupted at any time during the process. Press the COPY button to enter the COPY submenu. Highlight COPY and then press the ENTER button to access the copy submenu.

  • Page 57: Pan / Tilt / Zoom Camera Control

    SAGA “ST” Series Highlight YES and then press the ENTER button to stop the backup process. 5.2 PAN / TILT / ZOOM CAMERA CONTROL The SAGA series DVR comes with an extensive list of compatible PTZ cameras. Please read and follow the PTZ manufacturer’s instruction manual and understand its settings fully prior to proceeding to attempt to connect and control the PTZ camera through the DVR.

  • Page 58: Creating And Moving To Preset Points

    SAGA “ST” Series 5.2.2 CREATING AND MOVING TO PRESET POINTS During the PTZ control mode, press the PRESET button to activate the PTZ(PRESET)MOVE mode. If there are any preset points predefined, pressing the numeric buttons will move the PTZ camera to the preset points.

  • Page 59: Alarm Recording

    SAGA “ST” Series notification e-mails if the e-mail addresses have been defined. Please see 6.4.8 RELAY OUTPUT under 6.4 EVENT SETUP section on page 101 and 6.6.5 E-MAIL under 6.5 LINK SETUP on page 119. 5.3.1 ALARM RECORDING Alarm recording is a form of event recording that triggers off of the circuit lines connected to the terminal blocks in the rear of the DVR.

  • Page 60: Motion Recording

    SAGA “ST” Series 5.3.3 MOTION RECORDING Motion recording is yet another effective form of event recording that is triggered when a channel detects motion in its field of view. The channels which detect motion will display the “MOTION” message. The REC button will light up and the channel status will change the color to red in the channels in which the motion was detected.
  • Page 61 SAGA “ST” Series The dates that contain recorded data will be displayed in clear font, whereas dates without data will be in white. Select the desired date and then press the ENTER button. To change the month or the year, highlight the month or the year and then adjust the value by pressing the + and –...

  • Page 62: Search & Copy

    SAGA “ST” Series 5.4.2 SEARCH & COPY Search & copy allows a quick review of the recorded data and backup onto a medium, and thus minimizes the need to navigate through different screens to pinpoint the exact time and duration of the video. Press the SEARCH button to access the search screen.
  • Page 63 SAGA “ST” Series If any of the channels need to be viewed in full screen mode, highlight CHANNEL and then press the + or – button to view a specific channel. Press the ENTER button and the playback will begin. Maneuver through the playback as needed.

  • Page 64: Time Search

    SAGA “ST” Series When the password has been entered, “SAVE NEW COPY PASSWORD” will appear. The same message appears even if the ESC button has been pressed. The backup process will begin and the progress will be displayed in the upper right hand corner of the screen.

  • Page 65: Event Search

    SAGA “ST” Series Select which hard disk drive to retrieve the data from. If unknown, leave the HDD ID on “NORMAL”. Select the year, month, date, hour, minutes and seconds of the beginning of the data to retrieve. As the values change, the picture in the preview window will change accordingly.
  • Page 66 SAGA “ST” Series Press the SEARCH button to access the search screen. Highlight EVENT SEARCH and then press the ENTER button to access the EVENT SEARCH screen. Select which hard disk drive to retrieve the data from. If unknown, leave the HDD ID on “NORMAL”. if any of the channels need to be viewed in full screen mode, highlight CHANNEL and then press the + or –...

  • Page 67: Block Search

    SAGA “ST” Series Select the year, month, date, hour, minutes and seconds of the end of the data to retrieve. As the values change, the picture in the preview window will change accordingly. If all events need to be searched up to the present time, leave the time as is.
  • Page 68 SAGA “ST” Series Highlight BLOCK SEARCH and then press the ENTER button to access the BLOCK SEARCH screen. Select the hard disk drive to retrieve the data from. If unknown, leave the HDD ID on NORMAL. Select the year, month, date, hour, minutes and seconds of the end of the data to be retrieved.

  • Page 69: File Search

    SAGA “ST” Series Maneuver through the playback as needed. Please see BASIC PLAYBACK on page 42. 5.4.6 FILE SEARCH File search is capable of reading and playing back the data from the media used for backup. Insert the CD-RW or the DVD-RW into the DVD tray or connect the USB flash memory or the external hard disk drive into the USB port.

  • Page 70: Bookmark Search

    SAGA “ST” Series Press the ENTER button and the list of data will appear in chronological order, from the oldest to the most recent. Select the data and then press the ENTER button to start the playback. Maneuver through the playback as needed. Please see BASIC PLAYBACK on page 42.

  • Page 71: Text Search

    SAGA “ST” Series Press the ENTER button to search for the list of bookmarks. Select the bookmark, and then press the ENTER button to start the playback. Maneuver through the playback as needed. Please see BASIC PLAYBACK on page 42. 5.4.8 TEXT SEARCH Text search allows searching for Point Of Sales interface entries to bring up the specific time related to a transaction.
  • Page 72 SAGA “ST” Series Highlight TEXT SEARCH and then press the ENTER button to access Text Search submenu. Select the hard disk drive to retrieve the data from. If unknown, leave the HDD ID on NORMAL. Select the channel in which to search for the text string.

  • Page 73: Log File Search

    SAGA “ST” Series Enter the text to be searched. Leave black for a wild card (all item) search. Move the highlight to any location besides TEXT, and then press the enter button to list the results. Highlight an entry, and then press the ENTER button to start playback.
  • Page 74 SAGA “ST” Series Power on / off Power loss / DVR restart Changes in the menu DVR initialization HDD initialization Network connection / disconnection Record start / stop Press the SEARCH button to access the search screen. Highlight LOG FILE SEARCH and then press the ENTER button to access the LOG FILE list.
  • Page 75 SAGA “ST” Series Press the ESC button and highlight SAVE LOG and then press the ENTER button to save the log file onto a USB flash memory. The USB flash memory must be in the front USB port. The log file will be saved as “DvrLog.log” file. Double-click the left mouse button to open and view the log file.

  • Page 76: Dvr Menu

    SAGA “ST” Series VI. DVR MENU Press the MENU button to access the main menu of the DVR. The DVR menu consists of the following categories: EXIT COPY SEARCH LINK SETUP SYSTEM SETUP EVENT SETUP RECORD SETUP SCREEN SETUP QUICK SETUP...

  • Page 77: Quick Setup

    SAGA “ST” Series 6.1 QUICK SETUP Quick setup enables the user to quickly setup major recording settings of the DVR. All changes made in quick setup are affected equally to all channels. This includes the image size, record speed, image quality, event options, pre and post recording time and audio record settings.

  • Page 78: Record Frame

    As an example, the 60 available recording speed is divided equally between 16 channels on the VT-ST1620. The default is 60 PPS. The following chart shows the maximum recording speed for each resolution.

  • Page 79: Post-Record Time

    SAGA “ST” Series 6.1.6 POST-RECORD TIME Define the post-event recording time. Select from 0 to 60 seconds. The default is ten seconds. 6.1.7 IMAGE QUALITY Define the recording image quality. Available options are LOW, FINE and SUPERFINE. The default is SUPERFINE.

  • Page 80: Screen Setup

    SAGA “ST” Series For more information regarding the REMOTE CONTROL ID, please see 6.5.6 REMOTE CONTROLLER ID under SYSTEM menu on page 107. The default is ALL. 6.2 SCREEN SETUP Screen setup defines various screen related options. Any changes affect the main video as well as the spot monitor output of the DVR.
  • Page 81 SAGA “ST” Series The second page lists the sequence display duration for the nine channel display mode A and B, ten channel display mode, 13 channel display mode, 16 channel display mode, and the option to include single channels. Select the inclusion of single channels in the automatic sequence.

  • Page 82: Display

    SAGA “ST” Series 6.2.2 DISPLAY Highlight DISPLAY and then press the ENTER button to access the display submenu. Select the display option for the remaining space on the hard disk drive. The default is on. Select the display mode for the remaining free space on the hard disk drive.
  • Page 83 SAGA “ST” Series Select the date format. The default is DD/MM/YY. Select the display option for the channel title. The default is on. Select the display mode for the channel title. The default is in text mode. The bitmap mode title can only be edited using the client software.

  • Page 84: Title

    SAGA “ST” Series 6.2.3 TITLE Highlight TITLE and then press the ENTER button to access the title submenu. Press the enter button to edit the channel title. Navigate through the characters by using the directional buttons, and advance through the characters using the + or –...

  • Page 85: Covert

    SAGA “ST” Series Select a view mode to customize. The view mode can be disabled to be removed from the sequence of view modes. The default is on. Highlight the channel to customize, and then press the + or – button to select the desired channel. 6.2.5 COVERT Highlight COVERT and then press the ENTER button to access the covert channel submenu.

  • Page 86: Spot

    SAGA “ST” Series The second page lists the covert mode options for channels 9 through 16. Highlight the desired channel and press the + or – button to activate the covert mode. Select the covert mode application. By default, the live view, playback and network are affected by the covert mode.

  • Page 87: Camera

    SAGA “ST” Series Select the spot monitor display mode: Manual Event Sequenced The default is manual. Define the spot monitor sequence mode time from 1 to 60 seconds. The default is 3 seconds. The channels without video signals can be skipped. Select on or off.
  • Page 88 SAGA “ST” Series Adjust the brightness. The default is 50%. Adjust the contrast. The default is 50%. Adjust the hue. The default is 50%. Adjust the saturation of the color. The default is 50%.

  • Page 89: Record

    SAGA “ST” Series 6.3 RECORD Record setup defines various recording options such as record schedule, record programs, recording time estimate, audio recording, repeat recording, play modes, backup mode and holiday recording schedules. 6.3.1 RECORD SETUP There are 10 customizable Record Programs arranged in hourly blocks that can be individually scheduled and adjusted.
  • Page 90 SAGA “ST” Series 1. All Select the program for the whole day by changing the value in this section. 2. Current hour block Highlights the current program for the current time. 3. Schedule recording Displays the hour blocks with schedule recording. Schedule recording forces the DVR to record even when the REC button is off.

  • Page 91: Record Program

    SAGA “ST” Series Any of the record settings can be customized once in the record program mode. Any changes made will be effective only to the hour block. 6.3.2 RECORD PROGRAM Highlight RECORD PROGRAM and then press the ENTER button to access the record program submenu.
  • Page 92 SAGA “ST” Series 2. EVENT RECORD SETTING The DVR offers two distinctive methods for recording events: SINGLE mode versus COMPLEX mode. Furthermore, both modes offer EVENT CHANNEL only and ALL CHANNELS mode for a total of four possible event recording options. A.
  • Page 93 SAGA “ST” Series When the REC button is on, this setup continuously takes one picture per second until a movement is detected, where the record rate will jump to 15 PPS for the channel that triggered the event. Please note that the total of the Single Mode event recording rate of 240 PPS exceeds the maximum D1 resolution record rate of 30 PPS, but in reality, a total of 30 PPS is used per group at any given moment.
  • Page 94 SAGA “ST” Series The illustration shows that at any given time, a channel would record at 30 PPS when an alarm circuit is triggered, whereas the rest of the channels will record at 2 PPS ( (60 – 30) / 15 = 1 PPS). For example, if channel 3 is triggered to start recording at 30 PPS, channels 1, 2 and 4 through 16 start recording at 2 PPS.

  • Page 95: Image Quality

    SAGA “ST” Series 6.3.3 IMAGE QUALITY Image quality predicts how much time the DVR will record based on the record settings. Highlight IMAGE QUALITY and then press the ENTER button to access the image quality screen. Select the image quality by pressing the + or – button. The FILE SIZE, RECORD TIME and TOTAL TIME will adjust automatically based on the picture quality and the content of the camera.

  • Page 96: Repeat Record

    SAGA “ST” Series 6.3.5 REPEAT RECORD Highlight REPEAT RECORD and then press the ENTER button to access the audio record submenu. Select the repeat recording option on or off. The default is on. Select the threshold at which the alarm will sound. Select from 5% to 10%, or off.

  • Page 97: Backup Mode

    SAGA “ST” Series 6.3.7 BACKUP MODE Select the recording mode for the backup hard disk drives. Available options are: MIRROR: create a real-time duplicate copy of the normal recording hard disk drives. EVENT: create a backup hard disk drive of event recordings only.

  • Page 98: Event

    SAGA “ST” Series 6.4 EVENT Event setup defines various event options such as the motion grid and the motion detection sensitivity, the main screen event response option, buzzer option, sensor input and relay output options. 6.4.1 MOTION DETECTION Highlight MOTION DETECTION and then press the ENTER button to access the motion detection submenu.
  • Page 99 SAGA “ST” Series Adjust the sensitivity of the motion detection from 1 to 5 by pressing the + or – buttons. The default is 5. Highlight AREA SETUP and then press the ENTER button to access the motion grid setup screen. Move the grey cursor around using the directional buttons, and then press the ENTER button to disable each grid.

  • Page 100: Event Screen Mode

    SAGA “ST” Series 6.4.2 EVENT SCREEN MODE Define how the main video output reacts when an event occurs. SCREEN HOLD: maintains the current view mode. EVENT FULL: the channel in which the event occurs is displayed in full screen. EVENT MULTI: regardless of which channel the event occurs in, the view mode is changed into multiple channel view mode.

  • Page 101: Event Message Reset

    SAGA “ST” Series 6.4.5 EVENT MESSAGE RESET Select the duration of the event message to be displayed from 1 to 30 seconds. The default is 5 seconds. 6.4.6 EVENT BUZZER Select the buzzer option on or off. The default is off. 6.4.7 SENSOR INPUT Highlight SENSOR INPUT and then press the ENTER button to access the sensor input submenu.

  • Page 102: Relay Output

    SAGA “ST” Series 6.4.8 RELAY OUTPUT Highlight RELAY OUTPUT and then press the ENTER button to access the relay output submenu. The first page lists relay output options for channels 1 through 8. For each channel, it is possible to customize relay 1 through 3 for each of the event options.

  • Page 103: System

    SAGA “ST” Series 6.5 SYSTEM System setup defines various system settings such as hard disk drive settings, system clock, password for multiple users, video standard, language, remote controller, and the key echo. Moreover the system settings can be reinitialized, saved or retrieved from the USB flash memory, as well as updating the DVR firmware.

  • Page 104: Rec Hdd Initialize

    SAGA “ST” Series The DVR detects installed hard disk drives automatically. Any hard disk drive can be defined to be a normal recording drive (REC drive) or a backup drive (BACKUP). Highlight a desired drive and then select the function for the hard disk drive by pressing the + or –...

  • Page 105: Backup Hdd Initialize

    SAGA “ST” Series 6.5.1.3 Backup HDD initialize The backup hard disk drives can be initialized at any time by accessing this menu. Highlight BACKUP HDD INITIALIZE and then press the ENTER button to access the initialization screen. Select YES and then press the ENTER button to initialize the hard disk drives.

  • Page 106: Time Adjust

    SAGA “ST” Series Advance through the year, month, date and time by using the directional buttons, and use the + or – button to adjust the values. Once the value has been adjusted, press the ENTER button to make the new date and time effective.

  • Page 107: Video Standard

    SAGA “ST” Series Select the time zone for the local time. For the list of the time zone for your local area, please see Appendix I on page 175. Select the DAYLIGHT SAVINGS TIME option on or off. The default is off. Define the daylight savings time starting month, week, day and time.

  • Page 108: Language

    SAGA “ST” Series 6.5.4 LANGUAGE Select from seven available language settings: English Korean Japanese Polish Spanish Russian Chinese 6.5.5 REMOTE CONTROL ID If there is more than one DVR present at the same location and each DVR needs to be controlled separately using a remote controller, then each DVR can be addressed differently so that all of them can be controlled using one remote controller.

  • Page 109: Advanced Setup

    SAGA “ST” Series 6.5.7 ADVANCED SETUP The DVR’s passwords and different access levels can be configured from the Advanced Menu, as well as saving and retrieving the DVR menu settings. 6.5.7.1 Password Check Select password check option on or off. When enabled, it will prompt for password on the following functions unless disabled individually under user settings:...

  • Page 110: User Authority

    SAGA “ST” Series Enter eight numbers for the new password, and then re-enter the same password under RE-TYPE section. The asterisks will advance automatically as the numbers are entered. 6.5.7.3 User Authority Highlight USER AUTHORITY and then press the ENTER button to access user authority screen. Highlight and modify each user’s level of authority by pressing the + or –...

  • Page 111: Load Menu From File

    SAGA “ST” Series Select YES and then press the ENTER button to reset back to factory default. Select NO to exit without resetting. 6.5.7.4.2 Load menu from file Highlight LOAD MENU FROM FILE and then press the ENTER button to load a DVR setting from the USB flash memory.

  • Page 112: Firmware Upgrade

    SAGA “ST” Series When saving the DVR menu settings is successful, the DVR will display “ENV COPY SUCCESS”. 6.5.9 FIRMWARE UPGRADE The DVR’s software can be upgraded for the latest feature updates, fixes and improvements via the USB flash memory. Highlight FIRMWARE UPGRADE and then press the ENTER button to access the firmware upgrade screen.
  • Page 113 SAGA “ST” Series Once the file is found, it will check for the integrity of the file. If the integrity of the file is intact, then it will start the upgrade process. The upgrade progress will be shown in percentages. The whole process should take approximately two minutes.

  • Page 114: Link

    SAGA “ST” Series 6.6 LINK Link setup defines various settings between the DVR and various devices such as internet connection, keyboard controllers, PTZ cameras and e-mails. 6.6.1 NETWORK Highlight NETWORK and then press the ENTER button to access the network setup submenu. Select DHCP option on or off.
  • Page 115 SAGA “ST” Series Define the IP address if the DHCP is set to off. The DVR should be provided with its own static IP address. Define the subnet mask. The subnet mask should also be provided along with the IP address. Define the gateway.

  • Page 116: Rs-232C

    DVR. Vitek provides a dynamic IP server to find the DVR even if it is connected on a dynamic IP service. Define the secondary dynamic IP server’s address if a proprietary server is to be setup and used in conjunction with the DVR.

  • Page 117: 116

    SAGA “ST” Series Select the communication speed. Available speeds are from 1200 to 115200. The default speed is 115200. Select the data bit. Available options are 6 to 8. The default bit is 8. Select the parity bit. Available options are ODD, EVEN and NONE.
  • Page 118 SAGA “ST” Series Select the DVR’s system ID between 0 to 255. The system ID should be issued when controlling multiple DVRs with a keyboard controller such as VT-KBD1. The address should also be issued when controlling PTZ cameras from the DVR. The default ID is 1.

  • Page 119: Ptz

    Panasonic WV-CS854A Daiwa DMP23 LG Electronics LPT-A100L Bosch TC8560/TC700 Vitek EZ (Xpress Dome) TK-C655/C676 Sunkwang SK-D106 Highlight PTZ and then press the ENTER button to access PTZ camera submenu. Highlight the desired channel number where the PTZ camera is connected, then scroll through the list of...

  • Page 120: E-Mail

    SAGA “ST” Series Select the communication speed. Available speeds are from 1200 to 115200. The default is 9600. Select and match the PTZ camera address. For example, if the PTZ camera is set to address 2, then the ID should be set to 2. 6.6.5 E-MAIL The DVR is capable of sending e-mails when an event occurs to up to ten different e- mail addresses.

  • Page 121: Smtp Server

    SAGA “ST” Series 6.6.5.2 SMTP server Highlight SMTP SERVER and then press the ENTER button to define an e-mail server. Enter the e-mail server’s address. For example: mail.domainname.com Press the ESC button to return to previous menu. 6.6.5.3 DVR e-mail address Highlight DVR E-MAIL ADDRESS and then press the ENTER button to define the DVR’s e-mail address.

  • Page 122: User Id

    SAGA “ST” Series 6.6.5.4 User ID Highlight USER ID and then press the ENTER button to define the user ID for the DVR’s e-mail account. Enter the user name to log into the DVR’s e-mail account. Press the ESC button to return to previous menu. 6.6.5.5 Password Highlight PASSWORD and then press the ENTER button to define the password for the DVR’s e-mail...

  • Page 123: E-Mail Address 1 Through 10

    SAGA “ST” Series 6.6.5.6 E-mail address 1 through 10 Highlight a desired e-mail address to send the notifications to, and then press the ENTER button to define the e-mail address. Enter the e-mail address. Press the ESC button to return to the previous menu.

  • Page 124: Search

    SAGA “ST” Series VII. SEARCH Please see 5.4 ADVANCED PLAYBACK under section V. ADVANCED OPERATION on page 59. VIII. COPY Please see 5.1 BACKUP under section V. ADVANCED OPERATION on page 47.

  • Page 125: Exit

    SAGA “ST” Series IX. EXIT Any and all settings must be saved in order to be put into effect. After any setting has been modified, the ESC button can be pressed several times until the EXIT screen is shown. 9.1 SAVE ONLY SAVE ONLY will be automatically highlighted when the ESC button is pressed.

  • Page 126: Exit Without Save

    SAGA “ST” Series 9.3 EXIT WITHOUT SAVE Highlight and press the ENTER button to disregard any changes and exit to the live screen view mode.

  • Page 127: Client Program

    SAGA “ST” Series X. CLIENT PROGRAM: DVR VIEWER The DVR Viewer is a dedicated client program that connects to, monitors and manages up to 16 DVRs simultaneously. 10.1 SYSTEM REQUIREMENT The DVR Viewer receives, decodes and displays data for up to 16 DVRs or up to 256 cameras simultaneously requiring a powerful personal computer to take full advantage of the program.
  • Page 128 SAGA “ST” Series Click on NEXT. The DVR viewer will be installed in its default folder of C:\Program Files\DVR\DVR-Viewer. If the folder needs to be changed, click on “BROWSE…” button and then select a different folder. The setup program will run through its series of installation process.

  • Page 129: Dvr Viewer - Layout

    SAGA “ST” Series 10.3 DVR VIEWER - LAYOUT Locate the DvrViewer icon on the desktop and double-click on it to run the client software. The program can also be located in START- Programs – DVR-Viewer. When the DVR Viewer is run for the first time, it prompts for the administrator’s password.
  • Page 130 SAGA “ST” Series 1. DVR LIST The DVR List adds or removes individual DVRs and offers a variety of connection options. a. DVR List The DVRs that have been added are listed in this box. b. Connection Type Select the connection type to the DVR. c.
  • Page 131 SAGA “ST” Series e. Use IP Server The DVR can be located on the internet using the MAC address displayed in the status screen. If the MAC address is to be used, “Use IP Server” box must be checked. f. Domain Name / Use DDNS The DVR can be located on the internet using a domain name, or a web address.
  • Page 132 SAGA “ST” Series 2. DVR SEARCH Within a local area network environment (LAN), it is possible to automatically scan and list available DVRs to be added to the DVR list. Click on DVR SEARCH to open the DVR Search window. Click on SEARCH, and available DVRs will be listed.
  • Page 133 SAGA “ST” Series 3. HDD SEARCH The hard disk drive from the DVR can be directly connected to a PC, where the files can be searched and played back through the DVR Viewer. Click on HDD SEARCH to open the HDD Search window Select a hard disk drive, and then click on Recorded channels will be shown in the...
  • Page 134 SAGA “ST” Series If the desired file is not listed in the current folder, then select the folder in which the files are saved by clicking on FOLDER SELECT. Select a file to view, and then click on PLAY to begin the playback.
  • Page 135 SAGA “ST” Series 5 ~ 9 DVRS 10 ~ 16 DVRS 6. VIEWER OPTION Viewer option defines the administrative options for the DVR Viewer, such as display options and the IP address of the Dynamic IP Server, and user management to create user name and passwords for additional users to access the DVR Viewer.
  • Page 136 SAGA “ST” Series a. Display Check or uncheck various On Screen Display options as needed. By default, Channel Title, Event and Frame Rate are checked. b. Dynamic IP Server Modify the IP address for the Dynamic IP Servers as needed. The default IP addresses are: Primary Server: 211.174.251.155 Secondary Server: 211.174.251.160...
  • Page 137 SAGA “ST” Series Modify the administrator’s description and passwords as needed. Up to 20 alphanumeric characters can be entered for the password. Press CHANGE to save the modification. To add additional users, click on ADD. Enter the user name, description for the user, password and access privileges, and then click on SAVE to add the new user.
  • Page 138 SAGA “ST” Series 7. CHANNEL DISPLAY WINDOW Live or playback video from the DVR is transmitted and displayed up to 16 channels. Each channel displays information regarding the specific channel according to the settings in VIEWER OPTION. 8. DVR CLOSE The connected DVR can be disconnected by clicking on this button.
  • Page 139 SAGA “ST” Series identical to the front buttons of the SAGA “ST” series DVR. For more information on button functions, please see 2.1 FRONT PANEL LAYOUT under II. SAGA “ST” SERIES DIGITAL VIDEO RECORDER LAYOUT on page 17. 16. PTZ CONTROLLER Pan, Tilt and Zoom cameras can be controlled remotely through the DVR Viewer.
  • Page 140 SAGA “ST” Series 18. STATUS Displays the current DVR status on System, Record and Network. 18.1 System System status displays the following information: Video type Software version Hardware version Current temperature of the DVR in both Celsius and Fahrenheit Total number of hard disk drives Recording mode of the hard disk drives Total space of fixed hard disk drive Remaining free space of fixed hard disk drive...
  • Page 141 SAGA “ST” Series 19. PRINT In live or playback mode, select any of the channels and then click on PRINT to bring up the screen print window. a. Zoom in / out Click the + or – button to zoom in and out for the detailed view of the picture. b.
  • Page 142 SAGA “ST” Series 20. COPY The data on the DVR can be downloaded onto the PC using the COPY function. The data can also be backed up directly onto available backup media on the DVR. a. Available data Displays available data to be downloaded. b.
  • Page 143 SAGA “ST” Series h. DVR media Select the media on which the DVR will utilize for backup. All three USB ports and the internal DVD burner can be selected. Copy Click on copy after all parameters for downloading. DVR copy After selecting the media to be backed up on the DVR, click on DVR COPY to begin the backup process on the DVR.
  • Page 144 SAGA “ST” Series a. Log list window List of DVR logs from the most recent to the oldest. b. Search Click on search to view available log list. c. Search time Select the year, month, date, hour, minutes and seconds of the end of the log list to retrieve.
  • Page 145 SAGA “ST” Series b. Rewind This button can be toggled for rewind speed of 2x, 4x, 8x, 16x, 32x, 64x and 128x. c. Reverse slow This button can be toggled for a slow reverse playback speed of 1/2x, 1/4x, 1/8x, 1/16x, 1/32x, 1/64x and 1/128x.
  • Page 146 SAGA “ST” Series 34. LIVE / PLAYBACK BUTTON STATUS During live or playback, this window will display the direction and the speed of the playback direction. 35. RELAY 4 Manually trigger relay 4 on the DVR. The relay 4 option must be set to user option. 36.

  • Page 147: Dvr Viewer - Live Mode

    SAGA “ST” Series 10.4 DVR VIEWER - LIVE MODE Click on the DVR LIST, highlight a desired DVR and then click on CONNECT. a. DVR’s local time Displays the DVR’s local date and time b. Event message Displays the channel’s event messages, alarm and motion.
  • Page 148 SAGA “ST” Series c. Channel window The DVR channel window can be double-clicked for a full screen mode. The channel window can also be zoomed by dragging the left mouse button over the channel window. The size of the box created by dragging will be the outline of the channel window to be zoomed in.

  • Page 149: Dvr Viewer - Playback Mode

    SAGA “ST” Series 10.5 DVR VIEWER – PLAYBACK MODE Any DVRs that are connected online can be accessed to do data search remotely from the DVR and then transmit to the DVR viewer for remote playback. a. DVR’s playback time Displays the DVR’s playback date and time.

  • Page 150: Time Search

    SAGA “ST” Series d. DVR functions Some of the DVR functions may not be available depending on what user account the DVR Viewer has been signed on with, and also with what user level password the DVR has been connected to. e.

  • Page 151: Calendar Search

    SAGA “ST” Series Select the channel for playback. Select the year, month, day and time for the playback, or slide the time bar to the desired time. Click on PLAY to begin the remote playback. 10.5.2 CALENDAR SEARCH Click on CALENDAR to display the Calendar Search window.

  • Page 152: Event

    SAGA “ST” Series 10.5.3 EVENT Click on EVENT to display the Event Search window. The first 500 events are listed chronologically, from the most recent to the oldest. Select an event and then click on PLAY to begin remote playback. If the desired event is not listed in the current window, then follow the following steps.

  • Page 153: Text

    SAGA “ST” Series Select the year, month, day and time for the end of the event list for playback. The list can be advanced to the next 500 lists by clicking on NEXT. Highlight the desired event and then click on PLAY to begin the remote playback.
  • Page 154 SAGA “ST” Series Select the channel for the text string search. Enter the text string to search. Leave blank for a wild card (all items) search. Select the year, month, day and time for the end of the search time. Click on SEARCH to list data that match the text string.

  • Page 155: Block

    SAGA “ST” Series Highlight a text string, and then click on PLAY to begin the remote playback. The listing can be saved as a List file format. 10.5.5 BLOCK Click on BLOCK to display the Logical Block Address Search window. The first 500 data is displayed in chronological order, from the most recent to the oldest.
  • Page 156 SAGA “ST” Series Select the year, month, day and time for the end of the data. If the desired date and time is not found, then click on NEXT to display the next 500 Logical Block Addresses. Highlight a desired block time and then click on PLAY to begin the remote playback.

  • Page 157: Dvr Player - Setup

    SAGA “ST” Series 10.6 DVR PLAYER – SETUP The DVR Viewer can change the settings on the DVR remotely. The features and settings are identical to that of the DVR menu. For more information, please see V. DVR MENU on page 75. Click on SETUP and the password prompt will be displayed.

  • Page 158: Quick Setup

    SAGA “ST” Series 5. SYSTEM SETUP 6. LINK 7. DOWNLOAD Update the DVR’s firmware using the download menu. 8. READ FROM FILE Load DVR settings from a DVR setup file. 9. SAVE TO FILE Save DVR settings to a DVR setup file. 10.

  • Page 159: Screen

    SAGA “ST” Series 10.6.2 SCREEN 10.6.2.1 Auto Sequence a. Auto-Single: select the single channel dwell time. b. Auto-Split: select the multi channel dwell time. c. Video Loss Skip: check / uncheck. d. Add Auto Single: check / uncheck. 10.6.2.2 Display a.

  • Page 160: Title

    SAGA “ST” Series 10.6.2.4 Title a. Channel Title (text mode) Enter up to eight alphanumeric characters for channel titles. b. Clear Clear the bitmap drawing. c. Move Move the bitmap drawing in the grids. d. Font Select the font for bitmap conversion. e.

  • Page 161: Multiscreen

    SAGA “ST” Series 10.6.2.5 Multiscreen Customize the channels to be displayed in 4E, 6, 7, 9B, 10 and 13 channel view modes. 10.6.2.6 Covert a. Channels 1 through 16: on / off. b. Select: live, play, network, LV & PB, LV & NW, PB &...

  • Page 162: Record

    SAGA “ST” Series 10.6.3 RECORD 10.6.3.1 Record a. Schedule Record: click on a hour block and then click Schedule Record on / off. b. Monday through Sunday: select the record program. c. Repeat Record: on / off. d. Repeat Record Alarm: 5% through 10%, off. e.

  • Page 163: Holiday

    SAGA “ST” Series 10.6.3.3 Holiday a. Holiday Record: on / off. b. Holiday Setup: enter the holidays. 10.6.4 EVENT 10.6.4.1 Event a. Event Check: on / off. b. Event Screen Mode: screen hold, event full, event multi, event full return, event multi return. c.

  • Page 164: Sensor Input

    SAGA “ST” Series Select the grid size. Use the left mouse button to draw motion detection area and use the right mouse button to erase motion detection area. Use the buttons at the bottom of the screen to set or clear motion detection all area of the screen.

  • Page 165: System

    SAGA “ST” Series 10.6.5 SYSTEM 10.6.5.1 System a. Video Standard: PAL, NTSC, auto. b. Language: English, Korean, Japanese, Polish, Spanish, Russian and Chinese. c. Remote Control ID: All, 11 through 14, 21 through 24, 31 through 34 and 41 through 44. d.

  • Page 166: Password

    SAGA “ST” Series 10.6.5.3 PASSWORD a. Password Check: on / off b. Passwords: define the DVR access passwords for all users. c. Authority: define DVR access authority for users 1 through 4. 10.6.6 LINK 10.6.6.1 Network a. DHCP: on / off. b.

  • Page 167: 166

    SAGA “ST” Series 10.6.6.3 RS-485 a. System ID: select the system ID. b. Output Mode: select the output mode. c. Baud Rate: select the communication speed. d. Data Bit: select the data bit. e. Parity Bit: select the parity bit. Stop Bit: select the stop bit.

  • Page 168: Download

    SAGA “ST” Series 10.6.7 DOWNLOAD The DVR’s firmware can be updated from the client software. Please remember that once the upgrade process begins, the connection must not be severed or interrupted. 10.6.7.1 DVR Logo Select Reserved. 10.6.7.2 Firmware Download Click on FIRMWARE DOWNLOAD, and the DVR firmware open window will open.
  • Page 169 SAGA “ST” Series The file will begin loading onto the DVR. Once the download is complete, the DVR will begin flashing the new firmware. Once the upgrade is finished and successful, the DVR viewer will display “DVR Upgraded Successfully!!” Restart the DVR, and the new firmware will be in effect.

  • Page 170: Specifications

    SAGA “ST” Series XI. SPECIFICATIONS 11.1 VT-ST420 Video Video Standard NTSC & PAL Standards, automatic configuration Video Input 4 Channels BNC Input Level 1.0 Vp-p ± 10% Composite, 75 Ohm Balanced. Loop Through Output 4 Channels BNC w/ Automatic Signal Boost Main Video Output 1.0 Vp-p Composite, 75 Ohm Balanced Spot Video Output...
  • Page 171 SAGA “ST” Series Storage Internal Storage 2 Hard Drives, 1 removable, 2.25 Terabytes Maximum External Storage 40 Hard Drives, 30 Terabytes Maximum Speed 5400 RPM Minimum, 7200 RPM Maximum 45Mhz DMA Hard Drive Type EIDE Compatible Seek Time Faster than 9.0ms average Expansion Bay Interface USB 2.0 Data Redundancy...

  • Page 172: Vt-St820

    SAGA “ST” Series 11.2 VT-ST820 Video Video Standard NTSC & PAL Standards, automatic configuration Video Input 8 Channels BNC Input Level 1.0 Vp-p ± 10% Composite, 75 Ohm Balanced. Loop Through Output 8 Channels BNC w/ Automatic Signal Boost Main Video Output 1.0 Vp-p Composite, 75 Ohm Balanced Spot Video Output 1.0 Vp-p Composite, 75 Ohm Balanced...
  • Page 173 SAGA “ST” Series Storage Internal Storage 2 Hard Drives, 1 removable, 2.25 Terabytes Maximum External Storage 40 Hard Drives, 30 Terabytes Maximum Speed 5400 RPM Minimum, 7200 RPM Maximum 45Mhz DMA Hard Drive Type EIDE Compatible Seek Time Faster than 9.0ms average Expansion Bay Interface USB 2.0 Data Redundancy...

  • Page 174: Vt-St1620

    SAGA “ST” Series 11.3 VT-ST1620 Video Video Standard NTSC & PAL Standards, automatic configuration Video Input 16 Channels BNC Input Level 1.0 Vp-p ± 10% Composite, 75 Ohm Balanced. Loop Through Output 16 Channels BNC w/ Automatic Signal Boost Main Video Output 1.0 Vp-p Composite, 75 Ohm Balanced...
  • Page 175 SAGA “ST” Series Storage Internal Storage 2 Hard Drives, 1 removable, 2.25 Terabytes Maximum External Storage 40 Hard Drives, 30 Terabytes Maximum Speed 5400 RPM Minimum, 7200 RPM Maximum 45Mhz DMA Hard Drive Type EIDE Compatible Seek Time Faster than 9.0ms average Expansion Bay Interface USB 2.0 Data Redundancy...

  • Page 176: Technical Support

    XII. TECHNICAL SUPPORT Please read the manual thoroughly before contacting the vendor or the manufacturer. If you still have questions or problems operating the DVR correctly, then please contact: VITEK INDUSTRIAL VIDEO PRODUCTS, INC. 28492 Constellation Road Valencia, CA 91355...

  • Page 177: Time Zone Listing

    SAGA “ST” Series APPENDIX I TIME ZONE LISTING GMT-12:00 International Date Line West GMT-11:00 Midway Island, Samoa GMT-10:00 Hawaii GMT-09:00 Alaska GMT-08:00 Pacific Time (US & Canada); Tijuana GMT-07:00 Arizona GMT-07:00 Chihuahua, La Paz, Mazatlan GMT-07:00 Mountain Time (US & Canada) GMT-06:00 Central America GMT-06:00...
  • Page 178 SAGA “ST” Series GMT+03:00 Nairobi GMT+03:30 Tehran GMT+04:00 Abu Dhabi, Muscat GMT+04:00 Baku, Tbilisi, Yeveran GMT+04:30 Kabul GMT+05:00 Ekaterinburg GMT+05:00 Islamabad, Karachi, Tashkent GMT+05:30 Chennai, Kolkata, Mumbai, New Delhi GMT+05:45 Kathmandu GMT+06:00 Almaty, Novosibirsk GMT+06:00 Astana, Dhaka GMT+06:00 Sri Jayawardenepura GMT+06:30 Rangoon GMT+07:00...

  • Page 179: Index

    SAGA “ST” Series INDEX DNS ........15, 33, 114, 130, 139, 165 Domain Name ..........114, 130 DOMAIN NAME SERVER........33 ADVANCED OPERATION .......47, 123 DOWN DIRECTIONAL BUTTON ......19 ADVANCED PLAYBACK ........59 DOWNLOAD ............167 ADVANCED RECORDING ........57 DVD-RW ..........15, 19, 47, 68 ALARM..........18, 22, 24, 41, 58 DVR ..
  • Page 180 SAGA “ST” Series FREEZE..........19, 24, 36, 37 FULL SCREEN DISPLAY ........35 Network..............165 FUNCTION NETWORK ............113 button ............19, 24, 56 NORMAL RECORD ..........93 normally closed circuit..........58 normally open circuit ..........58 NUMERIC BUTTONS ........17, 24 GATEWAY ...............33 PAN / TILT / ZOOM..........56 Half D1 ............76, 77, 93 PAN / TILT / ZOOM CAMERA CONTROL ....56 HARD DISK DRIVE .........54, 102...
  • Page 181 SPOT MONITOR ..........17, 23 VIDEO............16, 17, 138 SPOT OUTPUT............21 VIDEO LOSS RECORDING ........58 STATUS......18, 19, 23, 32, 139, 144, 145 VIDEO STANDARD..........106 STATUS LED ............19 VT-ST1620...........20, 34, 77 SUBNET MASK ............33 VT-ST420..............20 SUPERFINE.............78 VT-ST820.............20, 34, 35 S-VIDEO OUTPUT...........21 SYSTEM ..............102 SYSTEM REQUIREMENT ........126...

  • Page 182: Notes

    SAGA “ST” Series NOTES...
  • Page 183 SAGA “ST” Series NOTES...
  • Page 184 28492 CONSTELLATION ROAD VALENCIA, CA 91355 WWW.VITEKCCTV.COM | 888-VITEK-70...
