WARNING
HP 10/100 3Com 3C905B-TX Network Interface Card Installation Guide

Installing the Network Interface Card

For your safety, never remove the PC's cover without first
removing the power cord, data cables and any connection to a
telecommunications network. Always replace the cover before
switching on again.
For complete information on how to install an accessory card, refer to
your PC's documentation. This is available from your PC's support web
site (refer to page 18.) The following steps are given as a guide:
1 With the PC turned off, disconnect the power cord and any connection
to a telecommunications network, and then remove the cover.
2 Choose an empty PCI slot. If you do not know how to identify a PCI
slot, refer to your PC's documentation.
3 Remove the metal slot cover.
4 Depending on the PC model, you may need to remove the accessory
slot's retaining bracket. Refer to your PC's documentation, if
necessary.

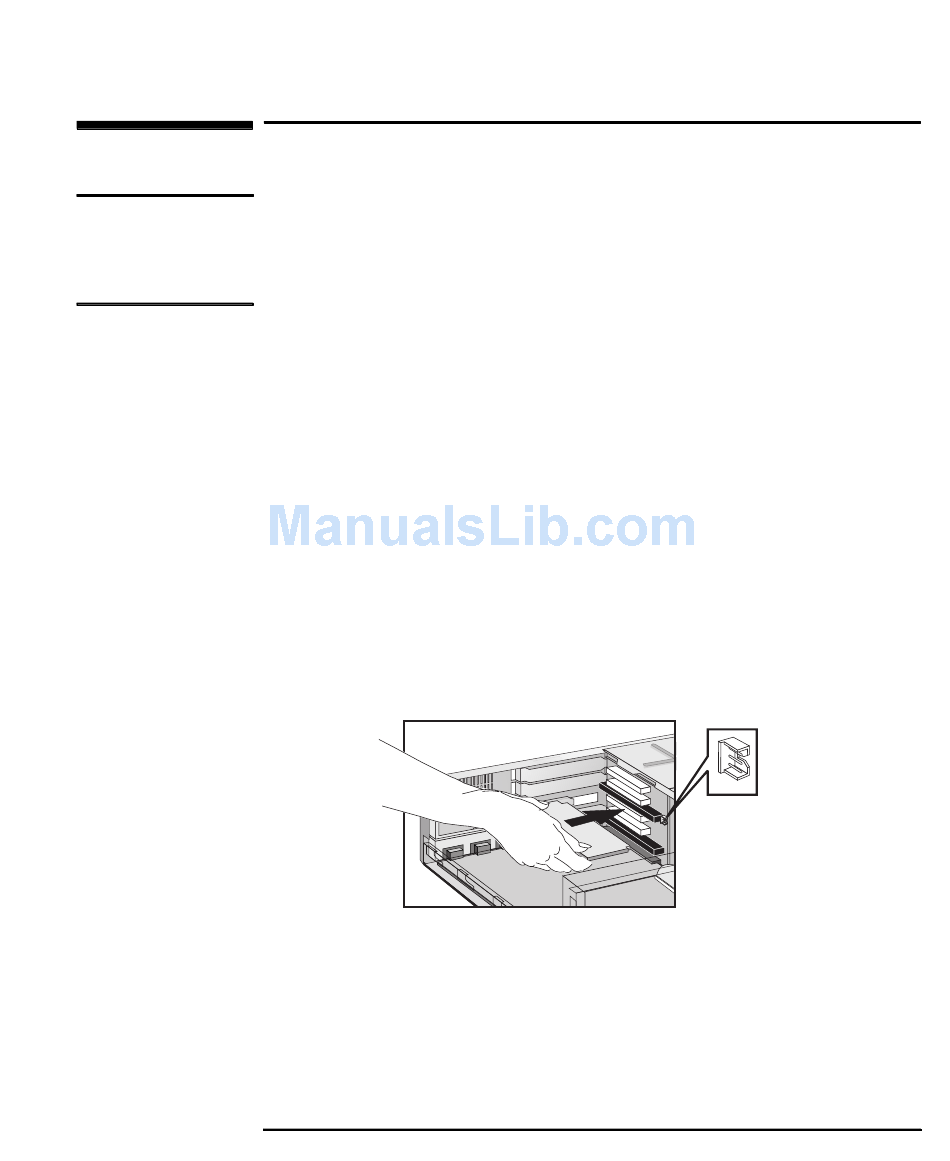

5 Insert the card into the accessory slot without bending it.
6 Connect the Remote Wake-Up cable to the connector on the card
and to connector on the system board or backplane.
For the position of the Remote Wake-Up connector, refer to
"3C905B-TX NIC Specifications" on page 19.
Refer to your PC's documentation for the position of the connector
on the system board or backplane.
Installing the Network Interface Card
Example position of
WOL connector.
English 7
