TYGER RIDER
BEFORE INSTALLATION
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. REMOVE
CONTENTS FROM BOX AND VERIFY ALL PARTS ARE PRESENT. FAILURE TO
IDENTIFY DAMAGE BEFORE INSTALLATION COULD LEAD TO A REJECTION OF
ANY CLAIM. IF MISSING PARTS OR ANY DAMAGE FOUND, PLEASE TAKE A
PICTURE FOR THE CLAIM PURPOSE. TO FILE YOUR CLAIM, PLAESE VISIT:
WWW.TYGERAUTO.COM/CONTACT
TORQUE VALUES
Fastener Size
Class 8.8 Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
®
®
®
TG-SS2D35098
Class 10.9 Torque (ft-lbs)
6-7
15-16
31-32
54-55
87-88
125-126

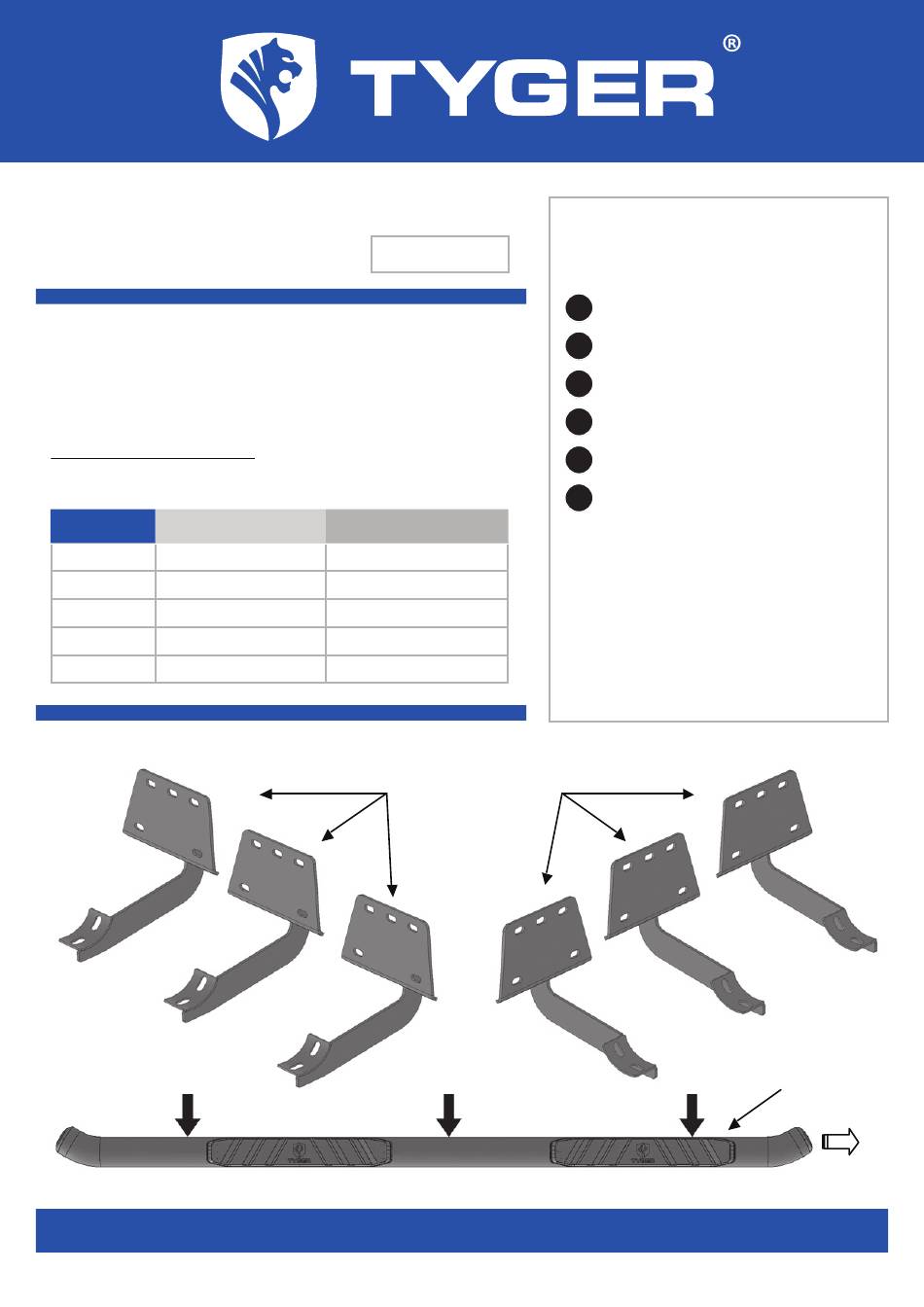

(6) Left or Right Mounting Brackets
Customer Support: www.tygerauto.com/contact
Parts List
x1
x1
x6
x12
x18
x18
6-7
22-23
44-45
78-79
Arrows indicate location of
threaded inserts in bottom
of Sidebar
1/5

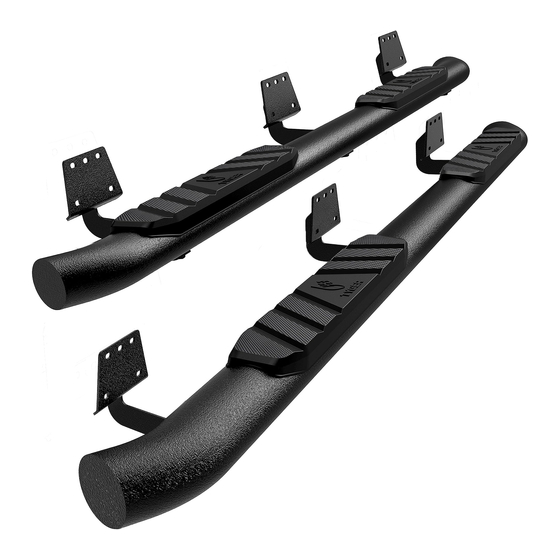

Driver/left Sidebar
Passenger/right Sidebar
Mounting Brackets (use left or right)
8-1.25mm x 25mm Combo Bolts
8mm x 24mm x 2mm Flat Washers
8-1.25mm Nylon Lock Nuts
Passenger/right
Sidebar
Front
V211118
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Tyger RIDER TG-SS2D35098
Summary of Contents for Tyger RIDER TG-SS2D35098
- Page 1 TYGER RIDER ® ® ® Parts List TG-SS2D35098 Driver/left Sidebar BEFORE INSTALLATION Passenger/right Sidebar READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. REMOVE CONTENTS FROM BOX AND VERIFY ALL PARTS ARE PRESENT. FAILURE TO Mounting Brackets (use left or right) IDENTIFY DAMAGE BEFORE INSTALLATION COULD LEAD TO A REJECTION OF ANY CLAIM.
- Page 2 NOTE: REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. ASSISTANCE IS RECOMMENDED. STEP 1 Start the installation under the passenger side of the vehicle. (3) 8mm Flat Washers Locate the front (3) factory studs along the inner sidewall of the (3) 8mm Nylon Lock Nuts body panel, (Fig 1).
- Page 3 Front (Fig 4) Passenger side center mounting location (Fig 7) Passenger side rear mounting location (3) 8mm Flat Washers (3) 8mm Nylon Lock Nuts (3) 8mm Flat Washers (3) 8mm Nylon Lock Nuts (Fig 5) Attach (1) Bracket in passenger/right center mounting location (Fig 8) Passenger/right rear Bracket installed (3) 8mm Flat Washers...
- Page 4 Front STEP 5 Attach the Sidebar to the (3) Brackets with (6) 8mm Combo Hex Bolts, (Figs 9-12). Do not tighten hardware at this time. (Fig 11) Passenger/right Sidebar attached to center Bracket Rear (2) 8mm Combo Bolts Front (Fig 9) Attach passenger/right Sidebar to front Bracket Front (Fig 12) Passenger/right Sidebar attached to rear Bracket...
- Page 5 STEP 7 Repeat STEPS 1-6 for Driver/left Sidebar installation. STEP 8 Do periodic inspections to the installation to make sure that all hardware is secure and tight. Complete Installation Customer Support: www.tygerauto.com/contact...
