TYGER RIDER
BEFORE INSTALLATION
READ INSTRUCTIONS CAREFULLY BEFORE STARTING
INSTALLATION. REMOVE CONTENTS FROM BOX AND
VERIFY ALL PARTS ARE PRESENT. FAILURE TO IDENTI-
FY DAMAGE BEFORE INSTALLATION COULD LEAD TO A
REJECTION OF ANY CLAIM. IF MISSING PARTS OR ANY
DAMAGE FOUND, PLEASE TAKE A PICTURE FOR THE
CLAIM PURPOSE. TO FILE YOUR CLAIM, PLEASE VISIT:
WWW.TYGERAUTO.COM/CONTACT
Driver/Left Sidebar
x1
Passenger/Right Sidebar
x1
Driver/Left Front Mounting Bracket
x1
Passenger/Right Front Mounting Bracket
x1
Driver/Left Center Mounting Bracket
x1
Passenger/Right Center Mounting Bracket
x1
Driver/Left Rear Mounting Bracket
x1
Passenger/Right Rear Mounting Bracket
x1
Driver/Left Front Support Bracket
x1
Passenger/Right Front Support Bracket
x1
Driver/Left Center/Rear Support Brackets
x2
Passenger/Right
Rear Bracket
Passenger Right Side
Driver/Left Side Front Support Bracket
Driver Left Side
Front
Customer Support: www.tygerauto.com/contact
®
®
Passenger/Right Center/Rear Support Brackets
x2
10-1.5mm x 30mm Hex Bolts
x6
10mm x 24mm OD x 2.2 Flat Washers
x12
10mm Nylon Lock Nuts
x6
8-1.25mm x 35mm Hex Bolts
x6
8-1.25mm x 25mm Combo Bolts
x12
8mm Lock Washers
x6
8mm x 23mm OD x 3mm Flat Washers
x6
6-1.0mm x 25mm Hex Bolts
x12
6mm x 22mm OD x 2mm Flat Washers
x24
6mm Nylon Lock Nuts
x12
(2)Passenger/Right Side Center/Rear Support Brackets
Driver/Left
Front Bracket
TORQUE VALUES
Fastener Size
Class 8.8 Torque (ft-lbs)
6mm
8mm
15-16
10mm
31-32
12mm
54-55
14mm
87-88
Passenger/Right
Center Bracket
(2)Driver/Left Side Center/Rear Support Brackets
Driver/Left
Center Bracket
1/5
TG-SS2J35258
Class 10.9 Torque (ft-lbs)
6-7
22-23
44-45
78-79
125-126
Passenger/Right Side Front Support Bracket
Passenger/Right
Front Bracket
Driver/Left
Rear Bracket
6-7
Front
V230214
Advertisement
Related Manuals for Tyger RIDER TG-SS2J35258
Summary of Contents for Tyger RIDER TG-SS2J35258

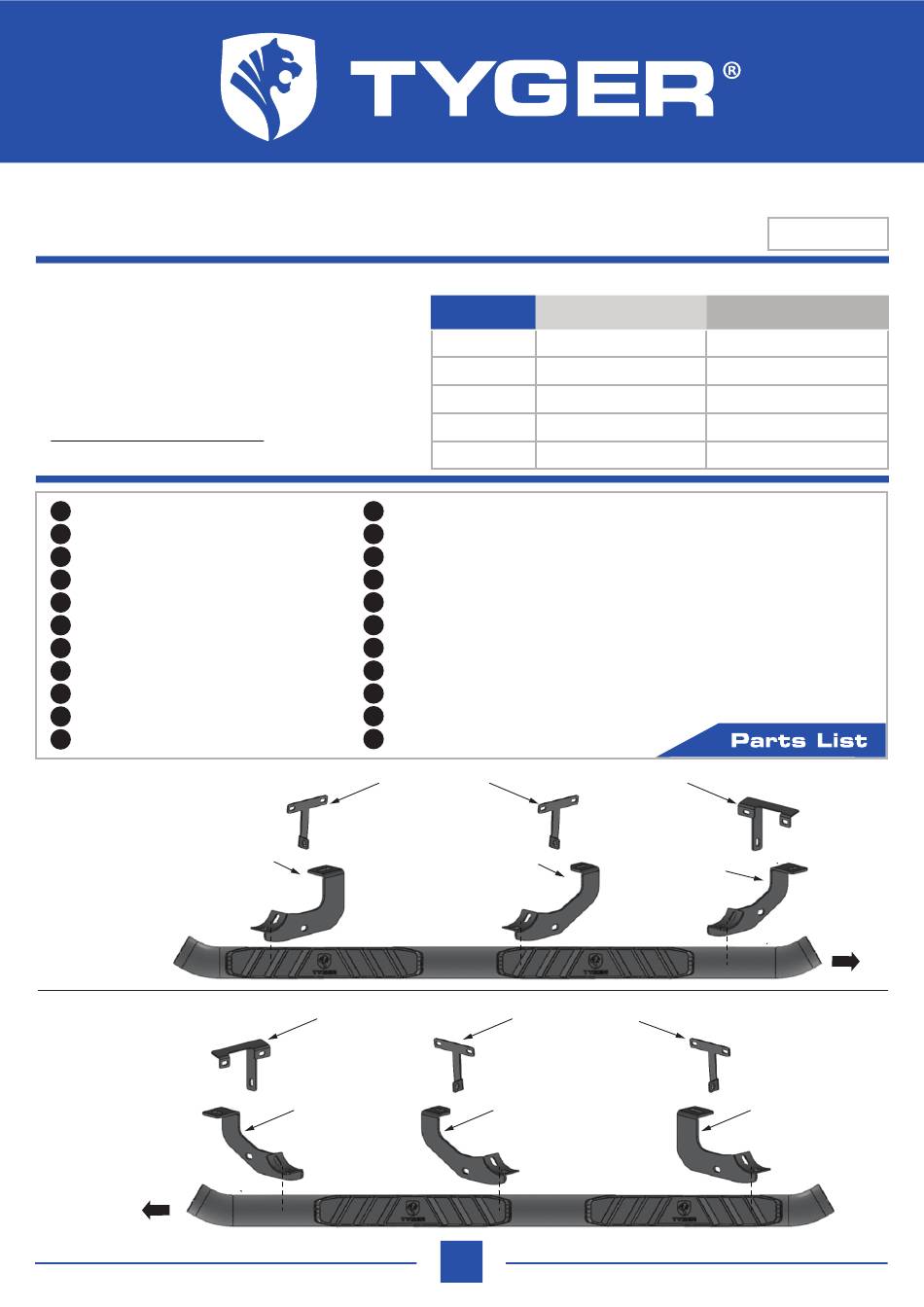

- Page 1 TYGER RIDER ® ® TG-SS2J35258 BEFORE INSTALLATION TORQUE VALUES READ INSTRUCTIONS CAREFULLY BEFORE STARTING Fastener Size Class 8.8 Torque (ft-lbs) Class 10.9 Torque (ft-lbs) INSTALLATION. REMOVE CONTENTS FROM BOX AND VERIFY ALL PARTS ARE PRESENT. FAILURE TO IDENTI- FY DAMAGE BEFORE INSTALLATION COULD LEAD TO A...
-
