RISER
®
TG-RS2D40078
BEFORE INSTALLATION
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. REMOVE
CONTENTS FROM BOX AND VERIFY ALL PARTS ARE PRESENT. FAILURE TO
IDENTIFY DAMAGE BEFORE INSTALLATION COULD LEAD TO A REJECTION OF
ANY CLAIM. IF MISSING PARTS OR ANY DAMAGE FOUND, PLEASE TAKE A
PICTURE FOR THE CLAIM PURPOSE. TO FILE YOUR CLAIM, PLEASE VISIT:
WWW.TYGERAUTO.COM/CONTACT
TORQUE VALUES
Fastener Size
Class 8.8 Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
Scan to Download the
Latest Digital Version
Class 10.9 Torque (ft-lbs)
6-7
15-16
31-32
54-55
87-88
125-126
Customer Support: www.TygerAuto.com/Contact
x1
x1
x2
x2
x1
x1
x6
x12
x6
x12
x12
x12
x12
x6
6-7
x6
x10
22-23
x20
44-45
x10
78-79
x2
x4
x1

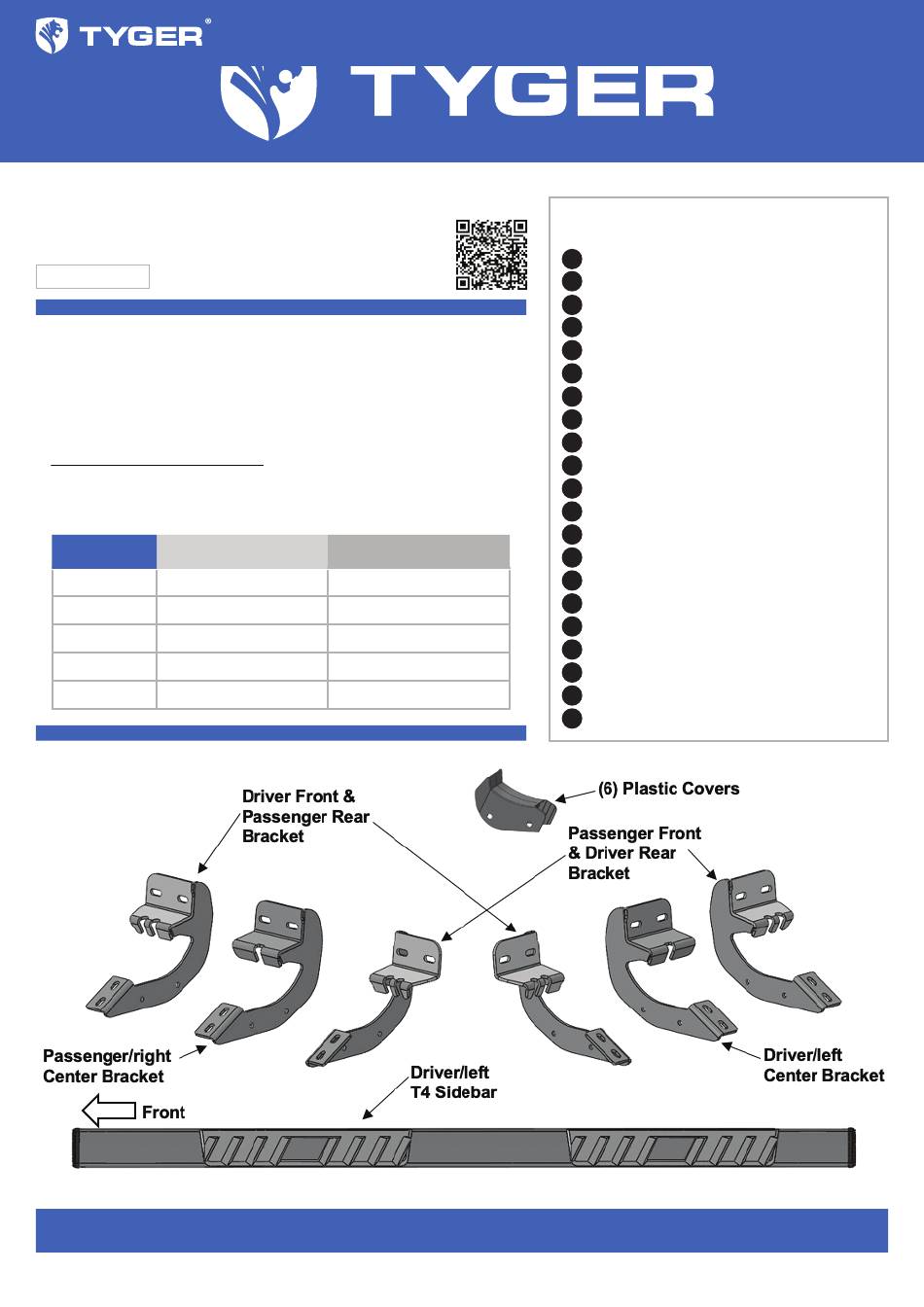

Parts List
Driver/Left T4 Sidebar
Passenger/Right T4 Sidebar
Driver/Left Front/ Passenger/Right Rear Bracket
Driver/Left Rear/ Passenger/Right Front Bracket
Driver/Left Center Bracket
Passenger/Right Center Bracket
Plastic Covers
Plastic Clips
8mm x 30mm Bolt Plates
8mm x 25mm Combo Bolts
8-1.25mm x 30 Hex Bolts
8mm x 24mm OD x 2mm Flat Washers
8mm Lock Washers
8mm Hex Nuts
8mm Plastic Retainers
6mm x 25mm Button Head Bolts
6mm x 18mm OD x 1.6mm Flat Washers
6mm Flange Nuts
16mm x 34mm Spacer Plates
16mm x 60mm Spacer Plates
4mm Hex Wrench
TYGER ACCESS
V240619
Advertisement
Related Manuals for Tyger RISER TG-RS2D40078
Summary of Contents for Tyger RISER TG-RS2D40078
- Page 1 TYGER ACCESS RISER ® Parts List Driver/Left T4 Sidebar Scan to Download the TG-RS2D40078 Latest Digital Version Passenger/Right T4 Sidebar Driver/Left Front/ Passenger/Right Rear Bracket Driver/Left Rear/ Passenger/Right Front Bracket BEFORE INSTALLATION Driver/Left Center Bracket READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. REMOVE Passenger/Right Center Bracket CONTENTS FROM BOX AND VERIFY ALL PARTS ARE PRESENT.
-
Page 2: Top View
TYGER ACCESS Top View Front Driver Side TYGER Access Passenger Side TYGER Access Front Bottom View Front Driver Side TYGER Access Front Passenger Side TYGER Access Customer Support: www.TygerAuto.com/Contact... - Page 3 TYGER ACCESS Driver/Left Side Installation Pictured STEP 1 REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. DRILLING MAY BE REQUIRED. (Fig 2) 8mm Bolt-Nut Plate, NOTE: 8mm Bolt-Nut Plate is not required on models with threaded inserts...
- Page 4 TYGER ACCESS c. Select the driver/left side Front Bracket. Attach the Bracket to the threaded end of the Bolt Plate with (1) 8mm Flat Washer, (1) IMPORTANT: Rust or dirt may build up overtime and clog up 8mm Lock Washer and (1) 8mm Hex Nut (Fig 6).
- Page 5 TYGER ACCESS STEP 4 STEP 6 Move along the side of the body panel to the center mounting Next, attach the Bracket to the back of the pinch weld with (2) 6mm Button Head Bolts, (4) 6mm x 18mm Flat Washers, (1) location (Fig 12).
- Page 6 TYGER ACCESS STEP 8 STEP 10 Once all Brackets have been fully installed, select the Driver/Left Repeat STEPS 2-9 to attach the Passenger/Right T4 Sidebar. T4 Sidebar. Attach the Sidebar to the Brackets with (6) 8mm Combo Bolts (Fig 14). DO NOT tighten hardware at this time.
