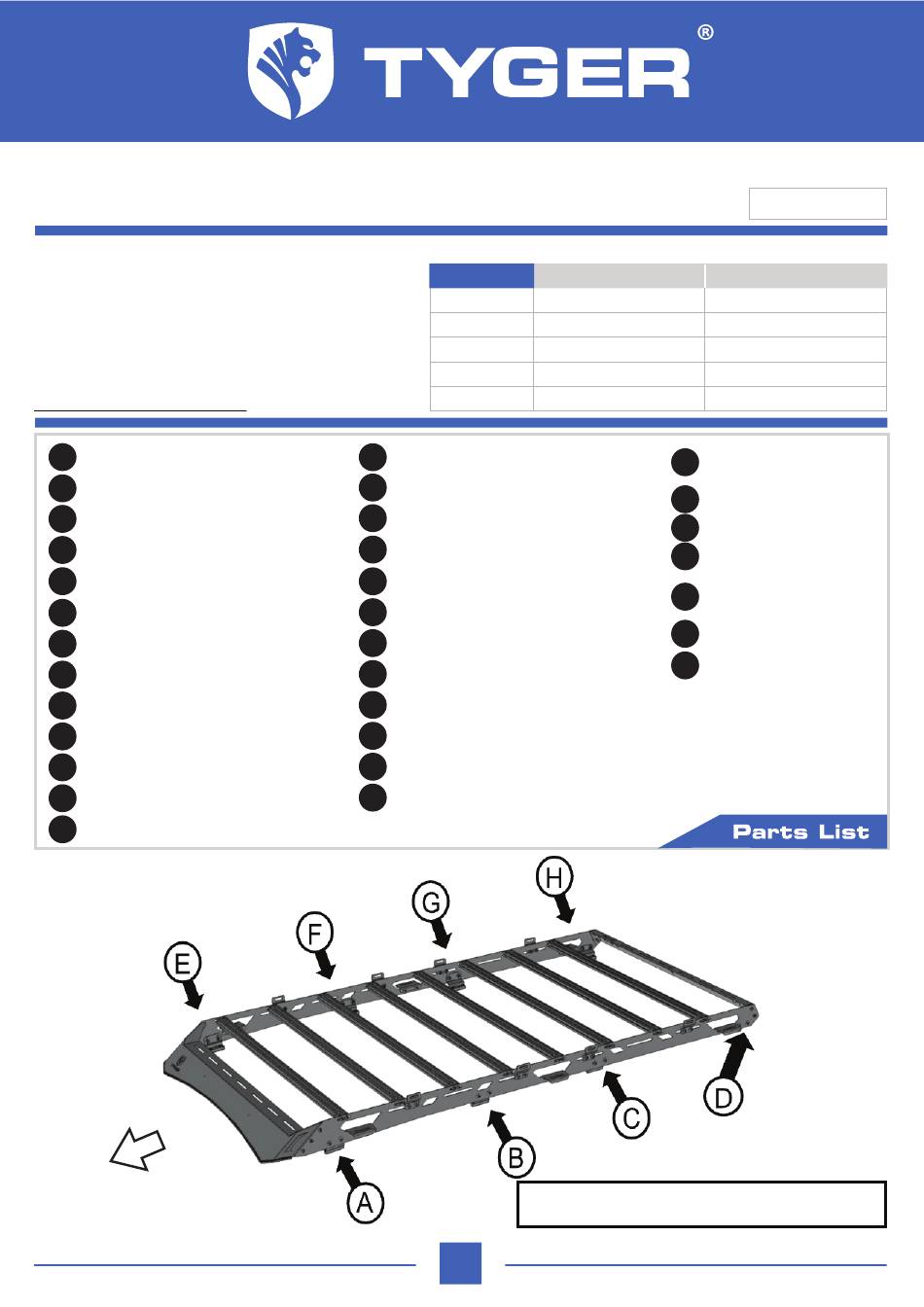

TYGER ROOF RACK
BEFORE INSTALLATION
READ INSTRUCTIONS CAREFULLY BEFORE STARTING
INSTALLATION. REMOVE CONTENTS FROM BOX AND
VERIFY ALL PARTS ARE PRESENT. FAILURE TO IDENTIFY
DAMAGE BEFORE INSTALLATION COULD LEAD TO A
REJECTION OF ANY CLAIM. IF MISSING PARTS OR ANY
DAMAGE FOUND, PLEASE TAKE A PICTURE FOR THE
CLAIM PURPOSE. TO FILE YOUR CLAIM, PLEASE VISIT:
WWW.TYGERAUTO.COM/CONTACT
x1
Front Cross Panel
x1
Rubber Seal (1290mm)
x8
Crossbars
x1
Rear Cross Panel
x2
Side Panels (left/right)
x1
Driver/Left 1st Front Mounting Bracket [A]
x1
Driver/Left 2nd Mounting Bracket [B]
x1
Driver/Left 3rd Mounting Bracket [C]
x1
Driver/Left 4th Rear Mounting Bracket [D]
x1
Passenger/Right 1th Front Mounting Bracket [E]
x1
Passenger/Right 2nd Mounting Bracket [F]
x1
Passenger/Right 3rd Mounting Bracket [G]
x1
Passenger/Right 4th Rear Mounting Bracket [H]
Front
Customer Support: www.tygerauto.com/contact
TORQUE VALUES
Fastener Size
6mm
8mm
10mm
12mm
14mm
x 8
12mm Double Hole Bracket Spacers
x 8
Double Hole Adhesive Backed Foam Seals
x 8
Side Accessory Brackets
x 6
Grab Handle Brackets
x16
8mm Square Sealing Washers
x1
8mm Threaded Insert Installation Tool
x8
8-1.25mm Threaded Inserts
x4
6mm Eye Bolts - Stainless Steel (SUS)
x4
6mm x 18mm x 1.6mm Flat Washers - Stainless Steel (SUS)
x4
6mm Lock Washers - Stainless Steel (SUS)
x4
6mm T-Nut Plates - Stainless Steel (SUS)
x16
8-1.25mm x 45mm Hex Bolts
Locations B, D, F, H attach to existing threaded holes
Locations A, C, E, G where drilling is optional
1/10
Class 8.8 Torque (ft-lbs)
Class 10.9 Torque (ft-lbs)
6-7
15-16
31-32
54-55
87-88
8mm x 16mm OD x 1.6mm Small
x16
Flat Washers
x16
8mm Lock Washers
x42
6mm x 20mm Torx Combo Bolts
x44
6-1.0mm x 20mm Torx Bolts
6mm x 18mm OD x 1.6mm Small
x88
Flat Washers
x44
6mm Nylon Lock Nuts
x1
Torx Wrench
TG-RR1T33668
6-7
22-23
44-45
78-79
125-126
V240312
Advertisement
Table of Contents
Related Manuals for Tyger TG-RR1T33668
Summary of Contents for Tyger TG-RR1T33668
- Page 1 TYGER ROOF RACK TG-RR1T33668 BEFORE INSTALLATION TORQUE VALUES READ INSTRUCTIONS CAREFULLY BEFORE STARTING Fastener Size Class 8.8 Torque (ft-lbs) Class 10.9 Torque (ft-lbs) INSTALLATION. REMOVE CONTENTS FROM BOX AND VERIFY ALL PARTS ARE PRESENT. FAILURE TO IDENTIFY 15-16 22-23 DAMAGE BEFORE INSTALLATION COULD LEAD TO A REJECTION OF ANY CLAIM.
- Page 2 TYGER ROOF RACK Driver/Left 1st Front Driver/Left 2nd Driver/Left 3rd Driver/Left 4th Passenger/Right 1st Front Bracket Passenger/Right 2nd Bracket Passenger/Right 3rd Bracket Passenger/Right 4th Bracket Mounting Bracket Mounting Bracket Mounting Bracket Mounting Bracket 12mm Double Holes Double Holes Adhesive 8mm Square 8mm Threaded 8-1.25mm...
-
Page 3: Tools Required
TYGER ROOF RACK TOOLS REQUIRED STEP 2 RACK FRAME ASSEMBLY Hardware Bag for Frame and Aluminum Bars is needed. Follow (Fig 2 - 5) to install the Rack Frame. DO NOT fully tighten hardware yet. Ratchet 13mm Socket Paintable Inserts: If you plan on painting the accent color plates, jump to STEP 10 and continue. - Page 4 TYGER ROOF RACK ATTACHING MOUNTING BRACKETS STEP 3 (2) 6mm x 20mm Torx Bolts (2 OPTIONS) (4) 6mm Flat Washers (2) 6mm Nylon Lock Nuts Decide on which installation options to follow the corresponding step: OPTION A: No Drilling ->400lb Static Load Rating (continue to STEP 3A) OPTION B: Drilling into 4 locations ->600lb Static Load Rating (Jump to STEP 3B).
- Page 5 TYGER ROOF RACK (STEP 3A) (2) 8mm x 45mm Hex Bolts (2) 8mm Lock Washers (2) 8mm Flat Washers (Fig 10) Move to B mounting location with factory installed threaded holes on the top of the vehicle. (Fig 13) Place the Rack frame on vehicle.
- Page 6 TYGER ROOF RACK (STEP 3B) • Repeat (Fig 14-17) to attach Mounting Brackets [E], [F], [G] (2) 6mm x 20mm Torx Bolts and [H]. (4) 6mm Flat Washers (2) 6mm Nylon Lock Nuts Front Bracket [B] (Fig 15) Attach Bracket [B] to the (Fig 18) Move to B mounting location back of B mounting location.
- Page 7 TYGER ROOF RACK (STEP 3B) (2) 8mm x 45mm Hex Bolts (2) 8mm Lock Washers (2) 8mm Flat Washers (Fig 24) Stick Foam Seal to Double Hole Spacer. Slide the Spacer between the Bracket and the channel on the vehicle. Line up the Bracket and Spacer.
- Page 8 TYGER ROOF RACK (STEP 3B) (4) 6mm Torx Combo Bolts (2) 8mm x 45mm Hex Bolts (2) 8mm Lock Washers (2) 8mm Flat Washers (1) Spacer Front (1) Foam Seal (2) Square Seals (Fig 29) Attach the Crossbars to the desired locations on (2) 8mm Threaded Inserts the Side Panels.
-
Page 9: Other Accessories
TYGER ROOF RACK (Fig 32) While ① Keeping pressure on the Front Cross Plate against the vehicle roof and ② Pushing it down and inward against vehicle roof so the Rubber Seal is compressed against the roof, ③ Tighten Front Cross Plate hardware. -
Page 10: Complete Installation
(2) 6mm Nylon Lock Nuts STEP 10 PAINTABLE INSERTS (2) Corner Accent Plates and (1) Tyger Logo Background Plate are double-sided in black and red. To flip them or re-paint them to match your vehicle, follow (Fig 37-38) to remove and reattach.
