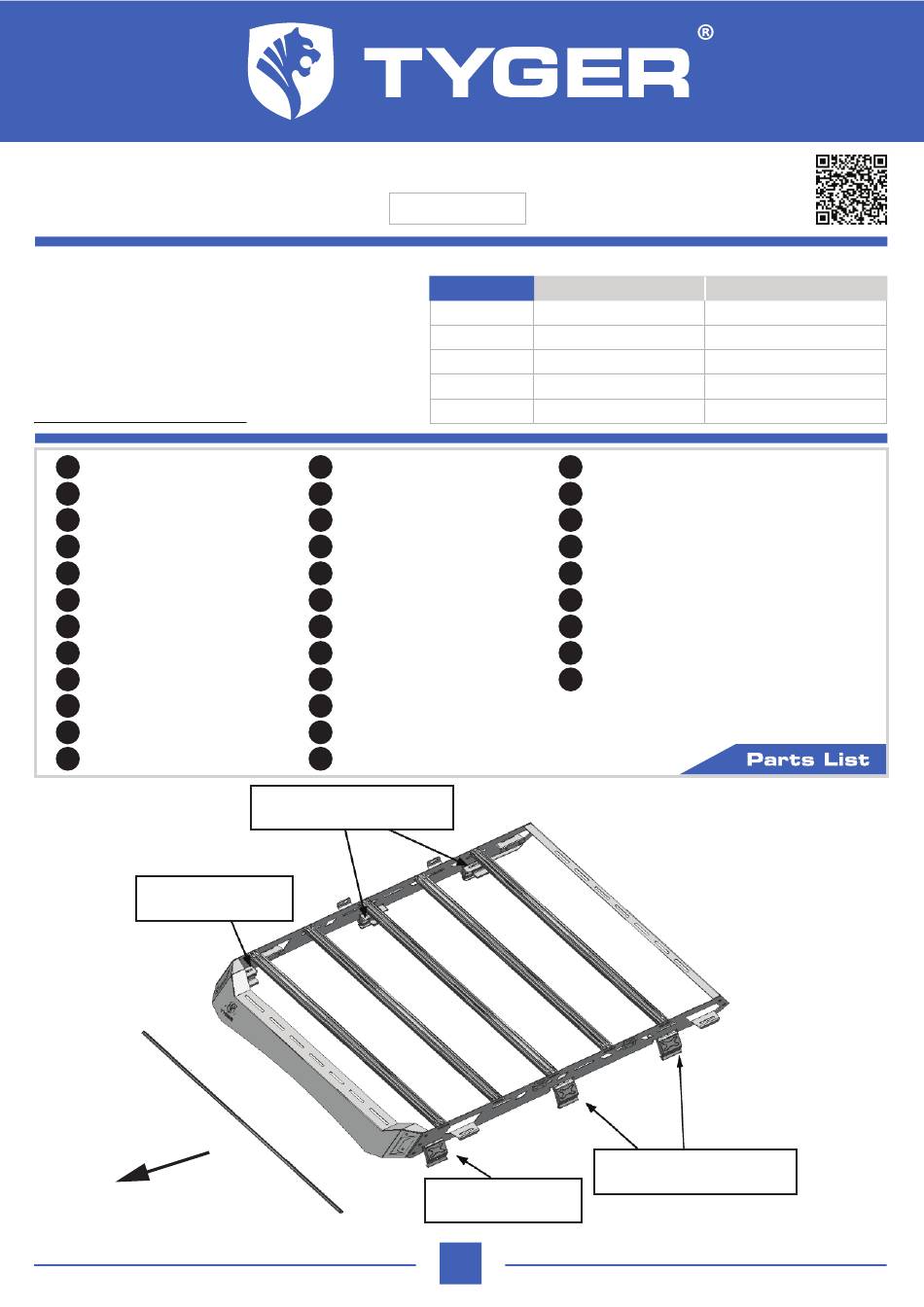

TYGER ROOF RACK
BEFORE INSTALLATION
READ INSTRUCTIONS CAREFULLY BEFORE STARTING
INSTALLATION. REMOVE CONTENTS FROM BOX AND
VERIFY ALL PARTS ARE PRESENT. FAILURE TO IDENTIFY
DAMAGE BEFORE INSTALLATION COULD LEAD TO A
REJECTION OF ANY CLAIM. IF MISSING PARTS OR ANY
DAMAGE FOUND, PLEASE TAKE A PICTURE FOR THE
CLAIM PURPOSE. TO FILE YOUR CLAIM, PLEASE VISIT:
WWW.TYGERAUTO.COM/CONTACT
x1
Front Cross Panel
x1
Rubber Seal (1485mm)
x5
Crossbars
x1
Rear Cross Panel
x1
Driver/Left Side Panel
x1
Passenger/Right Side Panel
x2
Front Standoff Brackets [E]
x2
Front Mounting Brackets [C]
x2
Front Bracket Clamp Covers [A]
x4
Center and Rear Standoff Brackets [F]
x4
Center and Rear Mounting Brackets [D]
x4
Center and Rear Bracket Clamp Covers [B]
x1
Passenger/Right
Front Mounting Location
Front
Customer Support: www.tygerauto.com/contact
TG-RR1J33448
x4
Side Accessory Brackets
x4
Grab Handle Brackets
x6
70mm Rubber Pads (for Standoff Brackets)
x6
10-1.5mm x 35mm Button Head Bolts
x6
10mm x 20mm x 2mm Flat Washers
x6
10mm Lock Washers
x6
8mm Double Nut Plates
x12
8-1.25mm x 25mm Hex Combo Bolts
x12
8-1.25mm x 25mm Hex Bolts
x12
8mm x 24mm x 2mm Flat Washers
x12
8mm Lock Washers
x4
6mm Eye Bolts - Stainless Steel (SUS)
x1
Passenger/Right
Center & Rear Mounting Location
TORQUE VALUES
Fastener Size
Class 8.8 Torque (ft-lbs)
6mm
8mm
15-16
10mm
31-32
12mm
54-55
14mm
87-88
x4
6mm x 18mm x 1.6mm Flat Washers - Stainless Steel (SUS)
x4
6mm Lock Washers - Stainless Steel (SUS)
x4
6mm T-Nut Plates - Stainless Steel (SUS)
x30
6mm x 20mm Torx Combo Bolts
x16
6-1.0mm x 20mm Torx Bolts
x32
6mm x 18mm OD x 1.6mm Small Flat Washers
x16
6mm Nylon Lock Nuts
x1
6mm Wrench
x1
Torx Wrench
Center & Rear Mounting Location
Driver/Left
Front Mounting Location
1/7
Scan to Download the
Latest Digital Version
Class 10.9 Torque (ft-lbs)
6-7
22-23
44-45
78-79
125-126
Driver/Left
6-7
V240614
Advertisement
Related Manuals for Tyger TG-RR1J33448
Summary of Contents for Tyger TG-RR1J33448
- Page 1 TYGER ROOF RACK Scan to Download the Latest Digital Version TG-RR1J33448 TORQUE VALUES BEFORE INSTALLATION READ INSTRUCTIONS CAREFULLY BEFORE STARTING Fastener Size Class 8.8 Torque (ft-lbs) Class 10.9 Torque (ft-lbs) INSTALLATION. REMOVE CONTENTS FROM BOX AND VERIFY ALL PARTS ARE PRESENT. FAILURE TO IDENTIFY...
- Page 2 TYGER ROOF RACK Front Standoff Brackets Front Mounting Brackets Front Bracket Center and Rear Center and Rear Center and Rear Side Accessory Brackets Grab Handle Brackets Clamp Covers Standoff Brackets Mounting Brackets Bracket Clamp Covers 6mm x 18mm x 1.6mm 70mm Rubber Pads 10-1.5mm x 35mm...
-
Page 3: Tools Required
TYGER ROOF RACK TOOLS REQUIRED (6) 6mm x 20mm Torx Combo Bolts Front Ratchet 13mm Socket (Fig 2) Attach the front ends of Side Panels to the outside of Front Panel Extensions Wrench Front (Fig 3) Front Cross Panel Installed... - Page 4 TYGER ROOF RACK (4) 8mm x 25mm Hex Bolts (4) 8mm Lock Washers STEP 2 (4) 8mm Flat Washers ATTACHING MOUNTING BRACKETS Front Follow (Fig 6-9) to attach (3) Bracket Assemblies to the Driver Side Panel of the rack frame. Then repeat the STEP to assemble and attach the (3) Passenger Side Bracket Assemblies.
- Page 5 TYGER ROOF RACK (1)10mm x 35mm Button Head Bolt (1)10mm Lock Washer (1)10mm Flat Washer STEP 4 PLACING RACK ON ROOF With assistance, carefully place the Platform Rack on top of the vehicle. Follow (Fig 12-13) to attach the Rack to the vehicle.
-
Page 6: Other Accessories
TYGER ROOF RACK STEP 6 ADJUSTING THE RACK Level and adjust the Roof Rack so it sits straight and is aligned squarely with vehicle roof. Tighten all Hardware EXCEPT FRONT CROSS PLATE. Then follow Fig (17). (Fig 19) Insert T-Nut on Eye Bolt assembly into the channels via the ends of each Crossbar. -
Page 7: Check Alignment
STEP 10 PAINTABLE INSERTS (2) Corner Accent Plates and (1) Tyger Logo Background Plate are double-sided in black and red. To flip them or re-paint them to match your vehicle, follow (Fig 22-23) to remove and reattach.
