Tyger RISER TG-RS2C40038 Manual

4" riser running boards

Advertisement

Quick Links

Part#: TG-RS2C40038

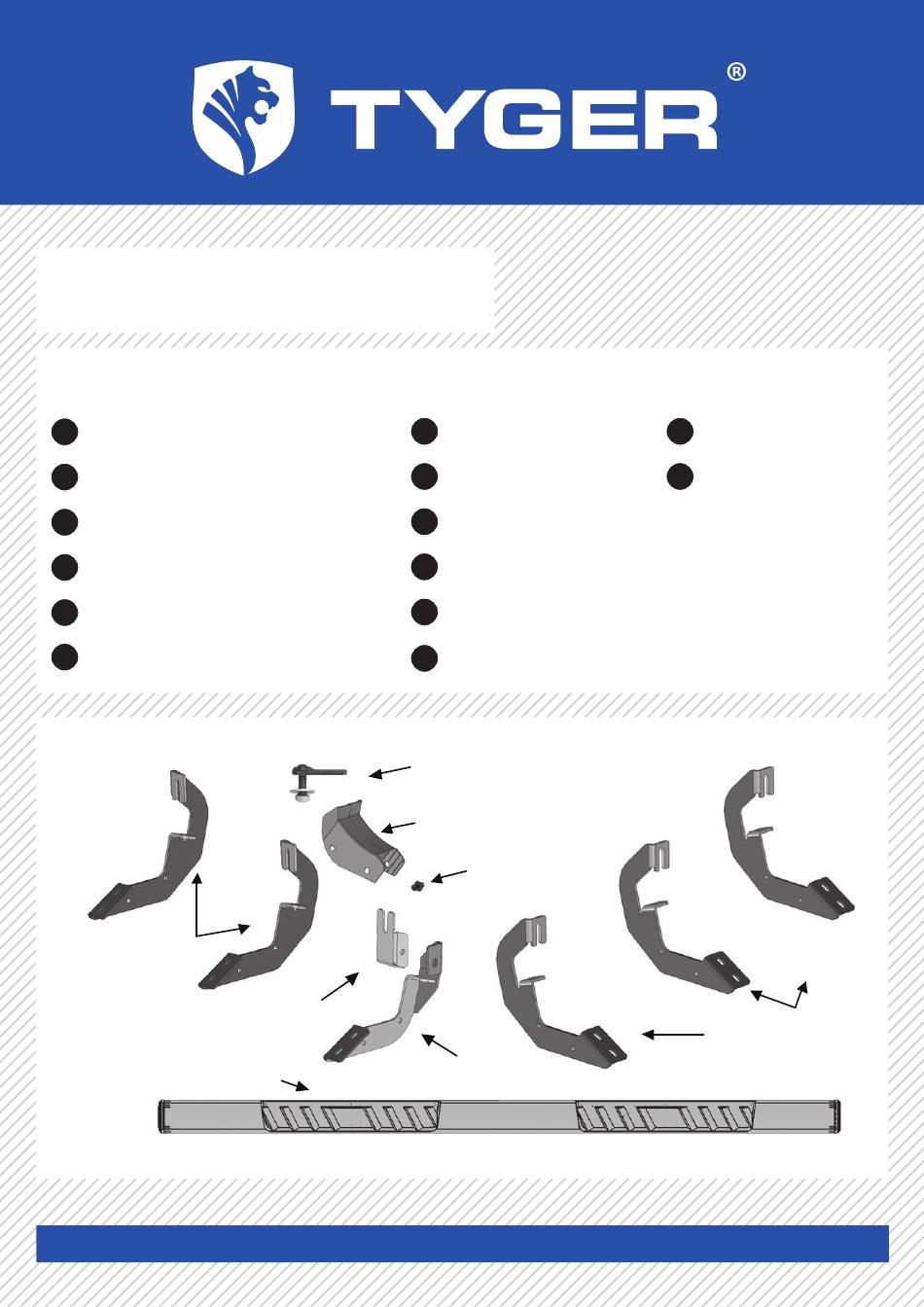

Parts List
Driver/left Side Step
x1
Passenger/right Side Step
x1
Passenger/right Front Upper Bracket (all incl. DEF)
x1
Passenger/right Front Lower Bracket (all incl. DEF)
x1
4" Sidebar Brackets (use for left or right)
x5
Plastic Bracket Covers
x6
Left or Right
Mounting Brackets
Passenger/right
front Upper Bracket
Driver/left Side Step
Front
Retaining Clips (Plastic Covers)
x12
8-1.25mm Clip-On Nuts
x11
8-1.25mm x 25mm Hex Bolts
x13
8mm x 24mm x 2mm Flat Washers
x13
8mm Lock Washers
x13
8mm x 25mm Combination Bolts
x12
8mm Bolt Plate
(6) Plastic Bracket Covers
(12) Retainer Clips
for Covers
Passenger/right front
Lower Bracket
1/7
Customer Support: www.TygerAuto.com/Contact
RISER
x1
8mm Bolt Plate
8mm Nylon Lock Nut
x1
(use w-bolt plate)
Left or Right
Mounting Brackets
V200831
®

Advertisement

loading
Need help?

Need help?

Do you have a question about the RISER TG-RS2C40038 and is the answer not in the manual?

Questions and answers

Summary of Contents for Tyger RISER TG-RS2C40038

  • Page 1 RISER ® Part#: TG-RS2C40038 Parts List Driver/left Side Step Retaining Clips (Plastic Covers) 8mm Bolt Plate Passenger/right Side Step 8-1.25mm Clip-On Nuts 8mm Nylon Lock Nut (use w-bolt plate) 8-1.25mm x 25mm Hex Bolts Passenger/right Front Upper Bracket (all incl. DEF) 8mm x 24mm x 2mm Flat Washers Passenger/right Front Lower Bracket (all incl.
  • Page 2 Before Installation REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. Front ASSISTANCE IS RECOMMENDED. ON MODELS WITH DEF TANK, SELECT A FLAT, LEVEL AREA FOR INSTALLATION. MAY REQUIRE CUTTING. STEP 1 Start the installation under the driver side of the vehicle. Locate (Fig 1) Back of driver side (3) mounting locations the 5 tabs along the bottom edge of the body, (pinch weld).
  • Page 3 STEP 3 (2) 8mm Clip Nuts Select (1) Mounting Bracket. NOTE: (5) Brackets are universal and will t all left side and center and rear only on right side of vehicle. Bolt the Mounting Bracket to the Clip Nuts and/or the factory threaded holes with (2) 8mm Hex Bolts, (2) 8mm Lock Washers and (2) 8mm Flat Washers, (Figures 6 &...
  • Page 4 STEP 6 Select the driver/left Side Step. Carefully position the Driver Side Step onto the (3) Mounting Brackets. IMPORTANT: Do not slide the Side Step on the Brackets or damage to the nish may result. Attach the Side Step to the Mounting Brackets with (6) 8mm x (2) 8mm x 25mm 25mm Combination Hex Bolts, (Figure 9).
  • Page 5 b. Release the tank ller hose. Release the plug for the sending unit on the top of the tank. Front c. Support the tank with a oor jack. Place a smooth at surface, (wooden block for example), between the oor jack and the tank to avoid damaging the plastic tank.
  • Page 6 Models with a weld-nut: mark pictured is approximately Slide the Bracket over the weld-nut, (Figure 14). Attach the Lower 70mm x 10mm Bracket to the bottom of the body and weld-nut with (1) 8mm x 25mm Hex Bolt, (1) 8mm Lock Washer and (1) 8mm Flat Washer, (Figures 20 &...
  • Page 7: Complete Installation

    STEP 13 Repeat Steps 5-7 to install the passenger side Covers and Side Step, (Figure 22). Fastener Class 8.8 Tightening Class10.9 Tightening Size Torque (ft-lbs) Torque (ft-lbs) 15-16 22-23 Rear 31-32 44-45 10mm 12mm 54-55 78-79 14mm 87-88 125-126 (2) 8mm x 25mm Combo Bolts NOTE: (Fig 22) Passenger/right rear bracket installed...
