TYGER ROOF RACK
BEFORE INSTALLATION
READ INSTRUCTIONS CAREFULLY BEFORE STARTING
INSTALLATION. REMOVE CONTENTS FROM BOX AND
VERIFY ALL PARTS ARE PRESENT. FAILURE TO IDENTIFY
DAMAGE BEFORE INSTALLATION COULD LEAD TO A
REJECTION OF ANY CLAIM. IF MISSING PARTS OR ANY
DAMAGE FOUND, PLEASE TAKE A PICTURE FOR THE
CLAIM PURPOSE. TO FILE YOUR CLAIM, PLEASE VISIT:
WWW.TYGERAUTO.COM/CONTACT
x1
Front Wind Deflector
x1
Rubber Edge Trim for Deflector
x2
Side Panels
x1
Rear Panel
x8
Rack Cross Bars
x1
Driver/Left Front Mounting Bracket [A]
x1
Passenger/Right Front Mounting Bracket [G]
x2
Front Bracket Shims
x6
Center Support "L" Brackets [B]
x6
Grab Handles
x6
Accessory Brackets
x2
Front Outer Clamp Brackets [E]
x2
Front Inner Clamp Brackets [C]
Customer Support: www.tygerauto.com/contact
x1
Front Wind Deflector
TG-RR1F33778
x1
Rubber Edge Trim for Deflector
x2
Side Panels
TORQUE VALUES
x1
Rear Panel
Fastener Size
x8
Rack Cross Bars
6mm
8mm
x1
Driver/Left Front Mounting Bracket [A]
10mm
x1
Passenger/Right Front Mounting Bracket [G]
12mm
x2
Front Bracket Shims
14mm
x6
Center Support "L" Brackets [B]
x6
Grab Handles
x6
Accessory Brackets
x2
Front Outer Clamp Brackets [E]
x2
Front Inner Clamp Brackets [C]
x 2
Rear Outer Clamp Brackets [F]
x 1
Driver/Left Rear Inner Clamp Bracket [D]
x 1
Passenger/Right Rear Inner Clamp Bracket [P]
x4
6mm Eye Bolts - SUS
x4
6mm x 18mm x 1.6mm Flat Washers - SUS
x4
6mm Lock Washers - SUS
x4
6mm T-Nut Plates - SUS

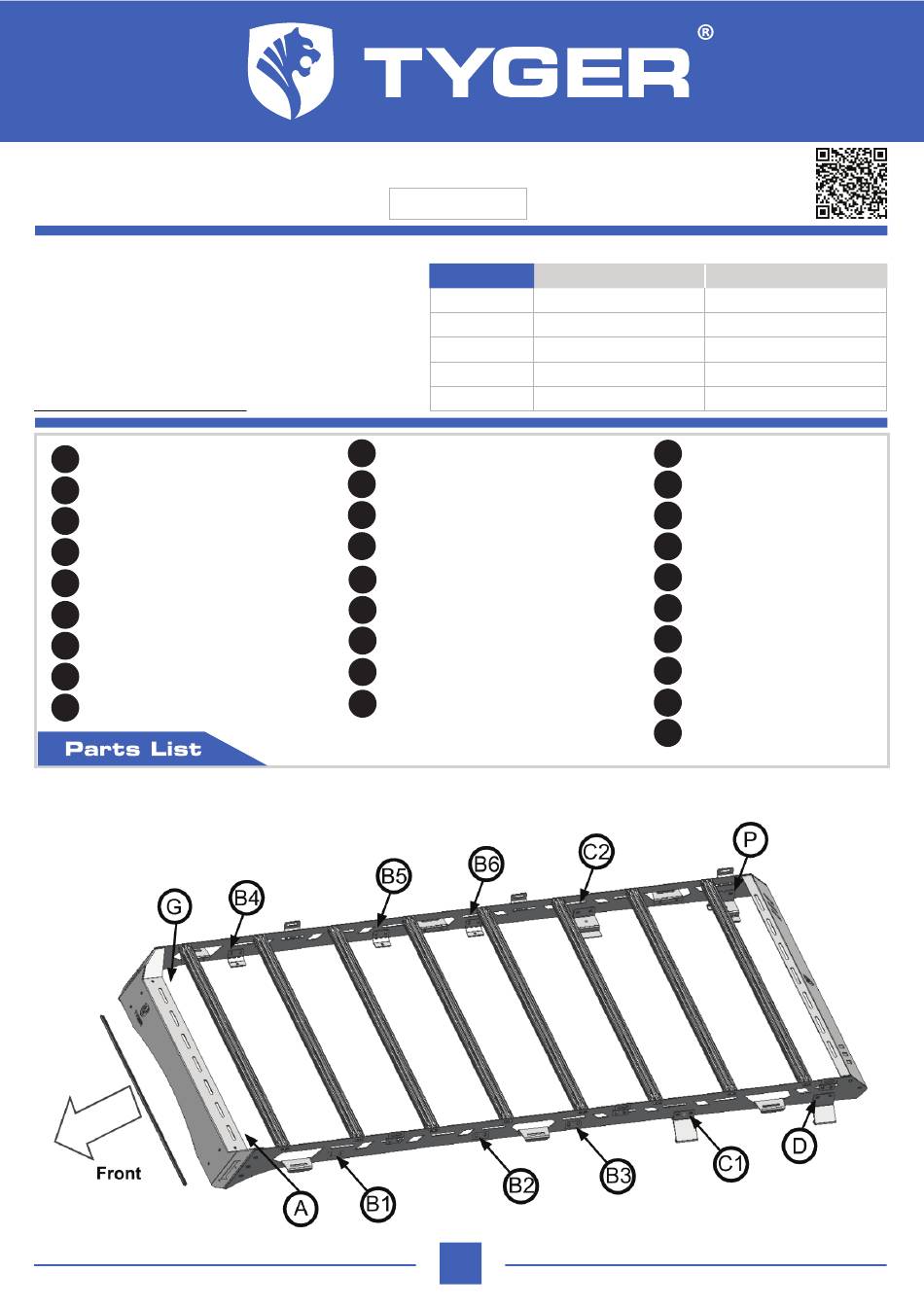

Mounting Locations Overview
x8
6mm x 25mm Button Head Bolts
x36
6mm x 20mm Torx Bolts
x48
6-1.0 x 20mm Torx Combo Bolts
x88
6mm x 18mm x 1.6mm Flat Washers
x44
6mm Nylon Lock Nuts
1/8
Scan to Download the
Latest Digital Version
Class 8.8 Torque (ft-lbs)
Class 10.9 Torque (ft-lbs)
x 2
Rear Outer Clamp Brackets [F]
6-7
15-16
x 1
Driver/Left Rear Inner Clamp Bracket [D]
31-32
x 1
Passenger/Right Rear Inner Clamp Bracket [
54-55
x4
6mm Eye Bolts - SUS
87-88
x4
6mm x 18mm x 1.6mm Flat Washers - SUS
x4
6mm Lock Washers - SUS
x4
6mm T-Nut Plates - SUS
x8
6mm x 25mm Button Head Bolts
x36
6mm x 20mm Torx Bolts
x48
6-1.0 x 20mm Torx Combo Bolts
x88
6mm x 18mm x 1.6mm Flat Washers
x44
6mm Nylon Lock Nuts
x4
6-1.0mm Flange Nuts
x1
4mm Wrench
x1
Torx Wrench
6-7
22-23
44-45
78-79
125-126
V240614
Advertisement
Related Manuals for Tyger TG-RR1F33778
Summary of Contents for Tyger TG-RR1F33778
- Page 1 TYGER ROOF RACK Front Wind Deflector Scan to Download the Latest Digital Version TG-RR1F33778 Rubber Edge Trim for Deflector Side Panels BEFORE INSTALLATION TORQUE VALUES Rear Panel READ INSTRUCTIONS CAREFULLY BEFORE STARTING Fastener Size Class 8.8 Torque (ft-lbs) Class 10.9 Torque (ft-lbs) INSTALLATION.
- Page 2 TYGER ROOF RACK Driver/Left Front Passenger/Right Front Front Bracket Shims Center Support Front Inner Front Outer Driver/Left Rear Inner Passenger/Right Rear Rear Outer Mounting Bracket Mounting Bracket “L” Brackets Clamp Brackets Clamp Brackets Clamp Bracket Inner Clamp Bracket Clamp Brackets 6mm x 18mm x 1.6mm...
-
Page 3: Tools Required
TYGER ROOF RACK TOOLS REQUIRED Models without roof rails: Front Ratchet 13mm Socket (Fig 3) Models without factory roof rails, remove cover and inner clip over the accessory mounting location Extensions Wrench Front REMOVE FACTORY STEP 1 ROOF RAILS Follow (Fig 1 – 4) to locate the Front mounting locations on vehicle. - Page 4 TYGER ROOF RACK (2) 6mm Flange Nuts Bracket [G] (3) 6mm x 20mm Torx Combo Bolts Shim Front Front (Fig 6) Attach Passenger/Right Front Mounting Bracket [G] to Shim and threaded studs. Repeat this STEP to attach the (Fig 9) Turn Wind Deflector up-side-down.
- Page 5 TYGER ROOF RACK (4) 6mm x 20mm Torx Combo Bolts Front Front Clamp Front Clamp Outer Bracket [E] Inner Bracket [C] (Fig 12) Attach the Crossbars to the slots in the Side Panels Rear Clamp Rear Clamp Outer Bracket [F]...
- Page 6 TYGER ROOF RACK (2) 6mm x 25mm Button Head Bolts (4) 6mm Flat Washers (2) 6mm Nylon Lock Nuts Bracket [P] Front Rear Bracket [F] (Fig 21) Adjust the Mounting Brackets in or out to match the Wind Deflector if necessary. Once attached, (Fig 18) Attach the Rear Clamp Bracket [P] and [F] align the Wind Deflect and Rack Assembly to the front...
- Page 7 TYGER ROOF RACK STEP 7 ADJUSTING THE RACK Level and adjust the Roof Rack so it sits straight and is aligned squarely with vehicle roof. Tighten all Hardware EXCEPT THE Rear FRONT CROSS PLATE. Then follow (Fig 27) to adjust the fit.
-
Page 8: Check Alignment
STEP 11 PAINTABLE INSERTS OTHER ACCESSORIES (2) Corner Accent Plates and (1) Tyger Logo Background Plate are STEP 9 double-sided in black and red. To flip them or re-paint them to (OPTIONAL) match your vehicle, follow (Fig 32-33) to remove and reattach.
