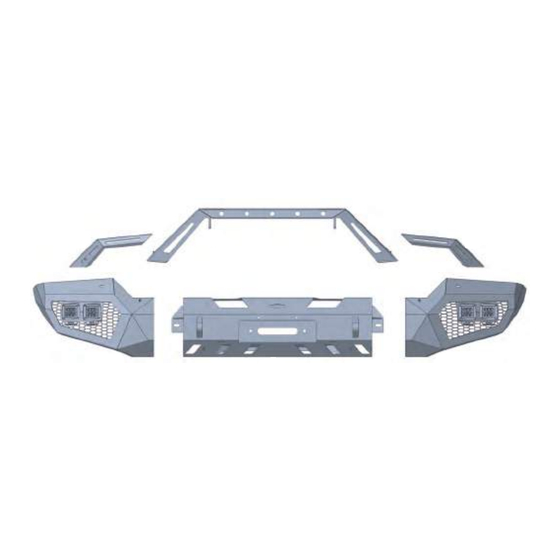

Front Bumper
Please verify all parts are present and read instructions carefully before starting installation.
Please feel free to contact your distributor if you have any kind of question about your purchase.

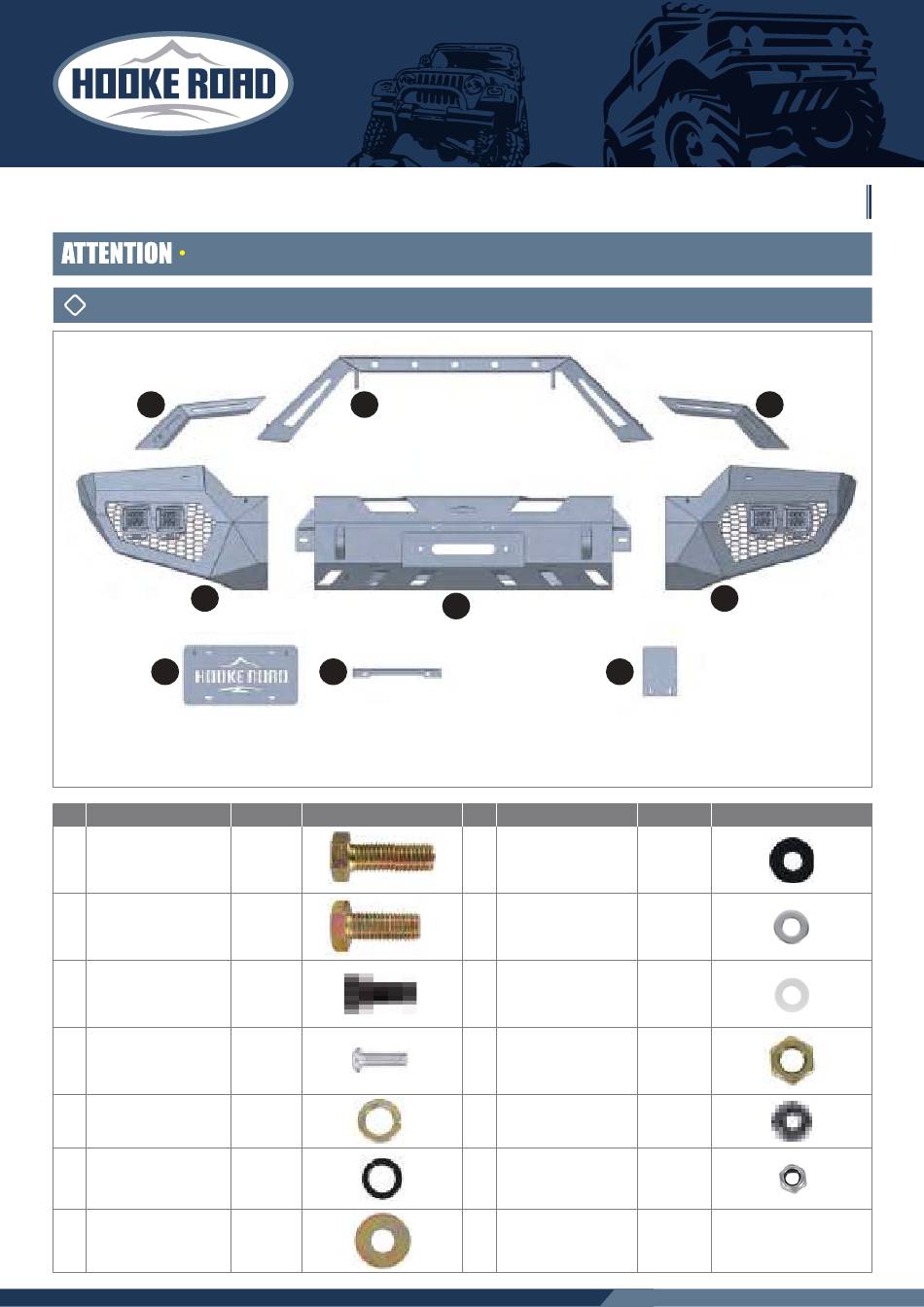

CONTENTS
1
Left
A2
C1
D1
A1&A2&A3: Bull Bar
D1&D2: License Plate Bracket
Qty
Part Name
6
Hex Bolt
6
Hex Bolt
10
Hex Bolt
4
Button Bolt
12
Split Lock Washer
10
Split Lock Washer
18
Flat Washer
A1
D2
B: Main Body
Size(mm)
M12*35
M12*30
M8*20
M6*16
D12
D8
M12*30*1.5
MAKE A DIFFERENCE
B
E
C1&C2: Wings
E: Winch Power Control Box Bracket
Qty
Part Name
10
Flat Washer
4
Flat Washer
2
Nylon Round Spacer
12
Hex Nut
10
Flange Hex Lock Nut
4
Nylon Lock Nut
BXG.9038
(INSTALLATION INSTRUCTION)
A3
C2
Size(mm)
M8
M6*12*1
M6*12*1.3
M12
M8
M6
Right
Advertisement
Related Manuals for HOOKE ROAD BXG.9038
Summary of Contents for HOOKE ROAD BXG.9038
- Page 1 MAKE A DIFFERENCE Front Bumper BXG.9038 (INSTALLATION INSTRUCTION) Please verify all parts are present and read instructions carefully before starting installation. Please feel free to contact your distributor if you have any kind of question about your purchase. CONTENTS Left Right A1&A2&A3: Bull Bar...
- Page 2 To view online instruction, please TOOLS REQUIRED scan the QR code. Drive Ratchet Handle 10mm, 14mm Wrench 4mm Hex Bit Socket 19mm Wrench INSTALLATION INSTRUCTION Step 1 Place the vehicle in park, remove the factory bumper from the frame. Step 2 Install the left wing to the main body using (3) M12x30mm hex bolts, (3) D12 lock washers, (3) M12x30x1.5mm flat washers, (3) M12 hex nuts.
- Page 3 Step 3 Install the bull bar A1 to the main body using the (4) M8x20mm hex bolts, (4) D8 lock washers, (4) M8 flat washers, (4) M8 flange hex lock nuts. Install the bull bar A3 to the main body using the (2) M8x20mm hex bolts, (2) D8 lock washers, (2) M8 flat washers, (2) M8 flange hex lock nuts.
- Page 4 flat washers, (6) M12 hex nuts. Adjust the bumper to the desired location. Tighten the hardware. Step 7 The installation is complete. We hope you enjoy a wonderful off-road life with this quality Hooke Road product! Feel Free To Share Your Vehicle @HookeRoad4x4 to find your parts.
