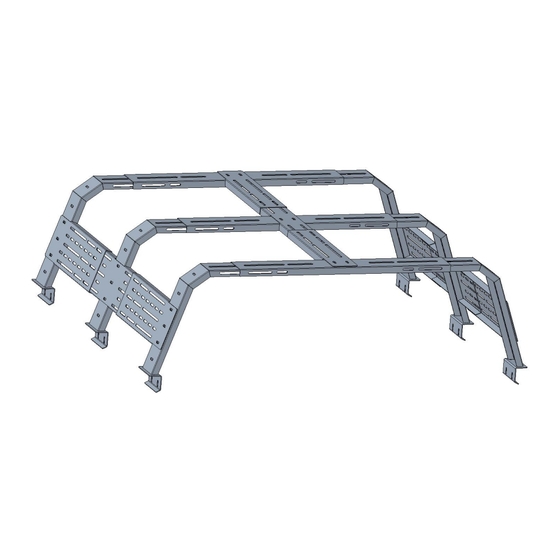

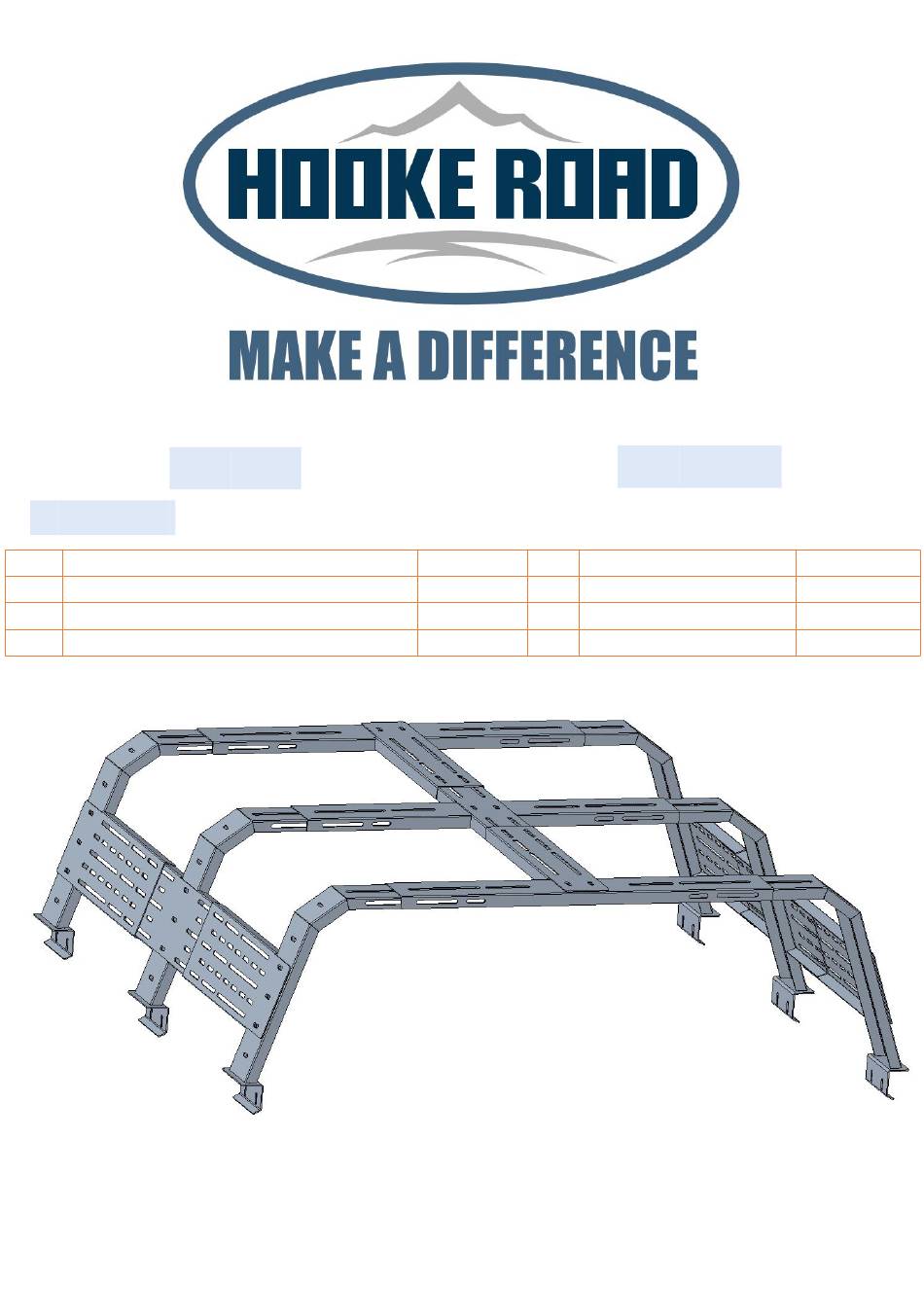

- Page 1 BXG.9902-S Bed Rack (1) Contents: Part Name Size(mm) Part Name Size(mm) Bed Rack Assembly Flat Washer M10*20*1.5 Button Head Socket Cap Bolts Screws M10*25 Flange Hex Lock Nuts Button Head Socket Cap Bolts Screws M10*20...
- Page 3 About 1.5 hours, 1-2 people may be needed. Installation time may differ according to your mechanical skill level. (PLEASE VERIFY ALL PARTS ARE PRESENT AND READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION!) To view the electronic version (BXG.9902-S), please scan the QR code.
- Page 4 (4) Installation instruction: Step 1: Assemble the Leg Section (H6) & the Top Brace (H3). For this, use the Button Head Socket Cap Bolts Screws (M10*20), Flat Washer (M10*20*1.5), Flange Hex Lock Nuts (M10) .
- Page 5 Step 2: Next, mount the Top Brace (H1). To do this, use the Button Head Socket Cap Bolts Screws (M10*20), Flat Washer (M10*20*1.5), Flange Hex Lock Nuts (M10) . Step 3: Mount the Top Brace (H2). Use the Button Head Socket Cap Bolts Screws (M10*20), Flat Washer (M10*20*1.5), Flange Hex Lock Nuts (M10).
- Page 6 Step 4: Mount the Leg Cross member (H7). Use the Button Head Socket Cap Bolts Screws (M10*20), Flat Washer (M10*20*1.5), Flange Hex Lock Nuts (M10). Step 5: Mount the Side Panel (H4). Use the Button Head Socket Cap Bolts Screws (M10*20), Flat Washer (M10*20*1.5), Flange Hex Lock Nuts (M10).
- Page 7 Notes: If you want to adjust the length and width of the bed rack, please stretch the Leg Section (H6) & the Side Panel (H4). As the picture shown. Step 6: Fixed the bed rack into your vehicle. Install the Clamp Assembly (H5) into the trail rail with the Button Head Socket Cap Bolts Screws (M10*20), Flat Washer (M10*20*1.5).
- Page 8 Step 7: The installation is complete. We hope you enjoy a wonderful off-road life with this quality Hooke Road product! Attention: 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product.
