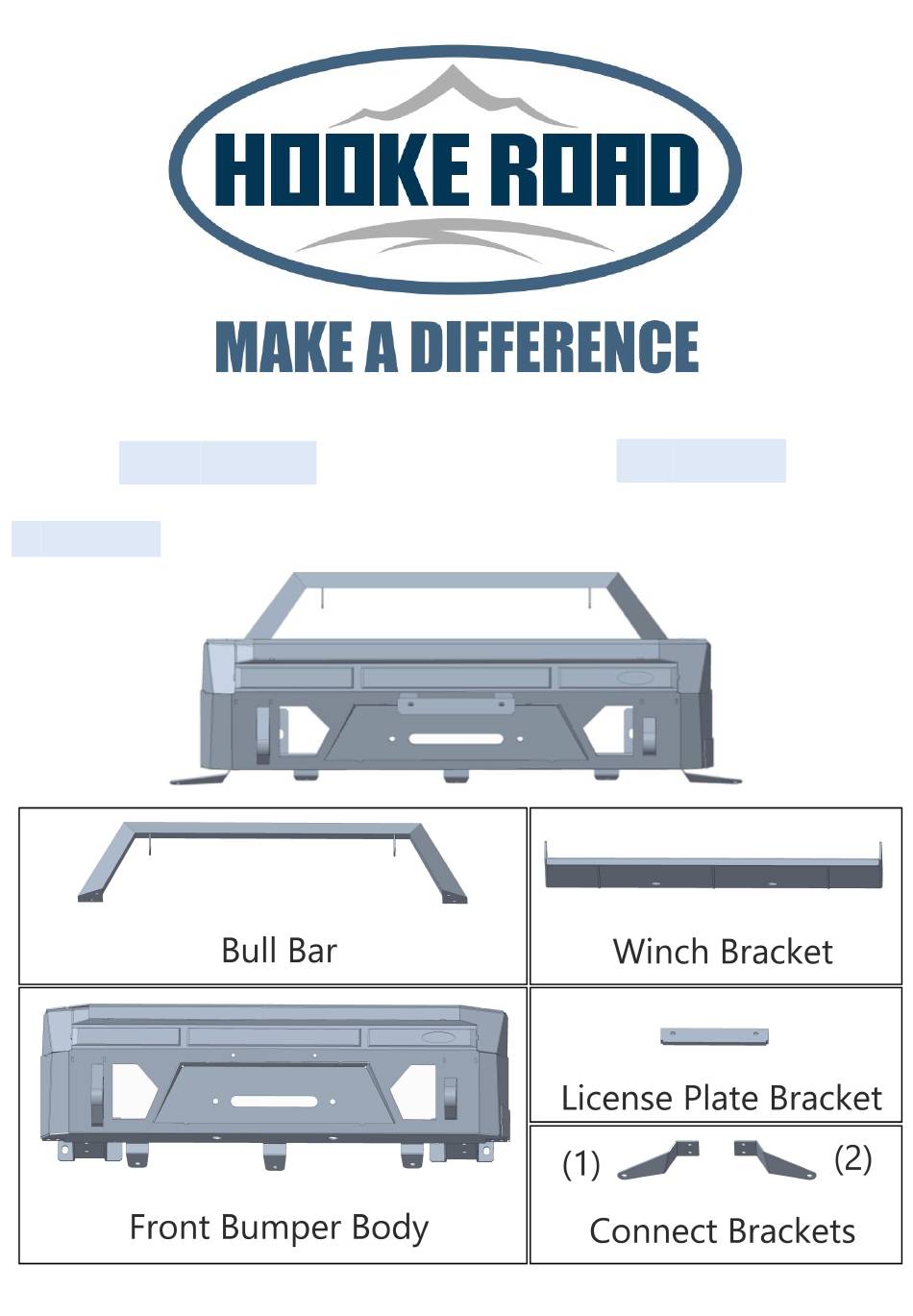

- Page 1 BXG.9805-S Front Bumper (1) Contents:...
- Page 2 Qty Part Name Size(mm) Picture M10*35 Hex Bolts M8*20 Button Head Socket Cap Bolts Screws M6*16 Button Head Socket Cap Bolts Screws Split Lock Washer Flat Washer M8*20*1.5 Flat Washer M6*16*1 Flat Washer M10*25*2 Flange Hex Lock Nuts Flange Hex Lock Nuts (2) Tools required: a.
- Page 3 About 1.5 hours, 2-3 people may be needed. Installation time may differ according to your mechanical skill level. (PLEASE VERIFY ALL PARTS ARE PRESENT AND READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION!) To view the electronic version (BXG.9805-S), please scan the QR code.
- Page 4 (4) Installation instruction: Cutting The Factory Bumper: Step 1: Ready to cut the factory bumper. It is strongly recommended to find a professional for cutting operations. Step 2: Take safety precautions: Ensure the vehicle is parked in a safe location and wear appropriate safety goggles and gloves during the cutting process.
- Page 5 Step 4: Cut the bumper: Carefully cut the bumper using the chosen tool, following the marked positions. Exercise caution to avoid accidental damage or injury, and follow proper cutting techniques. Finishing and refinement: After completing the cut, clean up any debris and refine the cut edges to achieve a neat and smooth appearance.
- Page 6 Step 5: If you require the winch bracket, use M10*35 hex bolts to fasten it securely to the main body. Step 6: Install the bull bar to the main body and tighten it with M8*20 button head socket cap bolts and nuts.
- Page 7 Step 7: If you need to install the license plate bracket, use M8*20 button head socket cap bolts and nuts to secure it into the main body, as shown in the diagram. Step 8: Lift the bumper, align it with the holes, and then use the factory bolts to secure the bumper to the vehicle mounting position.
- Page 8 Step 9: To secure the front bumper, use the connect bracket and M8*20 button head socket cap bolts to attach it to the factory car bumper.(The connecting bracket '1' is for the driver side, the connecting bracket '2' is for the passenger side.) Step 10: Finally, use M8*20 button head socket cap bolts to attach the factory skid plate to the front bumper.
- Page 9 Step 11: The installation is complete. We hope you enjoy a wonderful off-road life with this quality Hooke Road product! Attention: 1.The product parts in this instruction may differ slightly from the actual product contents but generally does not affect the installation of the product.
