TYGER GUARD
BEFORE INSTALLATION
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. REMOVE
CONTENTS FROM BOX AND VERIFY ALL PARTS ARE PRESENT. ASSISTANCE IS
RECOMMENDED. FAILURE TO IDENTIFY DAMAGE BEFORE INSTALLATION COULD
LEAD TO A REJECTION OF ANY CLAIM. IF ANY DAMAGE FOUND, PLEASE TAKE A
PICTURE FOR THE CLAIM PURPOSE. PLEASE ALSO SEND THE PICTURES, ORDER
NUMBER, AND DETAILS OF THE ISSUE TO SUPPORT@TYGERAUTO.COM.
Torque Value
Fastener
Class 8.8 Tightening
Torque (ft-lbs)
Size
6mm
8mm
10mm
12mm
14mm
Passenger/Right Side
Frame Bracket
Passenger/Right Side
Tyger Guard Bracket
TM
Class10.9 Tightening
Torque (ft-lbs)
6-7
15-16
31-32
54-55
87-88
Driver/Left Side
Frame Bracket
Driver/Left Side
Tyger Guard Bracket
Customer Support: www.TygerAuto.com/Contact
6-7
22-23
44-45
78-79
125-126
1/3

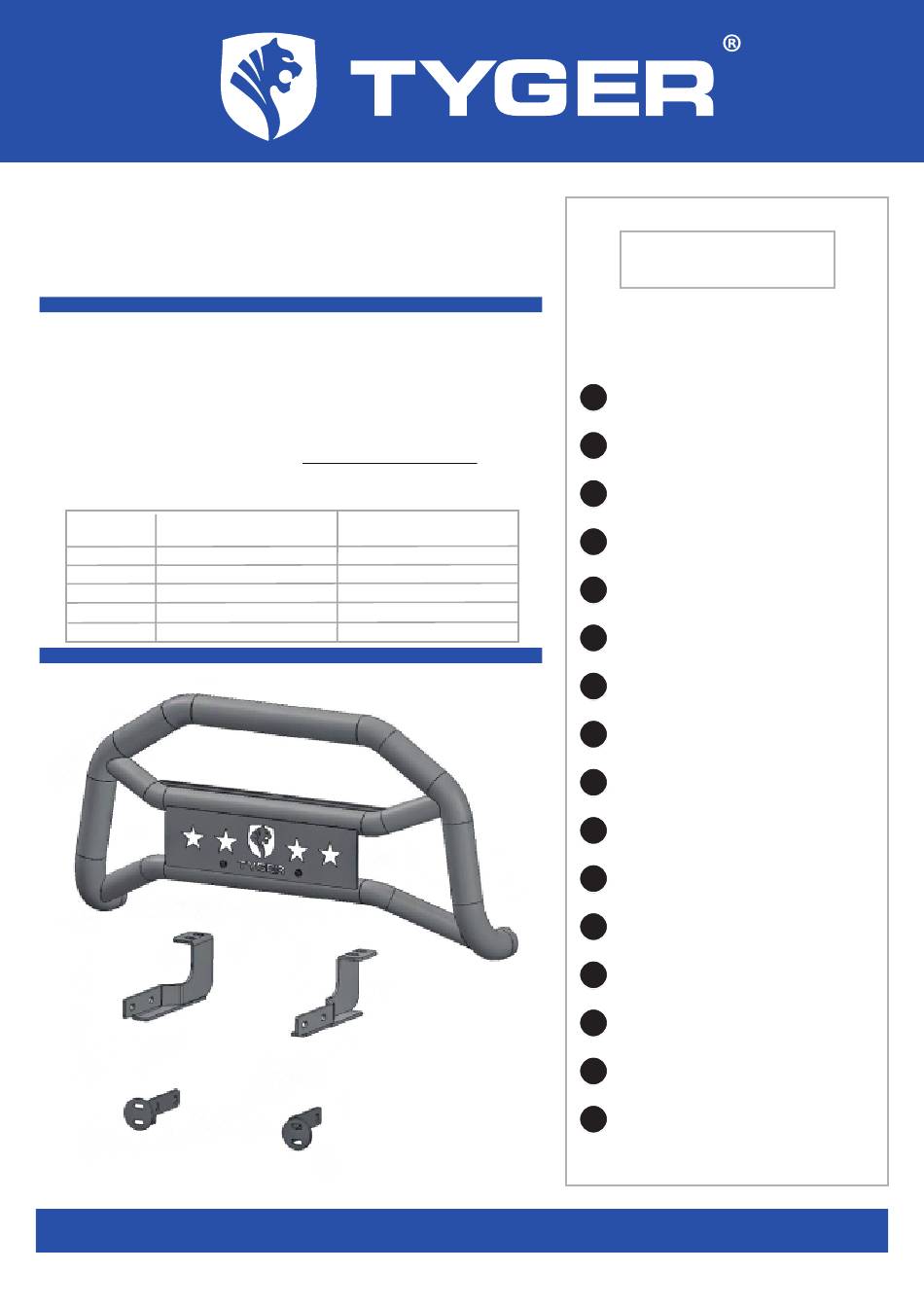

TG-GD6T60448
Parts List
Tyger Guard
x1
Driver/Left Side Frame Bracket
x1
Passenger/Right Side Frame Bracket
x1
Driver/Left Side Tyger Guard Bracket
x1
Passenger/Right Side Tyger Guard Bracket
x1
12-1.25mm x 30mm Fine Thread Hex Bolts
x4
12mm Lock Washers
x4
12mm x 24mm x 2.5mm Flat Washers
x4
10-1.50mm x 35mm Hex Bolts
x4
10mm x 27mm x 2.5mm Flat Washers
x8
10-1.5mm Nylon Lock Nuts
x4
8-1.25mm x 35mm Hex Bolts
x4
8mm Lock Washers
x4
8mm x 22mm x 2mm Flat Washers
x4
4mm Allen Wrench
x1
6-1.0mm x 20mm Combo Bolts(license plate)
x2
V200916
