TYGER GUARD
BEFORE INSTALLATION
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. REMOVE
CONTENTS FROM BOX AND VERIFY ALL PARTS ARE PRESENT. FAILURE TO
IDENTIFY DAMAGE BEFORE INSTALLATION COULD LEAD TO A REJECTION OF
ANY CLAIM. IF MISSING PARTS OR ANY DAMAGE FOUND, PLEASE TAKE A
PICTURE FOR THE CLAIM PURPOSE. TO FILE YOUR CLAIM, PLAESE VISIT:
WWW.TYGERAUTO.COM/CONTACT
TORQUE VALUES
Fastener Size
Class 8.8 Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
Passenger/right Side
Frame Bracket
(2) 8mm Bolt Plates
Passenger/right Side
Support Bracket
Tube Bracket
TG-GD6D60078
Class 10.9 Torque (ft-lbs)
6-7
15-16
31-32
54-55
87-88
125-126
Driver/left Side Frame
Bracket
Driver/left Side Support
Bracket
Tube Bracket
Customer Support: www.TygerAuto.com/Contact
NOTE: Installation may interfere with front bum-
per mounted sensors. Cutting is required. Assis-
tance is recommended.

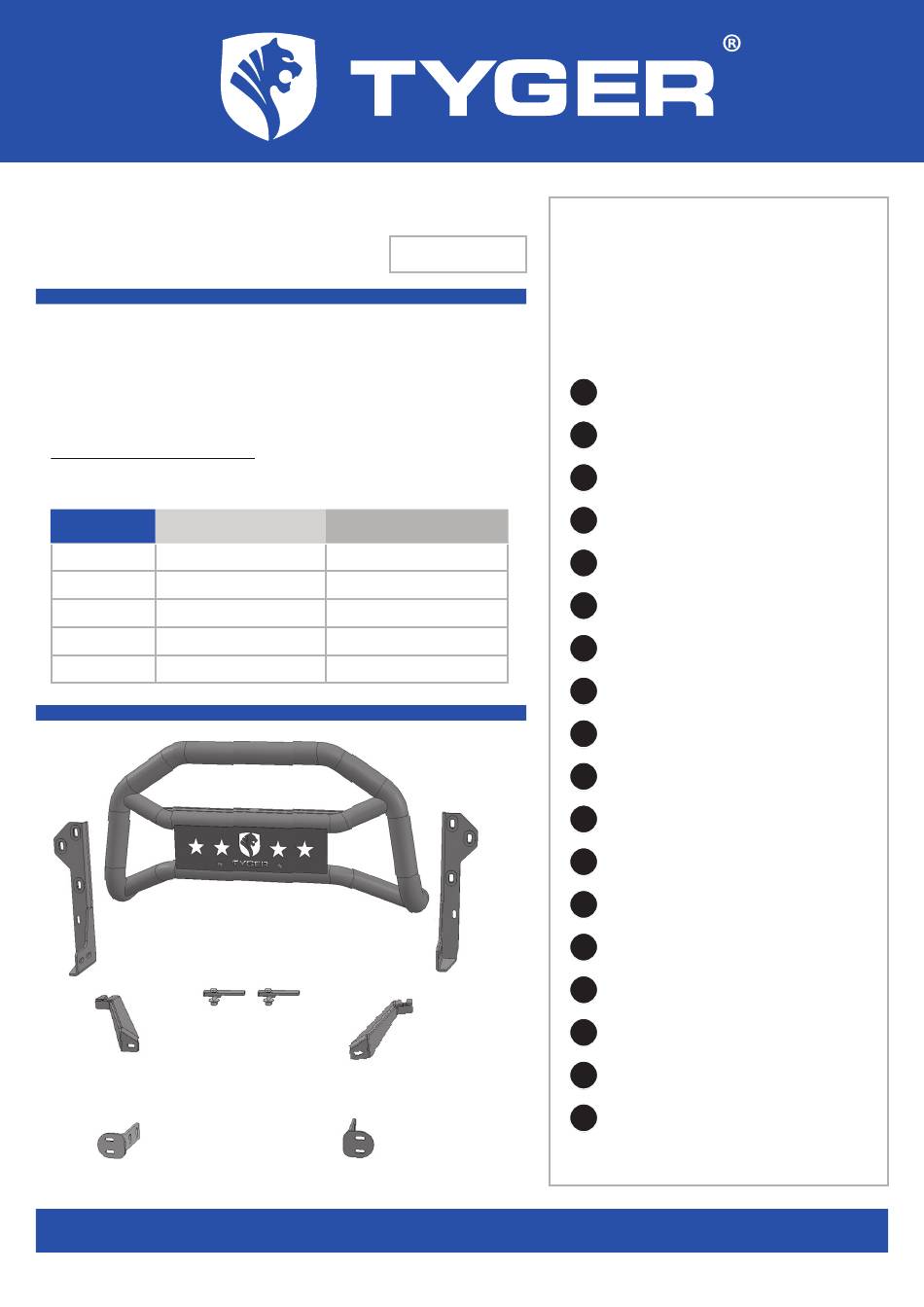

Parts List
6-7
22-23
44-45
78-79
1/5

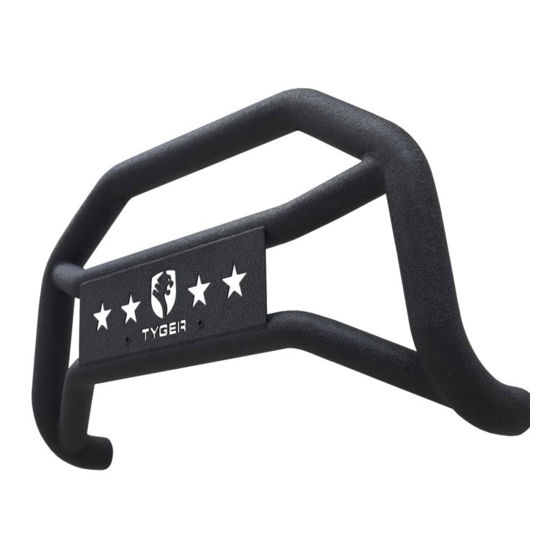

Tyger Guard
x1
Tube Brackets (passenger or driver side)
x2
Driver/Left Frame Bracket
x1
Passenger/Right Frame Bracket
x1
Driver/Left Support Bracket
x1
Passenger/Right Support Bracket
x1
8-1.25mm Bolt Plates
x2
8mm Plastic Retainers
x2
12-1.75mm x 35mm Hex Bolts
x4
12mm x 32mm OD x 3mm Flat Washers
x8
12mm Lock Washers
x4
12-1.75mm Hex Nuts
x4
8-1.25mm x 35mm Hex Bolts
x4
8-1.25mm x 30mm Hex Bolts
x6
8mm x 24mm OD x 2mm Flat Washers
x14
8mm Lock Washers
x12
6-1.0mm x 20mm Combo Bolts
x2
4mm Wrench
x1
V200728
