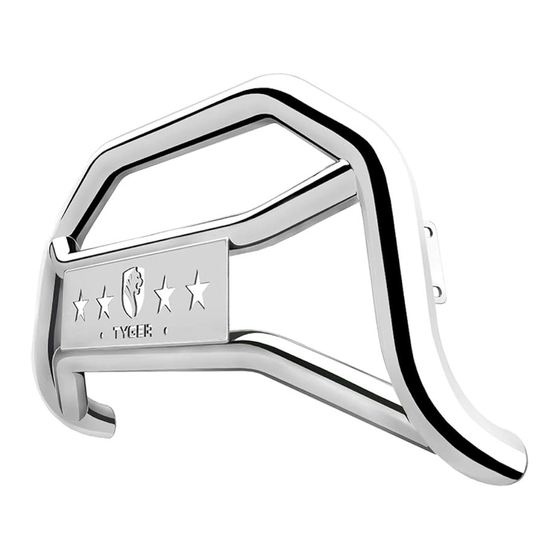

TYGER GUARD
BEFORE INSTALLATION
READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. REMOVE
CONTENTS FROM BOX AND VERIFY ALL PARTS ARE PRESENT. FAILURE TO
IDENTIFY DAMAGE BEFORE INSTALLATION COULD LEAD TO A REJECTION OF
ANY CLAIM. IF MISSING PARTS OR ANY DAMAGE FOUND, PLEASE TAKE A
PICTURE FOR THE CLAIM PURPOSE. TO FILE YOUR CLAIM, PLAESE VISIT:
WWW.TYGERAUTO.COM/CONTACT
TORQUE VALUES
Fastener Size
Class 8.8 Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
(2) Single Bolt Plates
Passenger/right Side
Frame Bracket
Class 10.9 Torque (ft-lbs)
6-7
15-16
31-32
54-55
87-88
125-126
(2) Double Bolt Plates
Driver/left Side
Frame Bracket
Customer Support: www.TygerAuto.com/Contact
NOTE: Cutting may be required. Installation may
interfere with front mounted sensors.
Parts List
x1
x1
6-7
x1
22-23
44-45
x6
78-79
x6
x2
x2
x4
x8
x4
x1
x2
1/5
TG-GD6C60047
Tyger Guard
Driver/left Frame Bracket
Passenger/Right Frame Bracket
12-1.75mm Nylon Lock Nuts
12mm x 24mm OD x 2.5mm Flat Washers
12mm x 30mm Double Bolt Plates
12mm x 35mm Single Bolt Plates
10-1.5mm x 35mm Hex Bolts
10mm x 27mm OD x 2 mm Flat Washers
10-1.5mm Nylon Lock Nuts
4mm Wrench
6-1.0mm x 20mm Combo Bolts
(license plate)
V200728
Advertisement
Related Manuals for Tyger Guard TG-GD6C60047
Summary of Contents for Tyger Guard TG-GD6C60047
- Page 1 TYGER GUARD TG-GD6C60047 BEFORE INSTALLATION NOTE: Cutting may be required. Installation may READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. REMOVE interfere with front mounted sensors. CONTENTS FROM BOX AND VERIFY ALL PARTS ARE PRESENT. FAILURE TO IDENTIFY DAMAGE BEFORE INSTALLATION COULD LEAD TO A REJECTION OF ANY CLAIM.
- Page 2 Start installation from under the front of the vehicle. Determine if the vehicle is equipped with tow hooks. IMPORTANT: Tow hooks cannot be reinstalled with the Tyger Guard. Tow Hook equipped vehicles: Remove the factory tow hook from the end of each frame chan- nel, (Fig 1).
- Page 3 Vehicles without Tow Hooks: a. Cut out the indented area on both sides of the plastic STEP 2 bumper insert to clear the Brackets as pictured, (Figs 4-5). IMPORTANT: Make several small cuts for best fit. Do not cut through the top edge of the panel. NOTE: On 2014-15 models, Select the driver side Mounting Bracket.
- Page 4 Most Silverado/Sierra models will use the “back” (2) 12mm Flat Washers mounting position with the Brackets pushed in to install the Tyger (2) 12mm Nylon Lock Nuts Guard closer to the bumper, (Fig 8). Some years may require the forward mounting position to move the Tyger Guard forward or to provide more clearance for accessory lights, (Fig 12).
-
Page 5: Complete Installation
Check the Tyger Guard alignment with the vehicle and for clear- Repeat Steps 2-5 to install the passenger side Mounting Bracket. ance between the Tyger Guard and the bumper. If Tyger Guard is too close to or touching bumper, remove the Tyger Guard and reinstall the Brackets in the “forward”...
