Tyger TG-FF6C4338 Manual

Fender flare
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
ATTENTION!
PLEASE READ THE INSTRUCTIONS CAREFULLY BEFORE
STARTING INSTALLATION. PLEASE FOLLOW THE APPROVED
INSTALLATION ACCORDING TO THE WRITTEN INSTRUCTIONS.
FAILURE TO DO SO MAY CAUSE DAMAGE TO YOUR VEHICLE
AND INVALIDATE THE WARRANTY.
WARNING!
PARTICLES & DIRT STUCK BETWEEN INSTALLED FLARES AND
VEHICLE'S FENDERS MAY CAUSE SCRATCHING AND PAINT WEAR
FROM VEHICLE VIBRATION. INSTALLATION IS DONE WITH
BUYER'S AND/OR USER'S UNDERSTANDING THAT THIS DAMAGE
MAY POTENTIALLY OCCUR.TYGER™ IS NOT RESPONSIBLE FOR
ANY DAMAGE FROM THIS CAUSE.
PRIOR TO INSTALLATION:
USE NON-ABRASIVE
CHECK EVERYTHING
SURFACE TO INSTALL
BEFORE INSTALLATION
REMOVE DECALS &
MUD FLAPS FIRST
SAFETY INFORMATION:
NO AUTOMATIC
CHECK TIGHTNESS
BRUSH-STYLE WASH
ABOUT PAINTING: Painted flares cannot be returned. Test fit
before painting. We are not responsible for any costs that may
incur if flares were painted without test fitting.
• Clean surface to be painted with a good grade degreaser. Do
not use lacquer thinner or any solvent based product.
• Wipe flare surface completely dry with a tack rag prior to paint.
• Application of plastic adhesion promoter for PP plastic as per
your paint system manufacturer's recommendations is required.
• Use a high quality enamel or polyurethane automotive paint to
paint the flares.
• Not recommend to paint the edge trim, but if desired use a flex
additive.
TG-FF6C4338
VERIFY FITMENT OF
FLARES TO VEHICLE
ABRASIVE DETERGENT
IS PROHIBITED
CHECK CAREFULLY
BEFORE DRIVE
Customer Support: www.TygerAuto.com/Contact
Customer Support: www.TygerAuto.com/Contact
Customer Support: www.TygerAuto.com/Contact
Customer Support: www.TygerAuto.com/Contact
Customer Support: www.TygerAuto.com/Contact
Customer Support: www.TygerAuto.com/Contact
TOOLS FOR EASIER INSTALLATION
Utility Knife
#2 Phillips Driver
Awl
Pliers
HARDWARE KIT INCLUDED
360"
X
[A]
Edge Trim
5/8" PH Truss Screw
2
X
[E]
U-Clip
Dacromet Outer Clip
2
X
[I]
Clear Tab
2
X
Rear Flare
DAMAGED or MISSING parts?
www.TygerAuto.com/Contact
Page 1/9
Socket Wrench
T15 Torx Bit
12
12
X
[B]
[C]
Mylar Tab
3/4" PH Tapping Screw
2
1
X
X
[F]
[G]
Edge Trim Tool
2
X
Front Flare
V200914
10mm
Socket
Grease Pencil
2
X
[D]
12
X
[H]
Long U-Clip

Advertisement

loading
Need help?

Need help?

Do you have a question about the TG-FF6C4338 and is the answer not in the manual?

Questions and answers

Related Manuals for Tyger TG-FF6C4338

Summary of Contents for Tyger TG-FF6C4338

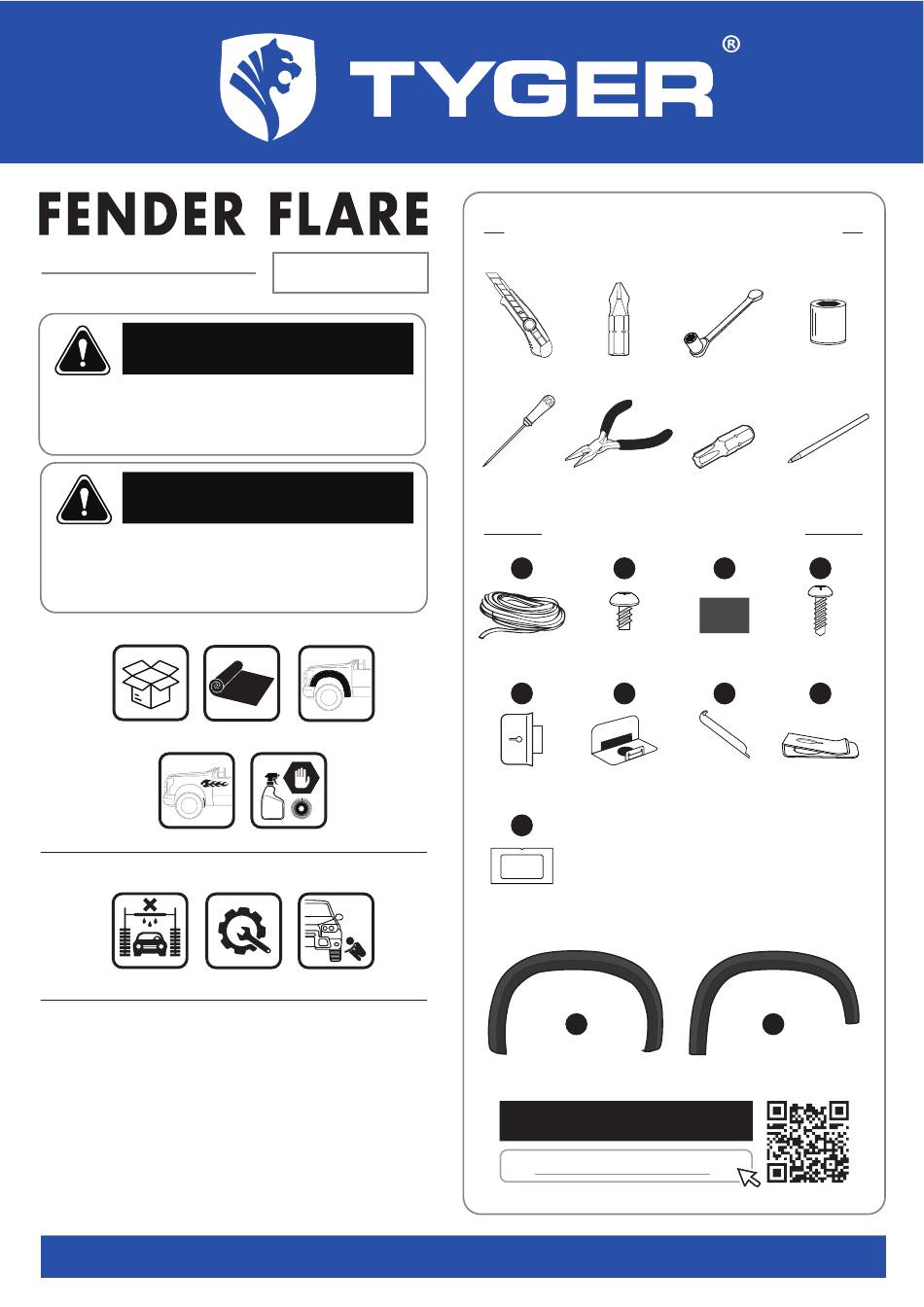

  • Page 1 VEHICLE'S FENDERS MAY CAUSE SCRATCHING AND PAINT WEAR FROM VEHICLE VIBRATION. INSTALLATION IS DONE WITH 360” BUYER'S AND/OR USER'S UNDERSTANDING THAT THIS DAMAGE MAY POTENTIALLY OCCUR.TYGER™ IS NOT RESPONSIBLE FOR ANY DAMAGE FROM THIS CAUSE. PRIOR TO INSTALLATION: Edge Trim 5/8”...
