PowMr 615150291644 Manual

When Wiring, Please
Make sure your battery must be atleast 60% charged prior to connecting to solar controller.
1.
Always connect and turn on your battery first! Wire your PV after LCD screen power on.
2.
Never connect your PV array to the solar controller when LCD OFF.
3.
4. Careful your input power and voltage does not exceed the solar controller's max value.
5. Always connect battery first, then solar panel.
1.Don't put wire under the terminal's plate.
2.Don't Put two or more wire in one termnial, each terminal only accpet one.
3.Don't exposed copper outside the terminal; (The exposed copper wire needs to be tightly
and completely connected to the terminal.)
4.The wiring must be tight and not loose.

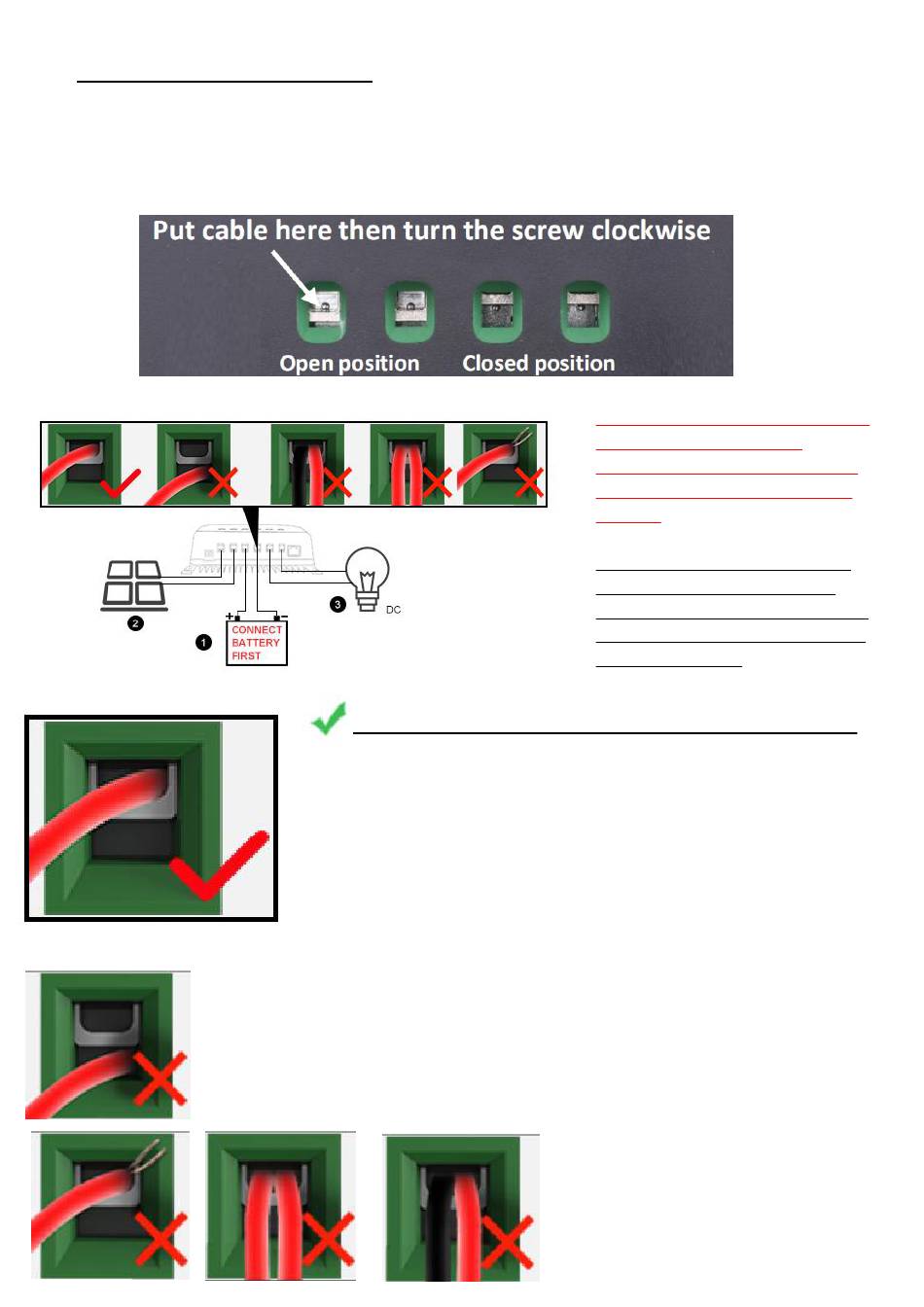

HOW TO WIRE YOUR SOLAR CONTROLLER?
1.(Controller terminal side)Turn the adjusting screw counterclockwise until the
plate inside terminal moves downward.
2.(wire)Please peel off the coating of the cable tip by about 8 to 10 mm
3.Insert the wire into the new opening between the plate and the "top" of the
terminal hole.
4.When turning the adjuster clockwise, the plate moves upward and crushes
the wire in the hole of the terminal.
5.Make sure all connections going into and from the solar controller are tight.
DO NOT
Important: During the operation of
the controller, heat will be
generated at the wiring terminal,
incorrect wiring will cause safety
hazards.
Common solar controller charging is
from high voltage to low voltage,
please make sure solar panel voltage is
higher than battery voltage, otherwise
it cannot be charged.
