PowMr SOLAR60 User Manual

SOLAR60,SOLAR80 Solar

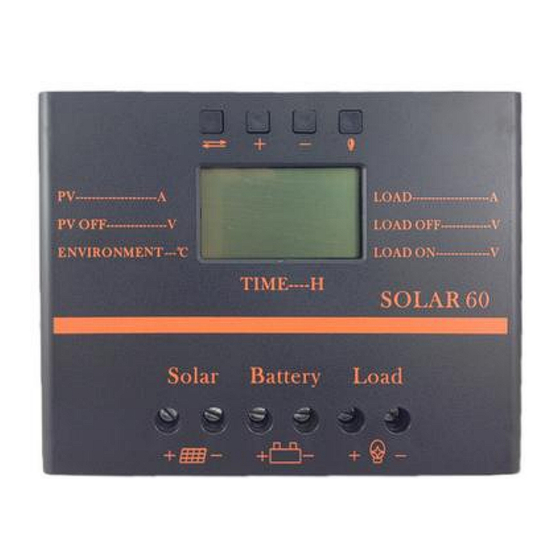

1:Product introduction
Solar LCD series a kind of intelligent, multi-purpose solar charge and discharge controller
LCD screen display
Easy operation interface
PWM charging mode
Parameter user can reset
A key to open and close the load
A key to restore the factory settings
2: Installation Instructions
Installation
Ready Qi installation tools and materials, and cable.
1
Please matching suitable cable
Ensure that the current density <4A/mm2 this will help to
2
reduce the line pressure drop.
Recommended: 30A current 10mm2 60A current
20mm2 80A current 25 mm2 cable. Check whether the
installation site
Comply with the relevant safety requirements, avoid
damp, dusty, there is easy
Inflammable, explosive and corrosive gases place to
install using the controller
Install the controller fixed to the vertical plane, see Section V mounting aperture and hole spacing.
3
In order to ensure a good controller cooling conditions, the controller on the bottom of each
reserved 10cm space

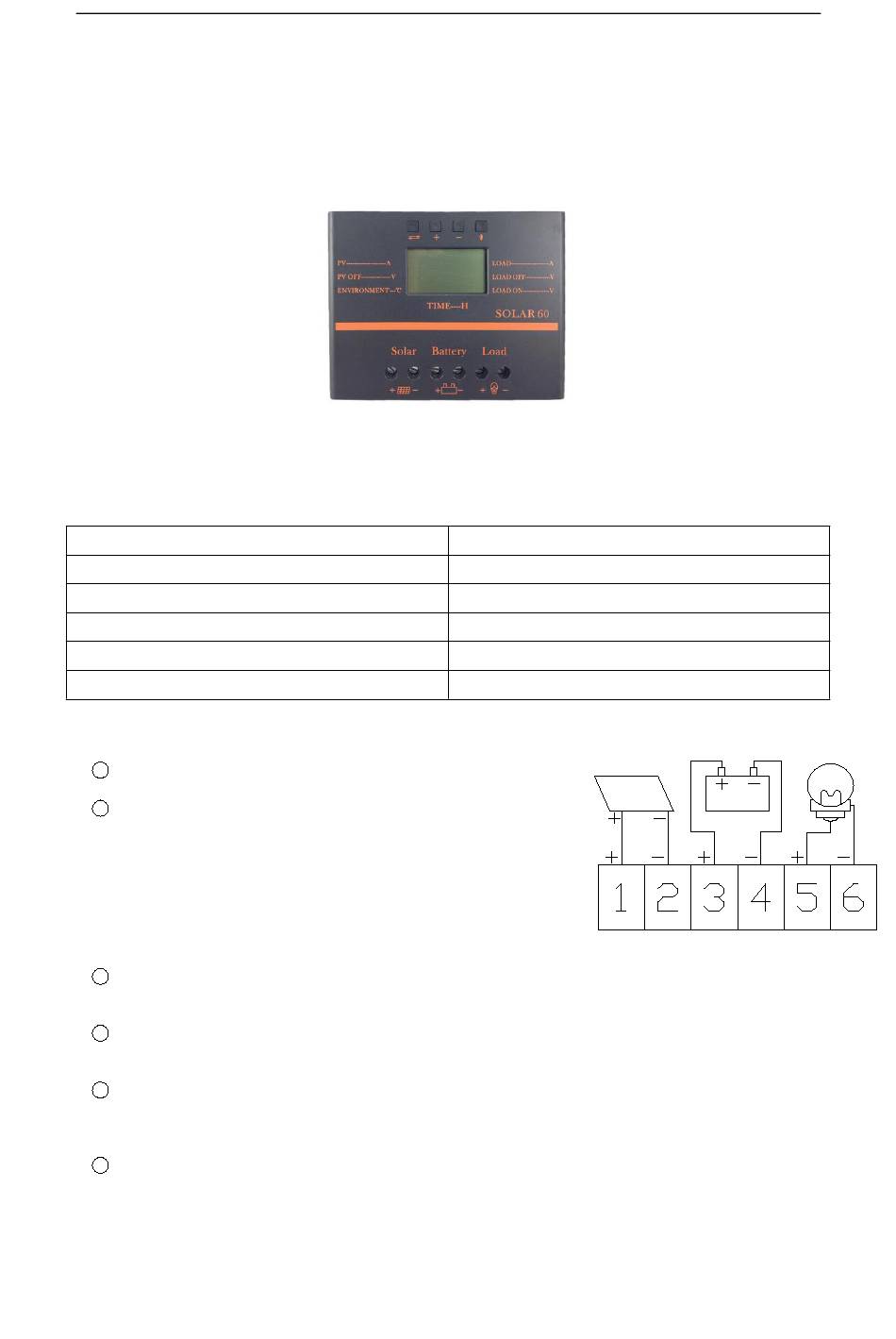

As shown on the right wiring sequence: load, battery, solarQ
4
Battery plate is connected to the controller to be taken to ensure that the load, battery,
The polarity of the solar cell panel and controller
Before use: external temperature sensor probe into the left of the controller temperature probe
5
interface probe placed in similar battery temperature. (Line extension must be built-in devices of
the external temperature probe coextensive Otherwise, the controller will control parameters of the
temperature compensation of the error
Warning: In order to prevent accidents from occurring, install: non-professionals can not be
6
engaged in loading and unloading operations
3.LCD operating interface description
1:LCD graphic symbol description
discharging
Charging and
Controller
User s Manual
Battery reverse discharge protection
Battery reverse polarity protection
Battery under voltage protection
Overload, short-circuit protection
Automatic temperature compensation function
Optional USB 5V charging (for 500mA)
