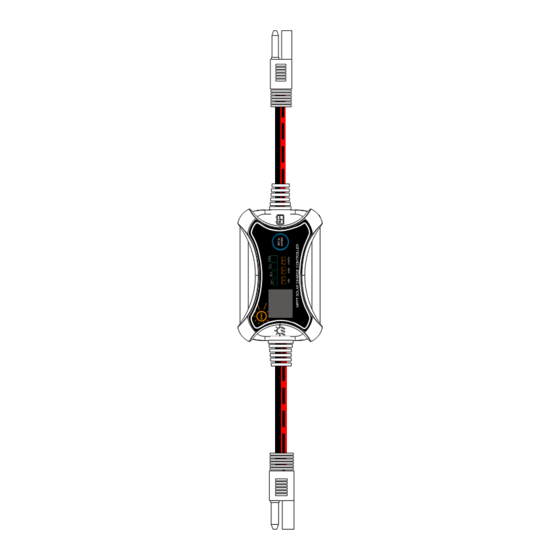

PowMr M1210P User Manual

MPPT Solar Charge Controller
M1210P
User Manual
Reminder: The controllers can be installed indoor only.
Main Feature
· 10A MPPT solar charge controller with portable design.
· 3-stage charging optimizes battery performance.
· Suitable for battery types such as GEL, AGM and LiFePO .
· LCD shows Battery Voltage and Charge Current, etc .
· Indication of LED inducts Battery Soc, Charging Sta and Battery
type.
· User-friendly key press operation, more simple and easier.
· Easy to be mounted.
· Overcharge, Over-temperature, Reverse Polarity Protection.
Warning and Caution
· Designed for 12V batteries, please don't connect to higher voltage
batteries.
· The PV Voc cannot exceed 35V.
· Please use the device within rated power and voltage range.
· Avoid placing solar panels in partially sunny or shaded
environments.
· Keep controller away from water.
· Keep controller in an environmental temperature from
- 20ºC~+55ºC. Avoid direct sunlight exposure.
· Please keep the device in a ventilated and heat dissipating
environment.
Product Dimension
96.4mm
4
GEL
Wire Dimension
1) Accessories
2) Controller
27mm
61.6mm
AGM LiFePO LiFePO
4
L=130mm+10mm
-
L=120mm+10mm
-
