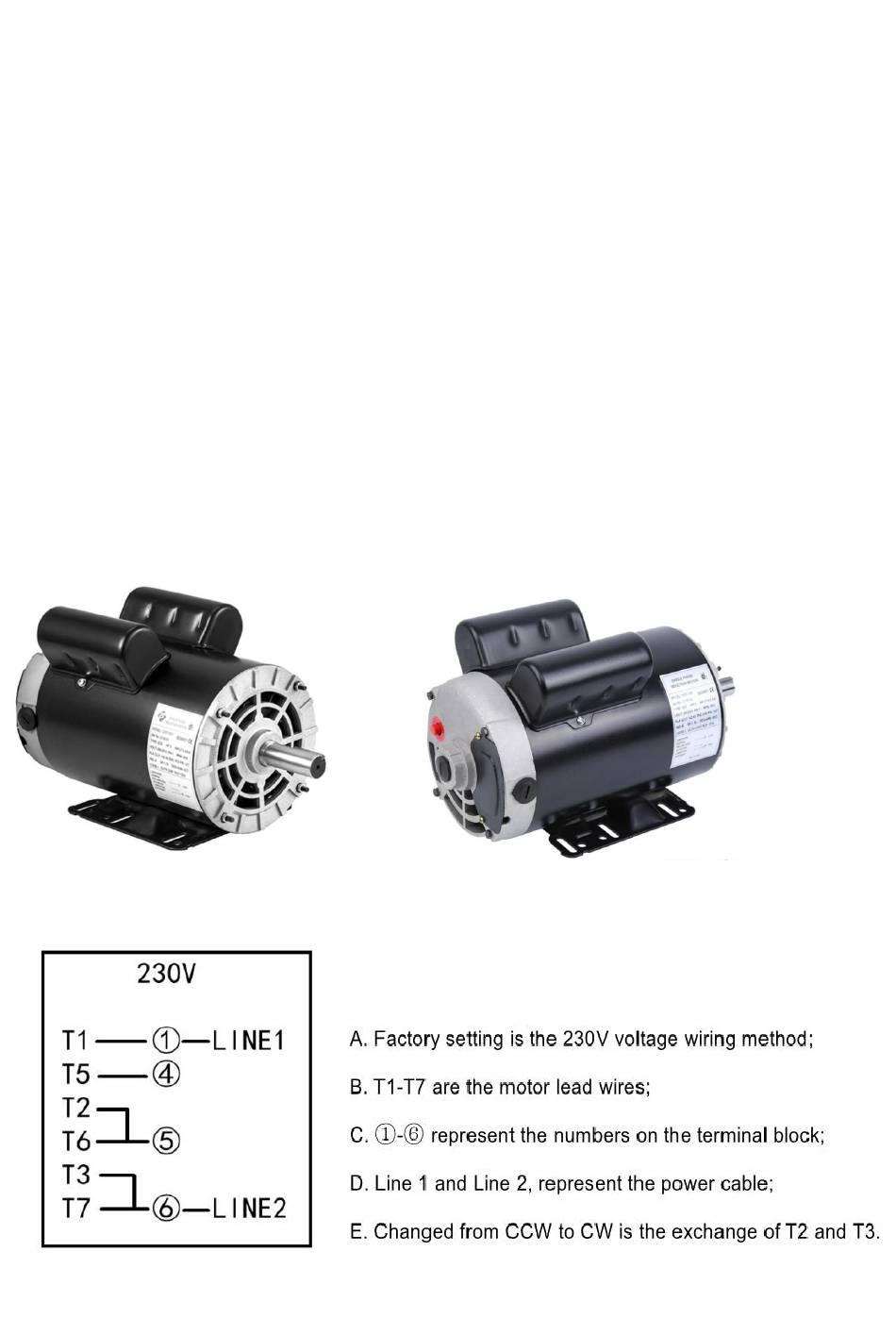

Air Compressor Duty Motor
Model No.: CM05256 /CML360556
Horsepower: 5HP SPL
Frame Size: 56
Amperage：16.0-15.0A
Shaft Length: 1.88"
Shaft Diameter: 5/8" Keyed shaft
1, Technical Info:
Frequency: 60 HZ
Voltage: 208-230V
Rotation: CCW/CW
2, Connection method:
Phase: One/ Single Phase
Rated Speed: 3450 RPM
Overload Protection with Manual Reset
Advertisement
Related Manuals for VEVOR CM05256
Summary of Contents for VEVOR CM05256
- Page 1 Air Compressor Duty Motor Model No.: CM05256 /CML360556 Horsepower: 5HP SPL Frame Size: 56 Amperage：16.0-15.0A Shaft Length: 1.88” Shaft Diameter: 5/8” Keyed shaft 1, Technical Info: Frequency: 60 HZ Phase: One/ Single Phase Voltage: 208-230V Rated Speed: 3450 RPM Rotation: CCW/CW...
- Page 2 Wiring method as shown：...
