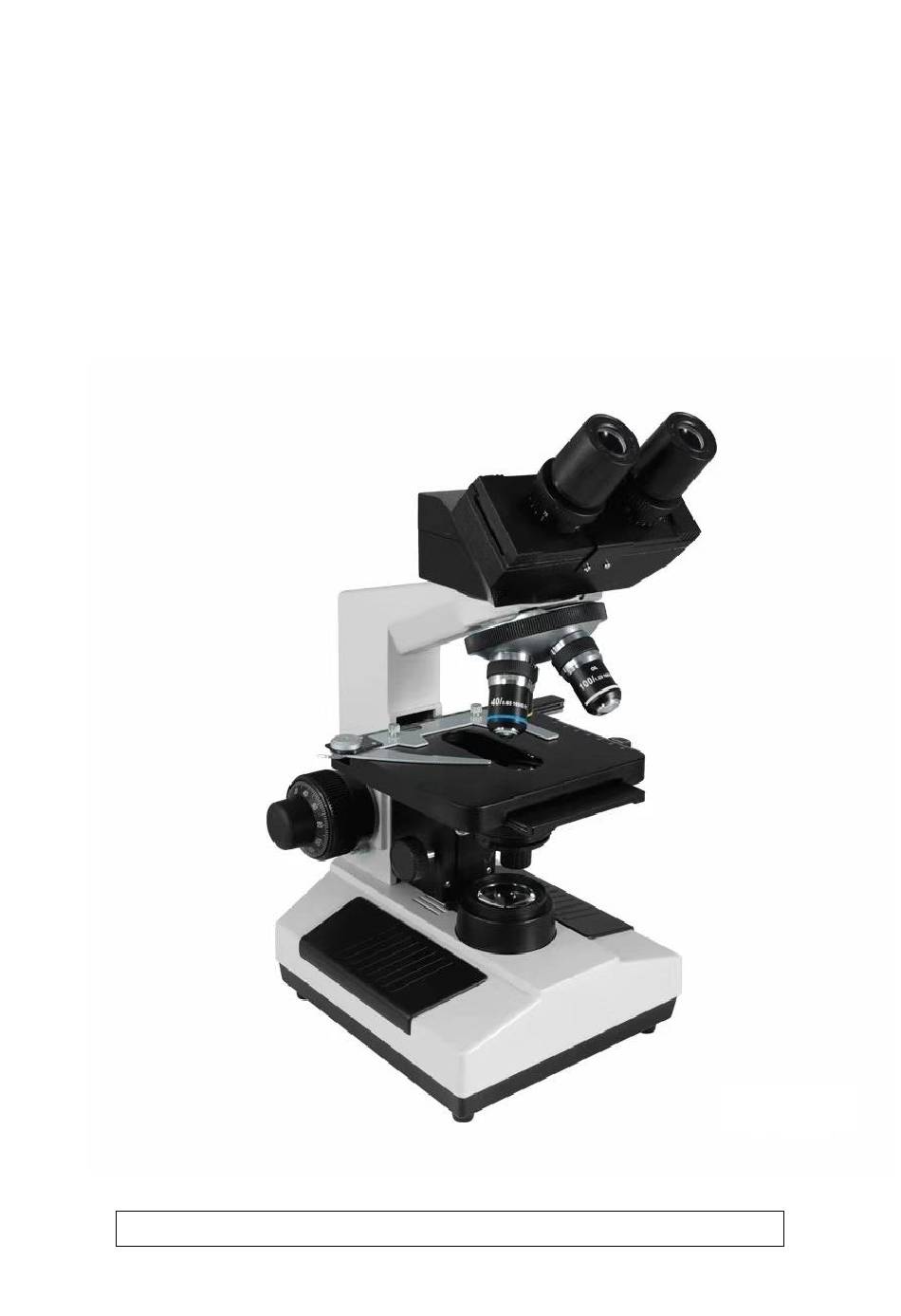

- Page 1 Biological Microscope Model Number XSZ-107BN User Manual READ THIS MANUAL BEFORE USING THE MICROSCOPE...
- Page 2 I. Application XSZ-107BN of bio-microscope has modern frame and can fit 45°inclined monocular, binocular, trinocular head on it. Double layer mechanical stage with adjustable long handle and coaxial coarse/fine focus knob make the operation easily. It is also provided with high quality achromatic objectives, wide field eyepieces and LED lamp adjustable brightness, which guarantee the best image.
- Page 3 6. Stage size: 140mm X 132mm, moving range: 75 X 45mm 7. ABBE condenser, N.A. =1.25 with iris diaphragm 8. Coarse/fine focal range: 20mm 9. Illumination: 3W LED with adjustable brightness 10. Net weight: 6 kg 11. Measurement (including viewing head): 262mm(L) X 204mm(W) X 389mm(H) III.
- Page 4 3. Observe the specimen from lower magnification objective firstly and move the specimen to the center of view field, then rotate higher magnification objective. You may use the fine focusing knob to obtain the clear image. When 100X (S, Oil) objective is used , you should fill up with cedar wood oil (without bubble ) between the front of objective and the specimen surface.
- Page 5 Trinocular XSZ-107BN Biological Microscope...
- Page 6 1-STAND 2- RISE AND FALL SUPPORT 3- ARM 4-BINOCULAR HEAD 5-EYEPIECE 6-NOSEPIECE 7-OBJECTIVE 8-STAGE 9-CONDENSER VI. Standard Outfit of XSZ-107BN Biological Microscope ● Objective 4X, 10X, 40(S), 100X(S, Oil) ● WF10X Eyepiece optional WF16X ● Sliding Binocular Head Viewing Head...
