TM

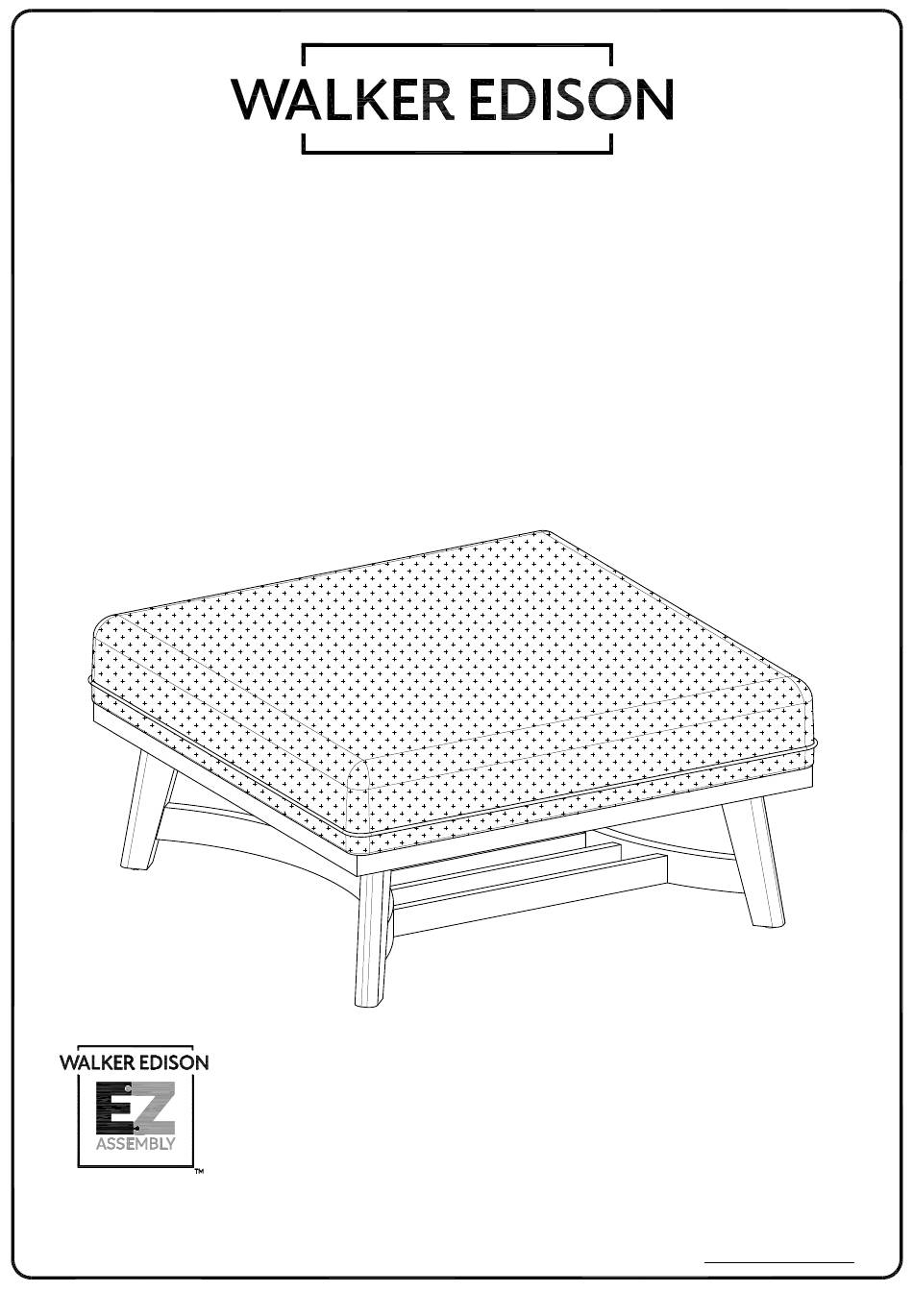

Nash Large Ottoman
SKU# WENAS30OS4
For Residential Use Only
Please visit our website for the most current instructions, assembly tips, report damage, or request parts. www.walkeredison.com
Revised 28/03/2025 (F)
Copyright
2025 by Walker Edison Furniture Co., LLC. All rights reserved.
©
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Walker Edison Nash WENAS30OS4
Summary of Contents for Walker Edison Nash WENAS30OS4
- Page 1 Nash Large Ottoman SKU# WENAS30OS4 For Residential Use Only Please visit our website for the most current instructions, assembly tips, report damage, or request parts. www.walkeredison.com Revised 28/03/2025 (F) Copyright 2025 by Walker Edison Furniture Co., LLC. All rights reserved. ©...
- Page 2 You can cause cracking or damage to the material and easily strip the hardware. If you choose to use a power tool, your product will no longer be covered under Walker Edison’s warranty. Nash Scan to get assembly tips and help!
-
Page 3: Parts List
Parts List Part Description Quantity Number Seat cushion Legs Shelf Frame... -
Page 4: Hardware List
Hardware List Part Size Name Quantity 5/16"x30mm Bolt 5/16"x13x1mm Spring washer 5/16"x22x1.5mm Washer Hex key 4x50mm Screw The hardware quantities listed above are required for proper assembly. Extra hardware pieces may be included. - Page 5 Let’s get started! Grab the Legs (2) and attach them to the Shelf Frame (3).
- Page 6 Flip the Seat Cushion (1) over and place the frame you just made on the bottom. Line up the Legs (2) with the holes and secure everything using a Washer (C), Spring Washer (B), and Bolt (A). To keep your product looking its best and scratch-free, try assembling it on a soft surface like carpet or a blanket.
- Page 7 Now, secure the Shelf Frame (3) to the Legs (2) with Screws (E). Carefully flip the table over on a flat surface and make sure the legs 100% are touching the ground evenly before tightening everything to 100%...
- Page 8 Give your masterpiece a little wiggle—if it needs leveling, adjust those levelers until it’s perfectly stable.
- Page 9 Congratulations on your new piece of furniture! We would love to hear about it and see it. Please leave us a review or post a picture with #mywalkeredisonhome...
- Page 10 Our customer service team, located in Utah, is here for product information, help assembling a product, or for any other customer support issue Call us at 801-433-3008 Email us at service@walkeredison.com Visit our Customer Service website at walkeredison.com/pages/customer-service We are available to help Monday -Thursday 8am-5pm, Friday 8am-3pm MST For details on Assembly Videos, Assembly Instructions, Replacement Parts, and Customer service,...
