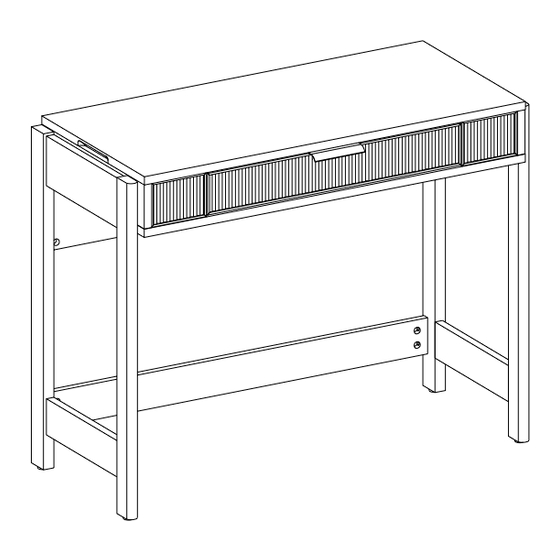

Holmes Lift-top Desk
SKU# WEHOL42OS2
For Residential Use Only
Please visit our website for the most current instructions, assembly tips, report damage,or request parts. www.walkeredison.com
Revised 28/03/2024 (D)
©
1
1
Copyright
2024 by Walker Edison Furniture Co., LLC. All rights reserved.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Holmes WEHOL42OS2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Walker Edison Holmes WEHOL42OS2

Summary of Contents for Walker Edison Holmes WEHOL42OS2

  • Page 1 Holmes Lift-top Desk SKU# WEHOL42OS2 For Residential Use Only Please visit our website for the most current instructions, assembly tips, report damage,or request parts. www.walkeredison.com Revised 28/03/2024 (D) © Copyright 2024 by Walker Edison Furniture Co., LLC. All rights reserved.
  • Page 2 You can cause cracking or damage to the material and easily strip the hardware. If you choose to use a power tool, your product will no longer be covered under Walker Edison’s warranty. Glue is provided to secure wood dowels in place When inserting dowels, locate the appropriate hole, place a small amount of glue in the hole, and then insert the dowel.

  • Page 3: Parts List

    Parts List Part Number Description Quantity Desk Box Left Panel Right Panel Back Panel Support Panel Top Panel Back Drawer Panel Left Drawer Panel Right Drawer Panel Bottom Drawer Panel Drawer Support Panel Front Drawer Panel...

  • Page 4: Hardware List

    Hardware List Part Size Name Quantity 8x30mm Wooden dowel 6x35mm Cam bolt 15x11mm Cam lock 30mm Sticker Drawer PullH 3x12mm Screw 6x30mm Bolt Hex Key M4x57mm Glue tube 6x15mm Bolt 15x9mm Cam lock 4x38mm Screw The hardware quantities listed above are required for proper assembly. Extra hardware pieces may be included.
  • Page 5 Step 1 Let’s do this! Insert Wooden Dowels (A) into the Back Panel (4) and the Support Panel (5). The provided glue is to secure wood dowels in place. When first inserting dowels, locate the appropriate hole for the dowel, place a small amount of glue in the hole and insert the dowel.
  • Page 6 Step 2 Using a screwdriver, attach Cam Bolts (B) to the Left Panel (2), Right Panel (3), and Desk Box (1).
  • Page 7 Step 3 Attach the Back Panel (4) to the Desk Box (1). Secure with Cam Locks (C) and tighten with a screwdriver. Cam Locks Cam Locks help securely join two pieces together. Follow these easy steps. 1: Insert Cam Bolt 2: Fit the proper holes on the 3: On the back of the Cam Lock into bolt holes on...
  • Page 8 Step 4 Attach the Left Panel (2) to the Desk Box (1) using 30mm Bolts (G). Bolts go through the inside of the Desk Box, into the Left Panel. Then, attach the Left Panel (2) to the Back Panel (4) and Support Panel (5) using Cam Locks (C).
  • Page 9 Step 5 Repeat the same steps to attach the Right Panel (2) to the Desk Box (1) using 30mm Bolts (G). Bolts go through the inside of the Desk Box, into the Left Panel. Then attach the Right Panel (2) to the Back Panel (4) and Support Panel (5) using Cam Locks (C).
  • Page 10 Step 6 With the help of a friend, place the desk upright. Pull the lifting mechanism up to the top position and secure in place. Locking The Desktop In Place Once in place, secure the locking mechanism by hooking it onto the pin.
  • Page 11 Step 7 Attach the Top Panel (6) to the lifting mechanism using six 15mm Bolts (K).
  • Page 12 Step 8 Unsecure the locking mechanism and return the desktop panel back down to the lower position. Unlocking The Desktop Position Unsecure the locking mechanism by removing the attachment from the pin. Gently guide desktop down.
  • Page 13 Step 9 Attach the Left Drawer Panel (8) and the Right Drawer Panel (9) to the Back Drawer Panel (7) using 38mm Screws (M). Note: Ensure that the grooves are lined up across the three pieces.
  • Page 14 Step 10 Slide the Bottom Drawer Panel (10) into place using the grooves. Then, attach the Drawer Support Panel (11) using 38mm Screws (M).
  • Page 15 Step 11 Screw Cam Bolts (B) into the Front Drawer Panel (12). Attach the Drawer Pull (E) using 12mm Screws (F).
  • Page 16 Step 12 Attach the Front Drawer Panel (12) to the rest of the drawer box. Secure using Cam Locks (J).
  • Page 17 Step 13 Cover visible Cam Locks with Stickers (D).
  • Page 18 Step 14 Insert the drawer box into place by connecting the drawer glides. Reinserting your Cabinet Glides together Line up the Drawer Member so it is inside the guides of the Cabinet Member. Once the connection is made, push the drawer into place entirely.
  • Page 19 Step 15 Use the adjustable feet to create a level writing surface.
  • Page 20 Step 16 Ta-da! You made it to the end. Enjoy your new desk. Congratulations on your new piece of furniture! We would love to hear about it and see it. Please leave us a review or post a picture with #mywalkeredisonhome...
  • Page 21 Assembling furniture can be tricky sometimes. Our customer service team, located in Utah, is here for product information, help assembling a product, or for any other customer support issue Call us at 801-433-3008 Email us at service@walkeredison.com Visit our Customer Service website at walkeredison.com/pages/customer-service We are available to help Monday -Thursday 8am-5pm, Friday 8am-3pm MST...
