Walker Edison Chantelle WECHA41OS3 Manual

Walker Edison Chantelle WECHA41OS3 Manual

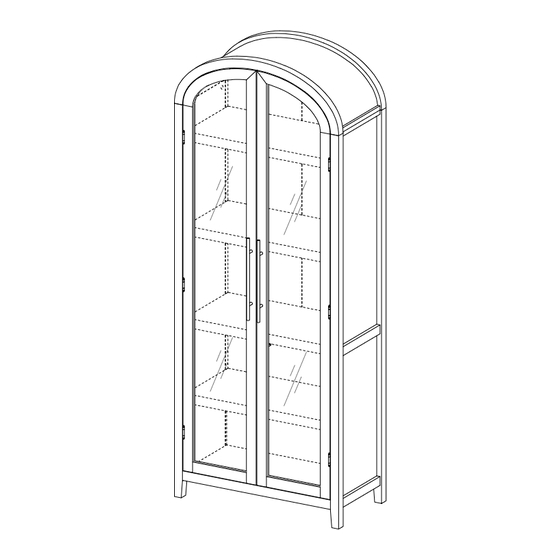

Glass bookcase

Advertisement

Quick Links

TM

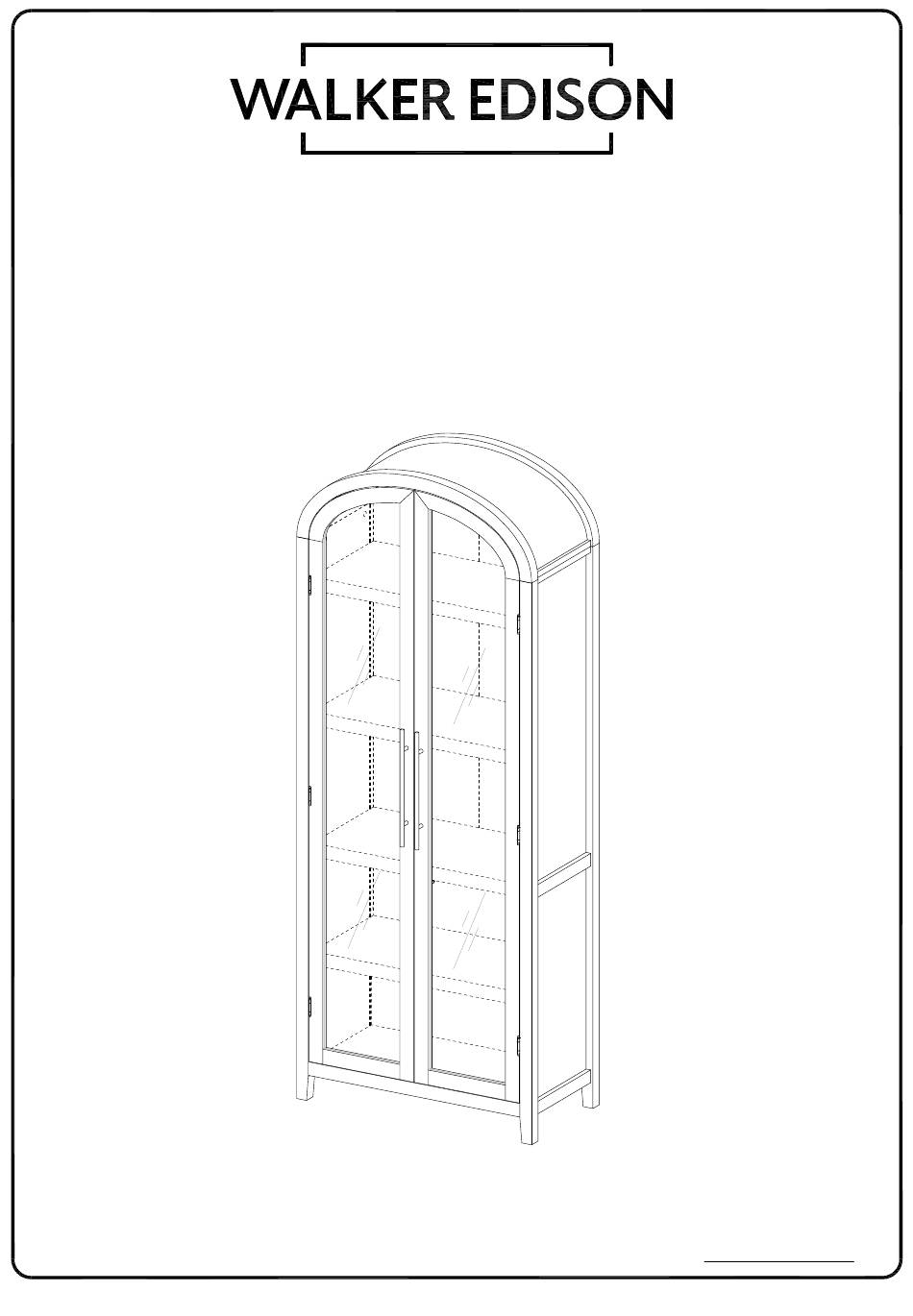

Chantelle
Glass Bookcase
SKU# WECHA41OS3
For Residential Use Only
Please visit our website for the most current instructions, assembly tips, report damage, or request parts. www.walkeredison.com
Copyright
2024 by Walker Edison Furniture Co., LLC. All rights reserved.
Revised 27/03/2024 (F)
©
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Chantelle WECHA41OS3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Walker Edison Chantelle WECHA41OS3

  • Page 1 Glass Bookcase SKU# WECHA41OS3 For Residential Use Only Please visit our website for the most current instructions, assembly tips, report damage, or request parts. www.walkeredison.com Copyright 2024 by Walker Edison Furniture Co., LLC. All rights reserved. Revised 27/03/2024 (F) ©...
  • Page 2 You can cause cracking or damage to the material and easily strip the hardware. If you choose to use a power tool, your product will no longer be covered under Walker Edison’s warranty. Glue is provided to secure wood dowels in place When inserting dowels, locate the appropriate hole, place a small amount of glue in the hole, and then insert the dowel.
  • Page 3 Parts List Part Number Description Quantity Left Panel Right Panel Top Arched Panel Bottom Panel Fixed Upper Shelf Fixed Lower Shelf Upper Back Panel Middle Back Panel Bottom Back Panel Left Glass Door Right Glass Door Fixed Middle Shelf...
  • Page 4: Hardware List

    Hardware List Quantity Part Size Name 8x30mm Wooden dowel 6x35mm Cam Bolt 15x11mm Cam Lock Plastic Wedge 3x17mm Screw 3.5x15mm Screw Handle 5/32"x20mm Bolt Hinge 3.5x15mm Screw Door stopper Metal piece 3x12mm Screw...
  • Page 5 Hardware List Quantity Part Size Name 4x25mm Screw 4x15mm Screw Wall Anchor Plastic strap 30mm Sticker Glue tube 3x15mm Screw 6x50mm Bolt M4x57mm Hex Key The hardware quantities listed above are required for proper assembly. Extra hardware pieces may be included.
  • Page 6 Step 1 Let’s get started, shall we? Start by screwing Cam Bolts (B) into the Left Panel (1) and Right Panel (2). Place Wooden Dowels (A) into the dowel holes at the top of both panels.
  • Page 7 Step 2 Using a screwdriver, screw Cam Bolts (B) into the Top Arched Panel (3). Then, attach the Door Stoppers (L) using 15mm Screws (V).
  • Page 8 Step 3 Now you will insert the Wooden Dowels (A) into the dowel holes on the two Fixed Upper Shelves x2 (5) and the Fixed Middle Shelf (12). Next, attach the Door Stoppers (L) using 15mm Screws (V).
  • Page 9 Step 4 Next, place the Wooden Dowels (A) into the Fixed Lower Shelf (6) and Bottom Panel (4).
  • Page 10 Step 5 Insert Wooden Dowels (A) into the Middle Back Panel (8) and Bottom Back Panel (9).
  • Page 11 Step 6 Place both Middle Back Panel (8) and Bottom Back Panel (9) together.
  • Page 12 Step 7 Insert Shelf Panels (5), (6), (12) & (4) into the Right Panel (2). Ensure that Shelves are in the correct order and that the Front Shelf Trim is facing forward. Secure Shelves to Panel using Cam Locks (C) and secure with a screwdriver. Cam Locks Cam Locks help securely join two pieces together.
  • Page 13 Step 8 Secure Middle Back Panel (8) and Bottom Back Panel (9) to the Right Panel (2) using Cam Locks (C). Secure with screwdriver.
  • Page 14 Step 9 Place the Left Panel (2) onto the Shelves. Secure with Cam Locks (C) and a screwdriver.
  • Page 15 Step 10 Next, you will secure the bottom panel. Screw the 50mm Bolts (W) into the Bottom Panel (4).
  • Page 16 Step 11 Unfold the Upper Back Panel (7). Using the grooves, slide the panel into place. Secure the Back Panel by screwing 14mm Screws (F) into the pre-drilled holes.
  • Page 17 Step 12 Next, locate the pre-drilled holes in the Back Panel (7). With a screwdriver, guide the 15mm Screws (F) through the pre-drilled holes.
  • Page 18 Step 13 With the help of a friend, flip the bookcase upright. Place the Top Arched Panel (3) on top and secure with Cam Locks (C).
  • Page 19 Step 14 Next, locate your pre-drilled holes in the Upper Back Panel (7). Using a screwdriver, guide the 14mm Screws (E) through the pre-drilled holes.
  • Page 20 Step 15 Attach Stickers (T) over the Cam Locks (C) throughout the bookcase.
  • Page 21 Step 16 Attach Hinges (J) to the Glass Doors (10) and (11) using 15mm Screws (K). On the other side of the doors, secure the Metal Pieces (4) with 12mm Screws (4)
  • Page 22 Step 17 Attach the Hinges ( J) on the Left Glass Door (10) to the Left Panel (1) using 14mm Screws (K). Then, attach the Door Handle (G) using two Bolts (H).
  • Page 23 Step 18 Now repeat the same steps for the right side. Attach the Hinges (J) on the Right Glass Door (11) to the Right Panel (2) using 14mm Screws (K). Then, attach the Door Handle (G) using two Bolts (H).
  • Page 24 Step 19 Great work, you’re in the home stretch. Let’s secure your bookcase to the wall. Attach the Plastic Strip (S) to your bookcase using the 12mm Screw (Q).
  • Page 25 Step 20 Insert the Wall Anchor (R) into the wall. Next, secure the Plastic Strip (S) to the wall using the 25mm Screw (P). Great job! Your work here is done! Warning Serious or fatal injuries can occur from furniture tipping over. To prevent the furniture from tipping over we recommend that it is permanently fixed to the wall.
  • Page 26: Final Assembly

    Final Assembly Congratulations on your new piece of furniture! We would love to hear about it and see it. Please leave us a review or post a picture with #mywalkeredisonhome...
  • Page 27 Assembling furniture can be tricky sometimes. Our customer service team, located in Utah, is here for product information, help assembling a product, or for any other customer support issue Call us at 801-433-3008 Email us at service@walkeredison.com Visit our Customer Service website at walkeredison.com/pages/customer-service We are available to help Monday -Thursday 8am-5pm, Friday 8am-3pm MST...
