Walker Edison Chantelle WECHA11704 Manual

Walker Edison Chantelle WECHA11704 Manual

70” sideboard
Hide thumbs

Advertisement

Quick Links

Download this manual
TM

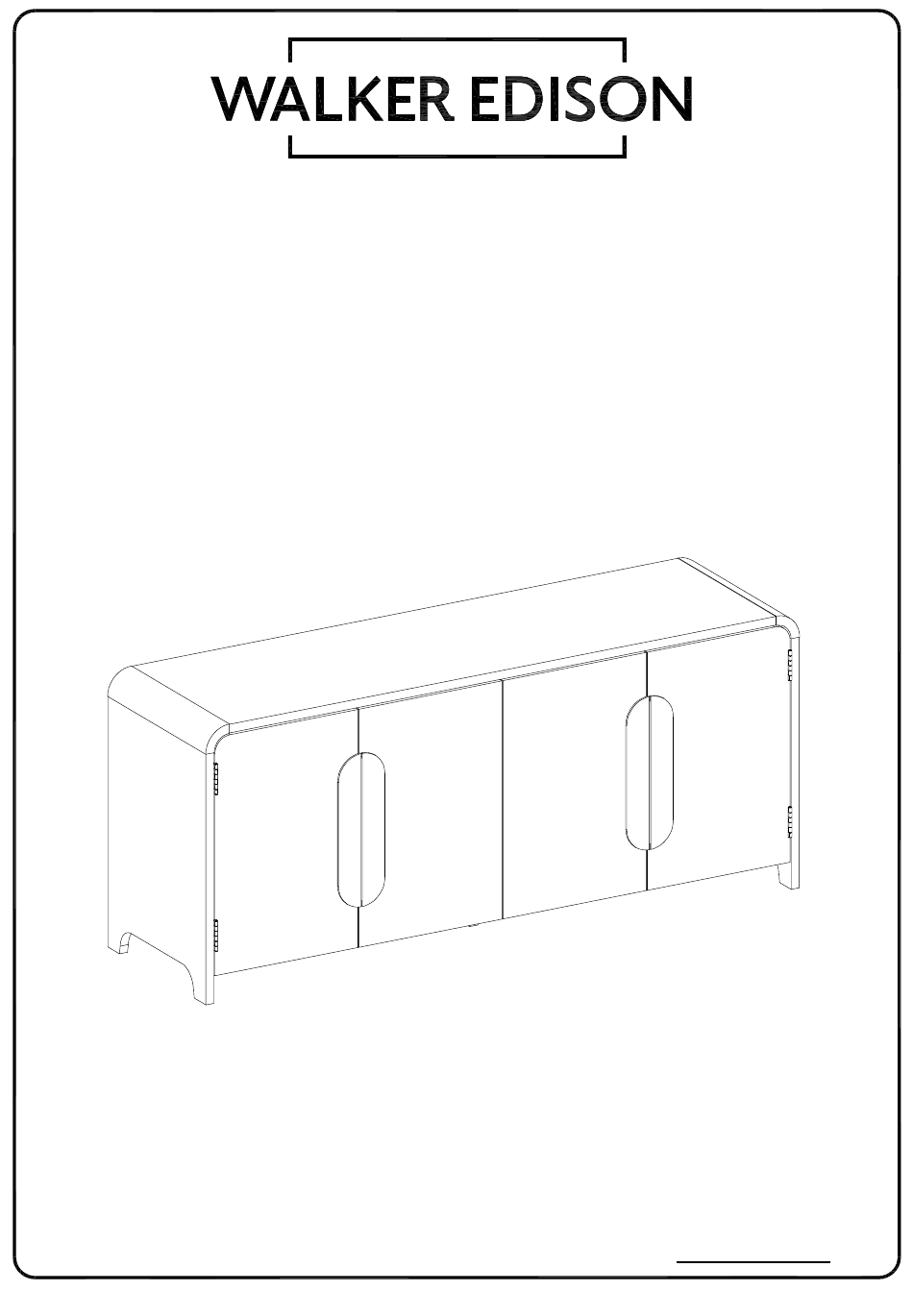

Chantelle 70" Sideboard
SKU# WECHA11704
For Residential Use Only
Please visit our website for the most current instructions, assembly tips, report damage,or request parts. www.walkeredison.com
©
Copyright
2024 by Walker Edison Furniture Co., LLC. All rights reserved. Revised 14/11/2024 (I)
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Chantelle WECHA11704 and is the answer not in the manual?

Questions and answers

Related Manuals for Walker Edison Chantelle WECHA11704

Summary of Contents for Walker Edison Chantelle WECHA11704

  • Page 1 Chantelle 70” Sideboard SKU# WECHA11704 For Residential Use Only Please visit our website for the most current instructions, assembly tips, report damage,or request parts. www.walkeredison.com © Copyright 2024 by Walker Edison Furniture Co., LLC. All rights reserved. Revised 14/11/2024 (I)
  • Page 2 You can cause cracking or damage to the material and easily strip the hardware. If you choose to use a power tool, your product will no longer be covered under Walker Edison’s warranty. Glue is provided to secure wood dowels in place When inserting dowels, locate the appropriate hole, place a small amount of glue in the hole, and then insert the dowel.

  • Page 3: Parts List

    Parts List Part Number Description Quantity Top Panel Bottom Panel Corner Panel Left Panel Right Panel Center Panel Left Adjustable shelf Right Adjustable shelf Center Foot Left Door Right Door Left Center Door Right Center Door Door Pulls Left Back Panel Right Back Panel...

  • Page 4: Hardware List

    Hardware List Part Size Name Quantity 8x30mm Wooden dowel 6x35mm Cam bolt 15x11mm Cam lock 30mm Sticker 6x50mm Bolt Hex Key M4x57mm Hinge 35mm 4x14mm Screw Hinge 3.5x12mm Screw Door stopper 3x14mm Screw 5x8mm Metal Piece...
  • Page 5 Hardware List Part Size Name Quantity Screw 3x12mm Shelf support pin 8x5x16mm Plastic wedge 3x17mm Screw M4x20mm Bolt 4x12mm Screw 4x25mm Screw Plastic strap Wall Anchor Glue tube The hardware quantities listed above are required for proper assembly. Extra hardware pieces may be included.
  • Page 6 Step 1 Attach the Door Stoppers (L) to the Top panel (1) using 14mm Screws (M) to secure. Then, insert Cam Bolts (B) and Wooden Dowels (A). The provided glue is to secure wood dowels in place. When first inserting dowels, locate the appropriate hole for the dowel, place a small amount of glue in the hole and insert the dowel.
  • Page 7 Step 2 Insert Cam Bolts (B) into both Corner Panels (3) and secure with a screwdriver.
  • Page 8 Step 3 Attach Cam Bolts (B) to the Left Panel (4) and the Right Panel (5), then insert Wooden Dowels (A).
  • Page 9 Step 4 Insert Wooden Dowels (A) into the Bottom Panel (2) and the Center Panel (6).
  • Page 10 Step 5 Attach the Center Foot (9) to the Bottom Panel (2) using the 50mm Bolts (E). Tighten with the Hex Key (F).
  • Page 11 Step 6 Now, attach the Center Panel (6) to the Bottom Panel (2), securing with 50mm Bolts (E).
  • Page 12 Step 7 Attach the Left Panel (4) to the Bottom Panel (2) and secure with Cam Locks (C). Cam Locks Cam Locks help securely join two pieces together. Follow these easy steps. 1: Insert Cam Bolt 2: Fit the proper holes on the 3: On the back of the Cam Lock into bolt holes on edge of the other part over the...
  • Page 13 Step 8 Next, attach the Right Panel (5) to the Bottom Panel (2) and secure with Cam Locks (C).
  • Page 14 Step 9 Unfold the Left Back Panel (15) and the Right Back Panel (16). Insert into the appropriate side on the back of the sideboard, using the grooves.
  • Page 15 Step 10 Attach the Corner Panels (3) to the Top Panel and secure with Cam Locks (C).
  • Page 16 Step 11 Now, attach the Top Panel to the base of the sideboard and secure With Cam Locks (C).
  • Page 17 Step 12 Cover any visible Cam Locks (C) with Stickers (D).
  • Page 18 Step 13 Evenly pace Plastic Wedges (R) between the Back Panel and the frame. Secure with 17mm Screws (S).
  • Page 19 Step 14 Insert Shelf Support Pins (Q) into the pre-drilled holes at your desired height, then slide the Adjustable Shelves (7) & (8) into place. 7 OR 8...
  • Page 20 Step 15 Attach Hinges (G) to the Left Center Door (12) and Right Center Door (13) using 14mm Screws (H). Then, attach the Metal Pieces (N) to the corner of each door using 12mm Screws (P). Lastly, attach the Door Pulls (14) using 20mm Bolts (T).
  • Page 21 Step 16 Now, attach the Right Center Door (13) hinges to the unit using 14mm Screws (H). Adjusting The Cabinet Doors Adjust horizontal width Adjust depth position Adjust vertical height with this screw. by loosening the hinge arm via the screws in the mounting screw.
  • Page 22 Step 17 Attach the Left Center Door (12) using 14mm Screws (H).
  • Page 23 Step 18 Attach Hinges (J) to the Left Door (10) and Right Door (11) using 12mm Screws(K). Then, attach the Metal Pieces (N) to the corners using 12mm Screws (P). Lastly, attach the Door Pulls (14) using 20mm Bolts (T).
  • Page 24 Step 19 Attach the Hinges (J) to the Left Door (10) & Right Door (11) using 12mm Screws (K).
  • Page 25 Step 20 Connect the Hinge (J) on the Left Door (10) to the Left Panel (4) using 12mm Screws (K).
  • Page 26 Step 21 Now, attach Hinge (J) on the Right Door (11) to the Right Panel (5) using 12mm Screws (K).
  • Page 27 Step 22 Rotate the adjustable feet to ensure a level surface.
  • Page 28 Step 23 You’re so close now. Let’s secure your sideboard to the wall. Using the 12mm Screws (U), attach the Plastic Straps (X) to the back of the sideboard.
  • Page 29 Step 24 Now, pre-drill a hole into the wall and insert the Nut (Y). Secure the Plastic Straps (X) to the wall using 25mm Screws (W). Warning Serious or fatal injuries can occur from furniture tipping over. To prevent the furniture from tipping over we recommend that it is permanently fixed to the wall.

  • Page 30: Final Assembly

    Final Assembly Your work here is done. Great job! Congratulations on your new piece of furniture! We would love to hear about it and see it. Please leave us a review or post a picture with #mywalkeredisonhome...
  • Page 31 Assembling furniture can be tricky sometimes. Our customer service team, located in Utah, is here for product information, help assembling a product, or for any other customer support issue Call us at 801-433-3008 Email us at service@walkeredison.com Visit our Customer Service website at walkeredison.com/pages/customer-service We are available to help Monday -Thursday 8am-5pm, Friday 8am-3pm MST...
