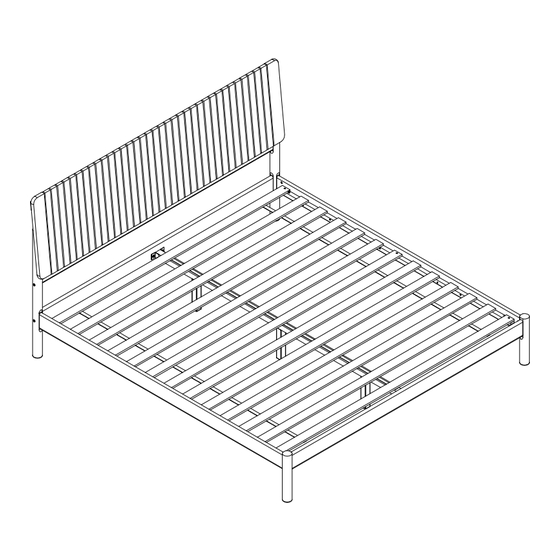

Slatted Mid Century Bed Frame King
SKU# WESLT03KB4
For Residential Use Only
Please visit our website for the most current instructions, assembly tips, report damage, or request parts. www.walkeredison.com
Copyright
2024 by Walker Edison Furniture Co., LLC. All rights reserved.
Revised 09/08/2024 (F)
©
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the WESLT03KB4 and is the answer not in the manual?

Questions and answers

Related Manuals for Walker Edison WESLT03KB4

Summary of Contents for Walker Edison WESLT03KB4

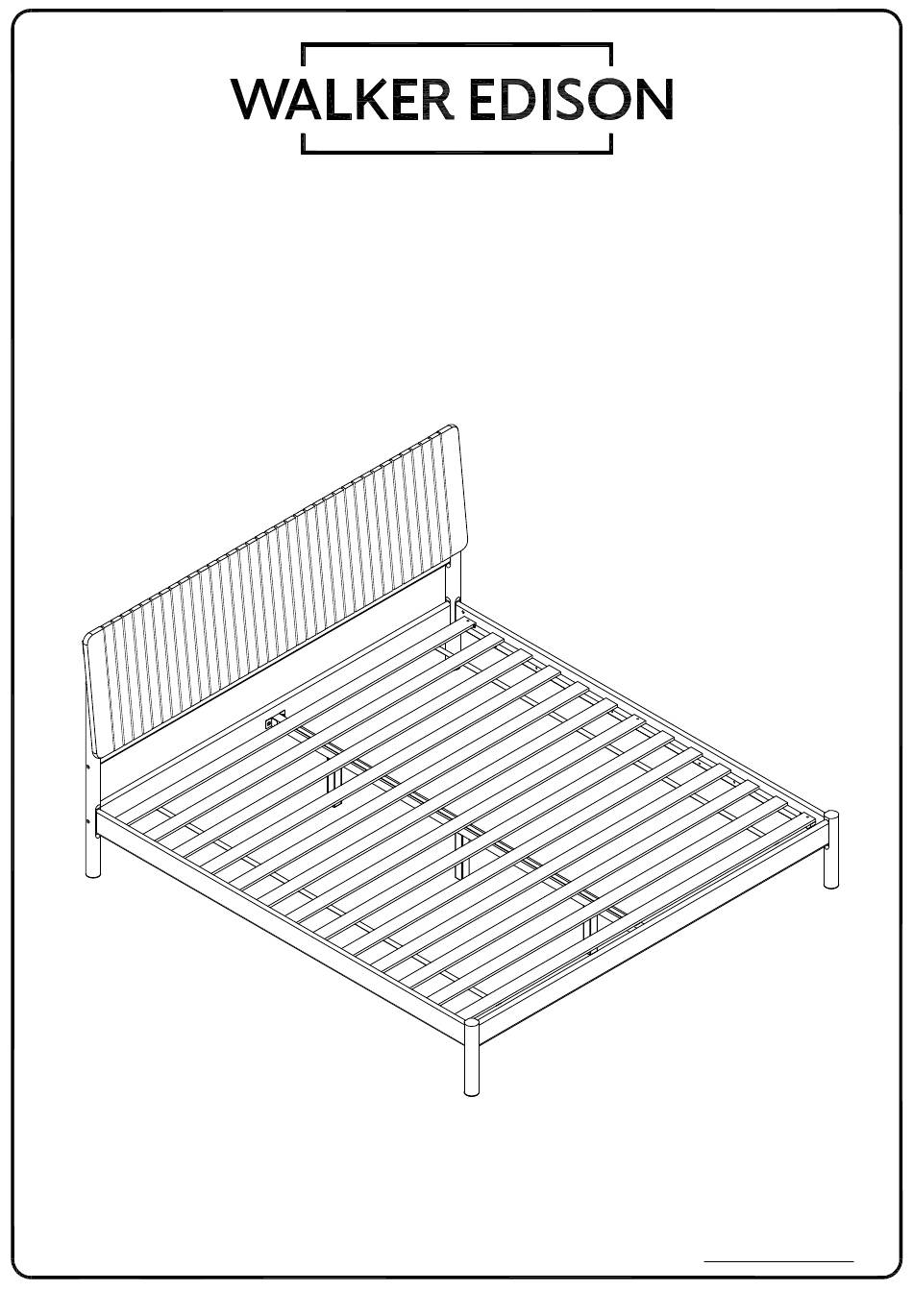

  • Page 1 Slatted Mid Century Bed Frame King SKU# WESLT03KB4 For Residential Use Only Please visit our website for the most current instructions, assembly tips, report damage, or request parts. www.walkeredison.com Copyright 2024 by Walker Edison Furniture Co., LLC. All rights reserved. Revised 09/08/2024 (F) ©...
  • Page 2 You can cause cracking or damage to the material and easily strip the hardware. If you choose to use a power tool, your product will no longer be covered under Walker Edison’s warranty. Cama Scan to get assembly tips and help!

  • Page 3: Parts List

    Parts List Part Number Description Quantity Headboard Bottom Headboard support rail 1 Left Headboard Post Right Headboard Post Right Side Rail Left Side Rail Bottom Rail Center Support Rail Middle Support Legs Bed Slats Middle Headboard Support Rail 1...

  • Page 4: Hardware List

    Hardware List Part Size Name Quantity 8x30mm Wooden dowel 5/16"x20mm Bolt 5/16"x38mm Bolt 5/16"x63mm Bolt 5/16"x100mm Bolt Hex Key 5/16"x16x1.2mm Washer 5/16"x15mm Barrel nut 105x40x32mm U bracket 3x15mm Screw 4x30mm Screw The hardware quantities listed above are required for proper assembly. Extra hardware pieces may be included.
  • Page 5 Step 1 Let’s get started! First, insert the Wooden dowels (A) into the backside of the Headboard (1). Wood Dowels Dowels are essential in furniture assembly for creating strong, precise connections. They ensure structural integrity, prevent shifting, and simplify alignment, resulting in sturdier, longer-lasting furniture.
  • Page 6 Step 2 Attach the Left Headboard Post (3) to the backside of the Headboard (1) using Bolt (C) in the top hole and Bolt (D) in the one below. Tighten with the Hex key (F). To keep your product looking its best and scratch-free, try assembling it on a soft surface like carpet or a blanket.
  • Page 7 Step 3 Insert the Wooden dowels (A) into both sides of the Bottom Headboard Support Rail (2) and Middle Headboard Support Rail (11).
  • Page 8 Step 4 Insert the Bottom Headboard Support Rail (2) and Middle Headboard Support Rail (11) into the Left Headboard Post (3) and then secure it with Bolts (E) threading into the Barrel Nuts (H).
  • Page 9 Step 5 Repeat that process on the other side of the Headboard (1), attaching the Right Headboard Post (4) to the Bottom Headboard Support Rail (2) and Middle Headboard Support Rail (11) with the Bolts (E) threading into the Barrel Nuts (H).
  • Page 10 Step 6 Finish securing the Right Headboard Post (4) using Bolt (C) in the top hole and Bolt (D) in the one below.
  • Page 11 Step 7 Turn the Headboard (1) over and screw in one of U brackets (J) to the Bottom Headboard Support Rail (2) using the Washers (G) and Bolts (B).
  • Page 12 Step 8 Repeat that process on the Bottom Rail (7) to attach the other U bracket (J).
  • Page 13 Step 9 Grab both Side Rails (5 & 6) and insert the Wooden dowels (A) into the middle hole on one side.
  • Page 14 Step 10 Find some yoga blocks, books, or anything you have near you to prop up the Side Rails (5 & 6) while attaching them to the Headboard Posts (3 & 4). Insert the Bolts (E) through the backside of the Headboard Posts (3 & 4) and thread them into the Barrel nuts (H) until tight.
  • Page 15 Step 11 Attach the Bottom rail (7) to the Side rails (5 & 6) by lifting the hooks into the slots and then locking them down into place.
  • Page 16 Step 12 We are getting close! Twist off the plastic caps on the Middle Support Legs (9) and then screw them into the Center Support Rail (8).
  • Page 17 Step 13 Place the Center Support Rail (8) into the U brackets (J) and secure it through the sides with the screws (K).
  • Page 18 Step 14 Now’s the time to make any adjustments to the levelers on the bottoms of the Middle Support Legs (9) before we lay the slats down.
  • Page 19 Step 15 Add the remaining Wooden dowels (A) into the ends inside slat supports of the Side Rails (5 & 6). (This will help when aligning the slats!)
  • Page 20 Step 16 Last step! Lay down the Bed Slats (10) and screw them into place with the six screws (L).

  • Page 21: Final Assembly

    Final Assembly Congratulations on your new piece of furniture! We would love to hear about it and see it. Please leave us a review or post a picture with #mywalkeredisonhome...
