TM

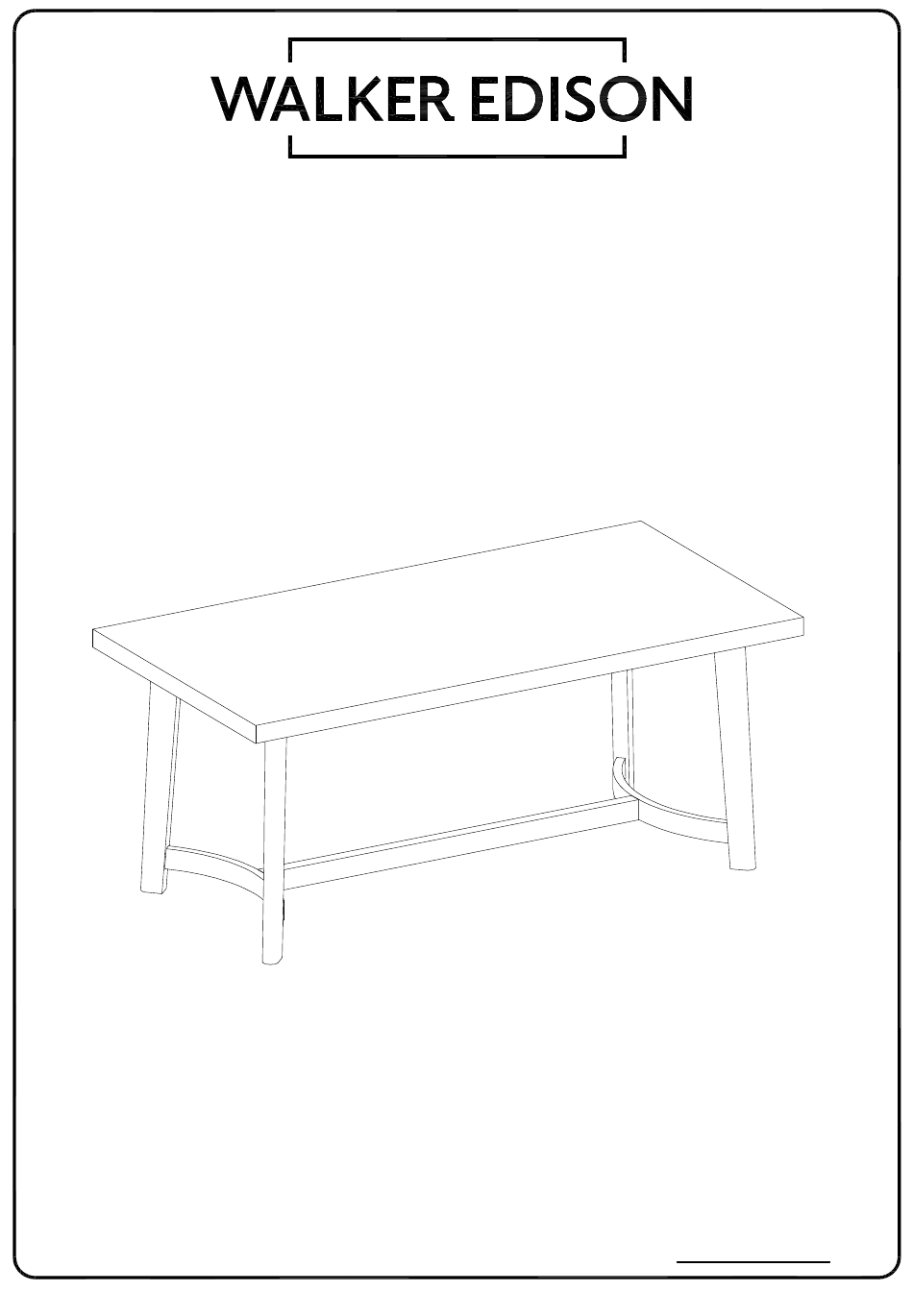

Nash Modern Farmhouse Rustic
Rectangle Dining Table
SKU# WENAS12703
For Residential Use Only
Please visit our website for the most current instructions, assembly tips, report damage,or request parts. www.walkeredison.com
©
Copyright
2024 by Walker Edison Furniture Co., LLC. All rights reserved. Revised 07/01/2025 (I)
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Walker Edison Nash Modern Farmhouse Rustic WENAS1270
Summary of Contents for Walker Edison Nash Modern Farmhouse Rustic WENAS1270
- Page 1 Rectangle Dining Table SKU# WENAS12703 For Residential Use Only Please visit our website for the most current instructions, assembly tips, report damage,or request parts. www.walkeredison.com © Copyright 2024 by Walker Edison Furniture Co., LLC. All rights reserved. Revised 07/01/2025 (I)
- Page 2 You can cause cracking or damage to the material and easily strip the hardware. If you choose to use a power tool, your product will no longer be covered under Walker Edison’s warranty. Nash Scan to get assembly tips and help!
-
Page 3: Parts List
Parts List Part Number Description Quantity Tabletop Legs Curved Trestle Piece Trestle Stretcher... -
Page 4: Hardware List
Hardware List Part Size Name Quantity 10x40mm Wooden dowel 4x45mm Screw 5/16"x80mm Bolt 5/16"x28x14.5mm Half - moon washer 5/16"x12mm Wrench 5/16"x70mm Bolt 5/16"x12mm Lock washer 5/16"x22mm Washer Hex key The hardware quantities listed above are required for proper assembly. Extra hardware pieces may be included. - Page 5 Step 1 Let’s get started! Insert wooden dowels (A) into the Trestle Stretcher (4).
- Page 6 Step 2 Hand tighten the bolts (C) into the Curved Trestle Pieces (3).
- Page 7 Step 3 Connect the Curved Trestle Pieces (3) to the Trestle Stretcher (4) using the dowels and bolts. Secure everything with the Half-moon Washers (D) and Nuts (E). Now, grab the wrench (F) and tighten them up! Do not tighten bolts / screws completely until all bolts / screws are lined up and inserted into holes.
- Page 8 Step 4 Attach the Legs (2) to the Curved Trestle Pieces (3).
- Page 9 Step 5 Do the same thing for the other two Legs (2).
- Page 10 Step 6 Flip the Tabletop (1) face down, line up the Legs (2) in the four corners, and secure them with the Bolt (G), Lock Washer (H), and Washer (J). Everything’s coming together now! To keep your product looking its best and scratch-free, try assembling it on a soft surface like carpet or a blanket.
- Page 11 Step 7 Attach the Legs (2) to the Curved Trestle Pieces (3) using screws (B). Carefully flip the table over on a flat surface and make sure the legs 100% are touching the ground evenly before tightening everything to 100%...
- Page 12 Step 8 Stand your table right side up and admire your handiwork. If it wobbles a bit, adjust the levelers at the bottom of the legs to make it steady and perfect.
-
Page 13: Final Assembly
Final Assembly Congratulations on your new piece of furniture! We would love to hear about it and see it. Please leave us a review or post a picture with #mywalkeredisonhome... - Page 14 Assembling furniture can be tricky sometimes. Our customer service team, located in Utah, is here for product information, help assembling a product, or for any other customer support issue Call us at 801-433-3008 Email us at service@walkeredison.com Visit our Customer Service website at walkeredison.com/pages/customer-service We are available to help Monday -Thursday 8am-5pm, Friday 8am-3pm MST...
