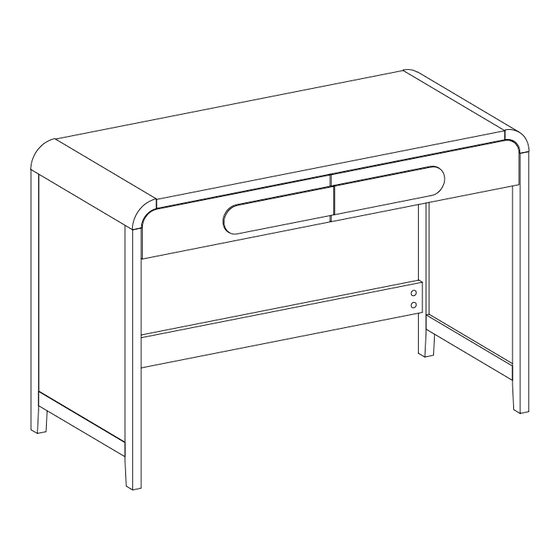

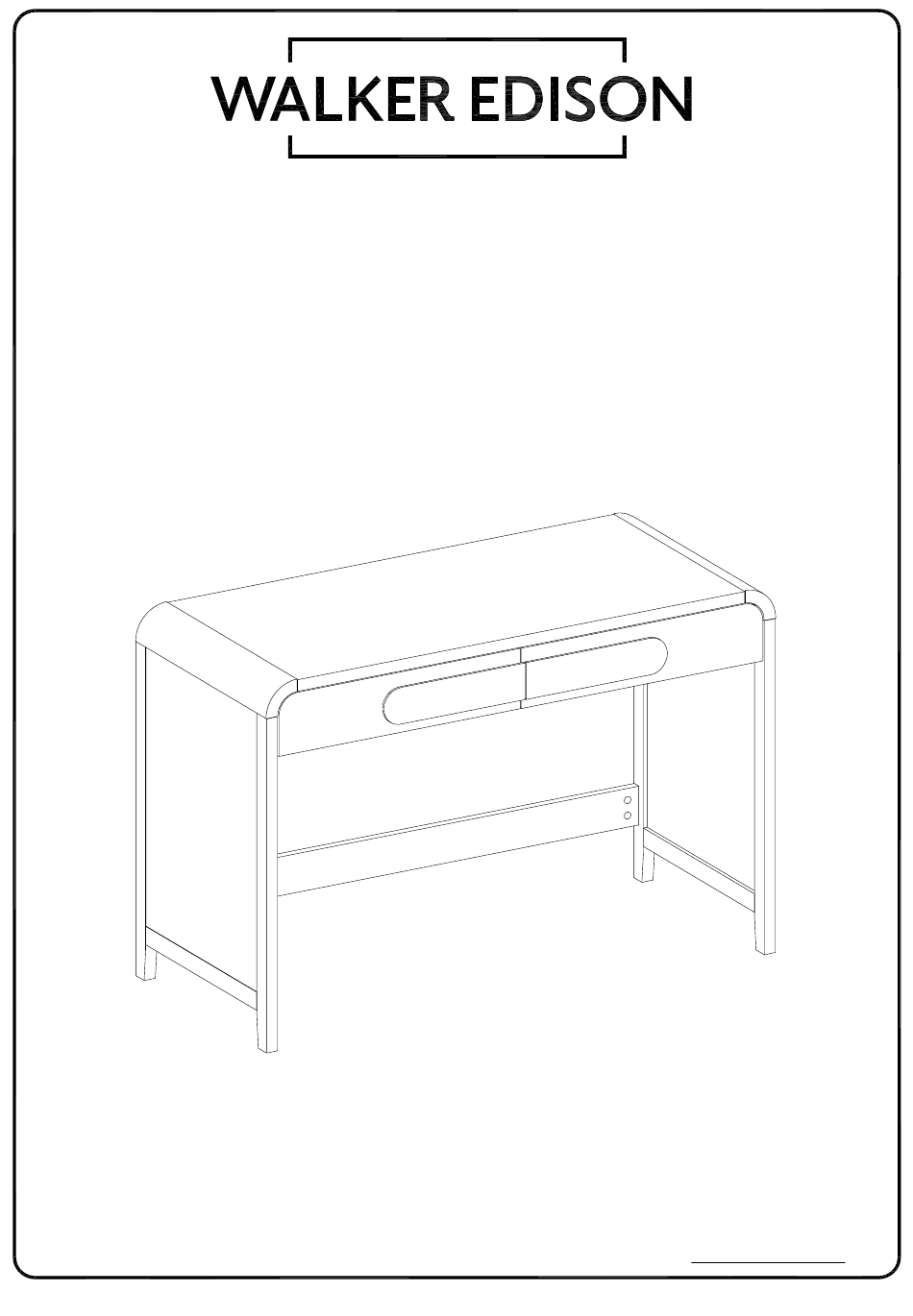

- Page 1 Chantelle Writing Desk SKU# WECHA42OS2 For Residential Use Only Please visit our website for the most current instructions, assembly tips, report damage,or request parts. www.walkeredison.com Copyright 2024 by Walker Edison Furniture Co., LLC. All rights reserved. Revised 29/03/2024 (I) ©...
- Page 2 You can cause cracking or damage to the material and easily strip the hardware. If you choose to use a power tool, your product will no longer be covered under Walker Edison’s warranty. Glue is provided to secure wood dowels in place When inserting dowels, locate the appropriate hole, place a small amount of glue in the hole, and then insert the dowel.
-
Page 3: Parts List
Parts List Description Quantity Part Number Desktop Panel Left Corner Panel Left Side Panel Right Corner Panel Right Side Panel Back Panel Support Panel Drawer Divider Drawer Support Panel Left Drawer Panel Right Drawer Panel Back Drawer Panel Bottom Drawer Panel Drawer Support Left Front Drawer Panel Right Front Drawer Panel... -
Page 4: Hardware List
Hardware List Part Size Name Quantity 8x30mm Wooden dowel 6x35mm Cam bolt Cam lock 15x11mm 15x9mm Cam lock 30mm Sticker 3x12mm Screw 6x50mm Screw Hex Key Handle Bolt 4x22mm 4x38mm Screw Drawer Glide 2 sets * Note: This piece comes preassembled for shipping purposes and must be disassembled to complete the desk assembly. - Page 5 Step 1 Here we go. Start with your Desktop Panel (1). Attach Cam Bolts (B) and insert Wooden Dowels (A).
- Page 6 Step 2 Insert Cam Bolts (B) into the Back Panel (6). Then, place Wooden Dowels (A) into the dowel holes in the Back Panel (6), Drawer Support Panel (9), and the Drawer Divider (8).
- Page 7 Step 3 Grab your Left Side Panel (3) and your Right Side Panel (5). Attach Cam Bolts (B) and insert Wooden Dowels (A).
- Page 8 Step 4 Screw Cam Bolts (B) into both the Left Corner Panel (2) and the Right Corner Panel (4)
- Page 9 Step 5 You guessed it, more Cam Bolts! Screw the Cam Bolts (B) into the Left Front Drawer Panel (15) and Right Front Drawer Panel (16).
- Page 10 Step 6 Take the Drawer Glides (L) and detach the drawer members from the cabinet members. You can do so by pushing up on the plastic lever that’s pictured here. Cabinet member Drawer member Cabinet member Drawer member...
- Page 11 Step 7 Attach one Drawer Glide (L) cabinet member to the Left Side Panel (3) and one to the Right Side panel (5) using 12mm Screws (F).
- Page 12 Step 8 Next, you will attach a Drawer Glide (L) cabinet member on each side of the Drawer Divider (8). Ensure that you are matching to the correct sides according to the diagram.
- Page 13 Step 9 Attach the Drawer Divider (8) to the Back Panel (6) using Cam Locks (C). Use a screwdriver to secure. Cam Locks Cam Locks help securely join two pieces together. Follow these easy steps. 1: Insert Cam Bolt 2: Fit the proper holes on the 3: On the back of the Cam Lock into bolt holes on will be a "C"...
- Page 14 Step 10 Now, you’ll attach the Desktop Panel (1) to the Back Panel (6) and the Drawer Divider (8). Using Cam Locks (C), secure with a screwdriver.
- Page 15 Step 11 Secure the Drawer Support Panel (9) to the bottom of the Drawer Divider (8) using 50mm Screws (G).
- Page 16 Step 12 Attach the Left Corner Panel (2) to the Left Side Panel (3). Secure with Cam Locks (C). Following the same steps, attach the Right Corner Panel (4) to the Right Side Panel (5). Secure with Cam Locks (C).
- Page 17 Step 13 Attach the Left Side Panel (3) and Left Corner Panel (2) to the body of the Desk. It will attach to the Desktop Panel (1), Drawer Support Panel (9), Back Panel (6), and Support Panel (7). Secure with Cam Locks (C).
- Page 18 Step 14 Repeat the same process with the Right Side Panel (5) and Right Corner Panel (4). Secure with Cam Locks (C).
- Page 19 Step 15 Attach the two Drawer Pulls (17) to the Drawer Fronts (15) and (16). Ensure that they are facing the correct direction and then secure with 22m Bolt (J).
- Page 20 Step 16 Now, take the drawer members you previously detached from the Drawer Glides (L). Attach to Drawer Sides (11) x2 and (10) x2. Ensure that they are facing the correct direction according to the diagram.
- Page 21 Step 17 Let’s construct the drawers. Attach the Left Drawer Panel (10) and the Right Drawer Panel (11) to the Back Drawer Panel (12) using 38mm Screws (K). Insert the Bottom Drawer Panel (13) using the guides.
- Page 22 Step 18 Secure Drawer Support (14) into the Back Drawer Panel (12) and secure with 38mm Screws (K). Then attach Front Drawer Panels (15) and (16) to the Drawer Support (14) using Cam Locks (D).
- Page 23 Step 19 Flip the drawer over and secure Front Drawer Panels (15) and (16) to both Side Panels (10) and (11) using Cam Locks (D).
- Page 24 Step 20 With the help of a friend, place the dresser upright. Place Stickers (E) over any visible cam locks.
- Page 25 Step 21 Insert drawers into place by lining up the cabinet member and drawer member pieces of your Drawer Glides (L). And there you have it! Good work, enjoy your new desk! Reinserting your Cabinet Glides together Line up the Drawer Member so it is inside the guides of the Cabinet Member.
-
Page 26: Final Assembly
Final Assembly Congratulations on your new piece of furniture! We would love to hear about it and see it. Please leave us a review or post a picture with #mywalkeredisonhome... - Page 27 Assembling furniture can be tricky sometimes. Our customer service team, located in Utah, is here for product information, help assembling a product, or for any other customer support issue Call us at 801-433-3008 Email us at service@walkeredison.com Visit our Customer Service website at walkeredison.com/pages/customer-service We are available to help Monday -Thursday 8am-5pm, Friday 8am-3pm MST...
