Walker Edison Flynn WEFLN21704 Manual

Walker Edison Flynn WEFLN21704 Manual

70” tv stand
Hide thumbs

Advertisement

Quick Links

Download this manual
TM

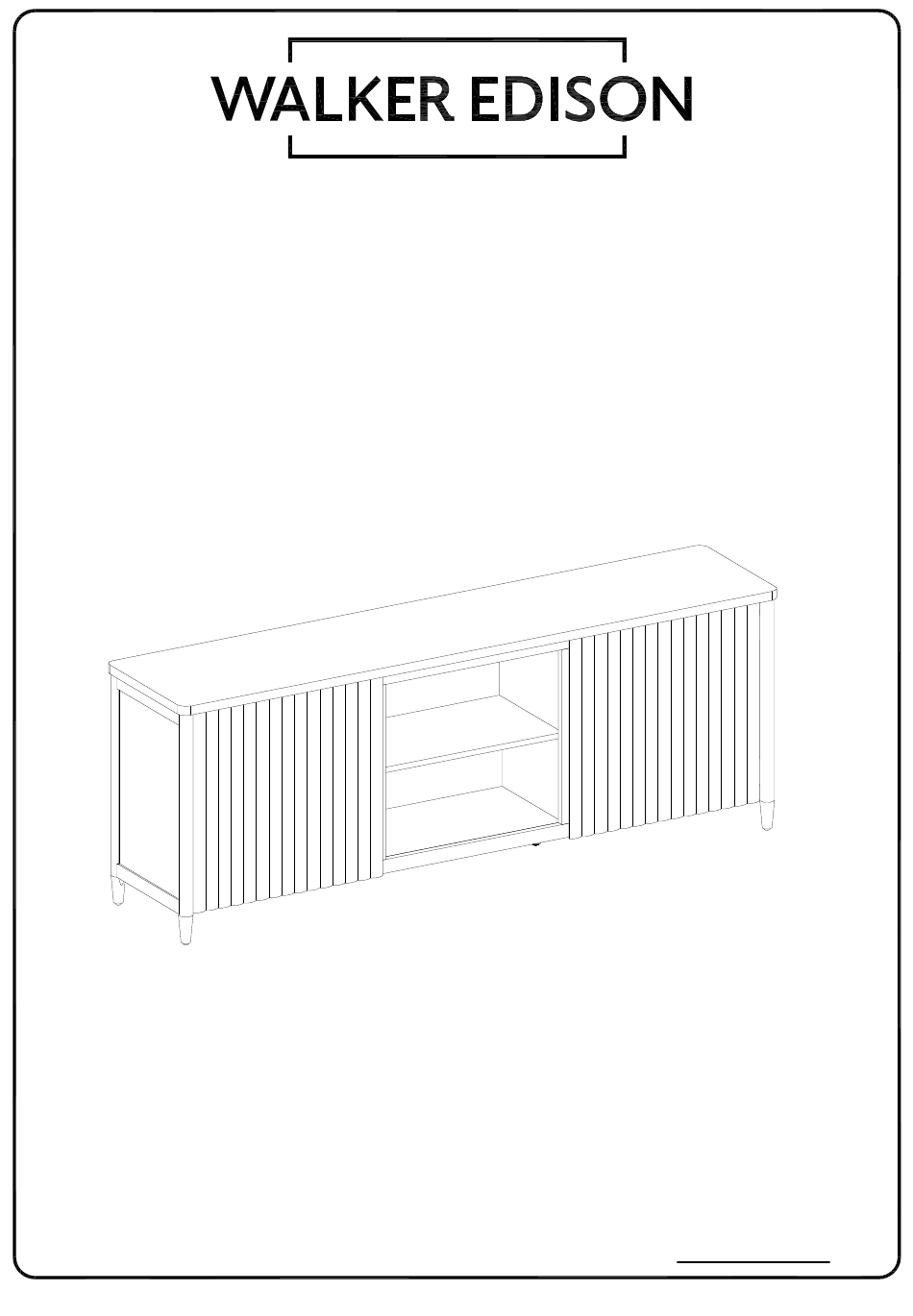

Flynn 70" TV stand
SKU# WEFLN21704
For Residential Use Only
Please visit our website for the most current instructions, assembly tips, report damage,or request parts. www.walkeredison.com
©
Copyright
2024 by Walker Edison Furniture Co., LLC. All rights reserved. Revised 19/12/2024 (I)
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Flynn WEFLN21704 and is the answer not in the manual?

Questions and answers

Related Manuals for Walker Edison Flynn WEFLN21704

Summary of Contents for Walker Edison Flynn WEFLN21704

  • Page 1 Flynn 70” TV stand SKU# WEFLN21704 For Residential Use Only Please visit our website for the most current instructions, assembly tips, report damage,or request parts. www.walkeredison.com © Copyright 2024 by Walker Edison Furniture Co., LLC. All rights reserved. Revised 19/12/2024 (I)
  • Page 2 You can cause cracking or damage to the material and easily strip the hardware. If you choose to use a power tool, your product will no longer be covered under Walker Edison’s warranty. Glue is provided to secure wood dowels in place When inserting dowels, locate the appropriate hole, place a small amount of glue in the hole, and then insert the dowel.

  • Page 3: Parts List

    Parts List Part Number Description Quantity Top Panel Bottom Panel Left Side Panel Right Side Panel Left Middle Divider Panel Right Middle Divider Panel Front molding Left Adjustable shelf Right Adjustable shelf Fixed divider Front upper rail Front bottom rail Left / Right back panel Middle back panel Door panel...

  • Page 4: Hardware List

    Hardware List Part Size Name Quantity 8x30mm Wooden dowel 6x35mm Cam bolt 15x11mm Cam lock 30mm Sticker 6x50mm Bolt Hex Key M4mm Hinge 35mm 3.5x14mm Screw Shelf support pin 8x5x16mm Plastic wedge 3x17mm Screw...
  • Page 5 Hardware List Part Size Name Quantity 8x2mm Rubber pad Glue tube The hardware quantities listed above are required for proper assembly. Extra hardware pieces may be included.
  • Page 6 Step 1 Using a screwdriver, secure Cam Bolts (B) into the designated holes on Top Panel (1)
  • Page 7 Step 2 Using a screwdriver, secure Cam Bolts (B) into the designated holes on Left Side Panel (3) and Right Side Panel (4). Insert Wooden Dowels (A) into the indicated holes, apply a small amount of Glue (N), and wipe away any excess. The provided glue is to secure wood dowels in place.
  • Page 8 Step 3 Secure Cam Bolts (B) into Front Bottom Rail (12) using a screwdriver. Insert Wooden Dowels (A) into Bottom Panel (2) as shown.
  • Page 9 Step 4 Insert Wooden Dowels (A) into Center Divider Panel (10) as shown.
  • Page 10 Step 5 Continue on to insert Wooden Dowels (A) into Left Divider Panel (5) and Right Divider Panel (6). Followed by securing cam bolts (B) with a screw driver into Left (5) and Right (6) Divider Panels.
  • Page 11 Step 6 Place Wooden Dowels (A) on each end of the Front Moldings (7). Followed by securing Cam Bolt (B) into indicated holes on Front Moldings (7)
  • Page 12 Step 7 Align Left Divider Panel (5) and Right Divider Panel (6) with Cam Bolts on Front Molding (7) and secure with Cam Locks (C) Cam Locks Cam Locks help securely join two pieces together. Follow these easy steps. 1: Insert Cam Bolt 2: Fit the proper holes on the 3: On the back of the Cam Lock into bolt holes on...
  • Page 13 Step 8 Align Cam Bolts on Left Divider Panel (5) and Right Divider Panel (6) with holes in Fixed Divider Panel (10). Insert Cam Locks (C) into Fixed Divider Panel (10) and tighten with a screwdriver.
  • Page 14 Step 9 Slide Middle Back Panel (14) into the grooves of Divider Panels (5) and (6).
  • Page 15 Step 10 Align Cam Bolts on Front Bottom Rail (12) with Bottom Panel (2). Insert Cam Locks (C) and tighten them.
  • Page 16 Step 11 Attach Middle Feet (16) to Bottom Panel (2) by aligning them with the designated holes and twisting to secure.
  • Page 17 Step 12 Align Divider Panels (5) and (6) with the designated holes on Bottom Panel (2). Insert Bolts (E) and tighten using Hex Key (F).
  • Page 18 Step 13 Align the wooden dowels on Front Upper Rail (11) with the designated holes on Divider Panels (5) and (6).
  • Page 19 Step 14 Align Cam Bolts on Left Side Panel (3) with the designated holes on Front Upper Rail (11) and Bottom Panel (2). Secure using Cam Locks (C).
  • Page 20 Step 15 Align Cam Bolts on Right Side Panel (4) with the designated holes on Front Upper Rail (11) and Bottom Panel (2). Secure using Cam Locks (C).
  • Page 21 Step 16 Insert Left/Right Back Panels (13) into the grooves between the Divider Panels and Side Panels.
  • Page 22 Step 17 Align the Cam Bolts on the underside of Top Panel (1) with the corresponding holes on the assembled piece. Secure each bolt using Cam Locks (C) from underneath.
  • Page 23 Step 18 Secure Back Panels with Plastic Wedges (K), spacing them evenly, and fasten each with Screws (L).
  • Page 24 Step 19 Place Stickers (D) over exposed Cam Lock holes on interior of tv stand.
  • Page 25 Step 20 Decide the desired height for your shelves, then insert Shelf Support Pins (J) into the pre-drilled holes, ensuring they are level on both sides. Place Adjustable Shelves (8) and (9) on top of the pins. 8 OR 9...
  • Page 26 Step 21 Connect Hinges (G) to the two Door Panels (15) and tighten them with Screws (H). Stick Rubber Pads (M) into place.
  • Page 27 Step 22 Align Hinge (G) on Door Panel (15) to Side Panel (3) and tighten them with screws (H). Adjust as needed with a screw driver. Adjusting The Cabinet Doors Adjust horizontal width Adjust depth position Adjust vertical height with this screw. by loosening the hinge arm via the screws in the mounting screw.
  • Page 28 Step 23 Repeat hinge alignment to Right Side Panel (4) and adjust as needed.
  • Page 29 Step 24 Adjust the levelers as shown until the surface of your TV stand is completely flat and stable.

  • Page 30: Final Assembly

    Final Assembly Congratulations on your new piece of furniture! We would love to hear about it and see it. Please leave us a review or post a picture with #mywalkeredisonhome...
  • Page 31 Assembling furniture can be tricky sometimes. Our customer service team, located in Utah, is here for product information, help assembling a product, or for any other customer support issue Call us at 801-433-3008 Email us at service@walkeredison.com Visit our Customer Service website at walkeredison.com/pages/customer-service We are available to help Monday -Thursday 8am-5pm, Friday 8am-3pm MST...
