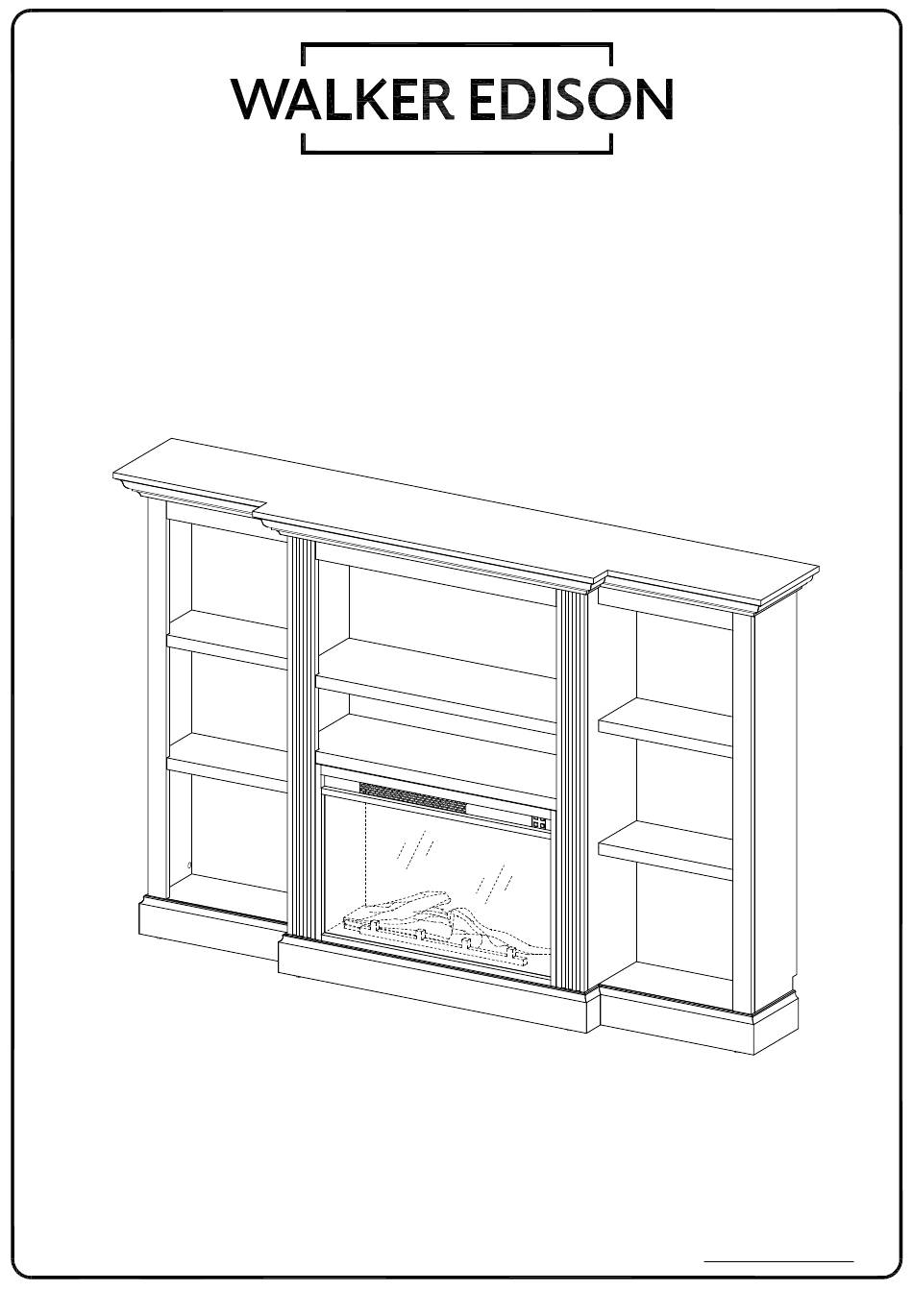

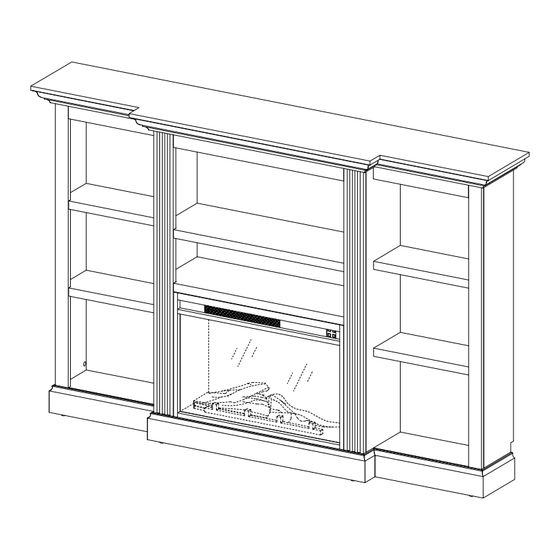

Cullen 70
Electric Fireplace Mantel
"
SKU# WECUL22704
For Residential Use Only
Please visit our website for the most current instructions, assembly tips, report damage, or request parts. www.walkeredison.com
Copyright
2024 by Walker Edison Furniture Co., LLC. All rights reserved.
Revised 23/08/2024 (F)
©
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Cullen WECUL22704 and is the answer not in the manual?

Questions and answers

Summary of Contents for Walker Edison Cullen WECUL22704

  • Page 1 Electric Fireplace Mantel " SKU# WECUL22704 For Residential Use Only Please visit our website for the most current instructions, assembly tips, report damage, or request parts. www.walkeredison.com Copyright 2024 by Walker Edison Furniture Co., LLC. All rights reserved. Revised 23/08/2024 (F) ©...
  • Page 2 You can cause cracking or damage to the material and easily strip the hardware. If you choose to use a power tool, your product will no longer be covered under Walker Edison’s warranty. Glue is provided to secure wood dowels in place When inserting dowels, locate the appropriate hole, place a small amount of glue in the hole, and then insert the dowel.
  • Page 3: Parts List

    Parts List Part Description Quantity Number Top frame Bottom frame Top Side Rail Top Middle Rail Left Panel Right Panel Left Divider Panel Right Divider Panel Side Rail Middle Rail Left Shelf Right Shelf Upper Middle Shelf Lower Middle Shelf Side Back Panel Middle Back Panel...
  • Page 4: Hardware List

    Hardware List Part Size Name Quantity 6x30mm Wooden Dowel 6x32mm Cam Bolt 15x11mm Cam Lock 15x9mm Cam Lock 30mm Sticker Plastic Wedge 3x17mm Screw Fireplace Insert with Remote Control 2622-L-V1 (without Batteries) L Shape Bracket 4x12mm Screw 4x25mm Screw...
  • Page 5 Hardware List Part Size Name Quantity Plastic strap Wall Anchor 4x50mm Screw Glue Tube The hardware quantities listed above are required for proper assembly. Extra hardware pieces may be included.
  • Page 6 Step 1 Let's get started! Insert Dowels (A) into the Right Shelf (12),Lower Middle Shelf (14), Upper Middle Shelf (13) and Left Shelf (11). 1: The provided glue is to secure wood dowels in place. When first inserting dowels, locate the appropriate hole for the dowel, place a small amount of glue in the hole and insert the dowel.
  • Page 7 Step 2 Insert Dowels (A) into Top Side Rail (3), Top Middle Rail (4), Middle Rail (10). Using a screwdriver, screw Cam Bolts (B) into Middle Rail (10) and Side Rail (9).
  • Page 8 Step 3 Using a screwdriver, screw Cam Bolts (B) into Top Frame (1) and Bottom Frame (2).
  • Page 9 Step 4 Insert Dowels (A) into Left Panel (5) and Right Panel (6). Using a screwdriver, screw Cam Bolts (B) into Left Panel (5) and Right Panel (6).
  • Page 10 Step 5 Insert Dowels (A) into Left Divider Panel (7) and Right Divider Panel (8). Using a screwdriver, screw Cam Bolts (B) into Left Divider Panel (7) and Right Divider Panel (8).
  • Page 11 Step 6 Next, attach the Side Rail (9) to Left Panel (5) and Right Panel (6) using Cam Locks (C). Cam Locks Cam Locks help securely join two pieces together. Follow these easy steps. 1: Insert Cam Bolt 2: Fit the proper holes on the 3: On the back of the Cam Lock into bolt holes on edge of the other part over the...
  • Page 12 Step 7 Attach the Middle Rail (10) to Left Divider Panel (7) and Right Divider Panel (8) using Cam Locks (C).
  • Page 13 Step 8 Attach the Upper Middle Shelf (13) and Lower Middle Shelf (14) to Left Divider Panel (7) using Cam Locks (D).
  • Page 14 Step 9 Attach the Upper Middle Shelf (13) and Lower Middle Shelf (14) to Right Divider Panel (8) using Cam Locks (D).
  • Page 15 Step 10 Now, using a screwdriver, screw Cam Bolts (B) into Left Divider Panel (7).
  • Page 16 Step 11 Attach the Left Shelves (11) to Left Divider Panel (7) using Cam Locks (D).
  • Page 17 Step 12 Attach the Left Shelves (11) to Left Panel (5) using Cam Locks (D).
  • Page 18 Step 13 Using a screwdriver, screw Cam Bolts (B) into Right Divider Panel (8).
  • Page 19 Step 14 Attach the Right Shelves (12) to Right Divider Panel (8) using Cam Locks (D).
  • Page 20 Step 15 Attach the Right Shelves (12) to Right Panel (6) using Cam Locks (D).
  • Page 21 Step 16 Next, attach the Bottom Frame (2) to the Left Panel (5), Left Divider Panel (7), Right Divider Panel (8), and Right Panel (6) using Cam Locks (C).
  • Page 22 Step 17 Grab a friend and flip the mantel upright, so the Bottom Panel (2) is on the floor. Then, using the grooves as a guide, slide the Side Back Panels (15) into place. Open Middle Back panel (16) and slide into place with the taped seam facing the back side of the mantel.
  • Page 23 Step 18 Attach the Top Frame (1) to the Left Panel (5), Left Divider Panel (7), Right Divider Panel (8), and Right Panel (6) using Cam Locks (C).
  • Page 24 Step 19 Using a screwdriver, attach the Top side Rails (3) and Top Middle Rail (4) to the Top Frame (1) using 50mm Screws (P).
  • Page 25 Step 20 Place Stickers (E) over visible Cam Locks.
  • Page 26 Step 21 Using a screwdriver secure Side Back Panels (15) and Middle Back Panel (16) with Plastic Wedge (F) and 17mm Screws (G).
  • Page 27 Step 22 Insert the Fireplace Insert (H) into place from the back side of the mantel.
  • Page 28 Step 23 Attach the Fireplace Insert (H) to the mantel by attaching the L Shaped Bracket ( J) to the Right Divider Panel (8) using 12mm Screws (K).
  • Page 29 Step 24 Attach the Fireplace Insert (H) to the mantel by attaching the L Shaped Bracket ( J) to the Left Divider Panel (7) using 12mm Screws (K).
  • Page 30 Step 25 For your safety, please ensure that your fireplace is securely plugged into the wall outlet, and that it is the only device connected to the outlet.
  • Page 31 Step 26 Let's secure your mantel to the wall. Attach the Plastic Strip (M) to each side of the mantel using Screw (K).
  • Page 32 Step 27 Insert Wall Anchor (N) into the wall. Next, secure your Plastic Strip (M) to the wall using the 25mm Screw (L). Way to go! You did it! Warning Serious or fatal injuries can occur from furniture tipping over. To prevent the furniture from tipping over we recommend that it is permanently fixed to the wall.
  • Page 33 Fireplace Controls Remote Control Fireplace Control Power Button: Use this button to turn your fireplace on or off. When you turn it back on, it will remember your last flame and heat settings, so you can pick up right where you left off! Flame On/Off + Brightness Control: Use this button to turn the flame on and adjust the brightness to one of four settings.
  • Page 34: Final Assembly

    Final Assembly Sit back and admire your hard work. Cozy up and enjoy your new fireplace mantel. Congratulations on your new piece of furniture! We would love to hear about it and see it. Please leave us a review or post a picture with #mywalkeredisonhome...
