Installation Guide
Telehealth Cart
Installation note: Several mounts and accessories are included with the Telehealth cart. Parts reference will
be shown for each step. Be aware of tilt stability when adding additional equipment and accessories to
column.

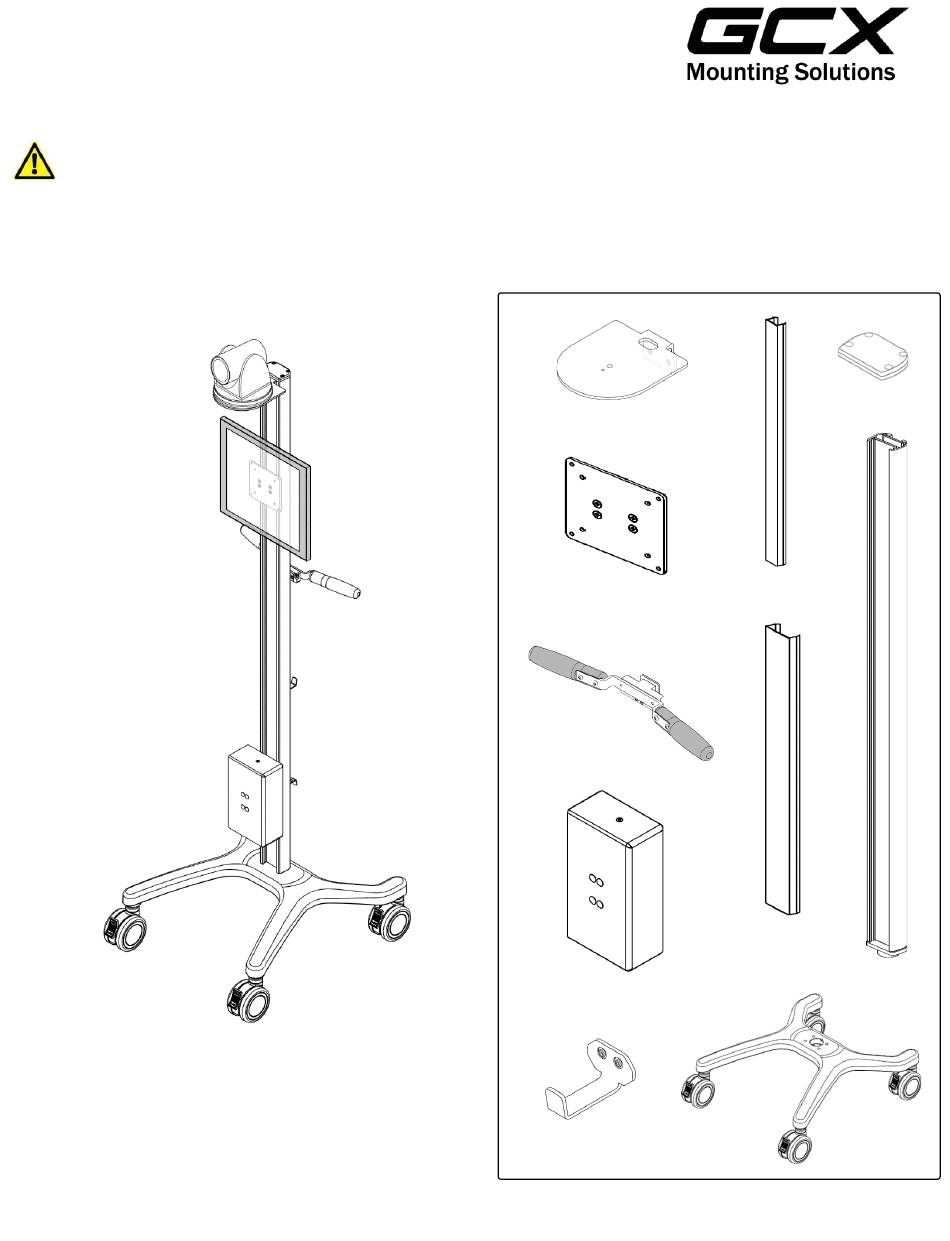

Parts Reference
Hardware not shown.
(1) Cover Plate
(1) Camera Mount
(4) Cable Slot
(1) Display Mount
Covers
(1) Handle
(4) Channel
Covers
(1) Column
(1) Power Strip Encloser
(2) Cable Hooks
(1) Base
DU-TEL-0001-60 Rev A 9/10/2024 GCX Corp. Page 1 of 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TEL-0001-60 and is the answer not in the manual?

Questions and answers

Summary of Contents for GCX TEL-0001-60

  • Page 1 3875 Cypress Drive Petaluma, CA 94954 800.228.2555 707.773.1100 Fax 707.773.1180 www.gcx.com Installation Guide Telehealth Cart Installation note: Several mounts and accessories are included with the Telehealth cart. Parts reference will be shown for each step. Be aware of tilt stability when adding additional equipment and accessories to column.
  • Page 2: Table Of Contents

    Some of the mounts have separate instructions and should be assembled accordingly. Telehealth Cart Page Power Strip Encloser Display Mount Camera Mount Cart Handle Adjustable Cable Hook Channel/Slot Cover Cover Plate DU-TEL-0001-60 Rev A 9/10/2024 GCX Corp. Page 2 of 8...
  • Page 3: Telehealth Cart

    1/2" wrench, secure base to the column with (1) 5/16” flat washer, (1) 5/16” split washer, and (1) 5/16 x 1”HHCS. Cover plate and channel cover will be installed after mounts and accessories are installed. Alignment Pin Alignment Notch (1) 5/16 Flat Washer (1) 5/16 Split Washer (1) 5/16 x 1” HHCS DU-TEL-0001-60 Rev A 9/10/2024 GCX Corp. Page 3 of 8...
  • Page 4: Power Strip Encloser

    Guide the side cover into the encloser while making sure the upper and lower mounting holes are aligned (C). Using a Phillips screwdriver, secure the side cover to encloser with (2) 10-32 x 1/4" FHMS (D). (1)10-32 x 1/4” FHMS Align Mounting Holes (1)10-32 x 1/4” FHMS DU-TEL-0001-60 Rev A 9/10/2024 GCX Corp. Page 4 of 8...
  • Page 5: Display Mount

    Phillips screwdriver to secure position (B). Attach Display to mount with appropriate screws (C). Mount Display Slide Mount into opening at top of channel (D) and position on top of the Adjustable Stop (E). DU-TEL-0001-60 Rev A 9/10/2024 GCX Corp. Page 5 of 8...
  • Page 6: Camera Mount

    Guide the Cart Handle into the rear accessory track and slide down to desired mounting location (A). Using a 1/8” hex wrench, tighten the (2) set screws to secure handle position (B). DU-TEL-0001-60 Rev A 9/10/2024 GCX Corp. Page 6 of 8...
  • Page 7: Adjustable Cable Hook

    (A). Covers can also be installed by gently squeezing the sides of the cover together and guiding it into the column track (B). DU-TEL-0001-60 Rev A 9/10/2024 GCX Corp. Page 7 of 8...
  • Page 8: Cover Plate

    Dry the arm thoroughly after cleaning. CAUTION: GCX makes no claims regarding the efficacy of the listed chemicals or processes as a means for controlling infection. Consult your hospital’s infection control officer or epidemiologist. To clean or sterilize mounted devices or accessory equipment, refer to the specific instructions delivered with those products.
