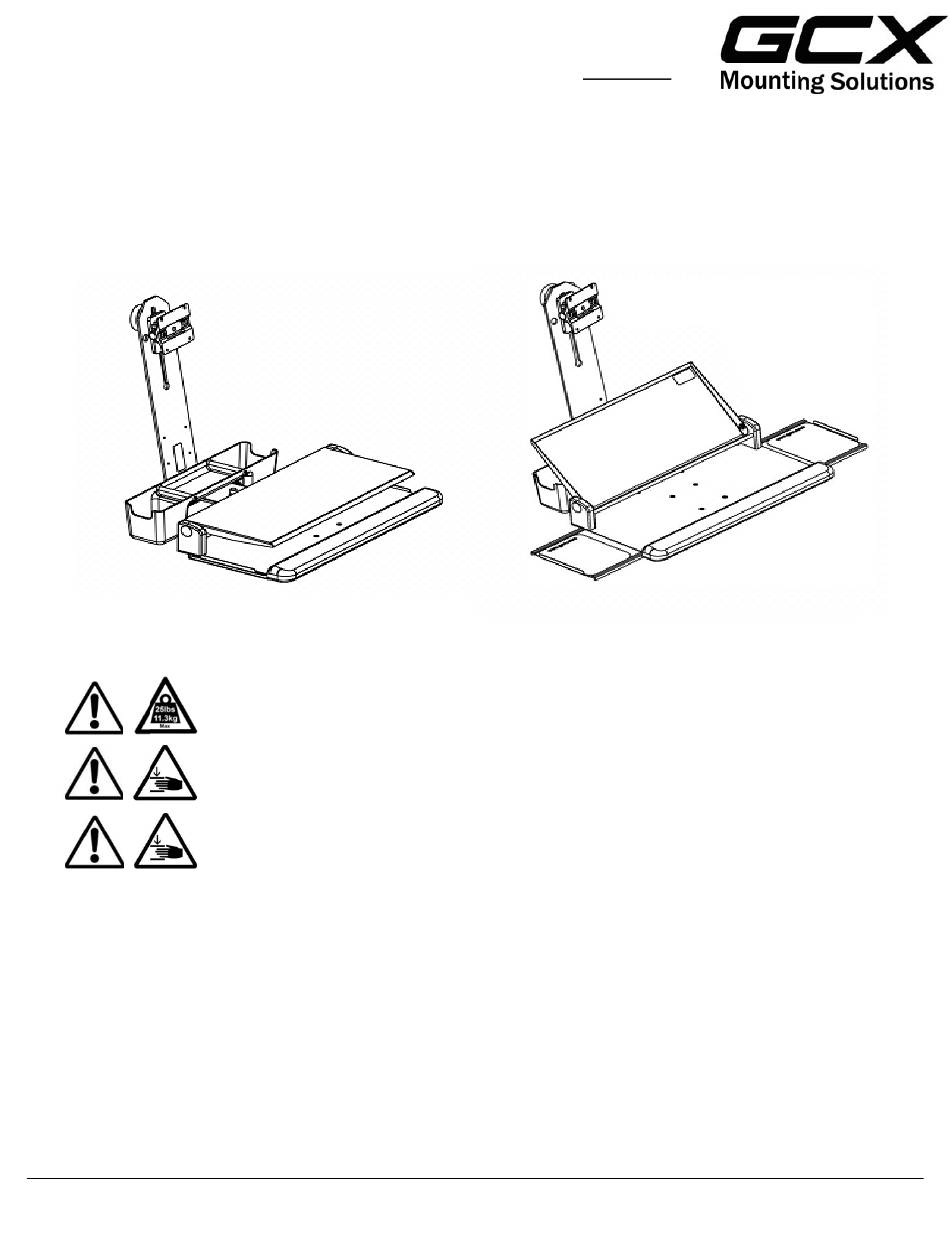

Folding L-Bracket for Flat Panel/Keyboard Applications with Multi-Position Work Surface
MAX. LOAD: When mounted on VHM Variable Height Arm maximum load shall be kept below
25lbs/11.3kg – The VHM used must be load rated for a minimum of 40lbs/18.1kg.
WARNING: The combination of a support arm and the L-Bracket presents a potential pinch
hazard at all points and positions where the support arm and L-Bracket can come into contact.
Purpose:
1. Describe attachment of L-bracket to Arm (page 2).
2. Describe attachment of Keyboard tray with Multi-Position Work Surface (page 3)
3. Describe attachment of Display Mounting Bracket to Display (page 3).
4. Describe adjustment of display height (page 4).
5. Describe adjustment of display tilt tension (page 4).
6. Describe folding tension adjustment (page 4).
7. Describe operation of Multi Position Work Surface (page 5).
8. Describe Storage Bin attachment (page 6).
(Refer to qualified personnel)
CAUTION: Do not place fingers or cables in-between the Folding Keyboard Bracket Mounting
Block and the Mounting Plate surfaces. There is risk of pinching or crushing fingers and cables,
especially while installing the keyboard tray and adjusting the folding tension.
Installation Guide
DU-FLP-0008-53 Rev C 03/28/16 GCX Corp Page 1 of 6
www.gcx.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GCX FLP-0008-53
Summary of Contents for GCX FLP-0008-53
- Page 1 5. Describe adjustment of display tilt tension (page 4). 6. Describe folding tension adjustment (page 4). 7. Describe operation of Multi Position Work Surface (page 5). 8. Describe Storage Bin attachment (page 6). DU-FLP-0008-53 Rev C 03/28/16 GCX Corp Page 1 of 6...
- Page 2 2. Install lower screw then using a 5/32” Hex Wrench, fasten the two (2) 1/4-28 x 3/4” FHSCS. (VHM Arm shown below) 3. Use blank label provided to cover screws – Clean surface before applying the label. 1/4-28 x ¾” FHSCS Blank Label DU-FLP-0008-53 Rev C 03/28/16 GCX Corp Page 2 of 6...
- Page 3 2. Position the display onto the VESA Mounting Plate by guiding the screws into the slots in the top of the Mounting Plate (below left). Thread two (2) M4 x 10mm PHMS screws into the lower mounting holes (below right). Tighten all screws. DU-FLP-0008-53 Rev C 03/28/16 GCX Corp Page 3 of 6...
- Page 4 1. Pry Plastic bolt covers off each end of the Tension Bolt. Replace bolt covers after adjustment. Using a 1/2" [13mm] wrench on each end of the bolt, tighten or loosen bolt until desired tension is achieved. Folding Tension Bolt Folding Tension Bolt Plastic Bolt Covers (2) DU-FLP-0008-53 Rev C 03/28/16 GCX Corp Page 4 of 6...
- Page 5 Mouse Trays There are two (2) mouse trays – one on the left and one on the right side. To access, grab the lip of the tray and pull outward. DU-FLP-0008-53 Rev C 03/28/16 GCX Corp Page 5 of 6...
- Page 6 Dry the assembly thoroughly after cleaning. CAUTION: GCX makes no claims regarding the efficacy of the listed chemicals or processes as a means for controlling infection. Consult your hospital’s infection control officer or epidemiologist. To clean or sterilize mounted devices or accessory equipment, refer to the specific instructions delivered with those products.
