Cincoze CV-W121C-AG User Manual

Convertible display module, 8.4“ - 24” tft-lcd display module
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CV-100 Series
User Manual
Convertible Display Module
8.4" - 24" TFT-LCD Display Module
Version: V1.87

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CV-W121C-AG and is the answer not in the manual?

Questions and answers

Related Manuals for Cincoze CV-W121C-AG

Summary of Contents for Cincoze CV-W121C-AG

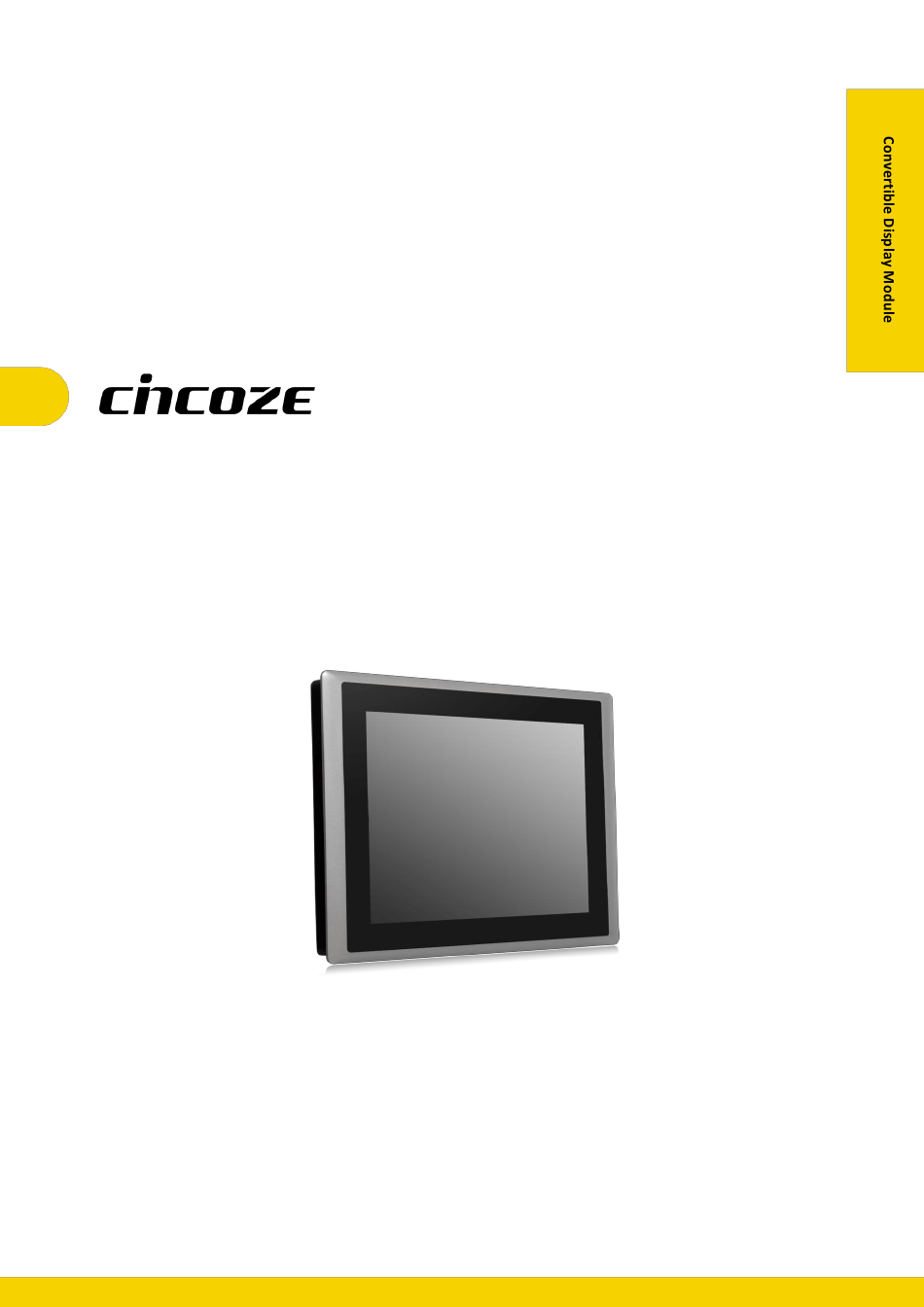

  • Page 1 CV-100 Series User Manual Convertible Display Module 8.4“ - 24” TFT-LCD Display Module Version: V1.87...

  • Page 2: Table Of Contents

    1.3.6 CV-W115R/CV-W115C ....................25 1.3.7 CV-W115FHR/CV-W115FHC ..................27 1.3.8 CV-117R/CV-117C/CV-117G ..................29 1.3.9 CV-119R/CV-119C/CV-119G ..................31 1.3.10 CV-W121R/CV-W121C/CV-W121C-AG/CV-W121G ..........33 1.3.11 CV-W124R/CV-W124C/CV-W124G ................35 Chapter 2 System Setup ........................37 2.1 Connecting with PC Module or Monitor Module ..............38 2.2 Installing Panel Mount ......................

  • Page 3: Preface

    2025/05/29 Copyright Notice © 2014 by Cincoze Co., Ltd. All rights are reserved. No parts of this manual may be copied, modified, or reproduced in any form or by any means for commercial use without the prior written permission of Cincoze Co., Ltd. All information and specification provided in this manual are for reference only and remain subject to change without prior notice.

  • Page 4: Declaration Of Conformity

    Product Warranty Statement Warranty Cincoze products are warranted by Cincoze Co., Ltd. to be free from defect in materials and workmanship for 2 years (2 Years for PC Module, 1 Year for Display Module) from the date of purchase by the original purchaser. During the warranty period, we shall, at our option, either repair or replace any product that proves to be defective under normal operation.

  • Page 5: Technical Support And Assistance

    (such as a fuse, battery, etc.), are not warranted. Before sending your product in, you will need to fill in Cincoze RMA Request Form and obtain a RMA number from us. Our staff is available at any time to provide you with the most friendly and immediate service.

  • Page 6: Conventions Used In This Manual

    support if you need additional assistance. Please have following information ready before you call: ⚫ Product name and serial number ⚫ Description of your peripheral attachments ⚫ Description of your software (operating system, version, application software, etc.) ⚫ A complete description of the problem ⚫...

  • Page 7: Package Contents

    voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product. Position the power cord so that people cannot step on it. Do not place anything over the power cord.

  • Page 8: Item Description

    CV-110R / CV-110C Item Description Q’ty CV-110 Display Module Panel Mounting Kit CV-110HR / CV-110HC Item Description Q’ty CV-110H Display Module Panel Mounting Kit CV-112HR / CV-112HC Item Description Q’ty CV-112H Display Module Panel Mounting Kit CV-115R / CV-115C / CV-115C-AG Item Description Q’ty CV-115 Display Module...
  • Page 9 Panel Mounting Kit CV-119R / CV-119C / CV-119G Item Description Q’ty CV-119 Display Module Panel Mounting Kit CV-W121R / CV-W121C / CV-W121C-AG / CV-W121G Item Description Q’ty CV-W121 Display Module Panel Mounting Kit CV-W124R / CV-W124C / CV-W124G Item Description Q’ty...

  • Page 10: Ordering Information

    Ordering Information Display Module with Resistive 5-wire Touch Model No. Product Description CV-108R 8.4” TFT SVGA 4:3 Display Module with Resistive 5-wire Touch CV-110R 10.4” TFT SVGA 4:3 Display Module with Resistive 5-wire Touch CV-110HR 10.4" TFT XGA 4:3 Display Module with Resistive 5-wire Touch CV-112HR 12.1"...
  • Page 11 Touch 21.5" TFT Full HD 16:9 Display Module with Projected CV-W121C Capacitive Touch 21.5" TFT Full HD 16:9 Display Module with Projected CV-W121C-AG Capacitive Touch and Anti-Glare Coating 24" TFT Full HD 16:9 Display Module with Projected Capacitive CV-W124C Touch...
  • Page 12 Display Module with Glass Model No. Product Description CV-117G 17” TFT SXGA 5:4 Display Module with Glass CV-119G 19” TFT SXGA 5:4 Display Module with Glass CV-W121G 21.5” TFT Full HD 16:9 Display Module with Glass CV-W124G 24” TFT Full HD 16:9 Display Module with Glass CV-100 Series | User Manual...

  • Page 13: Chapter 1 Product Introductions

    Chapter 1 Product Introductions CV-100 Series | User Manual...

  • Page 14: Overview

    1.1 Overview CV-100 Series is LCD display module with resistive 5-wire touch, projected capacitive touch, or glass only (available on selected models). CV-100 Series features flat surface and IP65 dust/waterproof front panel. In addition, designed with aluminum die-cast front frame, it is rugged and reliable for industrial environment. With support for Convertible Display System (CDS) technology, CV-100 Series allows you to configure, upgrade and maintain your Convertible Display System easily.

  • Page 15: Hardware Specification

    1.3 Hardware Specification 1.3.1 CV-108R/CV-108C Model Name CV-108R CV-108C Display • 8.4" (4:3) LCD Size • 800 x 600 Max. Resolution • 400 Brightness (cd/m2) • 600 : 1 Contrast Ratio • 262K LCD Color • 0.213 (H) x 0.213 (V) Pixel Pitch(mm) •...
  • Page 16 • UL, cUL, CB, IEC, EN 62368-1 Safety * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. Dimension CV-108R/CV-108C...

  • Page 17: Cv-110R/Cv-110C

    1.3.2 CV-110R/CV-110C Model Name CV-110R CV-110C Display • 10.4" (4:3) LCD Size • 800 x 600 Max. Resolution • 400 Brightness (cd/m2) • 700 : 1 Contrast Ratio • 16.2M LCD Color • Pixel Pitch(mm) 0.264 (H) x 0.264 (V) •...
  • Page 18 • UL, cUL, CB, IEC, EN 62368-1 Safety * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. Dimension CV-110R/CV-110C...

  • Page 19: Cv-110Hr/Cv-110Hc

    1.3.3 CV-110HR/CV-110HC Model Name CV-110HR CV-110HC Display • 10.4" (4:3) LCD Size • Max. Resolution 1024 x 768 • 470 Brightness (cd/m2) • Contrast Ratio 1000 : 1 • 16.2M LCD Color • Pixel Pitch(mm) 0.2055 (H) x 0.2055 (V) •...
  • Page 20 • UL, cUL, CB, IEC, EN 62368-1 Safety * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. Dimension CV-110HR/CV-110HC...

  • Page 21: Cv-112Hr/Cv-112Hc

    1.3.4 CV-112HR/CV-112HC Model Name CV-112HR CV-112HC Display • 12.1" (4:3) LCD Size • Max. Resolution 1024 x 768 • 500 Brightness (cd/m2) • Contrast Ratio 700 : 1 • 16.2M LCD Color • Pixel Pitch(mm) 0.24 (H) x 0.24 (V) •...
  • Page 22 • UL, cUL, CB, IEC, EN 62368-1 Safety * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. Dimension CV-112HR/CV-112HC...

  • Page 23: Cv-115R/Cv-115C/Cv-115C-Ag

    1.3.5 CV-115R/CV-115C/CV-115C-AG Model Name CV-115R CV-115C CV-115C-AG Display • 15" (4:3) LCD Size • Max. Resolution 1024 x 768 • 350 Brightness (cd/m2) • Contrast Ratio 800 : 1 • 16.2M LCD Color • Pixel Pitch(mm) 0.297 (H) x 0.297 (V) •...
  • Page 24 • UL, cUL, CB, IEC, EN 62368-1 Safety * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. Dimension CV-115R/CV-115C/CV-115C-AG...

  • Page 25: Cv-W115R/Cv-W115C

    1.3.6 CV-W115R/CV-W115C Model Name CV-W115R CV-W115C Display • 15.6" (16:9) LCD Size • Max. Resolution 1366 x 768(WXGA) • 400 Brightness (cd/m2) • Contrast Ratio 500 : 1 • 16.2M LCD Color • Pixel Pitch(mm) 0.252 (H) x 0.252 (V) •...
  • Page 26 • UL, cUL, CB, IEC, EN 62368-1 Safety * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. Dimension CV-W115R/CV-W115C...

  • Page 27: Cv-W115Fhr/Cv-W115Fhc

    1.3.7 CV-W115FHR/CV-W115FHC Model Name CV-W115FHR CV-W115FHC Display • 15.6" (16:9) LCD Size • Max. Resolution 1920 x 1080 (Full HD) • 350 Brightness (cd/m2) • Contrast Ratio 800 : 1 • 16.7M LCD Color • Pixel Pitch(mm) 0.17925 (H) x 0.17925 (V) •...
  • Page 28 • UL, cUL, CB, IEC, EN 62368-1 Safety * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. Dimension CV-W115FHR/CV-W115FHC...

  • Page 29: Cv-117R/Cv-117C/Cv-117G

    1.3.8 CV-117R/CV-117C/CV-117G Model Name CV-117R CV-117C CV-117G Display • 17" (5:4) LCD Size • Max. Resolution 1280 x 1024 • 350 Brightness (cd/m2) • Contrast Ratio 800 : 1 • 16.2M LCD Color • Pixel Pitch(mm) 0.264 (H) x 0.264 (V) •...
  • Page 30 • UL, cUL, CB, IEC, EN 62368-1 Safety * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. Dimension CV-117R/CV-117C/CV-117G...

  • Page 31: Cv-119R/Cv-119C/Cv-119G

    1.3.9 CV-119R/CV-119C/CV-119G Model Name CV-119R CV-119C CV-119G Display • 19" (5:4) LCD Size • Max. Resolution 1280 x 1024 • 350 Brightness (cd/m2) • Contrast Ratio 1000 : 1 • 16.7M LCD Color • Pixel Pitch(mm) 0.294 (H) x 0.294 (V) •...
  • Page 32 • UL, cUL, CB, IEC, EN 62368-1 Safety * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. Dimension CV-119R/CV-119C/CV-119G...

  • Page 33: Cv-W121R/Cv-W121C/Cv-W121C-Ag/Cv-W121G

    1.3.10 CV-W121R/CV-W121C/CV-W121C-AG/CV-W121G Model Name CV-W121R CV-W121C CV-W121C-AG CV-W121G Display • 21.5" (16:9) LCD Size • 1920 x 1080 Max. Resolution • 350 Brightness (cd/m2) • 5000 : 1 Contrast Ratio • 16.7M LCD Color • 0.24825 (H) x 0.24825 (V) Pixel Pitch(mm) •...
  • Page 34 • UL, cUL, CB, IEC, EN 62368-1 Safety * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. Dimension CV-W121R/CV-W121C/CV-W121G...

  • Page 35: Cv-W124R/Cv-W124C/Cv-W124G

    1.3.11 CV-W124R/CV-W124C/CV-W124G Model Name CV-W124R CV-W124C CV-W124G Display • 24" (16:9) LCD Size • Max. Resolution 1920 x 1080 • 350 Brightness (cd/m2) • Contrast Ratio 5000 : 1 • 16.7M LCD Color • Pixel Pitch(mm) 0.27675 (H) x 0.27675 (V) •...
  • Page 36 Safety UL, cUL, CB, IEC, EN 62368-1 * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. Dimension CV-W124R/CV-W124C/CV-W124G Unit: mm...

  • Page 37: Chapter 2 System Setup

    Chapter 2 System Setup CV-100 Series | User Manual...

  • Page 38: Connecting With Pc Module Or Monitor Module

    2.1 Connecting with PC Module or Monitor Module In order to prevent electric shock or system damage, must turn off power and disconnect the unit from power source before removing the chassis cover. (Afin d'éviter tout risque d'électrocution ou d'endommagement du système, vous devez couper l'alimentation et débrancher l'appareil de la source d'alimentation avant de retirer le couvercle du châssis.) The photos show the male connector (on display module) and female connector (on PC module or...
  • Page 39 1. Connect the modules. 2. Fasten the 6 screws to fix the PC module or monitor module on the display module. CV-100 Series | User Manual...

  • Page 40: Installing Panel Mount

    2.2 Installing Panel Mount 1. Accessories provided by Cincoze are as follows. CV-100 Series | User Manual...
  • Page 41 2. All mounting kits displayed are to be inserted into holes. 3. Installation preparation and steps. CV-100 Series | User Manual...
  • Page 42 CV-100 Series | User Manual...
  • Page 43 4. Apply all mount kits to the rest of holes. And you have completed the panel mount installation, as shown below. CV-100 Series | User Manual...
  • Page 44 © 2014 Cincoze Co., Ltd. All rights reserved. The Cincoze logo is a registered trademark of Cincoze Co., Ltd. All other logos appearing in this catalog are the intellectual property of the respective company, product, or organization associated with the logo.
