Cincoze CV-100 Series User Manual

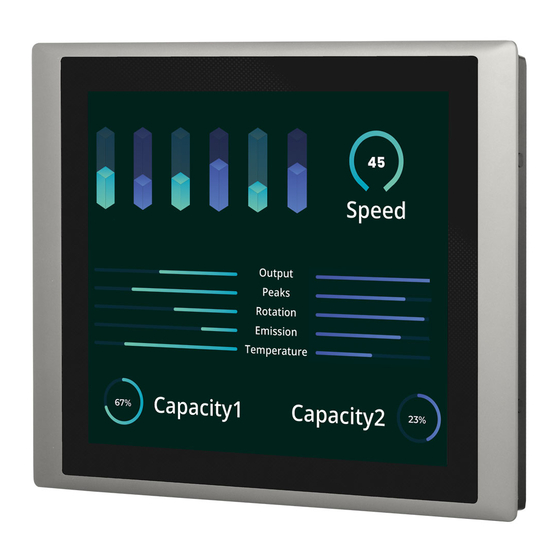

Convertible touch monitor
Hide thumbs Also See for CV-100 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
CV-100 Series
User Manual
Version: V1.81
Convertible Touch Monitor
CV-100 Series
Display Computing Solution

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CV-100 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cincoze CV-100 Series

Summary of Contents for Cincoze CV-100 Series

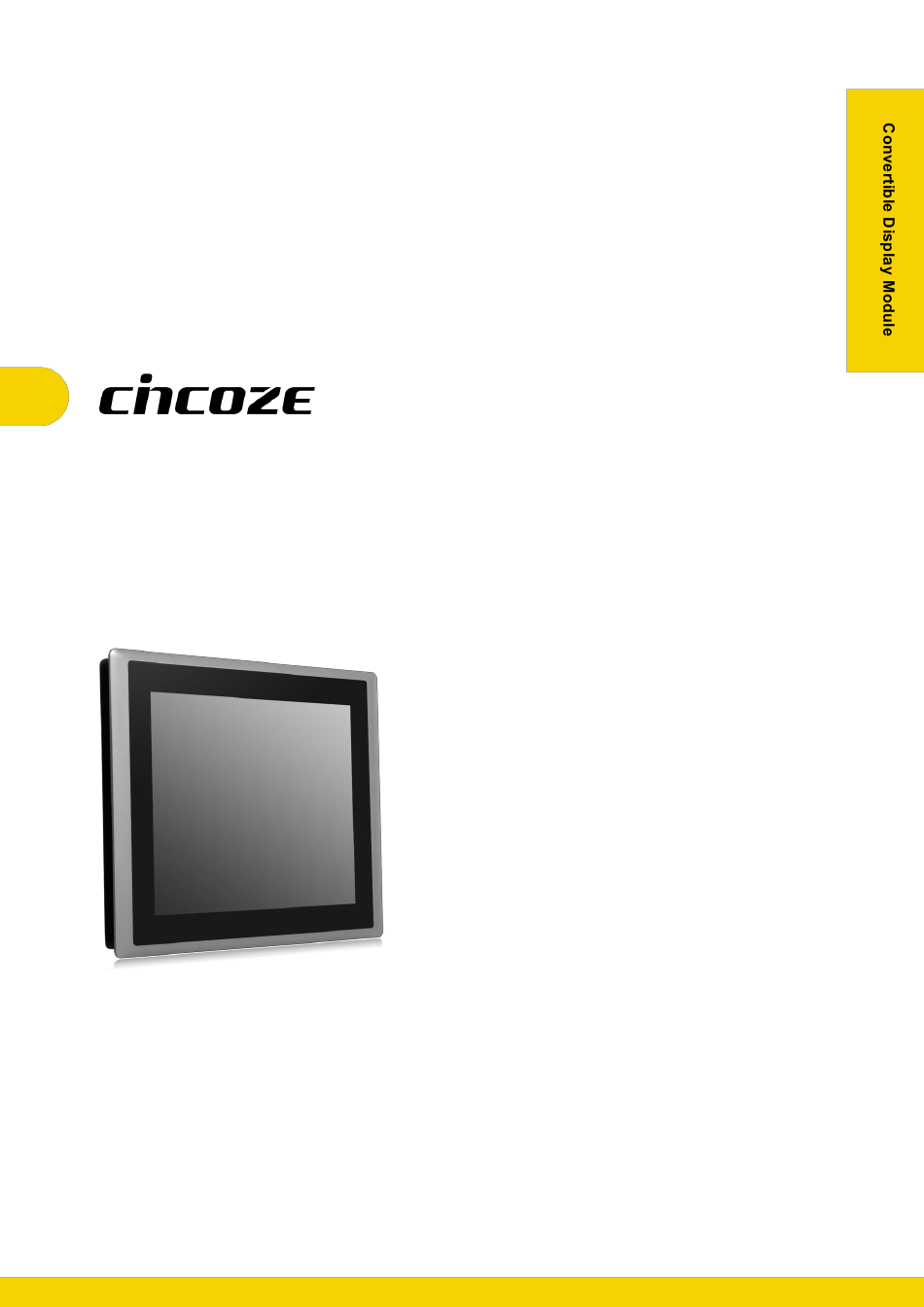

  • Page 1 CV-100 Series User Manual Convertible Touch Monitor CV-100 Series Display Computing Solution Version: V1.81...

  • Page 2: Table Of Contents

    Contents Preface Revision……………………………………………..……………….……………...……………...03 Copyright Notice.…………………………………………………………………………………...03 Acknowledgement.………………………………………………………………......03 Disclaimer.………………………………………………………………….………………...03 Declaration of Conformity.………………………………………………….……………………03 Product Warranty Statement …………………………………………………………….....04 Technical Support and Assistance.…………………………………………….…………………05 Conventions Used in this Manual …………………………………………….…………....06 Safety Precaution …...……………………………………………….………….………....06 Package Contents ………………………………………………………….…….………...……08 Ordering Information …………………………………...…………………….…….……...……...10 Chapter 1 Product Introductions 1.1 Overview …………………………………………………….……..……………....14 1.2 Product Pictures……...……………………………………….……………………....14 1.3 Hardware Specification ……………..……………………….……...………………..……15 Chapter 2 System Setup...

  • Page 3: Revision

    2020/10/22 Copyright Notice © 2014 by Cincoze Co., Ltd. All rights are reserved. No parts of this manual may be copied, modified, or reproduced in any form or by any means for commercial use without the prior written permission of Cincoze Co., Ltd. All information and specification provided in this manual are for reference only and remain subject to change without prior notice.

  • Page 4: Product Warranty Statement

    Product Warranty Statement Warranty Cincoze products are warranted by Cincoze Co., Ltd. to be free from defect in materials and workmanship for 2 years (2 Years for PC Module, 1 Year for Display Module) from the date of purchase by the original purchaser. During the warranty period, we shall, at our option, either repair or replace any product that proves to be defective under normal operation.

  • Page 5: Technical Support And Assistance

    Limitation of Liability Cincoze’ liability arising out of the manufacture, sale, or supplying of the product and its use, whether based on warranty, contract, negligence, product liability, or otherwise, shall not exceed the original selling price of the product. The remedies provided herein are the customer’s sole and exclusive remedies.

  • Page 6: Conventions Used In This Manual

    Conventions Used in this Manual Safety Precautions Before installing and using this device, please note the following precautions. Read these safety instructions carefully. Keep this User’s Manual for future reference. Disconnected this equipment from any AC outlet before cleaning. For plug-in equipment, the power outlet socket must be located near the equipment and must be easily accessible.
  • Page 7 damage by transient overvoltage. 12. Never pour any liquid into an opening. This may cause fire or electrical shock. 13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel. If one of the following situations arises, get the equipment checked by service personnel: ⚫...

  • Page 8: Package Contents

    Package Contents Before installation, please ensure all the items listed in the following table are included in the package. CV-108R / CV-108C Item Description Q’ty CV-108 Display Module Panel Mounting Kit CV-110R / CV-110C Item Description Q’ty CV-110 Display Module Panel Mounting Kit CV-110HR / CV-110HC Item Description...
  • Page 9 CV-115R / CV-115C Item Description Q’ty CV-115 Display Module Panel Mounting Kit CV-W115R / CV-W115C Item Description Q’ty CV-W115 Display Module Panel Mounting Kit CV-117R / CV-117C / CV-117G Item Description Q’ty CV-117 Display Module Panel Mounting Kit CV-119R / CV-119C / CV-119G Item Description Q’ty CV-119 Display Module...

  • Page 10: Ordering Information

    Ordering Information Display Module with Resistive 5-wire Touch Model No. Product Description 8.4” TFT SVGA 4:3 Display Module with Resistive 5-wire CV-108R Touch 10.4” TFT SVGA 4:3 Display Module with Resistive 5-wire CV-110R Touch 10.4" TFT XGA 4:3 Display Module with Resistive 5-wire CV-110HR Touch 12.1”...
  • Page 11 Display Module with Projected Capacitive Touch Model No. Product Description 8.4" TFT SVGA 4:3 Display Module with Projected CV-108C Capacitive Touch 10.4” TFT SVGA 4:3 Display Module with Projected CV-110C Capacitive Touch 10.4" TFT XGA 4:3 Display Module with Projected CV-110HC Capacitive Touch 12.1”...
  • Page 12 Display Module with Glass Model No. Product Description CV-117G 17” TFT SXGA 5:4 Display Module with Glass CV-119G 19” TFT SXGA 5:4 Display Module with Glass CV-W121G 21.5” TFT Full HD 16:9 Display Module with Glass CV-W124G 24” TFT Full HD 16:9 Display Module with Glass Series | User Manual CV-100...

  • Page 13: Chapter 1 Product Introductions

    Chapter 1 Product Introductions Series | User Manual CV-100...

  • Page 14: Overview

    1.1 Overview CV-100 Series is LCD display module with resistive 5-wire touch, projected capacitive touch, or glass only (available on selected models). CV-100 Series features flat surface and IP65 dust/waterproof front panel. In addition, designed with aluminum die-cast front frame, it is rugged and reliable for industrial environment.

  • Page 15: Hardware Specification

    1.3 Hardware Specification 1.3.1 CV-108R/CV-108C Key Features • 8.4" SVGA TFT 4:3 LCD with Resistive 5-wire Touch / Projected Capacitive Touch • 30,000 hrs LED Backlight Life • Resolution up to 800 x 600 (SVGA) • 400 nits Brightness • Designed with Aluminum Die-cast Front Frame •...
  • Page 16 Dimension CV-108R/CV-108C Unit: mm Series | User Manual CV-100...
  • Page 17 1.3.2 CV-110R/CV-110C Key Features • 10.4" SVGA TFT 4:3 LCD with Resistive 5-wire / Projected Capacitive Touch • 70,000 hrs LED Backlight Life • Resolution up to 800 x 600 (SVGA) • 400 nits Brightness • Designed with Aluminum Die-cast Front Frame •...
  • Page 18 Dimension CV-110R/CV-110C Unit: mm Series | User Manual CV-100...
  • Page 19 1.3.3 CV-110HR/CV-110HC Key Features • 10.4" XGA TFT 4:3 LCD with Resistive 5-wire / Projected Capacitive Touch • 50,000 hrs LED Backlight Life • Resolution up to 1024 x 768 (XGA) • 400 nits Brightness • Designed with Aluminum Die-cast Front Frame •...
  • Page 20 Dimension CV-110HR/CV-110HC Unit: mm Series | User Manual CV-100...
  • Page 21 1.3.4 CV-112R/CV-112C Key Features • 12.1" SVGA TFT 4:3 LCD with Resistive 5-wire / Projected Capacitive Touch • 50,000 hrs LED Backlight Life • Resolution up to 800 x 600 (SVGA) • 450 nits Brightness • Designed with Aluminum Die-cast Front Frame •...
  • Page 22 Dimension CV-112R/CV-112C Unit: mm Series | User Manual CV-100...
  • Page 23 1.3.5 CV-112HR/CV-112HC Key Features • 12.1" XGA TFT 4:3 LCD with Resistive 5-wire / Projected Capacitive Touch • 30,000 hrs LED Backlight Life • Resolution up to 1024 x 768 (XGA) • 500 nits Brightness • Designed with Aluminum Die-cast Front Frame •...
  • Page 24 Dimension CV-112HR/CV-112HC Unit: mm Series | User Manual CV-100...
  • Page 25 1.3.6 CV-115R/CV-115C Key Features • 15" XGA TFT 4:3 LCD with Resistive 5-wire / Projected Capacitive Touch • 50,000 hrs LED Backlight Life • Resolution up to 1024 x 768 (XGA) • 350 nits Brightness • Designed with Aluminum Die-cast Front Frame •...
  • Page 26 Dimension CV-115R/CV-115C Unit: mm Series | User Manual CV-100...
  • Page 27 1.3.7 CV-W115R/CV-W115C Key Features • 15.6" WXGA TFT 16:9 LCD with Resistive 5-wire / Projected Capacitive Touch • 50,000 hrs LED Backlight Life • Resolution up to 1366 x 768 (WXGA) • 400 nits Brightness • Designed with Aluminum Die-cast Front Frame •...
  • Page 28 Dimension CV-W115R/CV-W115C Unit: mm Series | User Manual CV-100...
  • Page 29 1.3.8 CV-117R/CV-117C/CV-117G Key Features • 17" SXGA TFT 5:4 LCD with Resistive 5-wire / Projected Capacitive Touch • 50,000 hrs LED Backlight Life • Resolution up to 1280 x 1024 (SXGA) • 350 nits Brightness • Designed with Aluminum Die-cast Front Frame •...
  • Page 30 Dimension CV-117R/CV-117C/CV-117G Unit: mm Series | User Manual CV-100...
  • Page 31 1.3.9 CV-119R/CV-119C/CV-119G Key Features • 19" SXGA TFT 5:4 LCD with Resistive 5-wire / Projected Capacitive Touch • 50,000 hrs LED Backlight Life • Resolution up to 1280 x 1024 (SXGA) • 350 nits Brightness • Designed with Aluminum Die-cast Front Frame •...
  • Page 32 Dimension CV-119R/CV-119C/CV-119G Unit: mm Series | User Manual CV-100...
  • Page 33 1.3.10 CV-W121R/CV-W121C/CV-W121G Key Features • 21.5" TFT Full HD 16:9 LCD with Resistive 5-wire / Projected Capacitive Touch • 50,000 hrs LED Backlight Life • Resolution up to 1920 x 1080 (Full HD) • 300 nits Brightness • Designed with Aluminum Die-cast Front Frame •...
  • Page 34 Dimension CV-W121R/CV-W121C/CV-W121G Unit: mm Series | User Manual CV-100...
  • Page 35 1.3.11 CV-W124R/CV-W124C/CV-W124G Key Features • 24" TFT Full HD 16:9 LCD with Resistive 5-wire / Projected Capacitive Touch • 50,000 hrs LED Backlight Life • Resolution up to 1920 x 1080 (Full HD) • 300 nits Brightness • Designed with Aluminum Die-cast Front Frame •...
  • Page 36 Dimension CV-W124R/CV-W124C/CV-W124G Unit: mm Series | User Manual CV-100...

  • Page 37: Chapter 2 System Setup

    Chapter 2 System Setup Series | User Manual CV-100...

  • Page 38: Connecting With Pc Module Or Monitor Module

    2.1 Connecting with PC Module or Monitor Module The photos show the male connector (on display module) and female connector (on PC module or monitor module) PC module Monitor module 1. Connect the modules. Series | User Manual CV-100...
  • Page 39 2. Fasten the 6 screws to fix the PC module or monitor module on the display module. Series | User Manual CV-100...

  • Page 40: Panel Mount

    2.2 Panel Mount 1. Accessories provided by Cincoze are as follows. Series | User Manual CV-100...
  • Page 41 2. All mounting kits displayed are to be inserted into holes. 3. Installation preparation and steps. Series | User Manual CV-100...
  • Page 42 Series | User Manual CV-100...
  • Page 43 4. Apply all mount kits to the rest of holes. And you have completed the panel mount installation, as shown below. Series | User Manual CV-100...
  • Page 44 © 2020 Cincoze Co., Ltd. All rights reserved. The Cincoze logo is a registered trademark of Cincoze Co., Ltd. All other logos appearing in this catalog are the intellectual property of the respective company, product, or organization associated with the logo.
