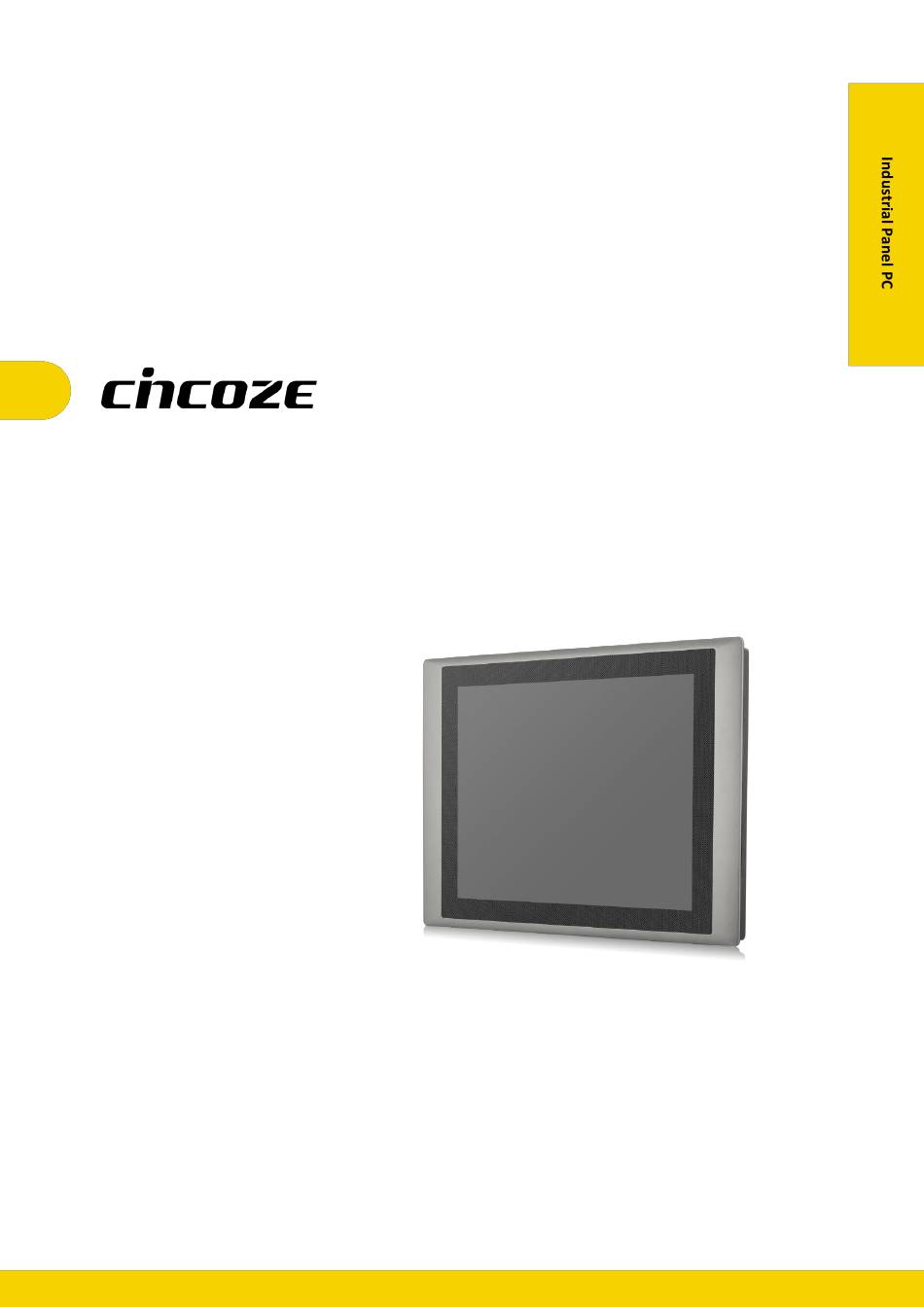

CV-100/P1301 Series
User Manual
Power Efficient Industrial Panel PC
8.4"~24"TFT LCD Panel PC with Intel® Alder Lake-N Series Processor
Version: V1.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CV-100/P1301 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Cincoze CV-100/P1301 Series

Summary of Contents for Cincoze CV-100/P1301 Series

  • Page 1 CV-100/P1301 Series User Manual Power Efficient Industrial Panel PC 8.4”~24”TFT LCD Panel PC with Intel® Alder Lake-N Series Processor Version: V1.00...

  • Page 2: Table Of Contents

    2.1.1 Top View ........................60 2.1.2 Bottom View ........................ 60 2.2 Switches and Connectors Definition ..................61 2.3 Definition of Switches ......................62 2.4 Definition of Connectors ...................... 64 2.5 Optional Module Pin Definition & Settings ................68 CV-100/P1301 Series | User Manual...
  • Page 3 4.3.10 USB Configuration ....................102 4.3.11 Network Stack Configuration .................. 103 4.3.13 CSM Configuration ....................103 4.3.14 NVMe Configuration ....................104 4.4 Chipset Setup ........................105 4.4.1 System Agent (SA) Configuration ................105 4.4.2 PCH-IO Configuration ....................106 CV-100/P1301 Series | User Manual...
  • Page 4 4.5 Security Setup ........................108 4.6 Boot Setup .......................... 109 4.7 Save & Exit .......................... 110 Chapter 5 Product Application ......................111 5.1 Where to download drivers? ..................... 112 5.2 Where to find the technical documents? ................112 CV-100/P1301 Series | User Manual...

  • Page 5: Preface

    2024/01/25 Copyright Notice © 2024 by Cincoze Co., Ltd. All rights are reserved. No parts of this manual may be copied, modified, or reproduced in any form or by any means for commercial use without the prior written permission of Cincoze Co., Ltd. All information and specification provided in this manual are for reference only and remain subject to change without prior notice.

  • Page 6: Declaration Of Conformity

    Before sending your product in, you will need to fill in Cincoze RMA Request Form and obtain an RMA number from us. Our staff is available at any time to provide you with the most friendly and immediate service.

  • Page 7: Technical Support And Assistance

    Limitation of Liability Cincoze’ liability arising out of the manufacture, sale, or supplying of the product and its use, whether based on warranty, contract, negligence, product liability, or otherwise, shall not exceed the original selling price of the product. The remedies provided herein are the customer’s sole and exclusive remedies.

  • Page 8: Conventions Used In This Manual

    12. Never pour any liquid into an opening. This may cause fire or electrical shock. 13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel. CV-100/P1301 Series | User Manual...

  • Page 9: Package Contents

    Panel Mounting Kit (The quantity varies with the size of the display module, please refer to the datasheet for the actual quantity) Note: Notify your sales representative if any of the above items are missing or damaged. CV-100/P1301 Series | User Manual...

  • Page 10: Ordering Information

    12.1" TFT-LCD XGA 4:3 Panel PC with Intel® Processor N97 CV-112HR-R10/P1301-N97-R10 Quad Core Processor and Resistive 5-wire Touch 12.1" TFT-LCD XGA 4:3 Panel PC with Intel® Processor N97 CV-112HC-R11/P1301-N97-R10 Quad Core Processor and P-Cap. Touch CV-100/P1301 Series | User Manual...
  • Page 11 Quad Core Processor and Resistive 5-wire Touch 19" TFT-LCD SXGA 5:4 Panel PC with Intel® Processor N97 CV-119C-R11/P1301-N97-R10 Quad Core Processor and P-Cap. Touch 19" TFT-LCD SXGA 5:4 Panel PC with Intel® Processor N97 CV-119G-R10/P1301-N97-R10 Quad Core Processor and without Touch CV-100/P1301 Series | User Manual...
  • Page 12 24" TFT-LCD Full HD 16:9 Panel PC with Intel® Processor CV-W124R-R10/P1301-N97-R10 N97 Quad Core Processor and Resistive 5-wire Touch 24" TFT-LCD Full HD 16:9 Panel PC with Intel® Processor CV-W124C-R11/P1301-N97-R10 N97 Quad Core Processor and P-Cap. Touch CV-100/P1301 Series | User Manual...
  • Page 13 24" TFT-LCD Full HD 16:9 Panel PC with Intel® Atom® CV-W124C-R11/P1301-X7425E-R10 x7425E Quad Core Processor and P-Cap. Touch 24" TFT-LCD Full HD 16:9 Panel PC with Intel® Atom® CV-W124G-R10/P1301-X7425E-R10 x7425E Quad Core Processor and without Touch CV-100/P1301 Series | User Manual...

  • Page 14: Chapter 1 Product Introductions

    Chapter 1 Product Introductions CV-100/P1301 Series | User Manual...

  • Page 15: Overview

    1.1 Overview The CV-100/P1301 series is a modular industrial panel PC with an Intel® Alder Lake-N processor, a comprehensive selection of screen sizes, and flexible expansion. It includes a rich set of native I/O interfaces (2.5 GbE LAN, USB 3.2 Gen 2x1, COM, and DIO), has M.2 Key B Type 3052 and M .2 Key E Type 2230 expansion slots, and supports the exclusive CFM expansion module to add PoE and...
  • Page 16 Complete Product Portfolio The CV-100/P1301 series has a diverse product portfolio, ranging from screen size (8.4 to 24 inches), display ratio (4:3, 5:4, and 16:9) to touch methods (multi-point P-Cap and single-point resistive), which can be selected based on application requirements.

  • Page 17: Specifications

    • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz • UL, cUL, CB, IEC, EN 62368-1 Safety CV-100/P1301 Series | User Manual...
  • Page 18 • 1x CFM Interface for optional IGN Module Expansion CFM (Control Function Module) • 1x CFM Interface for optional PoE Module Expansion Interface Other Function • 1x Clear CMOS Switch Clear CMOS Switch • 1x Reset Button Reset Button CV-100/P1301 Series | User Manual...
  • Page 19 Shock • Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-6) Vibration • Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) • CE, UKCA, FCC, ICES-003 Class A CV-100/P1301 Series | User Manual...
  • Page 20 • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. Dimension...

  • Page 21: Cv-110/P1301 Series

    • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz • UL, cUL, CB, IEC, EN 62368-1 Safety CV-100/P1301 Series | User Manual...
  • Page 22 • 1x CFM Interface for optional IGN Module Expansion CFM (Control Function Module) • 1x CFM Interface for optional PoE Module Expansion Interface Other Function • 1x Clear CMOS Switch Clear CMOS Switch • 1x Reset Button Reset Button CV-100/P1301 Series | User Manual...
  • Page 23 Shock • Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-6) Vibration • Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) • CE, UKCA, FCC, ICES-003 Class A CV-100/P1301 Series | User Manual...
  • Page 24 • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. Dimension...

  • Page 25: Cv-110H/P1301 Series

    • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz • UL, cUL, CB, IEC, EN 62368-1 Safety CV-100/P1301 Series | User Manual...
  • Page 26 • 1x CFM Interface for optional IGN Module Expansion CFM (Control Function Module) • 1x CFM Interface for optional PoE Module Expansion Interface Other Function • 1x Clear CMOS Switch Clear CMOS Switch • 1x Reset Button Reset Button CV-100/P1301 Series | User Manual...
  • Page 27 Shock • Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-6) Vibration • Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) • CE, UKCA, FCC, ICES-003 Class A CV-100/P1301 Series | User Manual...
  • Page 28 • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. Dimension...

  • Page 29: Cv-112H/P1301 Series

    • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz • UL, cUL, CB, IEC, EN 62368-1 Safety CV-100/P1301 Series | User Manual...
  • Page 30 • 1x CFM Interface for optional IGN Module Expansion CFM (Control Function Module) • 1x CFM Interface for optional PoE Module Expansion Interface Other Function • 1x Clear CMOS Switch Clear CMOS Switch • 1x Reset Button Reset Button CV-100/P1301 Series | User Manual...
  • Page 31 Shock • Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-6) Vibration • Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) • CE, UKCA, FCC, ICES-003 Class A CV-100/P1301 Series | User Manual...
  • Page 32 • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. Dimensions...

  • Page 33: Cv-115/P1301 Series

    • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz • UL, cUL, CB, IEC, EN 62368-1 Safety CV-100/P1301 Series | User Manual...
  • Page 34 • 1x CFM Interface for optional IGN Module Expansion CFM (Control Function Module) • 1x CFM Interface for optional PoE Module Expansion Interface Other Function • 1x Clear CMOS Switch Clear CMOS Switch • 1x Reset Button Reset Button CV-100/P1301 Series | User Manual...
  • Page 35 Shock • Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-6) Vibration • Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) • CE, UKCA, FCC, ICES-003 Class A CV-100/P1301 Series | User Manual...
  • Page 36 • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. Dimensions...

  • Page 37: Cv-W115/P1301 Series

    • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz • UL, cUL, CB, IEC, EN 62368-1 Safety CV-100/P1301 Series | User Manual...
  • Page 38 • 1x CFM Interface for optional IGN Module Expansion CFM (Control Function Module) • 1x CFM Interface for optional PoE Module Expansion Interface Other Function • 1x Clear CMOS Switch Clear CMOS Switch • 1x Reset Button Reset Button CV-100/P1301 Series | User Manual...
  • Page 39 Shock • Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-6) Vibration • Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) • CE, UKCA, FCC, ICES-003 Class A CV-100/P1301 Series | User Manual...
  • Page 40 • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. Dimensions...

  • Page 41: Cv-117/P1301 Series

    • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz • UL, cUL, CB, IEC, EN 62368-1 Safety CV-100/P1301 Series | User Manual...
  • Page 42 • 1x CFM Interface for optional IGN Module Expansion CFM (Control Function Module) • 1x CFM Interface for optional PoE Module Expansion Interface Other Function • 1x Clear CMOS Switch Clear CMOS Switch • 1x Reset Button Reset Button CV-100/P1301 Series | User Manual...
  • Page 43 Shock • Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-6) Vibration • Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) • CE, UKCA, FCC, ICES-003 Class A CV-100/P1301 Series | User Manual...
  • Page 44 • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. Dimensions...

  • Page 45: Cv-119/P1301 Series

    • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz • UL, cUL, CB, IEC, EN 62368-1 Safety CV-100/P1301 Series | User Manual...
  • Page 46 • 1x CFM Interface for optional IGN Module Expansion CFM (Control Function Module) • 1x CFM Interface for optional PoE Module Expansion Interface Other Function • 1x Clear CMOS Switch Clear CMOS Switch • 1x Reset Button Reset Button CV-100/P1301 Series | User Manual...
  • Page 47 Shock • Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-6) Vibration • Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) • CE, UKCA, FCC, ICES-003 Class A CV-100/P1301 Series | User Manual...
  • Page 48 • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. Dimensions...

  • Page 49: Cv-W121/P1301 Series

    • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz • UL, cUL, CB, IEC, EN 62368-1 Safety CV-100/P1301 Series | User Manual...
  • Page 50 • 1x CFM Interface for optional IGN Module Expansion CFM (Control Function Module) • 1x CFM Interface for optional PoE Module Expansion Interface Other Function • 1x Clear CMOS Switch Clear CMOS Switch • 1x Reset Button Reset Button CV-100/P1301 Series | User Manual...
  • Page 51 Shock • Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-6) Vibration • Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) • CE, UKCA, FCC, ICES-003 Class A CV-100/P1301 Series | User Manual...
  • Page 52 • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. Dimensions...

  • Page 53: Cv-W124/P1301 Series

    • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m CV-100/P1301 Series | User Manual...
  • Page 54 M.2 Key E Socket • 1x Front Accessible SIM Socket SIM Socket • 1x CFM Interface for optional IGN Module Expansion CFM (Control Function Module) • 1x CFM Interface for optional PoE Module Expansion Interface CV-100/P1301 Series | User Manual...
  • Page 55 * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 • -40°C to 70°C Storage Temperature • 95%RH @ 70°C (non-Condensing) Relative Humidity • Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) Shock CV-100/P1301 Series | User Manual...
  • Page 56 • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. Dimensions...

  • Page 57: External Layout

    1.3 External Layout 1.3.1 Front 1.3.2 Rear CV-100/P1301 Series | User Manual...

  • Page 58: Left

    1.3.3 Left 1.3.4 Right CV-100/P1301 Series | User Manual...

  • Page 59: Chapter 2 Introduction To Switches & Connectors

    Chapter 2 Introduction to Switches & Connectors CV-100/P1301 Series | User Manual...

  • Page 60: Location Of Switches And Connectors

    2.1 Location of Switches and Connectors 2.1.1 Top View 2.1.2 Bottom View CV-100/P1301 Series | User Manual...

  • Page 61: Switches And Connectors Definition

    DDR5 SO-DIMM Socket SPK_L1 Speaker out Connector for Left Side SPK_R1 Speaker out Connector for Right Side Super CAP Switch Power Select for COM1/COM2 USB2_1 USB 2.0 Connector USB3_2 USB 3.2 GEN2 Connector VGA1 VGA Connector (DB15) CV-100/P1301 Series | User Manual...

  • Page 62: Definition Of Switches

    Normal (Default) Right Clear CMOS PWR_SSD_LED1: Power / HDD Access LED Status Switch LED Color Definition Green POWER ON POWER LED Colorless POWER OFF Blinking Green Stand by Yellow HDD Read/Write HDD LED Colorless No Operation CV-100/P1301 Series | User Manual...
  • Page 63 Act LED Status Definition Blinking Yellow Data Activity Steady Yellow No Activity * LAN 2 here is equivalent to LAN 2 mentioned in Chapter 1. LAN 3 here is equivalent to LAN 1 mentioned in Chapter 1. CV-100/P1301 Series | User Manual...

  • Page 64: Definition Of Connectors

    KEY Pin DEVSLP KEY Pin KEY Pin SIM_DETECT KEY Pin PCIE1_RXN/SATA_RXP RESET2# KEY Pin SUSCLK KEY Pin PCIE1_RXP/SATA_RXN CFG1 KEY Pin +3.3V KEY Pin M.2_BT_PCMCLK +3.3V CFG0 PCIE1_TXN/SATA_TXN M.2_BT_PCMIN +3.3V PCIE1_TXP/SATA_TXP CFG2 M.2_BT_PCMOUT RESET# PULL-UP CV-100/P1301 Series | User Manual...
  • Page 65 +3.3V USB_D‐ PCM_CLK WGR_D1N PCM_SYNC/LPC_RSTN WGR_D1P PCM_IN PCM_OUT WGR_D0N WGR_D0P UART_WAKE# WGR_CLKN UART_RX/BRI_RSP WGR_CLKP UARTX/RGI_DT UART_CTS/RGI_RSP PETP0 UART_RTS/BRI_DT PETN0 PERP0 PERN0 REFCLKP0 REFCLKN0 SUSCLK PERST0# CLKREQ0# W_DISABLE2# (PULL‐UP) PEWAKE0# W_DISABLE1# (PULL‐UP) I2C_DATA WTD1N I2C_CLK WTD1P CV-100/P1301 Series | User Manual...
  • Page 66 Please disconnect the power source before mounting the DC power cables or connecting the DC power connector to system. (Veuillez débrancher la source d'alimentation avant de monter les câbles d'alimentation CC ou de connecter le connecteur d'alimentation CC au système.) CV-100/P1301 Series | User Manual...
  • Page 67 Remote Power Button Remote Power LED Do not apply power to this connector! This port is used to connect a SWITCH! (Ne mettez pas sous tension ce connecteur! Ce port est utilisé pour connecter un SWITCH!) CV-100/P1301 Series | User Manual...

  • Page 68: Optional Module Pin Definition & Settings

    Default setting of Pin1 to Pin4 is OFF/ON/ON/ON. 24V_12V_1 (on the module)：IGN Module Voltage Mode Setting Switch 12V / 24V Car Battery Switch Switch Definition Left 24V Car Battery Input (Default) Right 12V Car Battery Input CV-100/P1301 Series | User Manual...

  • Page 69: Chapter 3 System Setup

    Chapter 3 System Setup CV-100/P1301 Series | User Manual...

  • Page 70: Removing Top Cover

    Step 1. Loosen the 8 screws of front and rear panel, then place them aside. Step 2. Remove the cover from the chassis. Step 3. Place the top cover gently. CV-100/P1301 Series | User Manual...

  • Page 71: Installing So-Dimm Memory

    Step 2. Tilt the SO-DIMM module at a 45-degree angle and insert it to SO-DIMM socket until the gold-pated connector of module contacted firmly with the socket. 45° Step 3. Press the modules down until it’s fixed firmly by the two locking latches on each side. CV-100/P1301 Series | User Manual...

  • Page 72: Installing M.2 Key B Card

    Step 2. Insert the M.2 Key B card at a 45-degree angle and insert it to the slot until the gold-pated connector of module contacted firmly with the slot. Step 3. Press down the module and fasten the screw to secure the module. CV-100/P1301 Series | User Manual...

  • Page 73: Key B Type 3042

    Secure the bracket in place and fasten the screw. Step 3. Insert the M.2 Key B card at a 45-degree angle and insert it to the slot until the gold-pated connector of module contacted firmly with the slot. 45° CV-100/P1301 Series | User Manual...

  • Page 74: Installing M.2 Key E Card

    Step 2. Tilt the M.2 Key E card at a 45-degree angle and insert it to the socket until the golden finger connector of the card seated firmly. 45° Step 3. Press the card down and secure it with one screw. CV-100/P1301 Series | User Manual...

  • Page 75: Installing Antenna(S)

    Step 1. Remove the antenna hole cover(s) on the front or the side panel. Step 2. Have the antenna jack penetrate through the hole. Step 3. Put on the washer and fasten the nut with the antenna jack. CV-100/P1301 Series | User Manual...
  • Page 76 Step 4. Assemble the antenna and antenna jack together. Step 5. Attach the RF connector at another end of cable onto the module. CV-100/P1301 Series | User Manual...

  • Page 77: Installing Cpu Thermal Pad

    Before assembling the system’s chassis cover, please make sure the protective film on the Thermal Pad has been removed! (Avant d'assembler le couvercle du châssis du système, assurez-vous que le film protecteur sur le coussin thermique a été retiré !d'alimentation CC au système.) CV-100/P1301 Series | User Manual...

  • Page 78: Nstalling Top Cover

    3.7 Installing Top Cover Step 1. Put on the cover. Step2. Fasten the 8 screws to fix the cover. CV-100/P1301 Series | User Manual...

  • Page 79: Installing Sata Hard Drive

    Step 4. Make the bottom side of the HDD face up, place the HDD bracket on it. Ensure the direction of bracket is correct and use 4 provided screws to assemble HDD and HDD bracket together. CV-100/P1301 Series | User Manual...
  • Page 80 Step 5. Align the HDD bracket with the entrance of HDD bay. And insert the HDD bracket until the connector of HDD contact the SATA connector firmly. Step 6. Fasten the screw on the HDD bracket. Step 7. Fasten the 2 screws on the front panel. CV-100/P1301 Series | User Manual...

  • Page 81: Installing Sim Card

    Step 1. Loosen the 2 screws on front panel to remove cover plate. Step 2. SIM card slot is at the front panel of the system. Step 3. Insert the SIM card until you hear a click sound; that indicates the installation is complete. CV-100/P1301 Series | User Manual...

  • Page 82: Installing Cfm Modules

    2 screws to fix it. Step 3. Loosen the 2 screws on front panel to remove cover plate. Step 4. IGN function switch will be seen at the front panel of the system. CV-100/P1301 Series | User Manual...

  • Page 83: Cfm-Poe02

    Before putting on the thermal block (in the next step), please make sure the protective film on the Thermal Pad has been removed! (Avant de mettre le bloc thermique (à l'étape suivante), veuillez vous assurer que le film protecteur sur le coussin thermique a été retiré!) CV-100/P1301 Series | User Manual...
  • Page 84 été retiré !d'alimentation CC au système.) Step 6. When the system is power on, please note that the POE LED will light on if the POE module is properly installed. PoE LED CV-100/P1301 Series | User Manual...

  • Page 85: Disassembling The Cv Display Module

    Step 1. Remove the 6 screws on the display module and then disconnect the module. 3.12 Installing Panel Mount Step 1. Accessories provided by Cincoze are as below. (Please note that the quantity of mounting kits varies with the size of the display module, please refer to the datasheet for the actual quantity)
  • Page 86 Step 2. All mounting kits displayed are to be inserted into holes. Step 3. Installation preparation and steps. CV-100/P1301 Series | User Manual...
  • Page 87 CV-100/P1301 Series | User Manual...

  • Page 88: Installing Vesa Mount

    Step 1. The following picture uses a panel PC (P1301+ Display Module) as a demonstration. To attach the panel PC to a VESA stand, please fasten eight screws as indicated to fix it on the stand. Panel PC: P1301+ Display Module VESA Stand CV-100/P1301 Series | User Manual...

  • Page 89: Installing Rack Mount

    For 8.4” ~ 17” Panel PC For P2002E For P2002 / P1001E For M1101/P1001 /P1101 /P1201/P1301 P2102/ P2102E/P2202/P2202E For 19” ~ 24” Panel PC For P2002E For P2002 / For M1101/ P1001 / P1101 / P2102 / P2102E/P2202/P2202E CV-100/P1301 Series | User Manual...
  • Page 90 Side View Side View Bottom View For 19” ~ 24” Panel PC Side View Side View Bottom View Step 4. Locate the mounting holes on the two rack mount brackets as shown below for example. CV-100/P1301 Series | User Manual...
  • Page 91 Step 5. And then assemble two rack mount brackets and the rack by fastening 4 M5x12 screws, flat washers and hex nuts at each side. Rack For 8.4” ~ 17” Panel PC For 19” ~ 24” Panel PC CV-100/P1301 Series | User Manual...

  • Page 92: Chapter 4 Bios Setup

    Chapter 4 BIOS Setup CV-100/P1301 Series | User Manual...

  • Page 93: Bios Introduction

    ( ↑↓ ) to highlight the field and press <Enter> to call up the sub-menu. Then you can use the control keys to enter values and move from field to field within a sub-menu. If you want to return to the main menu, just press the <Esc >. CV-100/P1301 Series | User Manual...

  • Page 94: Main Setup

    Use arrow keys to move among the items and press <Enter> to accept or enter a sub-menu. ◼ System Date Set the date. Please use <Tab> to switch between date elements. ◼ System Time Set the time. Please use <Tab> to switch between time elements. CV-100/P1301 Series | User Manual...

  • Page 95: Advanced Setup

    Technology will allow a platform to run multiple operating systems and applications in independent partitions. With virtualization, one computer system can function as multiple virtual systems. ◼ Active Processor Cores [All] Number of cores to enable in each processor package. CV-100/P1301 Series | User Manual...

  • Page 96: Sata Configuration

    Allows you to select which mode SATA controller will operates. Configuration options: [AHCI] ❑ Serial ATA Port 0 Port 0 [Enabled] Enables or disables SATA Port 0. ❑ Serial ATA Port 1 Port 1 [Enabled] Enables or disables SATA Port 1. 4.3.3 PCH-FW Configuration CV-100/P1301 Series | User Manual...

  • Page 97: Trusted Computing Settings

    Enables or disables Security Device Support function. ◼ SHA256 PCR Bank [Enabled] Enables or disables SHA256 PCR Bank function. ◼ SHA384 PCR Bank [Disabled] Enables or disables SHA384 PCR Bank function. ◼ SM3_256 PCR Bank [Disabled] CV-100/P1301 Series | User Manual...
  • Page 98 Enables or disables Storage Hierarchy function. ◼ Endorsement Hierarchy [Enabled] Enables or disables Endorsement Hierarchy function. ◼ Physical Presence Spec Version [1.3] Allows you to select which mode Physical Presence Spec Version will operate. Configuration options: [1.2], [1.3] CV-100/P1301 Series | User Manual...

  • Page 99: Acpi Settings

    [S3 (suspend to RAM)]: Enables suspend to RAM state. 4.3.6 F81966 Super IO Configuration Set Parameters of Serial Ports. User can Enable/Disable the serial port and Select an optimal setting for the Super IO Device. CV-100/P1301 Series | User Manual...
  • Page 100 Configuration options: [RS232] [RS422/RS485 Full Duplex] [RS485 Half Duplex] ◼ Watch Dog Mode [Sec] Allows to set watchdog timer unit <Sec> or <Min>. ◼ Watch Dog Timer [0] Allows you to set watchdog timer’s value in the range of 0 to 255. CV-100/P1301 Series | User Manual...

  • Page 101: Hardware Monitor

    Enables or disables wake system from S5 (soft-off state). [Disabled]: Disables wake system from S5. [Fixed Time]: Sets a fixed time (HH:MM:SS) to wake system from S5. [Dynamic Time]: Sets an increase minute(s) from current time to wake system from S5. CV-100/P1301 Series | User Manual...

  • Page 102: Serial Port Console Redirection

    Enables or disables XHCI (USB3.0) hand-off function. Use this feature as a workaround for operating systems without XHCI hand-off support. ◼ USB Mass Storage Driver Support [Enabled] Enables or disables USB mass storage driver support. CV-100/P1301 Series | User Manual...

  • Page 103: Network Stack Configuration

    4.3.11 Network Stack Configuration ◼ Network Stack [Disabled] Enables or disables UEFI Network Stack. 4.3.13 CSM Configuration ■ CSM Support [Disabled] Enables or disables compatibility support module. CV-100/P1301 Series | User Manual...

  • Page 104: Nvme Configuration

    The screen allows users to select options for the NVMe configuration, and change the value of the selected option. If there is NVMe Device detected, the options will show as the NVMe Device is found. CV-100/P1301 Series | User Manual...

  • Page 105: Chipset Setup

    This section allows you to configure chipset related settings according to user’s preference. 4.4.1 System Agent (SA) Configuration ◼ Memory Configuration This item displays detailed memory configuration in the system. ◼ VT-d [Enabled] Enables or disables Intel® Virtualization Technology for Directed I/O (VT-d) capability. CV-100/P1301 Series | User Manual...

  • Page 106: Pch-Io Configuration

    ❑ PCI Express Root Port (CN1) ◼ PCI Express Root Port [Enabled] Enables or disables PCI Express Root Port. ◼ PCIe Speed [Auto] Allows you to select PCI Express interface speed. Configuration options: [Auto] [Gen1] [Gen2] [Gen3]. CV-100/P1301 Series | User Manual...
  • Page 107 Allows you to specify which power state system will enter when power is resumed after a power failure (G3 state). [Always on]: Enters to power on state. [Always off]: Enters to power off state. [Keep last state]: Enters to the last power state before a power failure. CV-100/P1301 Series | User Manual...

  • Page 108: Security Setup

    Security Boot ❑ Secure Boot [Disabled] Enable or disable Secure Boot function. (Enable this function to change the following settings.) ❑ Secure Boot Mode [Standard] Allows you to select Secure Boor Mode. Configuration options: [Standard] [Custom]. CV-100/P1301 Series | User Manual...

  • Page 109: Boot Setup

    Allows you to enable or disable Quiet Boot function. ◼ Fast Boot Allows you to enable or disable Fast Boot function. If enabled, system boots with initialization of a minimal set of devices required to launch active boot option. CV-100/P1301 Series | User Manual...

  • Page 110: Save & Exit

    Save as User Defaults This item allows you to save the changes done so far as user defaults. ◼ Restore User Defaults This item allows you to restore the user defaults to all the setup options. CV-100/P1301 Series | User Manual...

  • Page 111: Chapter 5 Product Application

    Chapter 5 Product Application CV-100/P1301 Series | User Manual...

  • Page 112: Where To Download Drivers

    5.1 Where to download drivers? Please go to the CINCOZE website to download the drivers for CV-100/P1301 series. 5.2 Where to find the technical documents? Please go to the CINCOZE website to find the technical documents for CV-100/P1301 series. Catalog...
  • Page 113 © 2024 Cincoze Co., Ltd. All rights reserved. The Cincoze logo is a registered trademark of Cincoze Co., Ltd. All other logos appearing in this catalog are the intellectual property of the respective company, product, or organization associated with the logo.
