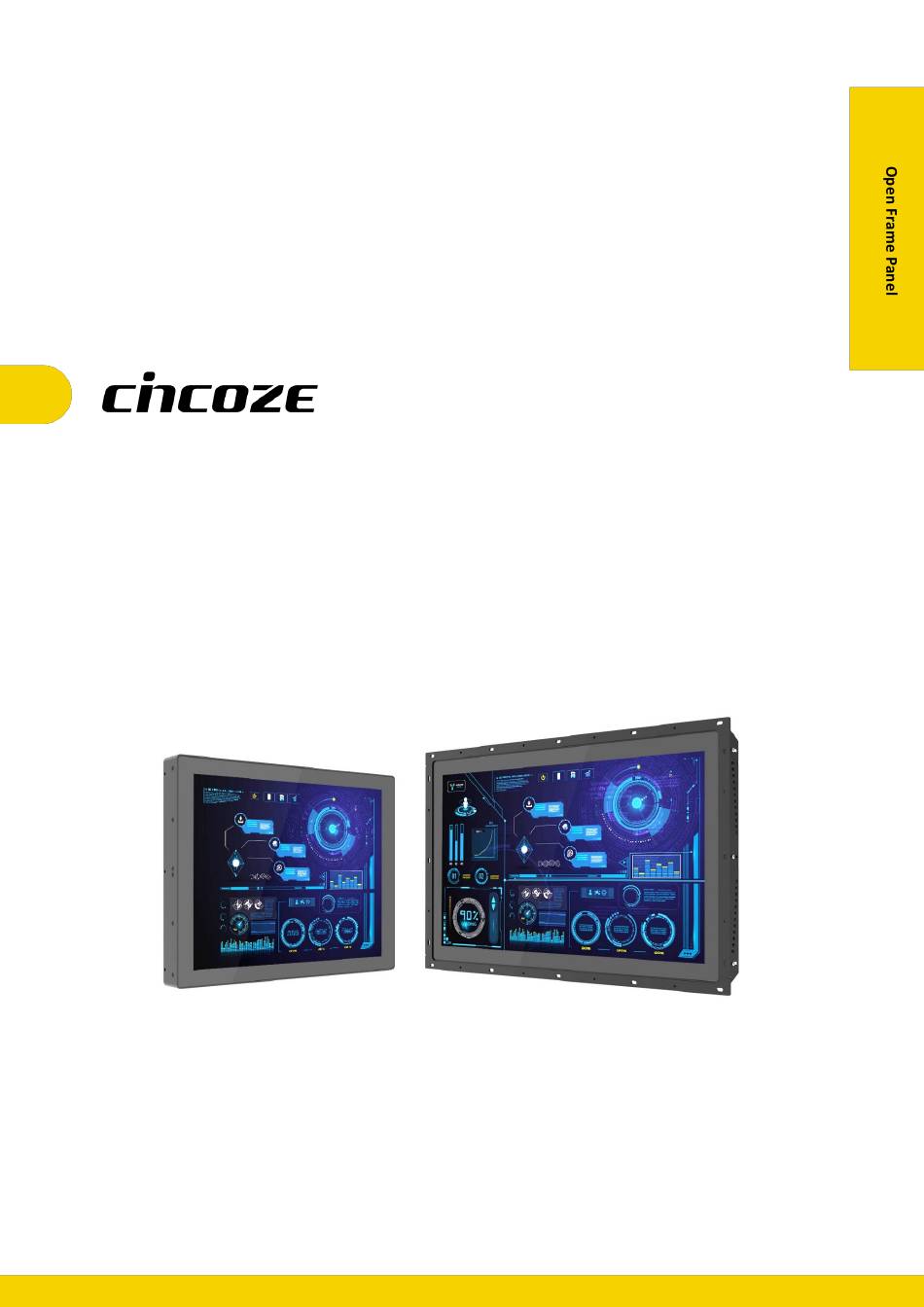

- Page 1 CO-W124C (CO-100 Series) User Manual Open Frame Panel 24” TFT-LCD Open Frame Display Module Version: V1.00...
-
Page 2: Table Of Contents
2.2 Standard Mount ........................16 2.2.1 Fixing from front side ......................... 17 2.2.2 Fixing from rear side ........................18 2.3 Flat Mount ..........................19 2.3.1 Fixing from front side ......................... 23 2.3.2 Fixing from rear side ........................24 CO-W124C (CO-100 Series) | User Manual... -
Page 3: Preface
2024/11/11 Copyright Notice © 2024 by Cincoze Co., Ltd. All rights are reserved. No parts of this manual may be copied, modified, or reproduced in any form or by any means for commercial use without the prior written permission of Cincoze Co., Ltd. All information and specification provided in this manual are for reference only and remain subject to change without prior notice. -
Page 4: Product Warranty Statement
(such as a fuse, battery, etc.), are not warranted. Before sending your product in, you will need to fill in Cincoze RMA Request Form and obtain an RMA number from us. Our staff is available at any time to provide you with the most friendly and immediate service. - Page 5 Limitation of Liability Cincoze’ liability arising out of the manufacture, sale, or supplying of the product and its use, whether based on warranty, contract, negligence, product liability, or otherwise, shall not exceed the original selling price of the product. The remedies provided herein are the customer’s sole and exclusive remedies.
-
Page 6: Conventions Used In This Manual
11. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage. 12. Never pour any liquid into an opening. This may cause fire or electrical shock. CO-W124C (CO-100 Series) | User Manual... -
Page 7: Package Contents
Note: Notify your sales representative if any of the above items are missing or damaged. Ordering Information Display Module with Projected Capacitive Touch Model No. Product Description 24" TFT-LCD Full HD 16:9 Open Frame Display Module with CO-W124C-R10 Projected Capacitive Touch CO-W124C (CO-100 Series) | User Manual... -
Page 8: Chapter 1 Product Introductions
Chapter 1 Product Introductions CO-W124C (CO-100 Series) | User Manual... -
Page 9: Overview
1.1 Overview Cincoze open frame display modules (CO-100 series) use our patented CDS (Convertible Display System) technology to connect with a computer module (P2000 or P1000 series) to form an industrial panel PC or connect with a monitor module (M1100 series) to form an industrial touch monitor. -
Page 10: Key Features
24” TFT-LCD with Projected Capacitive Touch ⚫ Designed with Adjustable Mounting Bracket ⚫ Support Flat / Standard / VESA / Rack Mount ⚫ Front Panel IP65 Compliant ⚫ Wide Operating Temperature ⚫ Cincoze Patent CDS Technology Support CO-W124C (CO-100 Series) | User Manual... -
Page 11: Hardware Specification
• EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A CO-W124C (CO-100 Series) | User Manual... - Page 12 • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. External Layout...
-
Page 13: Chapter 2 System Setup
Chapter 2 System Setup CO-W124C (CO-100 Series) | User Manual... -
Page 14: Connecting To Pc Or Monitor Module
Step 1. Locate the male connector on the display module and the female connector on the PC or monitor module. (Please assemble the wall mount brackets and remove the CDS cover plate on the PC or monitor module first according to its user manual.) Monitor module PC module CO-W124C (CO-100 Series) | User Manual... - Page 15 Step 2. Connect the modules. Step 3. Fasten the 6 screws to fix the PC module or monitor module on the display module. CO-W124C (CO-100 Series) | User Manual...
-
Page 16: Standard Mount
Before starting the following steps, ensure the screws are secured in the default positions, as shown below. These positions are correct for Standard Mount, so no additional adjustments are necessary. CO-W124C 在出貨時，定位螺絲已固定在預設位置，如下圖紅圈所示。此位置適用於 Standard Mount 標準安裝，因此在作 Standard Mount 安裝時，不需要再額外調整定位螺絲的位置。 CO-W124C Top Side View... -
Page 17: Fixing From Front Side
2.2.2. 2.2.1 Fixing from front side Step 2. Fasten the screws from the cabinet’s front side. Please prepare 12 pcs of M4 screws for fixing the module through the circle holes (with screw thread). CO-W124C (CO-100 Series) | User Manual... -
Page 18: Fixing From Rear Side
If the cabinet panel is with bosses as the following figures, user can prepare 16 pcs of M4 screws for fixing the module through the oblong holes (oblong hole size: 9mmx 4mm, without screw thread). CO-W124C (CO-100 Series) | User Manual... -
Page 19: Flat Mount
Step 1. Loosen the screws marked with blue circles on all four sides of the module (Top, Bottom, Left, Right). Then, remove the positioning screws marked with red circles, as shown in the four images below. CO-W124C Top Side View CO-W124C Bottom Side View CO-W124C Left Side View CO-W124C Right Side View CO-W124C (CO-100 Series) | User Manual... - Page 20 Step 4. According to the thickness = 3mm for the example, push down the top and bottom-side mounting brackets to the place at screw hole = 3mm; and then fasten back the two positioning screws on the top and bottom-side mounting brackets. CO-W124C Top Side View CO-W124C (CO-100 Series) | User Manual...
- Page 21 CO-W124C Bottom Side View Step 5. Fasten the three screws on the top and bottom-side mounting brackets. CO-W124C Top Side View CO-W124C Bottom Side View Step 6. Locate the left and right-side mounting brackets. CO-W124C (CO-100 Series) | User Manual...
- Page 22 Step 8. Lift up the left and right-side mounting brackets with aligning the top and bottom-side mounting brackets, then fasten the three screws by the indicated sequence 1, 2, 3 on each side. CO-W124C Left Side View CO-W124C Right Side View CO-W124C (CO-100 Series) | User Manual...
-
Page 23: Fixing From Front Side
Chapter 2.3.2. 2.3.1 Fixing from front side Step 10. Fasten the screws from the cabinet’s front side. Please prepare 12 pcs of M4 screws for fixing the module through the circle holes (with screw thread). CO-W124C (CO-100 Series) | User Manual... -
Page 24: Fixing From Rear Side
If the cabinet panel is with bosses as the following figures, user can prepare 16 pcs of M4 screws for fixing the module through the oblong holes (oblong hole size: 9mmx 4mm, without screw thread). CO-W124C (CO-100 Series) | User Manual... - Page 25 © 2024 Cincoze Co., Ltd. All rights reserved. The Cincoze logo is a registered trademark of Cincoze Co., Ltd. All other logos appearing in this catalog are the intellectual property of the respective company, product, or organization associated with the logo.
