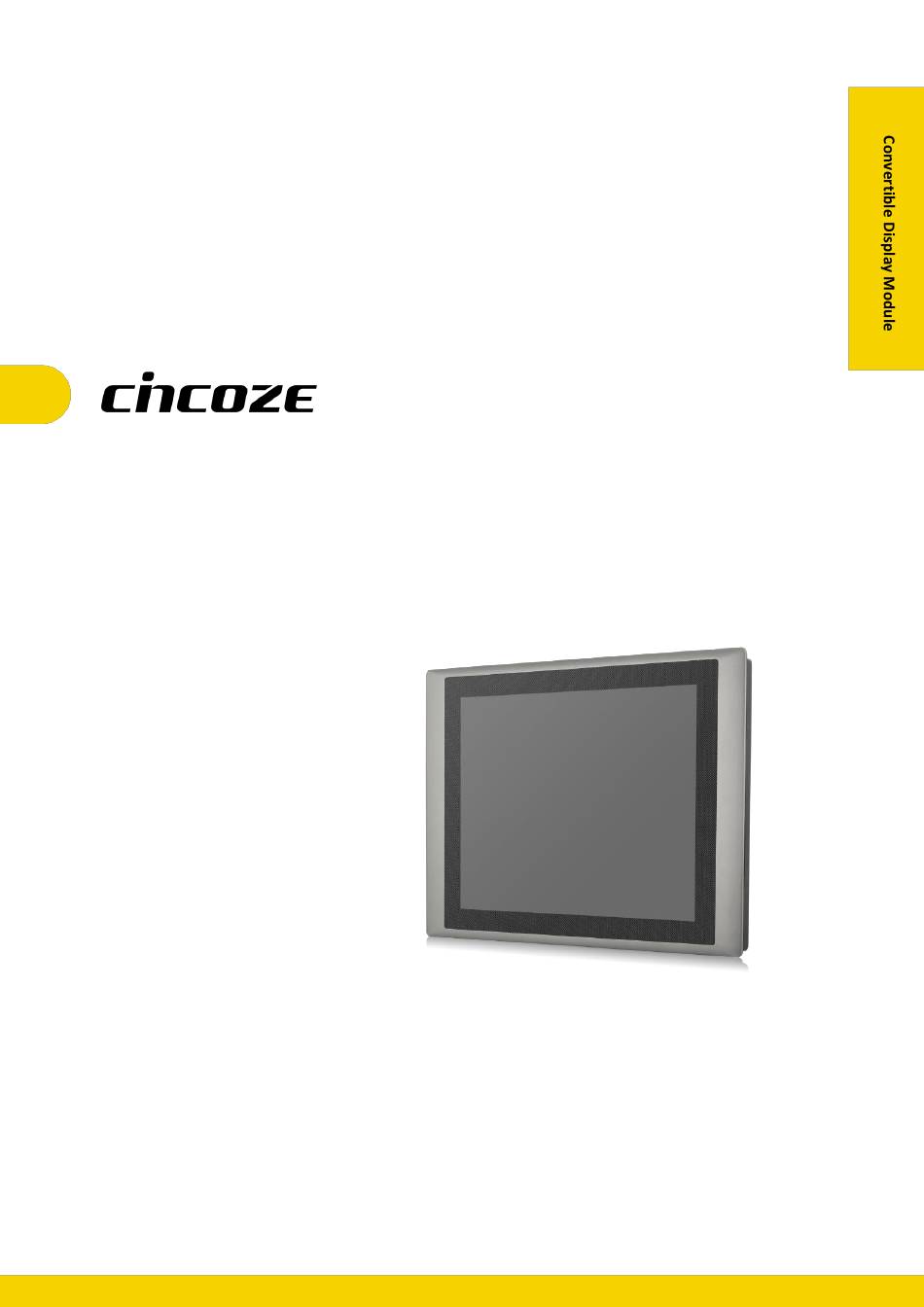

  • Page 1 CV-100/P2202 Series User Manual Industrial Panel PC High Performance Modular Panel PC Version: V1.10...

  • Page 2: Table Of Contents

    2.3 Definition of Switches ......................61 2.4 Definition of Connectors ...................... 63 2.5 Optional Module Pin Definition & Settings ................69 2.5.1 CFM-IGN101 Module ....................69 Chapter 3 System Setup ........................70 3.1 Removing the Top Cover ...................... 71 CV-100/P2202 Series | User Manual...
  • Page 3 4.3.9 Serial Port Console Redirection ................. 116 4.3.10 USB Configuration ....................117 4.3.11 Network Stack Configuration .................. 117 4.3.12 CSM Configuration ....................118 4.4 Chipset Setup ........................118 4.4.1 System Agent (SA) Configuration ................119 CV-100/P2202 Series | User Manual...
  • Page 4 4.6 Boot Setup .......................... 125 4.7 Save & Exit .......................... 126 4.8 MEBx ..........................127 Chapter 5 Product Application ......................130 5.1 Where to download drivers? ..................... 131 5.2 Where to find the technical documents? ................131 CV-100/P2202 Series | User Manual...

  • Page 5: Preface

    2024/04/26 Copyright Notice © 2023 by Cincoze Co., Ltd. All rights are reserved. No parts of this manual may be copied, modified, or reproduced in any form or by any means for commercial use without the prior written permission of Cincoze Co., Ltd. All information and specification provided in this manual are for reference only and remain subject to change without prior notice.

  • Page 6: Declaration Of Conformity

    Before sending your product in, you will need to fill in Cincoze RMA Request Form and obtain an RMA number from us. Our staff is available at any time to provide you with the most friendly and immediate service.
  • Page 7 Limitation of Liability Cincoze’ liability arising out of the manufacture, sale, or supplying of the product and its use, whether based on warranty, contract, negligence, product liability, or otherwise, shall not exceed the original selling price of the product. The remedies provided herein are the customer’s sole and exclusive remedies.

  • Page 8: Technical Support And Assistance

    Technical Support and Assistance 1. Visit the Cincoze website at www.cincoze.com where you can find the latest information about the product. 2. Contact your distributor or our technical support team or sales representative for technical support if you need additional assistance. Please have following information ready before you call: ⚫...

  • Page 9: Safety Precautions

    16. Ensure to connect the power cord of power adapter to a socket-outlet with earthing connection. 17. Dispose of used battery promptly. Keep away from children. Do not disassemble and do not dispose of in fire. CV-100/P2202 Series | User Manual...

  • Page 10: Package Contents

    12.1” XGA TFT-LCD Modular and Expandable Panel PC with 12th Gen. Intel® CV-112HR/P2202E-i3 Core™ i3-1215UE Processor and Resistive Touch 12.1" XGA TFT-LCD Modular Panel PC with 12th Gen. Intel® Core™ i3-1215UE CV-112HC/P2202-i3 Processor and Projected Capacitive Touch CV-100/P2202 Series | User Manual...
  • Page 11 15.6" WXGA TFT-LCD Modular Panel PC with 12th Gen. Intel® Core™ i3- CV-W115R/P2202-i3 1215UE Processor and Resistive Touch 15.6” WXGA TFT-LCD Modular and Expandable Panel PC with 12th Gen. Intel® CV-W115R/P2202E-i3 Core™ i3-1215UE Processor and Resistive Touch CV-100/P2202 Series | User Manual...
  • Page 12 17” SXGA TFT-LCD Modular and Expandable Panel PC with 12th Gen. Intel® CV-117G/P2202E-i3 Core™ i3-1215UE Processor and Glass Only 19" SXGA TFT-LCD Modular Panel PC with 12th Gen. Intel® Core™ i5-1245UE CV-119R/P2202-i5 Processor and Resistive Touch CV-100/P2202 Series | User Manual...
  • Page 13 21.5" Full HD TFT-LCD Modular Panel PC with 12th Gen. Intel® Core™ i5- CV-W121C/P2202-i5 1245UE Processor and Projected Capacitive Touch 21.5" Full HD TFT-LCD Modular and Expandable Panel PC with 12th Gen. CV-W121C/P2202E-i5 Intel® Core™ i5-1245UE Processor and Projected Capacitive Touch CV-100/P2202 Series | User Manual...
  • Page 14 24" Full HD TFT-LCD Modular and Expandable Panel PC with 12th Gen. Intel® CV-W124G/P2202E-i5 Core™ i5-1245UE Processor and Glass Only 24" Full HD TFT-LCD Modular Panel PC with 12th Gen. Intel® Core™ i3- CV-W124R/P2202-i3 1215UE Processor and Resistive Touch CV-100/P2202 Series | User Manual...
  • Page 15 24" Full HD TFT-LCD Modular Panel PC with 12th Gen. Intel® Core™ i3- CV-W124G/P2202-i3 1215UE Processor and Glass Only 24" Full HD TFT-LCD Modular and Expandable Panel PC with 12th Gen. Intel® CV-W124G/P2202E-i3 Core™ i3-1215UE Processor and Glass Only CV-100/P2202 Series | User Manual...

  • Page 16: Chapter 1 Product Introductions

    Chapter 1 Product Introductions CV-100/P2202 Series | User Manual...

  • Page 17: Overview

    1.1 Overview The CV-100/P2202 series is a high-performance modular industrial panel PC with an Intel® Core™ U-series (Alder Lake-P) processor, a comprehensive selection of screen sizes, and flexible expansion. It includes a rich set of native I/O interfaces (1 GbE LAN, USB 3.2 Gen 2x1, COM, and DIO), has Mini PCIe, M.2 Key E Type 2230 expansion slots, and supports the exclusive CFM expansion module to add PoE...
  • Page 18 Rugged, Safe & More Reliable To face harsh and rugged usage environments, the CV-100/P2202 series has a series of industrial-grade protections, including a wide operating temperature range (-20°C to 70°C), a wide range DC power input (9 to 48VDC), and a dustproof/water resistant IP65 front panel, which is beneficial for applications such as field-side HMI or production process visualization.

  • Page 19: Specifications

    Supports Un-buffered and non-ECC Type, Up to 64GB • BIOS AMI BIOS Graphics • Integrated Intel® Iris® Xe Graphics: Core™ i5-1245UE Graphics Engine • Integrated Intel® UHD Graphics: Core™ i3-1215UE • Maximum Display Output Supports Quad Independent Display CV-100/P2202 Series | User Manual...
  • Page 20 1x Reset Button • Instant Reboot Support 0.2sec Instant Reboot Technology • Watchdog Timer Software Programmable Supports 256 Levels System Reset • OSD Button LCD On/Off, Brightness Up, Brightness Down • Internal Speaker AMP 2W + 2W CV-100/P2202 Series | User Manual...
  • Page 21 EN IEC 61000-6-4, EN61000-6-2 (24VDC Input Only) • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker CV-100/P2202 Series | User Manual...
  • Page 22 CB, IEC, EN 62368-1 * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CV-100/P2202 Series | User Manual...
  • Page 23 Dimensions CV-112H/P2202 unit: mm CV-112H/P2202E unit: mm CV-100/P2202 Series | User Manual...

  • Page 24: Cv-115/P2202 Series

    Operating Temperature • Ambient with Air flow: 0°C to 60°C (with Industrial Grade Peripherals) • Storage Temperature -20°C to 65°C • Relative Humidity 80% RH @ 40°C (Non-condensing) • UL, cUL, CB, IEC, EN 62368-1 Safety CV-100/P2202 Series | User Manual...
  • Page 25 2x Full-size Mini-PCIe Socket • 1x PCI or 1x PCIe x4 Expansion slot (with Optional Riser Card) PCI Express * Supports maximum dimensions of add-on card (H x L):169 x 111mm • SIM Socket 1x SIM Socket CV-100/P2202 Series | User Manual...
  • Page 26 Protection Type: shut down operating voltage, re-power on at the present level to recover • Over Current Protection • CMOS Battery Backup SuperCap Integrated for CMOS Battery Maintenance-free Operation • MTBF 216,747 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 Environment CV-100/P2202 Series | User Manual...
  • Page 27 CB, IEC, EN 62368-1 * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CV-100/P2202 Series | User Manual...
  • Page 28 Dimensions CV-115/P2202 unit: mm CV-115/P2202E unit: mm CV-100/P2202 Series | User Manual...

  • Page 29: Cv-W115/P2202 Series

    Operating Temperature • Ambient with Air flow: 0°C to 60°C_(with Industrial Grade Peripherals) • Storage Temperature -20°C to 60°C • Relative Humidity 80% RH @ 40°C (Non-condensing) • UL, cUL, CB, IEC, EN 62368-1 Safety CV-100/P2202 Series | User Manual...
  • Page 30 2x Full-size Mini-PCIe Socket • 1x PCI or 1x PCIe x4 Expansion slot (with Optional Riser Card) PCI Express * Supports maximum dimensions of add-on card (H x L):169 x 111mm • SIM Socket 1x SIM Socket CV-100/P2202 Series | User Manual...
  • Page 31 Protection Type: shut down operating voltage, re-power on at the present level to recover • Over Current Protection • CMOS Battery Backup SuperCap Integrated for CMOS Battery Maintenance-free Operation • MTBF 216,747 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 Environment CV-100/P2202 Series | User Manual...
  • Page 32 CB, IEC, EN 62368-1 * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CV-100/P2202 Series | User Manual...
  • Page 33 Dimensions CV-W115/P2202 unit: mm CV-W115/P2202E unit: mm CV-100/P2202 Series | User Manual...

  • Page 34: Cv-117/P2202 Series

    -20°C to 80°C_(with Industrial -30°C to 85°C (with Grade Peripherals) Grade Peripherals) Industrial Grade Peripherals) • Storage Temperature -30°C to 80°C • Relative Humidity 80% RH @ 40°C (Non-condensing) • UL, cUL, CB, IEC, EN 62368-1 Safety CV-100/P2202 Series | User Manual...
  • Page 35 2x Full-size Mini-PCIe Socket • 1x PCI or 1x PCIe x4 Expansion slot (with Optional Riser Card) PCI Express * Supports maximum dimensions of add-on card (H x L):169 x 111mm • SIM Socket 1x SIM Socket CV-100/P2202 Series | User Manual...
  • Page 36 Protection Type: shut down operating voltage, re-power on at the present level to recover • Over Current Protection • CMOS Battery Backup SuperCap Integrated for CMOS Battery Maintenance-free Operation • MTBF 216,747 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 Environment CV-100/P2202 Series | User Manual...
  • Page 37 CB, IEC, EN 62368-1 * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CV-100/P2202 Series | User Manual...
  • Page 38 Dimensions CV-117/P2202 unit: mm CV-117/P2202E unit: mm CV-100/P2202 Series | User Manual...

  • Page 39: Cv-119/P2202 Series

    Integrated Intel® UHD Graphics: Core™ i3-1215UE • Maximum Display Output Supports Quad Independent Display • 1x CDS Connector (1920 x 1080 @60Hz) • 1x DisplayPort Connector (4096 x 2304 @60Hz) * Verified maximum resolution: 3840 x 2160 @ 60Hz CV-100/P2202 Series | User Manual...
  • Page 40 Software Programmable Supports 256 Levels System Reset • OSD Button LCD On/Off, Brightness Up, Brightness Down • Internal Speaker AMP 2W + 2W • Status LED Indicator Power LED, HDD LED Power • Power Button 1x ATX Power On/Off Button CV-100/P2202 Series | User Manual...
  • Page 41 EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m CV-100/P2202 Series | User Manual...
  • Page 42 CB, IEC, EN 62368-1 * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CV-100/P2202 Series | User Manual...
  • Page 43 Dimensions CV-119/P2202 unit: mm CV-119/P2202E unit: mm CV-100/P2202 Series | User Manual...

  • Page 44: Cv-W121/P2202 Series

    Operating Temperature • Ambient with Air flow: 0°C to 60°C_(with Industrial Grade Peripherals) Storage Temperature • -20°C to 60°C Relative Humidity • 80% RH @ 40°C (Non-condensing) • UL, cUL, CB, IEC, EN 62368-1 Safety CV-100/P2202 Series | User Manual...
  • Page 45 2x Full-size Mini-PCIe Socket • 1x PCI or 1x PCIe x4 Expansion slot (with Optional Riser Card) PCI Express * Supports maximum dimensions of add-on card (H x L):169 x 111mm • SIM Socket 1x SIM Socket CV-100/P2202 Series | User Manual...
  • Page 46 Protection Type: shut down operating voltage, re-power on at the present level to recover • Over Current Protection • CMOS Battery Backup SuperCap Integrated for CMOS Battery Maintenance-free Operation • MTBF 216,747 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 Environment CV-100/P2202 Series | User Manual...
  • Page 47 CB, IEC, EN 62368-1 * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CV-100/P2202 Series | User Manual...
  • Page 48 Dimensions CV-W121/P2202 unit: mm CV-W121/P2202E unit: mm CV-100/P2202 Series | User Manual...

  • Page 49: Cv-W124/P2202 Series

    • -30°C to 80°C Relative Humidity • 80% RH @ 50°C (Non-condensing) Vibration • -- • Operating, 1 Grms, 10-500 Hz, 3 • -- Axes(w/ P2202E only, according to IEC60068-2-6) • Safety UL, cUL, CB, IEC, EN 62368-1 CV-100/P2202 Series | User Manual...
  • Page 50 2x Full-size Mini-PCIe Socket • 1x PCI or 1x PCIe x4 Expansion slot (with Optional Riser Card) PCI Express * Supports maximum dimensions of add-on card (H x L):169 x 111mm • SIM Socket 1x SIM Socket CV-100/P2202 Series | User Manual...
  • Page 51 Protection Type: shut down operating voltage, re-power on at the present level to recover • Over Current Protection • CMOS Battery Backup SuperCap Integrated for CMOS Battery Maintenance-free Operation • MTBF 216,747 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 Environment CV-100/P2202 Series | User Manual...
  • Page 52 CB, IEC, EN 62368-1 * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CV-100/P2202 Series | User Manual...
  • Page 53 Dimensions CV-W124/P2202 unit: mm CV-W124/P2202E unit: mm CV-100/P2202 Series | User Manual...

  • Page 54: External Layout

    1.3 External Layout 1.3.1 Front CV-100/P2202 CV-100/P2202E CV-100/P2202 Series | User Manual...

  • Page 55: Rear

    1.3.2 Rear CV-100/P2202 CV-100/P2202E CV-100/P2202 Series | User Manual...

  • Page 56: Left

    1.3.3 Left CV-100/P2202 CV-100/P2202E CV-100/P2202 Series | User Manual...

  • Page 57: Right

    1.3.4 Right CV-100/P2202 CV-100/P2202E CV-100/P2202 Series | User Manual...

  • Page 58: Chapter 2 Introduction To Switches And Connectors

    Chapter 2 Introduction to Switches and Connectors CV-100/P2202 Series | User Manual...

  • Page 59: Location Of Switches And Connectors

    2.1 Location of Switches and Connectors 2.1.1 Top View 2.1.2 Bottom View CV-100/P2202 Series | User Manual...

  • Page 60: Switches And Connectors Definition

    PCIEx4 Slot POE_PH1 PSE Board Male Header POWER1, POWER2 Power Connector, Support +5V/+12V PWR_SW1 Power Button with Power on LED PWR_SW2 Remote Power on/off Connector Reset1 Reset Button RTC1 Clear COMS Switch SATA1, SATA2 SATA Connector CV-100/P2202 Series | User Manual...

  • Page 61: Definition Of Switches

    Normal (Default) Right Clear CMOS BL_PWR1: Backlight Power on / off Switch Definition Push Backlight Power on / off switching BL_UP1: Backlight Increase Switch Definition Push Backlight Increase BL_DN1: Backlight Decrease Switch Definition Push Backlight Decrease CV-100/P2202 Series | User Manual...
  • Page 62 Function DIP1 DIP2 ON (Default) ON (Default) COM1 Location Function DIP3 DIP4 ON (Default) ON (Default) COM2 Location Function DIP5 DIP6 ON (Default) ON (Default) COM3 Location Function DIP7 DIP8 ON (Default) ON (Default) COM4 CV-100/P2202 Series | User Manual...

  • Page 63: Definition Of Connectors

    LAN LED Status Definition Link LED Status Definition Steady Green 1 Gbps Network Link Steady Orange 100 Mbps Network Link 10 Mbps Network Link Act LED Status Definition Blinking Yellow Data Activity Steady Yellow No Activity CV-100/P2202 Series | User Manual...
  • Page 64 Connector Type: Terminal Block 1X2 2-pin, 3.5mm pitch Definition RMT_PWR_BTN_N Do not apply power to this connector! This port is used to connect a SWITCH! (Ne mettez pas sous tension ce connecteur! Ce port est utilisé pour connecter un SWITCH!) CV-100/P2202 Series | User Manual...
  • Page 65 DIO2 (Digital Input) DIO1: Digital Output Connector Connector Type: Terminal Block 1X10 10-pin, 3.5mm pitch Definition Definition XCOM+(DC INPUT) XCOM-(GND) DIO2: Digital Input Connector Connector Type: Terminal Block 1X10 10-pin, 3.5mm pitch Definition Definition XCOM+(DC INPUT) XCOM-(GND) CV-100/P2202 Series | User Manual...
  • Page 66 Pin No. Pin Name Pin No. Pin Name WAKE# +3.3V +1.5V CLKREQ# REFCLK- REFCLK+ Mechanical KEY W_DISABLE1# PERST# PERn +3.3V PERp +1.5V SMB_CLK PETn SMB_DATA PETp USB_D- USB_D+ +3.3V +3.3V CLINK_CLK CLINK_DAT +1.5V CLINK_RST +3.3V CV-100/P2202 Series | User Manual...
  • Page 67 Pin No. Pin Name WAKE# +3.3V +1.5V CLKREQ# UIM_PWR UIM_DATA REFCLK- UIM_CLK REFCLK+ UIM_RST UIM_VPP Mechanical KEY PERST# PERn/USB3_Rn +3.3V PERp/USB3_Rp +1.5V SMB_CLK PETn/USB3_Tn SMB_DATA PETp/USB3_Tp USB_D- USB_D+ +3.3V +3.3V +1.5V +3.3V PERST# PERn/USB3_Rn +3.3V CV-100/P2202 Series | User Manual...
  • Page 68 BRI_ RSP WGR_CLKp Mechanical KEY RGI_DT PETp0 RGI_RSP PETn0 BRI_DT CLINK_RST PERp0 CLINK_DATA PERn0 CLINK_CLK COEX3 REFCLKp0 COEX_TXD REFCLKn0 COEX_RXD SUSCLK CLKREQ0# PERST0# PEWAKE0# W_DISABLE2# W_DISABLE1# WTD1n/PETp1 I2C_DATA WTD1p/PETn1 I2C_CLK ALERT WTD0n/PERp1 REFCLK WTD0p/PERn1 PERST1# CV-100/P2202 Series | User Manual...

  • Page 69: Optional Module Pin Definition & Settings

    Default setting of Pin1 to Pin4 is OFF/ON/ON/ON. 24V_12V_1 (on the system)：IGN Module Voltage Mode Setting Switch 12V / 24V Car Battery Switch Switch Definition Left 24V Car Battery Input (Default) Right 12V Car Battery Input CV-100/P2202 Series | User Manual...

  • Page 70: Chapter 3 System Setup

    Chapter 3 System Setup CV-100/P2202 Series | User Manual...

  • Page 71: Removing The Top Cover

    Step 1. Loosen the eight screws at front and rear panel Step 2. Raise the top cover and remove it from the chassis. Step 3. Place the top cover aside gently. CV-100/P2202 Series | User Manual...

  • Page 72: Installing Mini Pcie Card(S)

    Tilt the Mini PCIe card at a 45-degree angle and insert it into the socket until the golden finger connector of the card seated firmly. Step 4. Press down the card and secure it with two screws. CV-100/P2202 Series | User Manual...

  • Page 73: Installing A M.2 E Key Card

    Tilt the M.2 E Key card at a 45-degree angle and insert it to the socket until the golden finger connector of the card seated firmly. Step 3. Press the card down and secure it with 1 screw. CV-100/P2202 Series | User Manual...

  • Page 74: Installing Antenna(S)

    Penetrate the antenna jack through the hole. And then put on the washer and fasten the nut with antenna jack. Step 3. Assemble the antenna and antenna jack together. Step 4. Attach the RF connector at another end of the cable onto the card. CV-100/P2202 Series | User Manual...

  • Page 75: Installing So-Dimm(S)

    Tilt the memory module at a 45-degree angle, and insert it into SO-DIMM socket until the golden finger connector of the module is seated firmly. 45° 45° Upper socket Lower socket Step 3. Press down the memory module until retaining clips snap back in place. Upper socket Lower socket CV-100/P2202 Series | User Manual...

  • Page 76: Installing A Pci(E) Card

    Loosen the screw as indicated to remove the PCI bracket. Step 4. Align the notch of golden fingers of Riser card (Optional) with the slot. Insert the card vertically, and press the card straight down into the slot until it’s seated firmly. CV-100/P2202 Series | User Manual...
  • Page 77 Fasten the screw back to secure the PCI(e) expansion card. Step 7. Loosen the two screws as indicated to have the clamp arm slidable. Step 8. Slide the clamp arm of retention module until it contacts the edge of PCI(e) expansion card. CV-100/P2202 Series | User Manual...

  • Page 78: Installing Thermal Pad Of Thermal Block

    Before assembling the system’s chassis cover, please make sure the protective film on the Thermal Pad has been removed! (Avant d'assembler le capot du châssis du système, assurez-vous que le film protecteur du coussin thermique a été retiré !) CV-100/P2202 Series | User Manual...

  • Page 79: Installing The Top Cover

    The complete shipping product is the CV display module already installed on the P2202. This chapter will introduce how to dissemble CV display module and P2202. Step 1. Remove the 6 screws on the display module and disconnect the module. CV-100/P2202 Series | User Manual...

  • Page 80: Installing A Sata Hard Drive At Front Panel

    Step 2. Loosen the screw as indicated on the HDD bracket. Step 3. Pull the rotating arm of HDD bracket outward as indicated. Step 4. Hold the rotating arm to pull out the HDD bracket. CV-100/P2202 Series | User Manual...
  • Page 81 HDD fully inserted into SATA slot. Step 7. Fasten the screw as indicated on the HDD bracket. Step 8. Put back HDD bay cover at front panel, and fasten it with the screw. CV-100/P2202 Series | User Manual...

  • Page 82: Installing A Sata Hard Drive On Bottom Side

    Turn over the system to bottom side. Locate the cover of HDD compartment. Step 2. Loosen the two screws, lift the cover, and then remove it. Step 3. Loosen three screws and take the HDD bracket out of HDD compartment. CV-100/P2202 Series | User Manual...
  • Page 83 Seat the HDD bracket into HDD compartment, and line up the connector of HDD with SATA slot, then push it until HDD is fully connected into slot. Step 6. Secure the HDD bracket with three screws. Step 7. Put back the cover and fasten the two screws. CV-100/P2202 Series | User Manual...

  • Page 84: Installing A Sim Card

    3.12 Installing a SIM Card Step 1. Loosen the screw to remove the Maintenance cover bracket. Step 2. Locate the SIM card slot. Step 3. Insert the SIM card. CV-100/P2202 Series | User Manual...

  • Page 85: Installing Cfm Modules

    Locate the power Ignition connector on system motherboard as indicated. Step 2. Insert the female connector of power ignition board to the male connector on system motherboard. Step 3. Fasten two screws to secure the power ignition board. CV-100/P2202 Series | User Manual...

  • Page 86: Cfm-Poe04 Module

    (Avant de mettre le bloc thermique, veuillez vous assurer que le film protecteur sur le coussin thermique a été retiré!) Step 3. Paste the thermal pad onto the coil of the CFM-PoE module. Step 4. Locate the PoE connector on system motherboard as indicated. CV-100/P2202 Series | User Manual...
  • Page 87 Before assembling the system’s chassis cover, please make sure the protective films on the Thermal Pads have been removed! (Avant d'assembler le capot du châssis du système, assurez-vous que les films de protection sur les coussinets thermiques ont été retirés !) CV-100/P2202 Series | User Manual...

  • Page 88: Installing Mec Modules

    Locate one of the Mini PCIe sockets on the bottom side of the system. Step 3. Tilt the Mini PCIe card at a 45-degree angle and insert it to the socket until the golden finger connector of the card seated firmly. 45° CV-100/P2202 Series | User Manual...
  • Page 89 Press the card down and secure it with 2 screws. Step 5. Remove the 4 D-Sub jack screws from the COM ports. Step 6. Connect the other end of the wire to the Mini PCIe card as indicated. CV-100/P2202 Series | User Manual...
  • Page 90 Attach the COM ports onto the back side of the cover plates, and then fasten the 4 D-Sub jack screws to secure the COM ports. Step 8. Attach the MEC-COM bracket, and fasten the 2 screws to fix it as indicated. CV-100/P2202 Series | User Manual...

  • Page 91: Mec-Com-M334-Tdb9/Ub1203 Module

    Locate one of the Mini PCIe sockets on the bottom side of the system. Step 3. Tilt the Mini PCIe card at a 45-degree angle and insert it to the socket until the golden finger connector of the card seated firmly. 45° CV-100/P2202 Series | User Manual...
  • Page 92 Step 4. Press the card down and secure it with 2 screws. Step 5. Remove the 8 D-Sub jack screws from the COM ports. CV-100/P2202 Series | User Manual...
  • Page 93 Attach the COM ports onto the back side of the cover plates, and then fasten the 8 D-Sub jack screws to secure the COM ports. Step 8. Attach the MEC-COM bracket, and fasten the 4 screws to fix it as indicated. CV-100/P2202 Series | User Manual...

  • Page 94: Mec-Usb-M102-30/Ub1214 Module

    Locate one of the Mini PCIe sockets on the bottom side of the system. Step 3. Tilt the Mini PCIe card at a 45-degree angle and insert it to the socket until the golden finger connector of the card seated firmly. 45° CV-100/P2202 Series | User Manual...
  • Page 95 Press the card down and secure it with 2 screws. Step 5. Connect the attached wire to the USB board. Step 6. Connect the other end of the wire to the Mini PCIe card as indicated. CV-100/P2202 Series | User Manual...
  • Page 96 Attach the USB board onto the back side of the cover plate, and then fasten the two screws to secure the module. Step 8. Attach the MEC-USB bracket, and fasten the 2 screws to fix it as indicated. CV-100/P2202 Series | User Manual...

  • Page 97: Mec-Lan-M102-30/Ub1211 Module

    Locate one of the Mini PCIe sockets on the bottom side of the system. Step 3. Tilt the Mini PCIe card at a 45-degree angle and insert it to the socket until the golden finger connector of the card seated firmly. 45° CV-100/P2202 Series | User Manual...
  • Page 98 Step 4. Press the card down and secure it with 2 screws. Step 5. Connect the attached wires to the LAN board. Step 6. Connect the wires to the Mini PCIe card as indicated. CV-100/P2202 Series | User Manual...
  • Page 99 Attach the LAN board onto the back side of the cover plate, and then fasten the two screws to secure the module. Step 9. Attach the MEC-LAN bracket, and fasten the 2 screws to fix it as indicated. CV-100/P2202 Series | User Manual...

  • Page 100: Installing Panel Mount

    3.15 Installing Panel Mount 1. Accessories provided by Cincoze are as below. (Please note that the quantity of mounting kits varies with the size of the display module, please refer to the datasheet for the actual quantity) 2. All mounting kits displayed are to be inserted into holes.
  • Page 101 3. Installation preparation and steps. CV-100/P2202 Series | User Manual...
  • Page 102 CV-100/P2202 Series | User Manual...
  • Page 103 4. Apply all mount kits to the rest of holes. And you have completed the panel mount installation, as shown below. CV-100/P2202 Series | User Manual...

  • Page 104: Installing Vesa Mount

    The following picture uses a panel PC (P2202+ Display Module) as a demonstration. To attach the panel PC to a VESA stand, please fasten eight screws as indicated to fix it on the stand. Panel PC: P2202+ Display Module VESA Stand CV-100/P2202 Series | User Manual...

  • Page 105: Installing Rack Mount

    Assemble two rack mount brackets by fastening 4 screws (M5x6) at each side. For 8.4” ~ 17” Panel PC For P2002E For P2002 / P1001E For M1101/ P1001 / P1101 / P2102/ P2102E/P2202/P2202E Left Side Right Side Bottom Side CV-100/P2202 Series | User Manual...
  • Page 106 Right Side Bottom Side Step 3. Assemble two rack mount brackets by fastening 4 screws (M5x12), flat washers and hex nuts at each side. For 8.4” ~ 17” Panel PC For 19” ~ 24” Panel PC CV-100/P2202 Series | User Manual...

  • Page 107: Chapter 4 Bios Setup

    Chapter 4 BIOS Setup CV-100/P2202 Series | User Manual...

  • Page 108: Bios Introduction

    ( ↑↓ ) to highlight the field and press <Enter> to call up the sub-menu. Then you can use the control keys to enter values and move from field to field within a sub-menu. If you want to return to the main menu, just press the <Esc >. CV-100/P2202 Series | User Manual...

  • Page 109: Main Setup

    Use arrow keys to move among the items and press <Enter> to accept or enter a sub-menu. 4.2.1 System Date Set the date. Please use <Tab> to switch between date elements. 4.2.2 System Time Set the time. Please use <Tab> to switch between time elements. CV-100/P2202 Series | User Manual...

  • Page 110: Advanced Setup

    Allows you to choose the number of active performance cores. Configuration options: [All] [1] ◼ Active Efficient-cores [All] Allows you to choose the number of active efficient cores. Configuration options: [All] [1] [2] [3] [4] [5] [6] [7] CV-100/P2202 Series | User Manual...

  • Page 111: Sata Configuration

    This item allows users to choose [AHCI] mode. ◼ Serial ATA Port 0 Port 0 [Enabled] Enables or disables SATA Port 0. ◼ Serial ATA Port 1 Port 1 [Enabled] Enables or disables SATA Port 1. 4.3.3 PCH-FW Configuration CV-100/P2202 Series | User Manual...

  • Page 112: Trusted Computing

    ◼ SHA384 PCR Bank [Disabled] Enables or disables SHA384 PCR Bank function. ◼ SHA3_256 PCR Bank [Disabled] Enables or disables SHA3_256 PCR Bank function. ◼ Pending Operation [None] Allows users to select which mode Pending Operation will operate. CV-100/P2202 Series | User Manual...

  • Page 113: Acpi Settings

    Allows users to select the highest Advanced Configuration Power Interface® (ACPI) sleep state that system will enter when suspend button is pressed. [Suspend Disabled]: Disables entering suspend state. [S3 (suspend to RAM)]: Enables suspend to RAM state. CV-100/P2202 Series | User Manual...

  • Page 114: F81966 Super Io Configuration

    ◼ Onboard Serial Port 1 Mode [RS232] This item allows users to select Serial Port Mode. Configuration options: [RS232] [RS422/RS485 Full Duplex] [RS485 Half Duplex] ◼ Watch Dog [Disabled] Enables or disables watch dog function. CV-100/P2202 Series | User Manual...

  • Page 115: Hardware Monitor

    02) and plug the power cord of the internal smart fan into the power socket on the Riser Card to effectively enable this function. ❑ Internal Smart Fan Configuration Allows users to setting internal smart fan parameters. ◼ Smart Fan Mode [Auto] CV-100/P2202 Series | User Manual...

  • Page 116: S5 Rtc Wake Settings

    [Dynamic Time]: Set the increase time from current time to wake system. 4.3.9 Serial Port Console Redirection ◼ Console Redirection [Disabled] These items allow users to enable or disable COM0, COM1, COM2, Com3 console redirection function. CV-100/P2202 Series | User Manual...

  • Page 117: Usb Configuration

    This item allows users to enable or disable XHCI (USB3.2) hand-off function. ◼ USB Mass Storage Driver Support [Enabled] Enables or disables support for USB mass storage devices. 4.3.11 Network Stack Configuration ◼ Network Stack [Disabled] Enables or disables UEFI Network Stack. CV-100/P2202 Series | User Manual...

  • Page 118: Csm Configuration

    This item allows users to enable or disable UEFI Compatibility Support Module (CSM) to support a legacy PC boot process. 4.4 Chipset Setup This section allows you to configure chipset related settings according to user’s preference. CV-100/P2202 Series | User Manual...

  • Page 119: System Agent (Sa) Configuration

    4.4.1 System Agent (SA) Configuration ❑ Memory Configuration This item displays detailed memory information in the system. ◼ Max TOLUD [Dynamic] This item allows users to select maximum value of TOLUD. CV-100/P2202 Series | User Manual...
  • Page 120 BIOS. Configuration options: [Auto] [Disabled] [Enabled] ❑ VMD Setup Menu ◼ Enable VMD controller [Disabled] This item allows users to enable or disable VMD controller. Enable this function can support creating RAID. CV-100/P2202 Series | User Manual...
  • Page 121 PCIe Speed [Auto] Allows you to select PCI Express interface speed. Configuration options: [Auto] [Gen1] [Gen2] [Gen3] [Gen4]. ❑ VT-d [Enabled] This item allows users to enable or disable Intel® Virtualization Technology for Directed I/O (VT-d) function. CV-100/P2202 Series | User Manual...

  • Page 122: Pch-Io Configuration

    Configuration options: [Auto] [Gen1] [Gen2] [Gen3]. ❑ PCI Express Root Port(CN3) ◼ PCI Express Root Port [Enabled] Allows you to enable or disable the PCI Express Port. ◼ PCIe Speed [Auto] Allows you to select PCI Express interface speed. CV-100/P2202 Series | User Manual...
  • Page 123 Enables or disables integrated LAN i210 Wake On LAN function. ◼ CN5 Function Switch [Mini-PCIe] Select Mini-PCIe/USB3.0 for CN5 connector. ◼ CN4 Function Switch [Wifi] Select CNV/Wifi(PCIE) for CN4 connector. ◼ Audio Amplifier [Enabled] Enable or disable Audio Amplifier. CV-100/P2202 Series | User Manual...

  • Page 124: Security Setup

    This section allows users to configure BIOS security settings. 4.5.1 Administrator Password Administrator Password controls access to the BIOS Setup utility. 4.5.2 User Password User Password controls access to the system at boot and to the BIOS Setup utility. CV-100/P2202 Series | User Manual...

  • Page 125: Boot Setup

    4.6 Boot Setup This section allows you to configure Boot settings. 4.6.1 Setup Prompt Timeout [1] Use this item to set number of seconds (1..65535) to wait for setup activation key. 4.6.2 Bootup NumLock State [Off] CV-100/P2202 Series | User Manual...

  • Page 126: Save & Exit

    4.7.8 Save as User Defaults This item allows you to save the changes done so far as user defaults. 4.7.9 Restore User Defaults This item allows you to restore the user defaults to all the options. CV-100/P2202 Series | User Manual...

  • Page 127: Mebx

    This page is for ME function setting. Press the delete key to enter the BIOS menu then user can see the following MEBx page. Press enter key to enter the default password "admin" to enter the next step for password creation. CV-100/P2202 Series | User Manual...
  • Page 128 Create a new password using 8 characters including uppercase and lowercase letters, numbers and special symbols. Enter the created password again for confirmation. CV-100/P2202 Series | User Manual...
  • Page 129 Then you can see the function setting page of MEBx. CV-100/P2202 Series | User Manual...

  • Page 130: Chapter 5 Product Application

    Chapter 5 Product Application CV-100/P2202 Series | User Manual...

  • Page 131: Where To Download Drivers

    5.1 Where to download drivers? Please go to the CINCOZE website to download the drivers for P2202 series. 5.2 Where to find the technical documents? Please go to the CINCOZE website to find the technical documents for P2202 series. Catalog...
  • Page 132 © 2023 Cincoze Co., Ltd. All rights reserved. The Cincoze logo is a registered trademark of Cincoze Co., Ltd. All other logos appearing in this catalog are the intellectual property of the respective company, product, or organization associated with the logo.

This manual is also suitable for:

Cv-112h/p2202 seriesCv-115/p2202 seriesCv-w115/p2202 seriesCv-117/p2202 seriesCv-w121/p2202 seriesCv-w124/p2202 series ... Show all

Table of Contents
