A junction box innovation

Advertisement

Quick Links

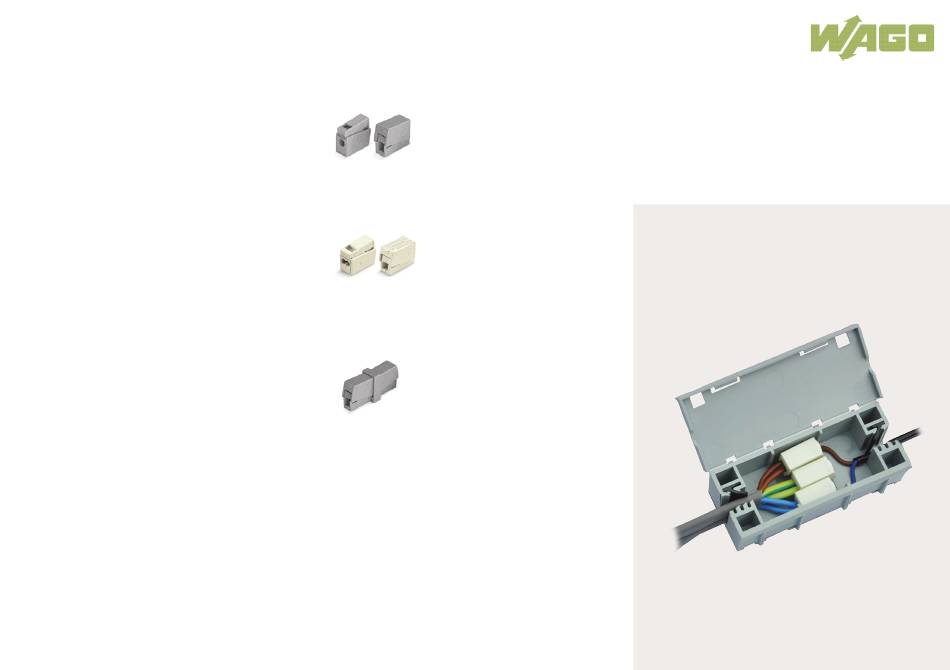

WAGOBOX Light
Part No. 51257303
(Pack of 10)
A multipurpose electrical junction enclosure that has
been designed for use with the 224 Series
connectors. The WAGOBOX Light is easy to use and
quick to fit.
Fast
Installing a WAGOBOX Light can take as little as
25% of the time it takes to install a screw terminal
style junction box.
Cables are cut to size and connected outside the
WAGOBOX Light.
No awkward connections in small spaces.
Easy to use
No screws or fiddly clamp bars.
Cables slot into position and are secured in seconds.
Uses simple to fit 224 Series lighting connector.
Compact
Dimensions: 39mm x 29mm x 95mm.
Supports up to 3 cables.
Fits through a 49mm diameter spotlight hole.
Configurable
The integrated cable clamp can secure flex, 6242Y
and 6243Y cables from 0.5 - 2.5mm2 twin and earth.
Robust cable grippers that can be configured in
seconds to grip cables up to 8mm in diameter.
Use with 224-101 and 224-112 lighting connectors
to suit the job.
Professional
Complies with BS EN 60670-22.
Meets all the requirements of the 17th Edition of
BS 7671.
WAGO Connectors
224 Series Lighting Connectors
224-101 / 2-con
Installation side:- 1 - 2.5mm2 "s"
Lighting side:- 0.5 - 2.5mm2 "s" / "f-st"
400V/4kV/2
- 24A
1
224-112 / 3-con
Installation side:- 1 - 2.5mm2 "s"
Lighting side:- 0.5 - 2.5mm2 "s" / "f-st"
400V/4kV/2
- 24A
1
224-201 / 2-con
0.5 - 2.5mm2 "s" / "f-st"
400V/4kV/2
- 24A
1
"s" solid "f-st" fine stranded
 In grounded (earthed) supply systems
1
WAGO Limited
Triton Park, Swift Valley Industrial Estate
Rugby, Warwickshire, CV21 1SG
Tel: 01788 568 008 Fax: 01788 568 050 
uksales@wago.com
www.wago.com/gb
WAGO is a registered trademark of WAGO Verwaltungsgesellschaft mbH.
WAGOBOX Light
A Junction Box Innovation
