Horizontal lifeline system

Advertisement

This manual is intended to meet the Manufacturer's Instructions requirement of applicable standards defined in
Section 1.2 and should be used as part of an employee training program as required by the identified agencies.
WARNING: This product is part of a fall protection system. Users must read and follow the manufacturer's
instructions for each component or part of the complete system. These instructions must be provided to the
user of this equipment. The user must read and understand these instructions or have them explained to them
before using this equipment. Manufacturer's instructions must be followed for proper use and maintenance of
this product. Alterations or misuse of this product or failure to follow instructions may result in serious injury or
death.
IMPORTANT: If you have questions on the use, care, or suitability of this equipment for your application,
contact 3M Fall Protection.
IMPORTANT: Record the product identification information from the ID label in the Inspection and Maintenance
Log in Section 9 of this manual.
DESCRIPTION:
The SecuraSpan I-Beam Stanchion is used as the end and intermediate Stanchions for Horizontal Lifeline (HLLs)
mounted on steel I-beams. SecuraSpan HLL systems can be comprised of a single Lifeline span or multiple
Lifeline spans. Figure 1 illustrates typical SecuraSpan Steel Beam HLL systems and key components.
A
End Stanchion
B
Intermmediate
Stanchion
C
Wire Rope
Assembly
D Zorbit™ Energy
Abosrber
E
iRFID Tag
F
I-Beam
Form: 5903032 Rev: E
USER INSTRUCTION MANUAl
HORIzONTAl lIfElINE SySTEM

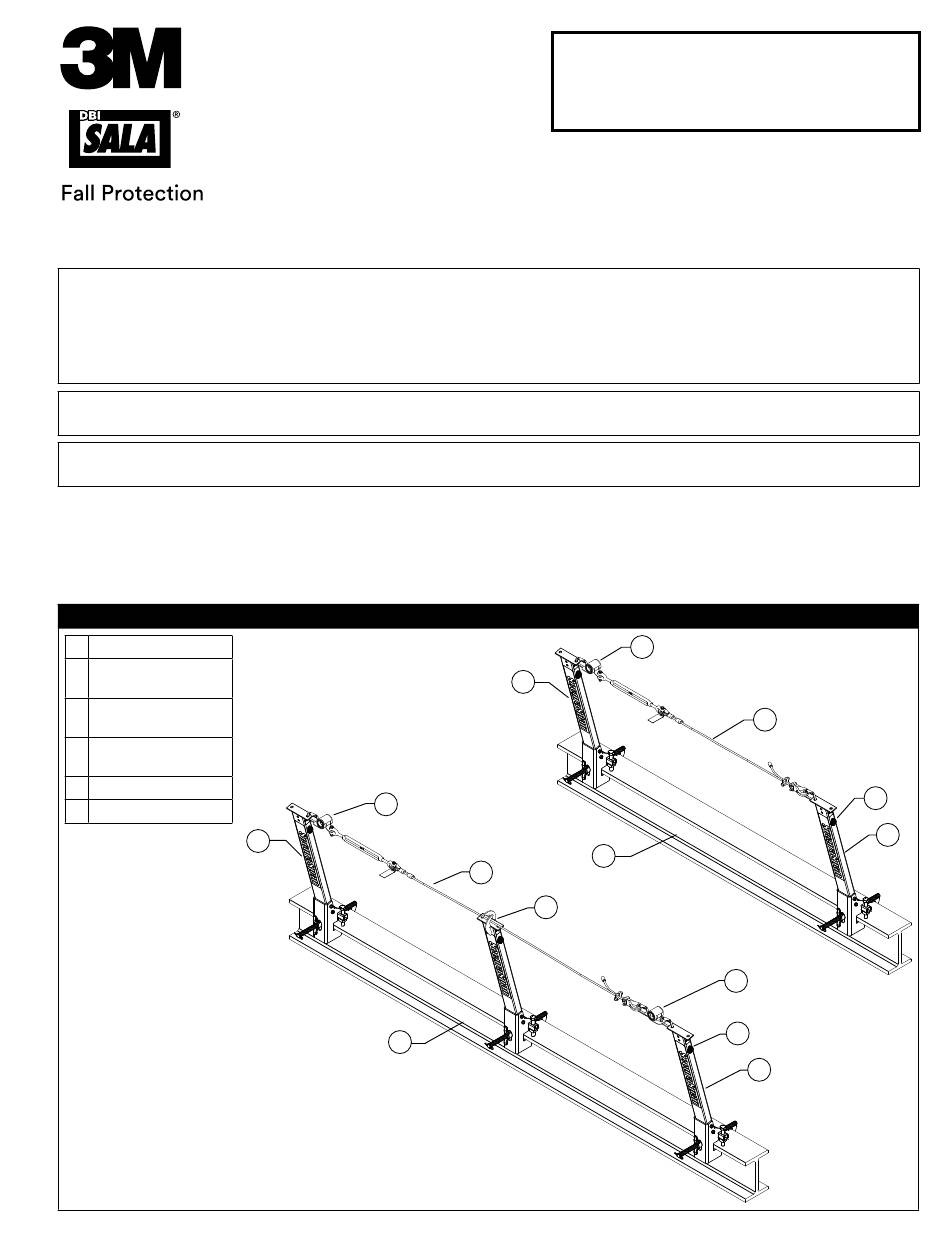

Figure 1 - SecuraSpan
D
A
F
Model Numbers: (See inside back cover.)
I-Beam Horizontal Lifeline Systems
®
A
F
C
B
SecuraSpan™
Horizontal Lifeline System
I-Beam Stanchion
D
C
D
E
A
E
A
