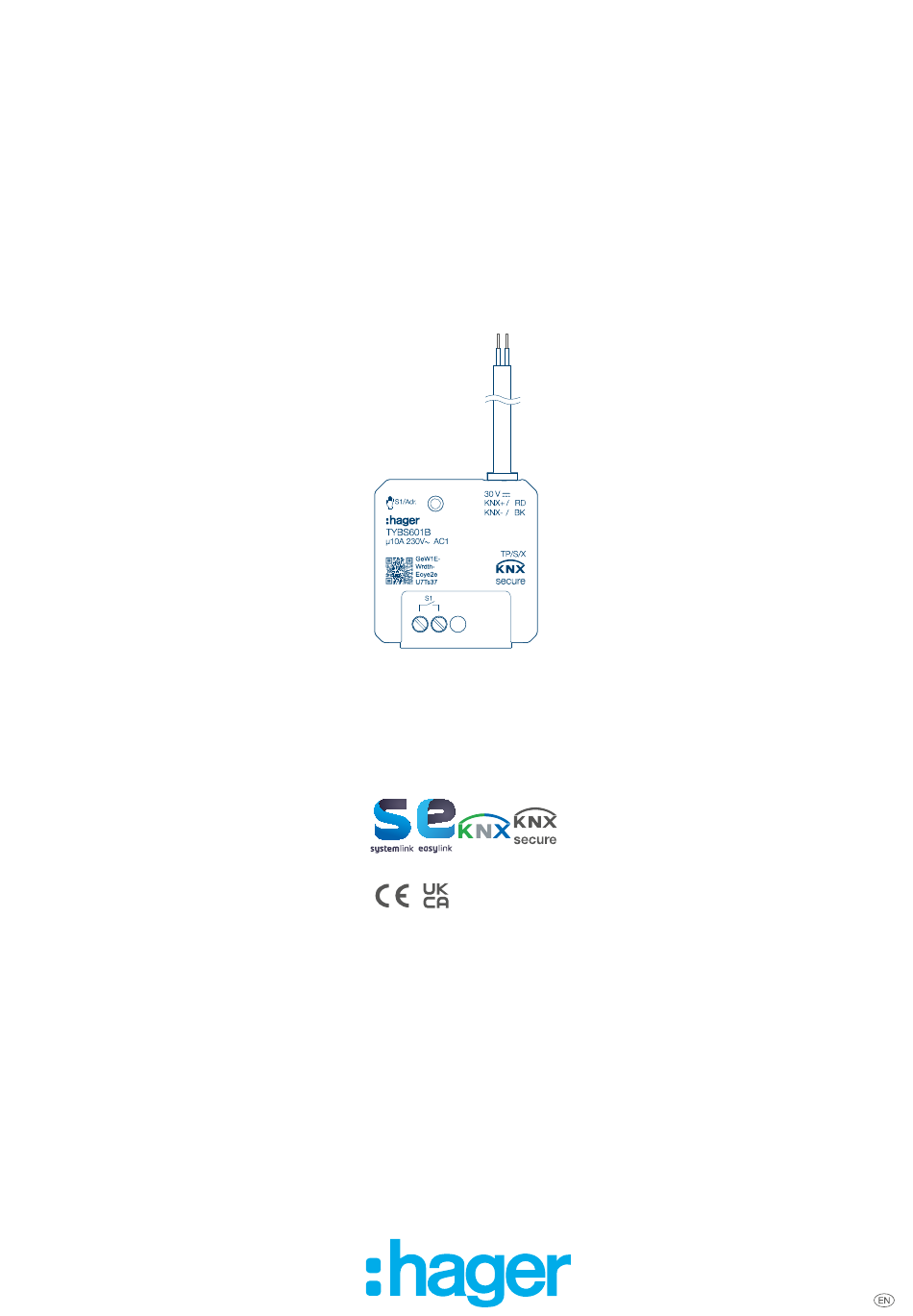

- Page 1 Operating and assembly instructions KNX building manage- ment system KNX switching actuator KNX Secure switching actuator 1-fold, 10 A, flush-mounted TYBS601B...
-
Page 2: Table Of Contents
Contents Contents Contents............... 2 Introduction..............3 Safety instructions............5 Scope of delivery............6 Design and layout of the device........ 8 Function................ 9 KNX system information......................9 KNX systemlink system information.................. 9 KNX easylink system information..................9 Functional description......................9 Information for qualified electricians.......11 Installation and electrical connection................ -
Page 3: Introduction
KNX-certified Supports KNX Data Secure Compatibilität with Compatibility with KNX S-mode (ETS≥ 5.6.x) Hager easyTool Suitable for use in Aus- Suitable for use in China Suitable for use in Morocco tralia and New Zealand Manufacturer’s information is in accordance with § 18... - Page 4 Introduction Symbol Warning word Consequence of non-observance Danger Leads to serious injuries or death. Warning Can lead to serious injuries or death. Caution Can lead to minor injuries. Caution Can lead to device damage. Note Can lead to physical damage. Symbol Description Warning against electric shock.
-
Page 5: Safety Instructions
Safety instructions Safety instructions Electrical devices must only be installed and assembled by a qualified electrician in accordance with the relevant installation standards, guidelines, regulations, directives, safety and accident prevention directives of the country. Hazard due to electric shock. Disconnect before working on the device or load. Take into ac- count all circuit breakers that supply dangerous voltages to the device or load. -
Page 6: Scope Of Delivery
Scope of delivery Scope of delivery https://hgr.io/r/TYBS601B Fig. 1: Scope of delivery TYBS601B... - Page 7 Design and layout of the device...
-
Page 8: Design And Layout Of The Device
Design and layout of the device Design and layout of the device Fig. 2: Design and layout of the device TYBS601B Illuminated button for manual operation/programming button Connection of load(s) KNX bus connection cable... -
Page 9: Function
Function KNX system information Function KNX system information System information This device is a product of the KNX system and corresponds to the KNX guidelines. Detailed spe- cialised knowledge obtained from KNX training courses is required for understanding. The device is KNX Data Secure-compatible. KNX Data Secure can be configured in the ETS project and offers protection against manipulation in building automation. - Page 10 Function Logic properties – Logic gate – Converter (conversion) – Blocking element – Comparator...
-
Page 11: Information For Qualified Electricians
Information for qualified electricians Installation and electrical connection Information for qualified electricians Installation and electrical connection Danger Electric shock when live parts are touched! An electric shock can lead to death! Isolate all connection cables before working on the device and cover any live parts in the area! Connection and installation of the device Caution... -
Page 12: Commissioning
Information for qualified electricians Commissioning 10 A Fig. 3: Connection diagram TYBS601B Install a miniature circuit breaker of max. 10 A for device protection. Connect the device according to the connection diagram (Fig. Place device in the installation box. Fig. 4: Mounting in electronics box... - Page 13 Information for qualified electricians Commissioning systemlink – loading the physical address and application software Attention Risk of destruction of the device when contacts are closed at the same time when deliv- ered. The installed relays are sensitive to shoks. Failure to comply may result in damage to the product and the connected motors. After switching on the bus voltage, wait 5 seconds before starting to program the de- vice.
- Page 14 Information for qualified electricians Commissioning Fig. 7: Entering the QR code manually Fig. 5: Removing the de- Fig. 6: Scanning the QR code vice certificate from the de- vice (similar to illustration) Document all passwords and keep them in a safe place. Remove the device certificate (QR code) from the device and store it with the passwords.
-
Page 15: Commissioning The Device
The functionality of the outputs is tested and displayed via the status LED of the manual operation button/ programming button (see Fig. 2/1). LED status Meaning of the signal LED lights up permanently Load is activated LED flashes No load connected Table 2: Functionality of the outputs TYBS601B >5s >5s Fig. 10: Functional test... -
Page 16: Dismantling The Device
Information for qualified electricians Dismantling the device Dismantling the device All the cables delivering voltage to the device are switched off. Pull device out of wall box. Disconnect the bus connection cable. Disconnect the load lines. Dispose of the device in line with the corresponding guidelines of the respective country (see Disposal note ) or, if you have a warranty claim, contact the point of sale (see Warranty... -
Page 17: Appendix
Appendix Technical data Appendix Technical data KNX Medium TP1 - 256 Configuration mode S-Mode, E-Controller KNX supply voltage 21 ... 32 V SELV KNX current consumption Type 5 mA Minimum switching current 230 V AC 10 mA Breaking capacity 10 A AC1 230 V~ KNX connection mode KNX connecting terminal Operating height... -
Page 18: Disposal Note
Appendix Disposal note Disposal note Disposal note Correct disposal of this product (electrical waste). (Applicable in the European Union and other European countries with separate collection systems). This marking shown on the product or its documentation indicates that it should not be disposed of with other household waste at the end of its working life. - Page 19 Hager Controls BP10140 67703 Saverne Cedex France +33 (0) 3 88 02 87 00 info@hager.com hager.com 2025-04...
